1330 SB XLS (961930031-00) - Husqvarna 30" Snow Blower (2008-08) Discharge Chute Parts Diagram

30" Snow Blower

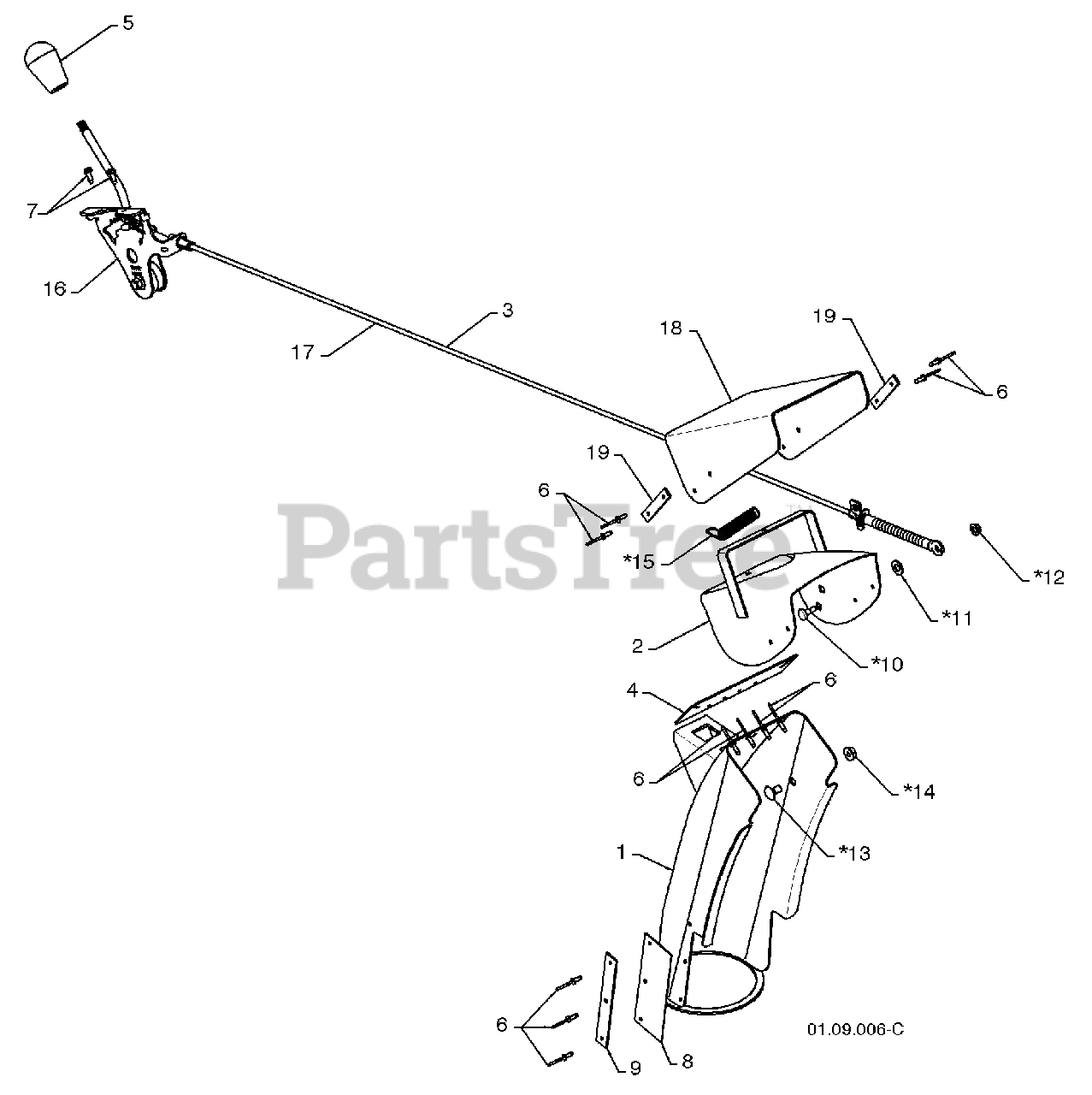

Discharge Chute Parts Diagram

  • Title

1

Husqvarna 532421714

CHUTE WELDMENT
(Superseded to 588077802)

$120.99

$

In Stock, only 2 left!

0

2

Husqvarna 532184113

DEFLECTOR WELDMENT
(Superseded to 588077802)

$120.99

$

In Stock, only 2 left!

0

3

Husqvarna 532421163

DEFLECTOR CONTROL ASSEMBLY

$109.99

$

Usually ships in 3-10 days

0

4

Husqvarna 532420325

DEFLECTOR SEAL

$7.49

$

Usually ships in 3-10 days

0

5

Husqvarna 532414280

KNOB BLACK

$7.99

$

Usually ships in 3-10 days

0

6

Husqvarna 532128415

POP RIVET

$4.99

$

Usually ships in 3-10 days

0

7

Husqvarna 817501010

SCREW 10-24 X .625

$

$

Not available

8

Husqvarna 532419821

CHUTE SNOW SHIELD

$7.49

$

Usually ships in 3-10 days

0

9

Husqvarna 532421728

SHIELD RETAINER STRAP

$14.99

$

Usually ships in 3-10 days

0

10

Husqvarna 532179829

SHOULDER BOLT 1/4-20 X .375

Note: SERVICE PARTS ONLY.

$6.49

$

In Stock, Qty 11

0

11

Husqvarna 532179246

PLASTIC WASHER

Note: SERVICE PARTS ONLY.

$7.49

$

In Stock, Qty 12

0

12

Husqvarna 532191730

NUT 1/4-20

Note: SERVICE PARTS ONLY.

$7.49

$

In Stock, Qty 5

0

13

Husqvarna 872250505

CARRIAGE BOLT 3/8-16 X .625
(Superseded to 872140505)

Note: SERVICE PARTS ONLY.

$3.99

$

In Stock, Qty 20+

0

14

Husqvarna 532751153

NUT 5/16-18

Note: SERVICE PARTS ONLY.

$4.99

$

In Stock, only 1 left!

0

15

Husqvarna 532184505

DEFLECTOR SPRING

Note: SERVICE PARTS ONLY.

$7.99

$

In Stock, Qty 13

0

16

Husqvarna 532420679

(SERVICE PART) DEFLECTOR CONTROL
(Superseded to 587030801)

$80.99

$

In Stock, Qty 5

0

17

Husqvarna 532421164

(SERVICE PART) DEFLECTOR CABLE GRAY
(Superseded to 585271601)

$40.99

$

Usually ships in 3-10 days

0

18

Husqvarna 532421138

DEFLECTOR SHIELD

$53.99

$

In Stock, only 1 left!

0

19

Husqvarna 532421139

DEFLECTOR SHIELD STRAP
(Superseded to 532435831)

$6.49

$

Usually ships in 3-10 days

0
