1330 (132-233F100) - Cub Cadet Garden Tractor (SN: 207401 - 239300) Hood & Grille Parts Diagram

Garden Tractor

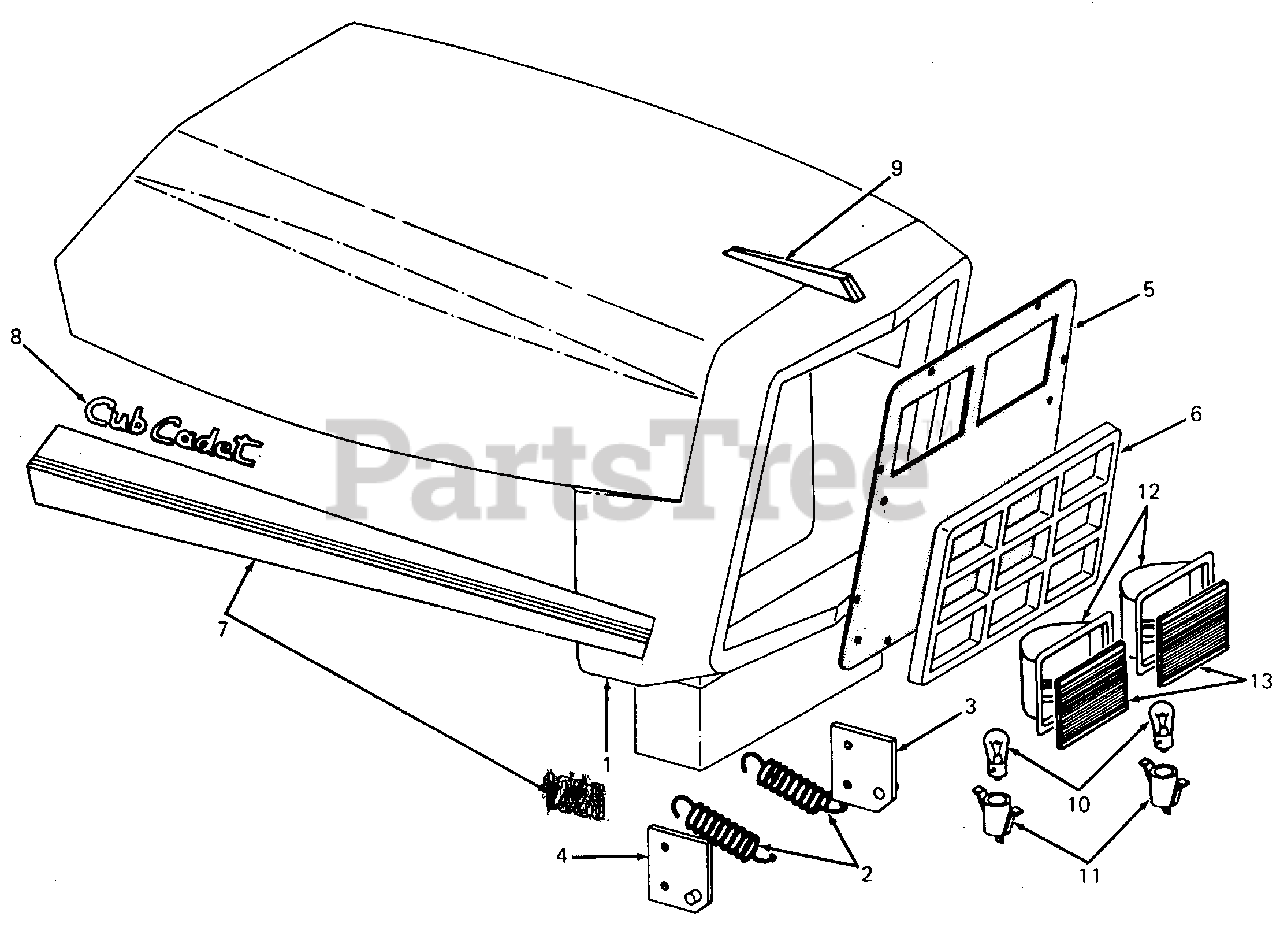

Hood & Grille Parts Diagram

  • Title

1

Cub Cadet 759-3234

Hood & Grille Assy

Note: (Includes Ref No. 9)

$

$

Not available

2

Cub Cadet 732-3048

Spring, Extension

$

$

Not available

3

Cub Cadet 703-1215

Plate, Hood LH

$

$

Not available

Cub Cadet 710-3008

Bolt, 3/8 X 3/4 GR5

$4.49

$

In Stock, Qty 20+

0

4

Cub Cadet 703-1216

Plate, Hood RH

$

$

Not available

Cub Cadet 710-3008

Bolt, 3/8 X 3/4 GR5

$4.49

$

In Stock, Qty 20+

0

5

Cub Cadet 703-1159

Screen, Grille
(Superseded to 703-1159-0637)

Variations

Cub Cadet 703-1159-0637

SCREEN-GRILLE - POWDER BLACK (0637)

$

$

Not available

$

$

Cub Cadet 710-0227

Screw, No. 8 X 1/2 Hex- Washer-Hd Tap

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 731-3051

Insert, Grille

$

$

Currently unavailable

Cub Cadet 726-3040

Nut, No. 10 C-Z Stamped

$4.49

$

In Stock, only 2 left!

0

7

Cub Cadet 759-3623

Graphic, Hood Decal Set

$

$

Currently unavailable

8

Cub Cadet 779-3536

Graphic, Cub Cadet Script w/Studs
(Superseded to 979-3536)

$15.99

$

In Stock, Qty 7

0

Cub Cadet 726-3047

Retainer, Push Nut
(Superseded to 926-3047)

$4.49

$

In Stock, only 4 left!

0

9

Cub Cadet 731-3059

Ornament, Hood

Note: (Included w/Ref No. 1)

$

$

Currently unavailable

10

Cub Cadet 725-1629

Bulb, 12V GE-1141
(Superseded to 925-1629)

$11.99

$

In Stock, Qty 13

0

11

Cub Cadet 725-1058A

Socket, Twist Lock Lamp
(Superseded to 925-1058A)

$

$

Not available

12

Cub Cadet 731-0705

Housing, Headlight
(Superseded to 931-0705)

$

$

Not available

13

Cub Cadet 731-0706

Lens, Sq-Headlight
(Superseded to 931-0706)

$

$

Not available
