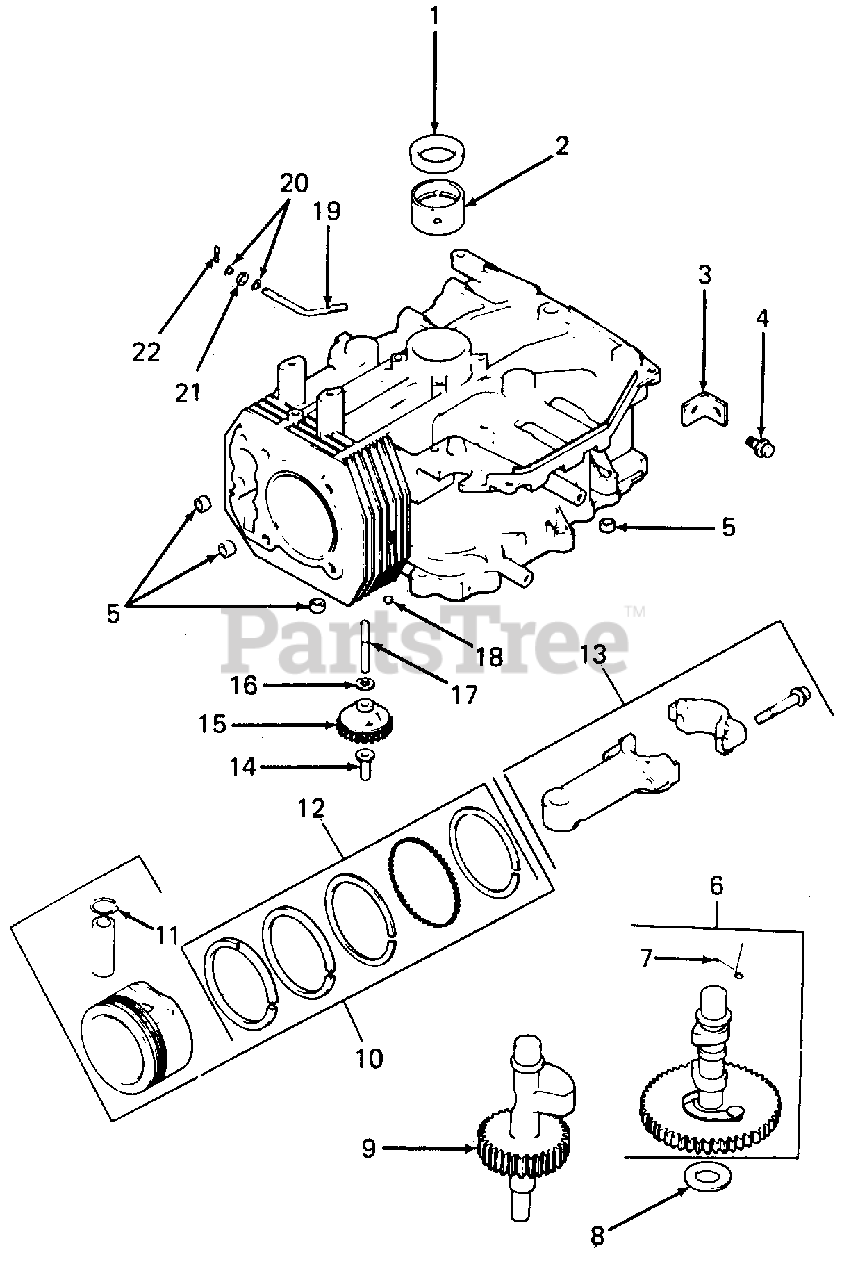

1330 (132-233F100) - Cub Cadet Garden Tractor (SN: 207401 - 239300) Crankcase Parts Diagram

Garden Tractor

Crankcase Parts Diagram

  • Title

Cub Cadet KH-1211

Crankcase Assy

Note: (12.5 HP Kohler Engine)

$

$

Currently unavailable

Cub Cadet 710-3206A

Screw, Hex Cap, M8 X 1.25 X 25 mm Lg

$3.99

$

In Stock, Qty 13

0

Cub Cadet 710-3207

Screw, Hex Cap, M8 X 1.25 X 35 mm Lg

$

$

Not available

Cub Cadet 736-0119

Washer, Lock, 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

Cub Cadet KH-12-522-01

Short Block
(Superseded to KH-12-522-21)

$

$

Not available

1

Cub Cadet KH-12-032-03

Seal, Crankshaft
(Superseded to KH-12-032-03-S)

$10.99

$

Usually ships in 3-6 days

0

2

Cub Cadet KH-12-030-01

Bearing, Crankshaft, Std

Note: (Flywheel End)

$

$

Not available

Cub Cadet KH-12-030-02

Bearing, Crankshaft, .25

$

$

Not available

Cub Cadet KH-12-030-03

Bearing, Crankshaft, .50

$

$

Not available

3

Cub Cadet KH-12-445-02

Strap, Lifting

$

$

Not available

4

Cub Cadet KH-SM-0839025

Screw, Lifting Strap, M8 X 1.25 X 25.5

$1.49

$

Usually ships in 2-5 days

0

5

Cub Cadet KH-12-380-03

Dowel, Locating
(Superseded to KH-24-380-16-S)

$4.49

$

In Stock, only 3 left!

0

6

Cub Cadet KH-12-010-01

Camshaft Assy
(Superseded to KH-12-755-49-S)

Note: (Includes Ref No. 7)

$209.99

$

Usually ships in 2-5 days

0

7

Cub Cadet KH-12-089-05

Spring, Actuating
(Superseded to KH-12-089-37-S)

$2.99

$

In Stock, only 1 left!

0

8

Cub Cadet KH-12-422-07

Shim, Camshaft
(Superseded to KH-12-422-07-S)

$4.49

$

Usually ships in 2-5 days

0

Cub Cadet KH-12-422-08

Shim, Camshaft, .0300
(Superseded to KH-12-422-08-S)

$2.49

$

In Stock, only 2 left!

0

Cub Cadet KH-12-422-09

Shim, Camshaft, .0320
(Superseded to KH-12-422-09-S)

$2.49

$

In Stock, only 1 left!

0

Cub Cadet KH-12-422-10

Shim, Camshaft, .0340
(Superseded to KH-12-422-10-S)

$2.49

$

In Stock, only 1 left!

0

Cub Cadet KH-12-422-11

Shim, Camshaft, .0360
(Superseded to KH-12-422-11-S)

$2.49

$

Usually ships in 2-5 days

0

Cub Cadet KH-12-422-12

Shim, Camshaft, .0380
(Superseded to KH-12-422-12-S)

$2.99

$

Usually ships in 2-5 days

0

Cub Cadet KH-12-422-13

Shim, Camshaft, .0400
(Superseded to KH-12-422-13-S)

$2.99

$

Usually ships in 2-5 days

0

9

Cub Cadet KH-12-144-04

Shaft, Balance

$

$

Not available

10

Cub Cadet KH-12-874-01

Piston w/Ring Set, Std

Note: [Includes Ref No. 11 (Qty 2)]

$

$

Not available

Cub Cadet KH-12-874-02

Piston w/Ring Set, .25

$

$

Not available

Cub Cadet KH-12-874-03

Piston w/Ring Set, .50

$

$

Not available

11

Cub Cadet KH-12-018-02

Retainer, Piston Pin

$

$

Not available

12

Cub Cadet KH-12-108-01

Ring Set, Std

$

$

Not available

Cub Cadet KH-12-108-02

Ring Set, .25
(Superseded to KH-24-108-24-S)

$

$

Not available

Cub Cadet KH-12-108-03

Ring Set, .50

$

$

Not available

13

Cub Cadet KH-12-067-01

Connecting Rod, Std
(Superseded to KH-12-067-05)

$

$

Not available

Cub Cadet KH-12-067-02

Connecting Rod, .25
(Superseded to KH-12-067-06)

$

$

Not available

14

Cub Cadet KH-12-380-01

Pin, Governor Regulating

$

$

Not available

15

Cub Cadet KH-12-043-05

Gear, Governor

$

$

Not available

16

Cub Cadet KH-SM-0631005

Washer, Governor Gear Thrust
(Superseded to KH-M-631005)

$

$

Not available

17

Cub Cadet KH-12-144-02

Shaft, Governor Gear

$

$

Not available

18

Cub Cadet KH-52-139-09

Plug, Cup
(Superseded to KH-52-139-09-S)

$4.99

$

In Stock, only 2 left!

0

19

Cub Cadet KH-12-144-01

Shaft, Governor Cross
(Superseded to KH-12-755-64)

$

$

Not available

20

Cub Cadet KH-SM-0631015

Washer, Governor Shaft

$

$

Not available

21

Cub Cadet KH-12-032-01

Seal, Governor Cross Shaft

$

$

Not available

22

Cub Cadet KH-12-380-04

Pin, Governor Hitch

$

$

Not available

Cub Cadet KH-12-755-01

Gasket Set
(Superseded to KH-12-755-93-S)

$89.99

$

Usually ships in 2-5 days

0
