1330 (132-233F100) - Cub Cadet Garden Tractor (SN: 207401 - 239300) Blower Housing & Baffles Parts Diagram

Garden Tractor

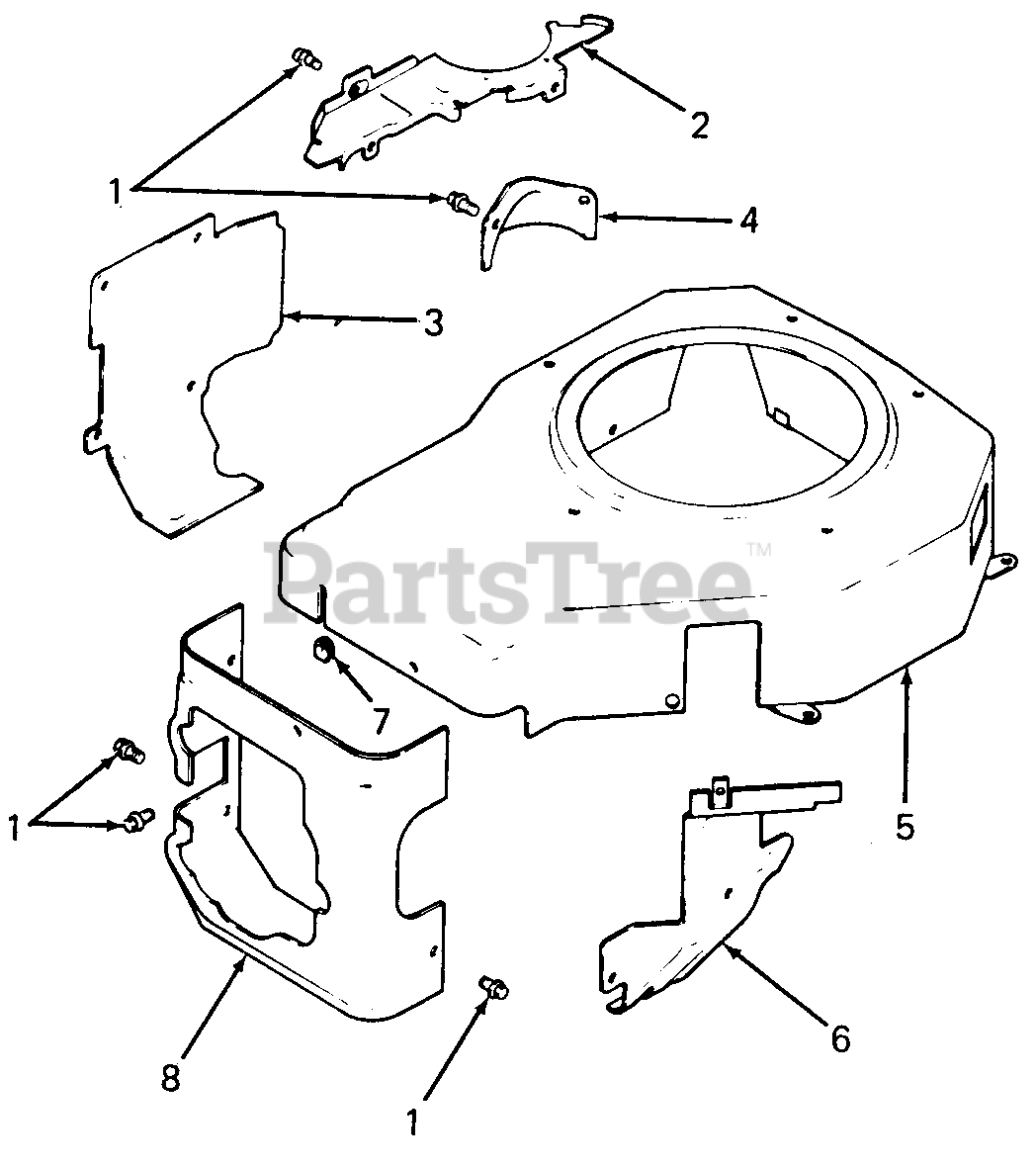

Blower Housing & Baffles Parts Diagram

  • Title
1

Cub Cadet KH-SM-0545010

Screw, Mounting, M5 X 0.8 X 10
(Superseded to KH-M-0545010)

$

$

Not available

2

Cub Cadet KH-12-146-01

Plate, Blower Housing
(Superseded to KH-12-146-07)

$

$

Not available

3

Cub Cadet KH-12-063-01

Baffle, Cylinder Barrel
(Superseded to KH-12-063-19-S)

$

$

Not available

4

Cub Cadet KH-12-096-01

Cover, Starter

$

$

Not available

5

Cub Cadet KH-12-027-01

Housing, Blower

$

$

Not available

6

Cub Cadet KH-12-063-02

Baffle, Carburetor

$

$

Not available

7

Cub Cadet KH-12-313-03

Grommet, Blower Housing

$

$

Not available

8

Cub Cadet KH-12-063-03

Baffle, Cylinder Head
(Superseded to KH-12-063-08)

$

$

Not available

Cub Cadet KH-12-113-02

Decal, Horsepower

$

$

Not available
