133 R - Husqvarna Brush Cutter (2006-01) CARBURETOR DETAILS Parts Diagram

Brush Cutter

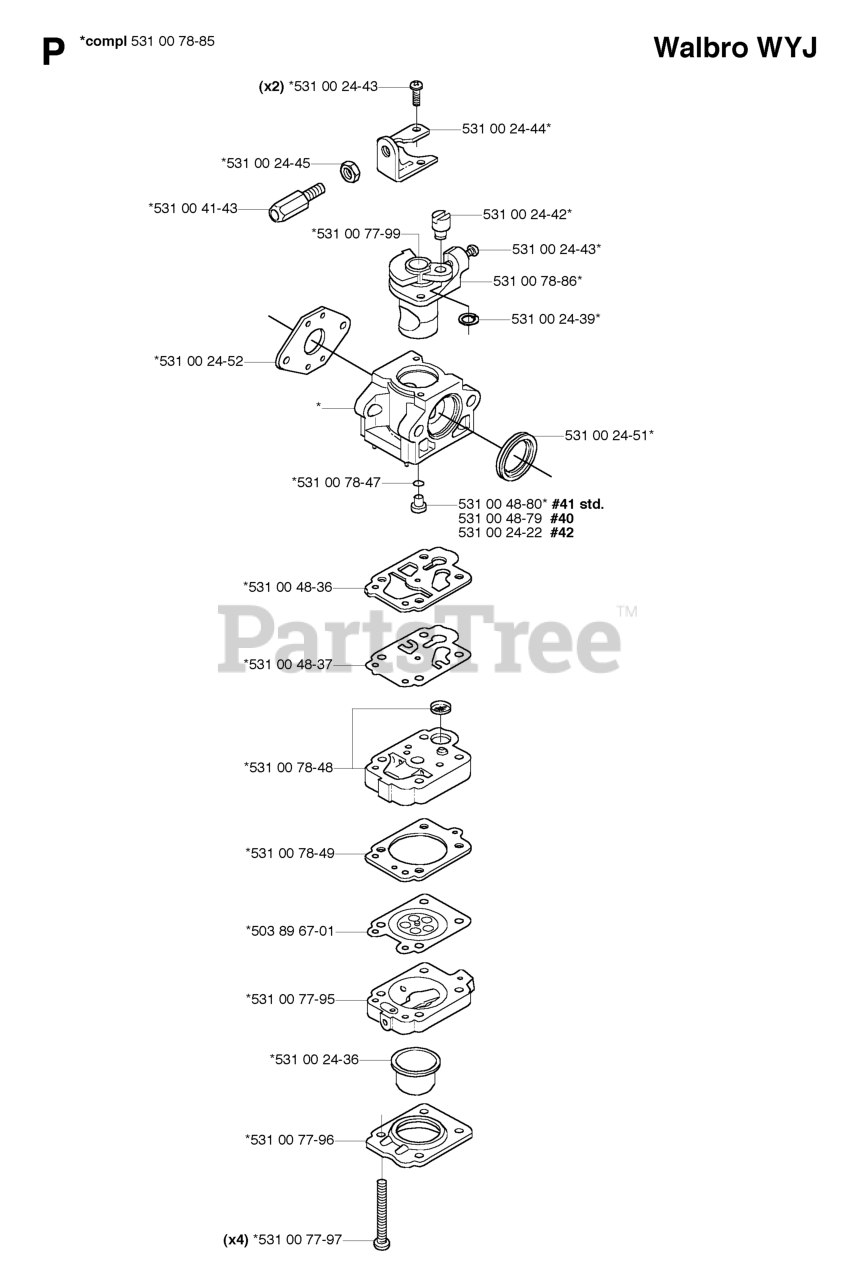

CARBURETOR DETAILS Parts Diagram

  • Title

531 00 78-49

Husqvarna 531007849

$

$

Not available

531 00 48-79

Husqvarna 531004879

Note: #40

$

$

Not available

531 00 48-36

Husqvarna 531004836

GASKET
(Superseded to 501363765)

$1.49

$

In Stock, Qty 6

0

531 00 77-95

Husqvarna 531007795

HOUSING

$

$

Not available

531 00 24-42

Husqvarna 531002442

CONNECTION

$3.99

$

Usually ships in 3-10 days

0

531 00 24-22

Husqvarna 531002422

JET

Note: #42

$9.49

$

Usually ships in 3-10 days

0

531 00 48-37

Husqvarna 531004837

%GASKET
(Superseded to 501363766)

$

$

Not available

531 00 24-51

Husqvarna 531002451

GASKET

$3.49

$

Usually ships in 3-10 days

0

531 00 77-97

Husqvarna 531007797

SCREW

$

$

Not available

531 00 24-43

Husqvarna 531002443

SCREW

$

$

Not available

531 00 78-85

Husqvarna 531007885

CARBURETOR WYJ286

$121.99

$

Usually ships in 3-10 days

0

531 00 77-96

Husqvarna 531007796

PUMP COVER

$

$

Not available

503 89 67-01

Husqvarna 503896701

DIAPHRAGM

$51.99

$

In Stock, Qty 10

0

531 00 48-80

Husqvarna 531004880

Note: #41 STD.

$

$

Not available

531 00 24-43

Husqvarna 531002443

SCREW

$

$

Not available

531 00 24-45

Husqvarna 531002445

NUT

$5.99

$

Usually ships in 3-10 days

0

531 00 78-86

Husqvarna 531007886

NEEDS DESCRIPTION

$

$

Not available

531 00 78-47

Husqvarna 531007847

$

$

Not available

531 00 77-99

Husqvarna 531007799

$

$

Not available

531 00 24-39

Husqvarna 531002439

RETAINING RING

$7.49

$

Usually ships in 3-10 days

0

531 00 78-48

Husqvarna 531007848

$

$

Not available

531 00 24-36

Husqvarna 531002436

PRIMER

$

$

Not available

531 00 24-44

Husqvarna 531002444

Bracket

$

$

Not available

531 00 24-52

Husqvarna 531002452

GASKET

$6.99

$

In Stock, only 1 left!

0

531 00 41-43

Husqvarna 531004143

$

$

Not available
