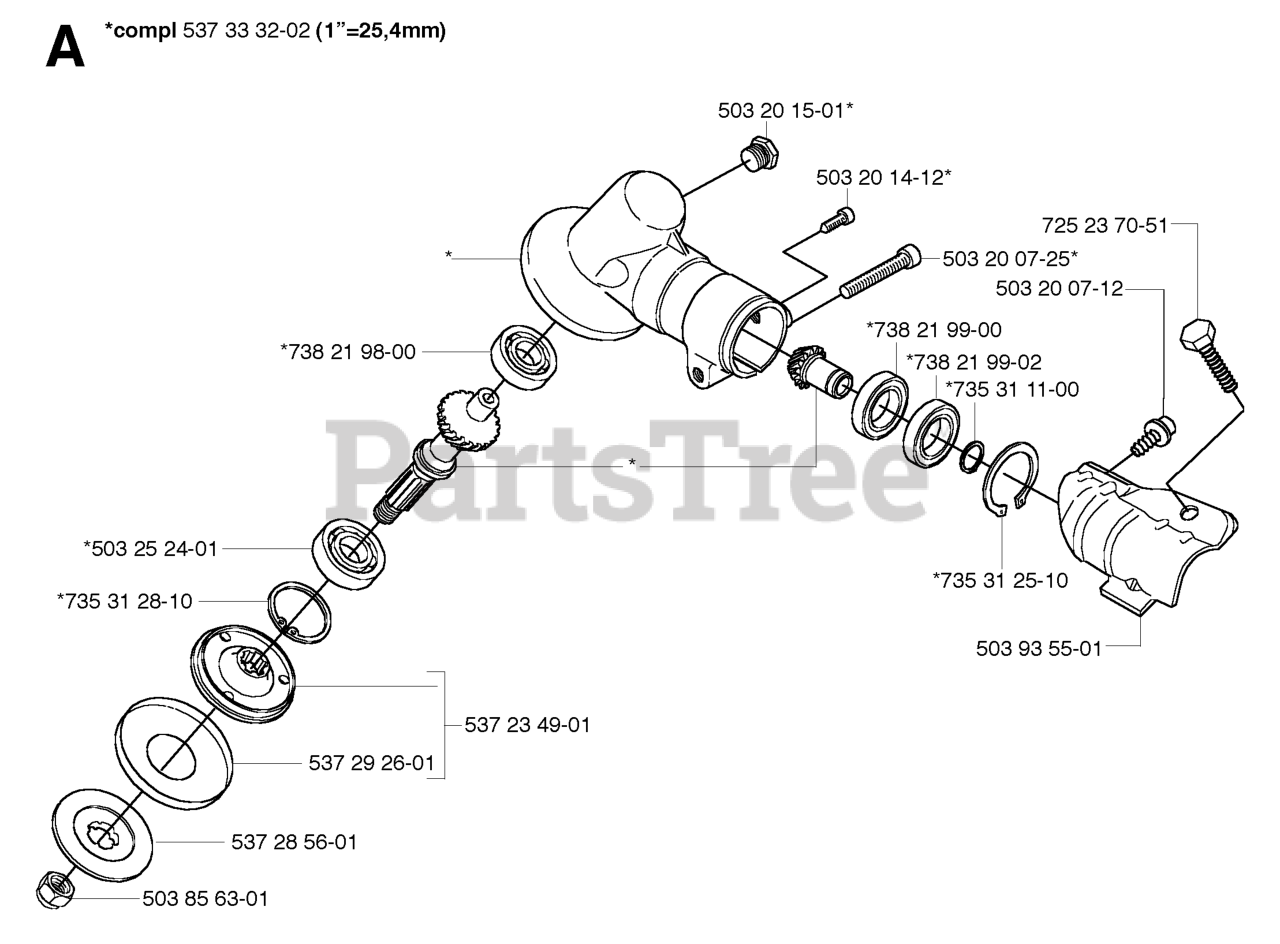

133 R - Husqvarna Brush Cutter (2006-01) BEVEL GEAR Parts Diagram

Brush Cutter

BEVEL GEAR Parts Diagram

  • Title

725 23 70-51

Husqvarna 725237051

SCREW M6S 6X20
(Superseded to 725237071)

$7.49

$

Usually ships in 3-10 days

0

735 31 11-00

Husqvarna 735311100

RETAINING RING

$3.49

$

In Stock, only 2 left!

0

735 31 25-10

Husqvarna 735312510

RETAINING RING

$3.49

$

In Stock, only 3 left!

0

503 20 14-12

Husqvarna 503201412

SCREW

$3.99

$

In Stock, Qty 11

0

503 85 63-01

Husqvarna 503856301

GEARHEAD NUT - BRUSHCUTTER

$7.49

$

In Stock, only 1 left!

0

537 23 49-01

Husqvarna 537234901

DRIVE DISC

$40.99

$

Usually ships in 3-10 days

0

503 25 24-01

Husqvarna 503252401

BEARING
(Superseded to 525831801)

$22.99

$

In Stock, Qty 6

0

503 20 07-12

Husqvarna 503200712

SCREW

$7.49

$

In Stock, Qty 15

0

735 31 28-10

Husqvarna 735312810

RETAINING RING SGH 28

$7.49

$

In Stock, only 3 left!

0

537 29 26-01

Husqvarna 537292601

WASHER
(Superseded to 537234901)

$40.99

$

Usually ships in 3-10 days

0

738 21 98-00

Husqvarna 738219800

BALL BEARING 8X22X7/608Z

$7.99

$

In Stock, only 2 left!

0

503 20 07-25

Husqvarna 503200725

SCREW

$4.99

$

In Stock, Qty 11

0

738 21 99-02

Husqvarna 738219902

BEARING

$29.99

$

In Stock, only 1 left!

0

537 33 32-02

Husqvarna 537333202

GEARCASE-A

Note: 1=25,4MM

$

$

Not available

537 28 56-01

Husqvarna 537285601

SUPPORT FLANGE

$

$

Not available

503 93 55-01

Husqvarna 503935501

RP BRACKET TRIMMER GUARD
(Superseded to 574306904)

$24.99

$

In Stock, only 1 left!

0

503 20 15-01

Husqvarna 503201501

PLUG

$9.99

$

In Stock, only 1 left!

0

738 21 99-00

Husqvarna 738219900

BALL BEARING 24X9X1/609ZR

$13.99

$

In Stock, only 2 left!

0
