133-1436 - Toro Roller Striper Kit for GrandStand Mower ROLLER ASSEMBLY NO. 136-5680 Parts Diagram

Roller Striper Kit for GrandStand Mower

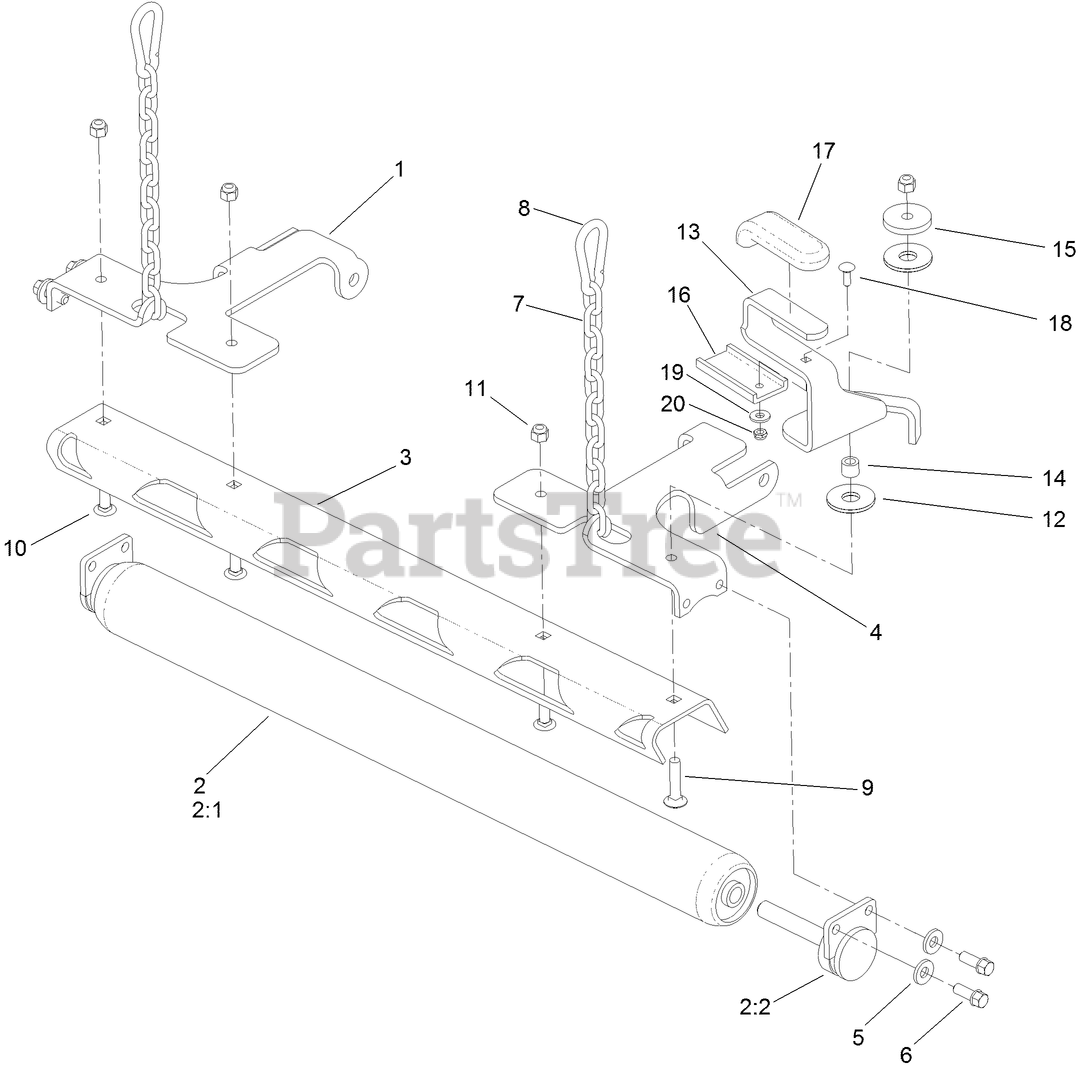

ROLLER ASSEMBLY NO. 136-5680 Parts Diagram

  • Title

1

Toro 114-3520-03

MOUNT-ROLLER, LH

$108.99

$

Usually ships in 3-6 days

0

2

Toro 108-2199

ROLLER ASM

$731.99

$

Usually ships in 3-6 days

0

2:1

Toro 108-2157

ROLLER-STRIPER

$328.99

$

Usually ships in 3-6 days

0

2:2

Toro 108-2198

HUB ASM

$305.99

$

Usually ships in 3-6 days

0

3

Toro 136-5678-03

SCRAPER-ROLLER

$107.99

$

Usually ships in 3-6 days

0

4

Toro 114-3519-03

MOUNT-ROLLER, RH

$108.99

$

Usually ships in 3-6 days

0

5

Toro 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

6

Toro 92-1624

SCREW-HWH
(Superseded to 95-1726)

$2.99

$

In Stock, Qty 20+

0

7

Toro 136-5707

CHAIN-STRAIGHT, LINK

$15.99

$

Usually ships in 3-6 days

0

8

Toro 107-1507

LINK-SNAP

$51.99

$

Usually ships in 3-6 days

0

9

Toro 3231-5

SCREW-CARR

$1.49

$

In Stock, only 2 left!

0

10

Toro 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 20+

0

11

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 14

0

12

Toro 114-0463

WASHER-FRICTION, COMPOSITE

$5.49

$

Usually ships in 3-6 days

0

13

Toro 120-6473-03

HANDLE-ROLLER

$64.99

$

Usually ships in 3-6 days

0

14

Toro 1-413088

BUSHING-LEVER, LIFT

$10.99

$

In Stock, only 1 left!

0

15

Toro 110-9981

WASHER-PLAIN

$14.99

$

In Stock, only 2 left!

0

16

Toro 117-9667

SLIDE-PLASTIC

$61.99

$

Usually ships in 3-6 days

0

17

Toro 1-633268

GRIP-LEVER

$14.99

$

In Stock, Qty 5

0

18

Toro 3229-1

BOLT-CARR

$3.99

$

In Stock, Qty 20+

0

19

Toro 3256-2

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

20

Toro 3296-56

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0
