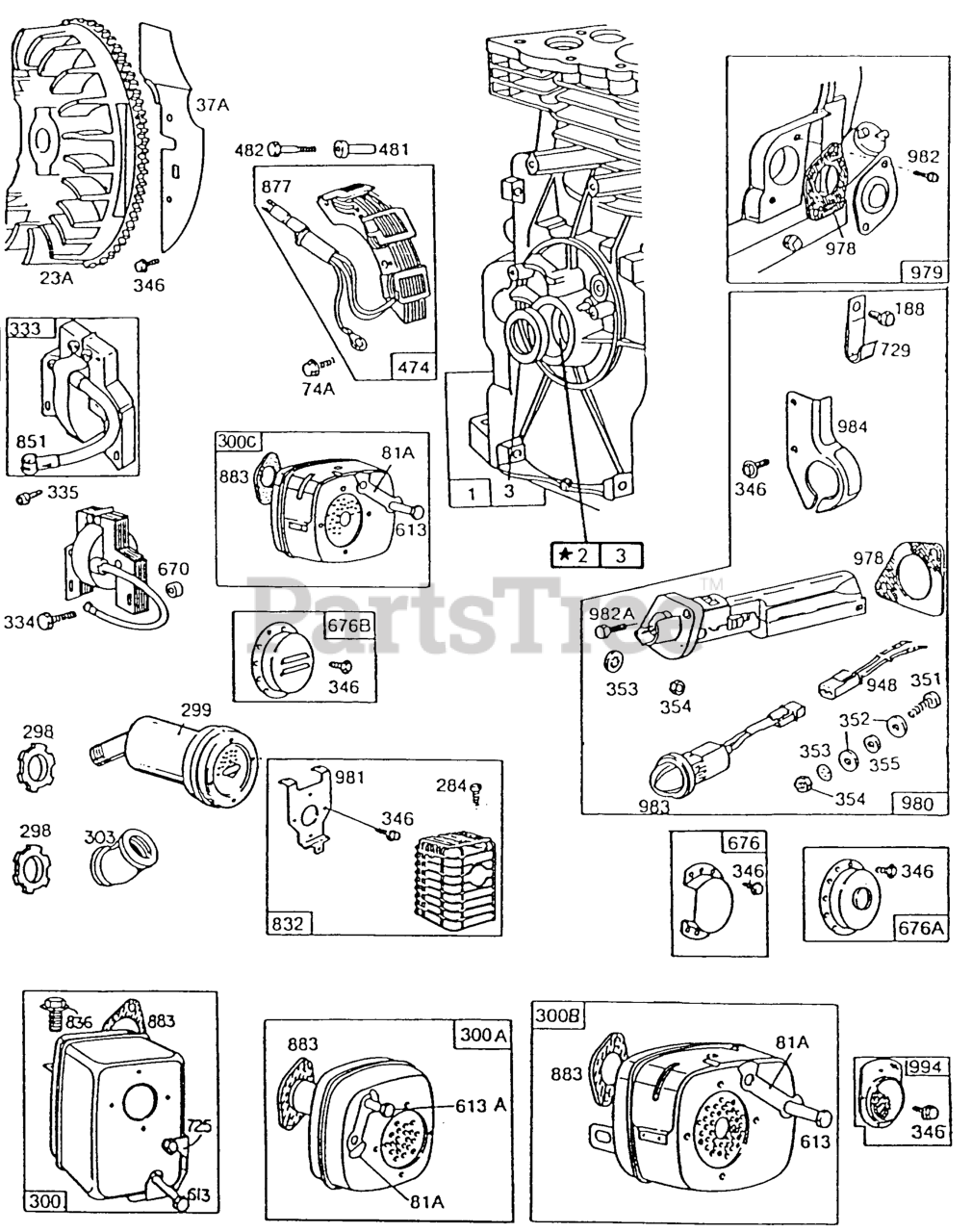

132212-0239-01 - Briggs & Stratton Horizontal Engine Mufflers,Primer,Electrical Parts Diagram

Horizontal Engine

Mufflers,Primer,Electrical Parts Diagram

  • Title

1

Briggs & Stratton 393839

Cylinder-Assembly
(Superseded to 397673)

$498.99

$

Usually ships in 2-12 days

0

1

Briggs & Stratton 397673

Cylinder Assy.

Note: Used on Engines with OIL GARD

$498.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 297565

Bushing/Seal Kit

Note: Requires special tools for installation.

$20.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 299819

Seal, Oil (Plain Bearing Covers)
(Superseded to 299819S)

$5.49

$

In Stock, Qty 17

0

23A

Briggs & Stratton 390509

Flywheel Assy (Includes Steel Ring Gear)
(Superseded to 493456)

$219.99

$

Usually ships in 2-12 days

0

37A

Briggs & Stratton 222578

Guard-Flywheel (Used On Engines With Electric Starters)

$11.99

$

Usually ships in 2-12 days

0

74A

Briggs & Stratton 93490

Screw-Hex
(Superseded to 691660)

Note: Used to Mount Alternator Ground Wire.

$3.99

$

In Stock, Qty 8

0

81A

Briggs & Stratton 222263

Lock, Screw Head (3/8" Dia. Bolt Holes)
(Superseded to 691729)

$5.99

$

In Stock, only 3 left!

0

188

Briggs & Stratton 93559

Screw-Tank To Bracket
(Superseded to 690810)

$3.49

$

In Stock, only 3 left!

0

284

Briggs & Stratton 93572

Screw, Hex Head Tap (10-32 X 3/8)
(Superseded to 690664)

$5.49

$

In Stock, only 1 left!

0

298

Briggs & Stratton 261409

Locknut, Muffler/El
(Superseded to 690453)

$4.49

$

In Stock, Qty 9

0

299

Briggs & Stratton 393010

Muffler Assy (Round Lo-tone)
(Superseded to 393010S)

Note: Uses: 223327 Bracket-Muffler

$22.99

$

In Stock, Qty 5

0

300B

Briggs & Stratton 93415

Screw-Hex (1/4-20 X 3/4)
(Superseded to 691681)

Note: Used Before Code Date 88090300

$8.49

$

In Stock, only 1 left!

0

300C

Briggs & Stratton 390918

Muffler/Shield Grp (Lo-Tone)
(Superseded to 390918S)

$65.99

$

Usually ships in 2-12 days

0

300B

Briggs & Stratton 93606

Screw-Hex

$3.99

$

Usually ships in 2-12 days

0

300A

Briggs & Stratton 393615

Muffler Grp (Lo-Tone)
(Superseded to 494585)

$23.99

$

In Stock, only 1 left!

0

300B

Briggs & Stratton 222379

Retainer-Muffler Guard
(Superseded to 690409)

Note: Used Before Code Date 88090300

$12.99

$

Usually ships in 2-12 days

0

300B

Briggs & Stratton 391313

Muffler-Exhaust
(Superseded to 692304)

$34.99

$

In Stock, only 4 left!

0

300B

Briggs & Stratton 391232

Guard-Muffler
(Superseded to 690625)

Note: Used After Code Date 88090200

$49.99

$

In Stock, only 1 left!

0

300

Briggs & Stratton 396001

Muffler/Shield Grp (Lo-Tone)
(Superseded to 691969)

$111.99

$

In Stock, only 1 left!

0

303

Briggs & Stratton 94089

Elbow-Exhaust (45 Degrees Street)

$13.99

$

Usually ships in 2-12 days

0

333

Briggs & Stratton 397358

Armature-Mag

$53.99

$

In Stock, Qty 20+

0

334

Briggs & Stratton 93613

Screw, Armature Spa
(Superseded to 690306)

$

$

Not available

335

Briggs & Stratton 93414

Screw, Sem Hex Head
(Superseded to 691621)

$7.49

$

Usually ships in 2-12 days

0

346

Briggs & Stratton 93705

Screw, Tapping Hex (8-32 X 3/8)
(Superseded to 690661)

$3.49

$

In Stock, Qty 9

0

351

Briggs & Stratton 93735

Screw-Slotted

$3.49

$

Usually ships in 2-12 days

0

352

Briggs & Stratton 66068

Washer-Fiber

$4.99

$

Usually ships in 2-12 days

0

353

Briggs & Stratton 92791

Lockwasher, Interna
(Superseded to 691077)

$3.49

$

In Stock, only 2 left!

0

354

Briggs & Stratton 90576

Nut, Hex (8-32)
(Superseded to 691612)

$3.49

$

In Stock, only 1 left!

0

355

Briggs & Stratton 66554

Washer-Insulating

$5.49

$

Usually ships in 2-12 days

0

474

Briggs & Stratton 394173

Stator Assy.-Alternator
(Superseded to 494254)

$81.99

$

Usually ships in 2-12 days

0

481

Briggs & Stratton 230970

Bushing-Stator

$6.49

$

Usually ships in 2-12 days

0

482

Briggs & Stratton 93639

Screw-Sem

$2.49

$

Usually ships in 2-12 days

0

613A

Briggs & Stratton 93935

Screw, Shoulder Muf
(Superseded to 691413)

$5.99

$

Usually ships in 2-12 days

0

613

Briggs & Stratton 94054

Screw, Shoulder Muf
(Superseded to 691351)

$8.49

$

In Stock, only 1 left!

0

670

Briggs & Stratton 261065

Spacer, Armature
(Superseded to 690531)

$4.99

$

Usually ships in 2-12 days

0

676A

Briggs & Stratton 395700

Deflector-Muff (Direct Outlet)

$15.99

$

In Stock, only 1 left!

0

676B

Briggs & Stratton 393758

Deflector-Muff (Louvered Outlet)

$26.99

$

Usually ships in 2-12 days

0

676

Briggs & Stratton 393757

Deflector-Muff (Side Outlet)
(Superseded to 796956)

$10.99

$

In Stock, only 1 left!

0

725

Briggs & Stratton 223303

Shield-Muffler
(Superseded to 690466)

$35.99

$

Usually ships in 2-12 days

0

729

Briggs & Stratton 223528

Clip, Retainer
(Superseded to 690430)

$4.99

$

Usually ships in 2-12 days

0

832

Briggs & Stratton 398069

Guard-Muffler

$44.99

$

Usually ships in 2-12 days

0

836

Briggs & Stratton 93559

Screw-Tank To Bracket
(Superseded to 690810)

$3.49

$

In Stock, only 3 left!

0

851

Briggs & Stratton 221798

Terminal-Spark Plug
(Superseded to 493880S)

$3.49

$

In Stock, Qty 20+

0

883

Briggs & Stratton 270918

Gasket-Muffler
(Superseded to 692237)

$5.49

$

In Stock, only 3 left!

0

948

Briggs & Stratton 398661

Harness-Wiring

$34.99

$

Usually ships in 2-12 days

0

978

Briggs & Stratton 271736

Gasket, Switch
(Superseded to 273326S)

$7.49

$

Usually ships in 2-12 days

0

979

Briggs & Stratton 398194

Cover-Oilgard Hole
(Superseded to 691382)

$4.99

$

Usually ships in 2-12 days

0

980

Briggs & Stratton 398182

Switch-Oil Gard

$102.99

$

Usually ships in 2-12 days

0

981

Briggs & Stratton 223373

Bracket-Muffler Guard
(Superseded to 690425)

$34.99

$

Usually ships in 2-12 days

0

982A

Briggs & Stratton 94146

Screw-Oil Guard Mtg.
(Superseded to 690350)

$3.99

$

Usually ships in 2-12 days

0

982

Briggs & Stratton 94139

Screw-Oilgard Cover
(Superseded to 690351)

$3.99

$

In Stock, only 2 left!

0

983

Briggs & Stratton 398660

Light-Indicator

Note: (For Mounting With Light Bracket)

$

$

Not available

984

Briggs & Stratton 223527

Bracket-Indicator Light
(Superseded to 692340)

$5.49

$

Usually ships in 2-12 days

0
