1321 PPE (1691262) - Simplicity Walk-Behind Mower PL FOR MDL 1321PPE (1691103) & (1691262)-21" Mower, 21" Self-Propelled, Walk-Behind Mower Parts Diagram

Walk-Behind Mower

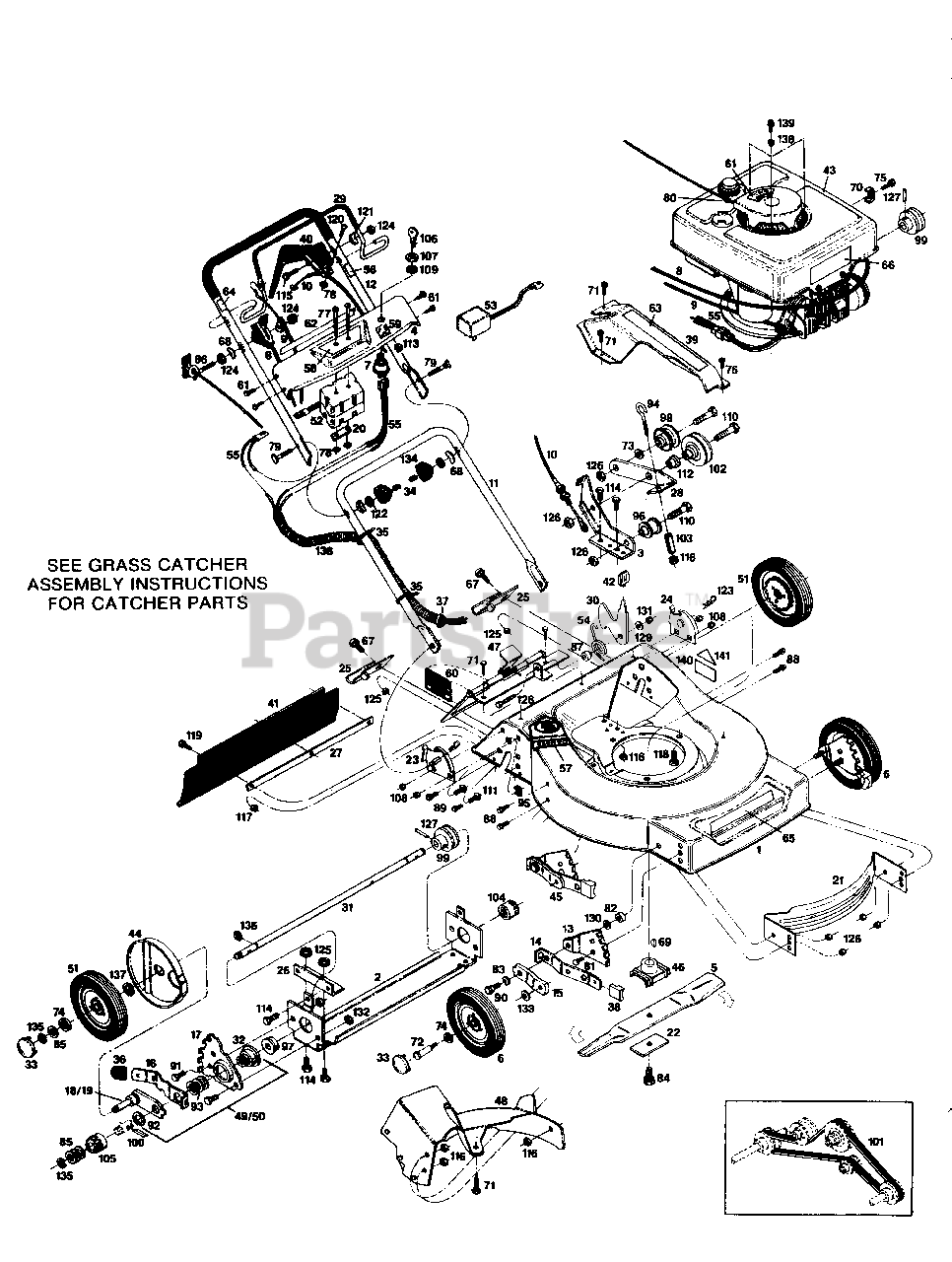

PL FOR MDL 1321PPE (1691103) & (1691262)-21" Mower, 21" Self-Propelled, Walk-Behind Mower Parts Diagram

  • Title

1

Simplicity 1677779

Deck

$

$

Not available

2

Simplicity 1677876

Bracket-Drive Support

$

$

Not available

3

Simplicity 1677847

Bracket-ldler Mounting

$

$

Not available

4

Simplicity 1677893

Plate-Handle

$

$

Not available

5

Simplicity 1664041SM

Blade-21"

$

$

Not available

6

Simplicity 1677785SM

Wheel-Front, 8 x 1.75

$

$

Not available

7

Simplicity 1677894

Switch-Start

$

$

Not available

8

Simplicity 1677788SM

Control-Throttle w/Cable

$31.99

$

Usually ships in 2-12 days

0

8

Simplicity 1677788SM

Control-Throttle w/Cable

Note: MFG. No. 1691262 ONLY

$31.99

$

Usually ships in 2-12 days

0

9

Simplicity 1677789

Cable-Engine/Blade Control

$

$

Not available

10

Simplicity 1677824

Cable-Wheel Drive Control

$

$

Not available

11

Simplicity 1677825

Handle-Lower

$

$

Not available

12

Simplicity 1678044

Handle-Upper

$

$

Not available

13

Simplicity 1677839

Plate-Back, Front Adjuster

$

$

Not available

14

Simplicity 1677840

Lever-Setting, Front Adjuster

$

$

Not available

15

Simplicity 1677841

Lever, Wheel, Front

$

$

Not available

16

Simplicity 1677964

Lever, Setting, Rear Adjuster

$

$

Not available

17

Simplicity 1677965

Plate-Back, Rear Adjuster

$

$

Not available

18

Simplicity 1677966

Lever-Wheel w/Pin Rear RH

$

$

Not available

19

Simplicity 1677967

Lever-Wheel w/Pin Rear LH

$

$

Not available

20

Simplicity 1677988

Plate-Reinforcing, Battery

$

$

Not available

21

Simplicity 1677827

Baffle-Front

$

$

Not available

22

Simplicity 1677792

Washer-Blade

$

$

Not available

23

Simplicity 1677796

Bracket-Handle RH

$

$

Not available

24

Simplicity 1677797

Bracket-Handle LH

$

$

Not available

25

Simplicity 1677828

Hook-Grass Catcher

$

$

Not available

26

Simplicity 1677877

Bracket-Drive Support

$

$

Not available

27

Simplicity 1677829

Strip-Backing

$

$

Not available

27

Simplicity 1701006

Strip-Backing

Note: MFG. No. 1691262 ONLY

$

$

Not available

28

Simplicity 1677848

Arm-ldler

$

$

Not available

29

Simplicity 1677799

Bail-Engine/Blade Control

$

$

Not available

30

Simplicity 1677968

Latch-Grass Catcher

$

$

Not available

31

Simplicity 1677878

Shaft-Drive

$

$

Not available

32

Simplicity 1677969

Sleeve-Stepped, Rear Adjuster

$

$

Not available

33

Simplicity 1677801

Cap-Wheel Hub

$

$

Not available

34

Simplicity 1677873

Cap-Bolt End, Plastic

$

$

Not available

35

Simplicity 1701011SM

Cable Tie

$5.49

$

In Stock, only 2 left!

0

36

Simplicity 1677970

Tip-Adjuster Lever, Rear

$

$

Not available

37

Simplicity 1677990

Clip-Harness Retainer

$

$

Not available

38

Simplicity 1677842

Tip-Adjuster Lever, Front

$

$

Not available

39

Simplicity 1677832

Cover-Belt

$

$

Not available

40

Simplicity 1677833

Control-Wheel Drive

$

$

Not available

41

Simplicity 1677834

Shield-Trailing

$

$

Not available

42

Simplicity 1677859

Knob-Catcher Latch

$

$

Not available

43

Simplicity 1677836

Shroud-Engine

$

$

Not available

44

Simplicity 1677971

Cover-Dust, Rear Wheel

$

$

Not available

44

Simplicity 1701007

Cover-Dust, Rear Wheel

Note: MFG. No. 1691262 ONLY

$

$

Not available

45

Simplicity 1677838

Adjuster-Height, Complete, Front

$

$

Not available

46

Simplicity 1664060

Adapter-Blade

$

$

Not available

47

Simplicity 1677972

Door-Catcher Opening

$

$

Not available

48

Simplicity 1677868

Baffle Assembly, Rear

$

$

Not available

49

Simplicity 1677879

Adjuster-Height, Complete, LH Rear

$

$

Not available

50

Simplicity 1677880

Adjuster-Height, Complete, RH Rear

$

$

Not available

51

Simplicity 1677887

Wheel-Rear w/Gear

$

$

Not available

52

Simplicity 1677991

Battery-12 Volt

$

$

Not available

53

Simplicity 1677992

Charger-Battery

$

$

Not available

54

Simplicity 1677861

Spring-Torsion, Catcher Latch

$

$

Not available

55

Simplicity 1677993

Harness-Wiring

$

$

Not available

56

Simplicity 1677899

Decal-Drive Control Instructions

$

$

Not available

57

Simplicity 1704276SM

Decal-Danger, Dischange Chute

$

$

Not available

58

Simplicity 1677900

Decal-Electric Start

$

$

Not available

59

Simplicity 1677901

Decal-Ignition Switch

$

$

Not available

60

Simplicity 1677974

Decal-Caution, Catcher Door

$

$

Not available

61

Simplicity 1677975

Decal-Warning, Blade

$

$

Not available

61

Simplicity 1700809

Decal-Warning, Blade

Note: MFG. No. 1691262 ONLY

$

$

Not available

62

Simplicity 1677902

Decal-Starting Instructions

$

$

Not available

63

Simplicity 1677976

Decal-21" Rear Drive

$

$

Not available

64

Simplicity 1677903

Decal-Auxiliary Start

$

$

Not available

65

Simplicity 1722551SM

Decal-Simplicity

$11.99

$

In Stock, Qty 12

0

66

Simplicity 1677978

Decal-5.0 HP

$

$

Not available

67

Simplicity 1960252SM

Bolt-Carriage 1/4-20 x 5/8

$3.99

$

In Stock, only 1 left!

0

68

Simplicity 1717312SM

Washer-Curved 5/16

$

$

Not available

69

Simplicity 2810224SM

Key-Woodruff #6

$3.99

$

Usually ships in 2-12 days

0

70

Simplicity 1677808

Clamp-Throttle Cable

$

$

Not available

71

Simplicity 1677805

Screw-Hex slotted #10 x 5/8

$

$

Not available

72

Simplicity 1677806

Bolt-Wheel, Front

$

$

Not available

73

Simplicity 1924940SM

Washer-Flat, 3/8 ID, 7/8 OD
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

74

Simplicity 1677888

Washer-Wheel Retaining

$

$

Not available

75

Simplicity 1654998

Bolt-Hex #10-32 x 3/8

$

$

Not available

76

Simplicity 1931839

Screw-Self Tap #6-20 x 1/2

$

$

Not available

77

Simplicity 1677995

Screw-Machine #8-32 x 3 1/4

$

$

Not available

78

Simplicity 1960077SM

Nut-Hex #8-32 Nylok

$1.99

$

Usually ships in 2-12 days

0

79

Simplicity 1677804

Bolt-Curved Head 5/16-18 x 2 1/4

$

$

Not available

80

Simplicity 1677809

Stop-Rope

$

$

Not available

81

Simplicity 1931348SM

Bolt-Carriage 3/8-16 x 3/4
(Superseded to 703448)

$4.49

$

In Stock, Qty 20+

0

82

Simplicity 1677843

Washer-Plastic, Front Adjuster

$

$

Not available

83

Simplicity 1677844

Washer-Spring, Front Adjuster

$

$

Not available

84

Simplicity 1677810

Bolt-Blade w/Washer 3/8-24 x 1

$

$

Not available

84

Simplicity 1700875

Bolt-Blade 3/8-24 x 1 1/4

Note: MFG. No. 1691262 ONLY

$

$

Not available

85

Simplicity 1677881

Washer-Thrust 1/2 ID

$

$

Not available

86

Simplicity 1677811

Eyebolt-Rope Guide

$

$

Not available

87

Simplicity 1677863

Spacer-Catcher Latch

$

$

Not available

88

Simplicity 1921958SM

Bolt-Hex 1/4-20 x 1/2

$3.99

$

Usually ships in 2-12 days

0

89

Simplicity 1923341SM

Bolt-Self Tap 1/4-20 x 3/4

$4.49

$

In Stock, Qty 8

0

90

Simplicity 1677845

Bolt-Shoulder, Front Adjuster

$

$

Not available

91

Simplicity 1677979

Bolt-Hex, 3/8-16 x 1/2

$

$

Not available

92

Simplicity 1677980

Ring-Retainer 7/8

$

$

Not available

93

Simplicity 1677981

Washer-Spring, Rear Adjuster

$

$

Not available

94

Simplicity 1677982

Eyebolt-ldler Cable

$

$

Not available

95

Simplicity 1677983

Nut 1/4-20 Snap in

$

$

Not available

96

Simplicity 1677850

Pulley-ldler

$

$

Not available

97

Simplicity 1677984

Bearing-Drive Shaft

$

$

Not available

98

Simplicity 1716615SM

Pulley-ldler

$22.99

$

Usually ships in 2-12 days

0

99

Simplicity 1677882

Pulley-Drive

$

$

Not available

100

Simplicity 1677883

Pawl-Drive

$

$

Not available

101

Simplicity 1677884SM

Belt-Drive V

$

$

Not available

102

Simplicity 1677852

Pulley-ldler

$

$

Not available

103

Simplicity 1678050

Sleeve-ldler Cable

$

$

Not available

104

Simplicity 1677885

Pinion-Wheel Drive LH

$

$

Not available

105

Simplicity 1677886

Pinion-Wheel Drive RH

$

$

Not available

106

Simplicity 1717163SM

Key-Start Switch

$8.99

$

In Stock, Qty 20+

0

107

Simplicity 1677997

Nut-Hex 5/8-32

$

$

Not available

108

Simplicity 1919438SM

Nut-Hex 5/16-18 Nylok
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

109

Simplicity 1917373SM

Washer-Lock 5/8

$3.99

$

Usually ships in 2-12 days

0

110

Simplicity 1921971SM

Bolt-Hex 3/8-16 x 1 3/4
(Superseded to 704289)

$4.99

$

In Stock, Qty 12

0

111

Simplicity 1931333SM

Bolt-Carriage 5/16-18 x 3/4
(Superseded to 703185)

$3.49

$

In Stock, Qty 12

0

112

Simplicity 1677853

Spacer-ldler

$

$

Not available

113

Simplicity 1677998

Clip-tinnerman

$

$

Not available

114

Simplicity 1921959SM

Bolt-Hex 1/4-20 x 5/8
(Superseded to 001X38MA)

$4.49

$

In Stock, Qty 18

0

115

Simplicity 1922837SM

Bolt-Hex 1/4-20 x 1 1/2
(Superseded to 703234)

$4.49

$

In Stock, only 4 left!

0

116

Simplicity 1916622SM

Nut-1/4-20
(Superseded to 703127)

$3.49

$

In Stock, Qty 20+

0

117

Simplicity 1933896SM

Nut-Hex #10-24 Nylok
(Superseded to 703412)

$4.49

$

In Stock, only 2 left!

0

118

Simplicity 1927187SM

Bolt-Hex 3/8-16 x 7/8

$4.49

$

In Stock, only 4 left!

0

119

Simplicity 1933737SM

Bolt-Hex #10-24 x 1/2

$3.49

$

In Stock, only 2 left!

0

120

Simplicity 1960399SM

Screw-Pan Head #8-32 x 5/8

$3.49

$

Usually ships in 2-12 days

0

121

Simplicity 1677890

Washer-Curved

$

$

Not available

122

Simplicity 1923300SM

Washer-Shakeproof 5/16

$3.99

$

In Stock, only 4 left!

0

123

Simplicity 2106787

Cotter-Hairpin

$

$

Not available

124

Simplicity 2828372SM

Nut-Hex 1/4-20 Keps
(Superseded to 703914)

$3.49

$

In Stock, Qty 14

0

125

Simplicity 1930641SM

Nut-Hex 1/4-20 Whiz
(Superseded to 703161)

$3.49

$

In Stock, Qty 20+

0

126

Simplicity 1930645SM

Nut-Hex 3/8-16 Lock
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

127

Simplicity 2816001SM

Pin-Roll 3/16 x 1

$4.49

$

In Stock, Qty 11

0

128

Simplicity 1921960SM

Bolt-Hex 1/4-20 x 1

$3.49

$

In Stock, only 1 left!

0

129

Simplicity 1921319SM

Washer-Flat 1/4
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

130

Simplicity 1918266SM

Washer-Flat 3/8
(Superseded to 703590)

$3.99

$

In Stock, Qty 19

0

131

Simplicity 1923358SM

Nut-Hex 1/4-20 Lock
(Superseded to 703954)

$4.99

$

In Stock, Qty 20+

0

132

Simplicity 1917421SM

Nut-Hex Jam 3/8-16
(Superseded to 703996)

$4.99

$

In Stock, Qty 10

0

133

Simplicity 1677816

Washer-Belleville

$

$

Not available

134

Simplicity 1677817

Knob-Handle Retaining

$

$

Not available

135

Simplicity 1677986

Ring-Retainer

$

$

Not available

136

Simplicity 1677999

Wrapping-Wire Harness

$

$

Not available

137

Simplicity 1678205

Ring Retainer, Dust Shield

$

$

Not available

138

Simplicity 1678206

Retainer-Engine Shroud

$

$

Not available

139

Simplicity 1925003SM

Bolt-Hex 1 /4-20 x 1/2 TD FM
(Superseded to 704130)

$3.99

$

In Stock, Qty 5

0

140

DECAL, Model Number

$

$

Not available

141

DECAL, OPEI

$

$

Not available

142

Simplicity 1916965SM

Lockwasher-3/8 Split HD
(Superseded to 703454)

$3.49

$

In Stock, Qty 15

0

143

Simplicity 1701094

Bolt-1/4-20 x 3/8 Shaved Head

$

$

Not available
