1321 (1690797) - Simplicity 21" Walk-Behind Mower PARTS LIST FOR MFG. NO. 1690797-21" PUSH MOWER Parts Diagram

21" Walk-Behind Mower

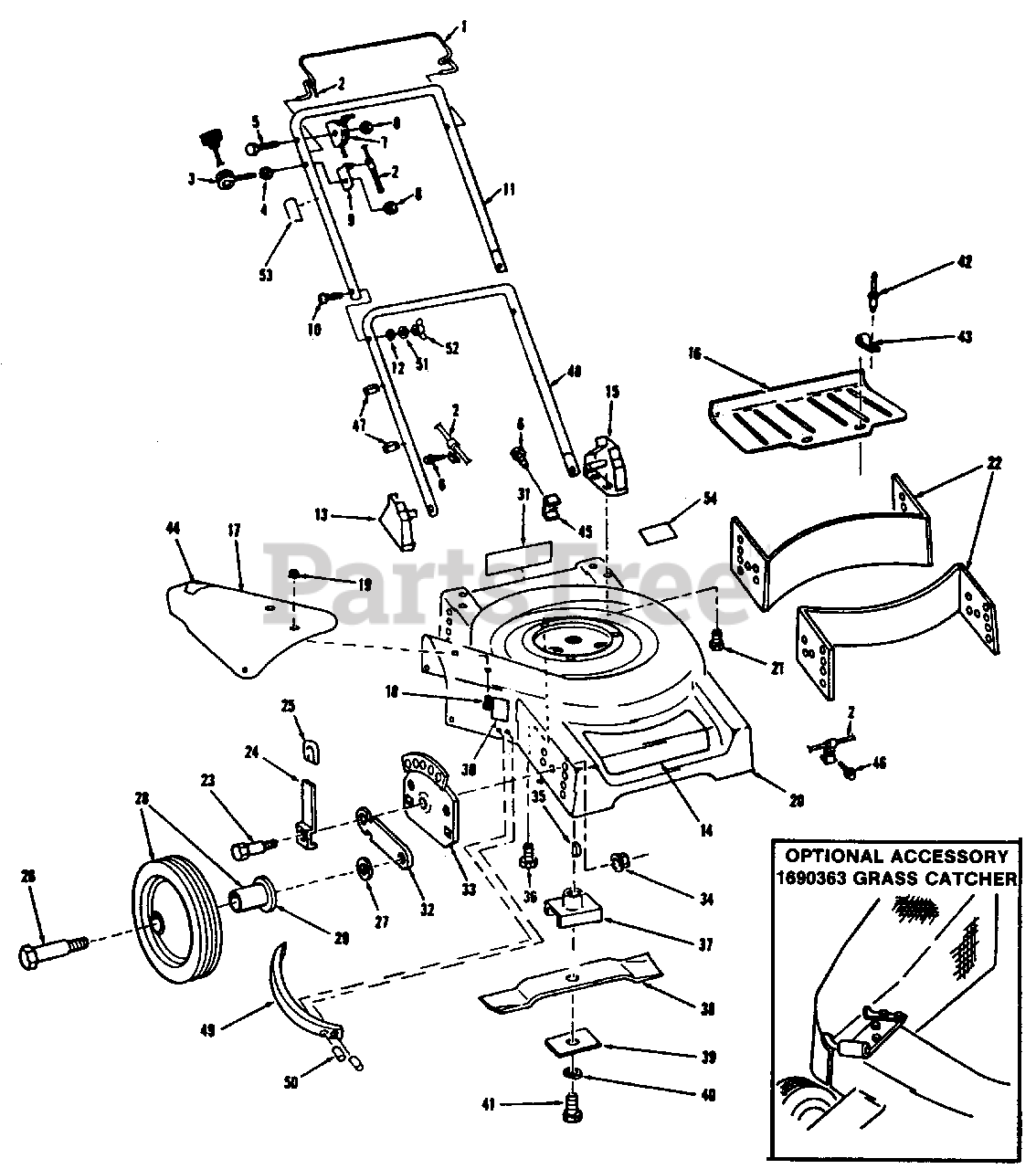

PARTS LIST FOR MFG. NO. 1690797-21" PUSH MOWER Parts Diagram

  • Title

1

Simplicity 1671620

Bail-Control

$

$

Not available

2

Simplicity 1671655

Cable

$

$

Not available

3

Simplicity 1671623

Eyebolt

$

$

Not available

4

Simplicity 1671624

Nut-1/4-20

$

$

Not available

5

Simplicity 2822837

Bolt-1/4-20 x 1-1/2 Flex

$

$

Not available

6

Simplicity 1664068

Screw-Casing

$

$

Not available

7

Simplicity 1671621

Control-Throttle

$

$

Not available

8

Simplicity 2823358

Nut-1/4-20 Eslock

$

$

Not available

9

Simplicity 1671652

Bracket-Cable Mounting

$

$

Not available

10

Simplicity 1671630

Bolt-5/16-18 x 2-1/4 Curved

$

$

Not available

11

Simplicity 1671619

Handle-folding

$

$

Not available

12

Simplicity 1717312SM

Washer-5/16 Curved

$

$

Not available

13

Simplicity 1664053

Bracket Assembly-Yoke, R.H.

$

$

Not available

14

Simplicity 1722551SM

Decal-Deck, Simplicity

$11.99

$

In Stock, Qty 12

0

15

Simplicity 1664052

Bracket Assembly-Yoke, L.H.

$

$

Not available

16

Simplicity 1671626

Trailguard

$

$

Not available

17

Simplicity 1664083

Chute Extension

$

$

Not available

18

Simplicity 1664065

Bolt-Carriage

$

$

Not available

19

Simplicity 1664067

Nut-Keps

$

$

Not available

20

Simplicity 1664043

Housing

$

$

Not available

21

Simplicity 1671631

Bolt-1/2-20 x 1/2

$

$

Not available

22

Simplicity 1664072

Baffle

$

$

Not available

23

Simplicity 1664066

Bolt-Shoulder Q.W.A.

$

$

Not available

24

Simplicity 1664080

Spring-Q.W.A.

$

$

Not available

25

Simplicity 1664084

Tip-Q.W.A.

$

$

Not available

26

Simplicity 1668701

Bolt-Axle

$

$

Not available

27

Simplicity 2817642

Washer-3/8 Flat

$

$

Not available

28

Simplicity 1677785SM

Wheel Assembly w/Bearing 8"

$

$

Not available

29

Simplicity 1664058

Bearing-Wheel

$

$

Not available

30

Simplicity 170488

Decal-21"

$

$

Not available

31

Simplicity 106719

Decal-Simplicity

$

$

Not available

32

Simplicity 1664081

Arm-Q.W.A.

$

$

Not available

33

Simplicity 1664059

Plate-Wheel Adj.

$

$

Not available

34

Simplicity 1930645SM

Nut-Baffle
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

35

Simplicity 2810224SM

Key-Engine Shaft

$3.99

$

Usually ships in 2-12 days

0

36

Simplicity 2827187SM

Screw-Engine
(Superseded to 704000)

$4.99

$

Usually ships in 2-12 days

0

37

Simplicity 1664060

Blade Adapter Assembly

$

$

Not available

38

Simplicity 1664041SM

Blade

$

$

Not available

39

Simplicity 1664074

Spacer-Blade Adapter

$

$

Not available

40

Simplicity 1916965SM

Washer-Blade
(Superseded to 703454)

$3.49

$

In Stock, Qty 15

0

41

Simplicity 2827008SM

Bolt-Blade

$2.99

$

Usually ships in 2-12 days

0

42

Simplicity 924280

Pop Rivet

$

$

Not available

43

Simplicity 1671991

Clip-Trailguard

$

$

Not available

44

Simplicity 1671649

Decal-Danger & Caution

$

$

Not available

45

Simplicity 1664062

Clamp-Casing

$

$

Not available

46

Simplicity 1671629

Screw

$

$

Not available

47

Simplicity 2108812

Clamp-Throttle

$

$

Not available

48

Simplicity 1669639

Lower Handle

$

$

Not available

49

Simplicity 1664186

Guard-Blade

$

$

Not available

50

Simplicity 1960241SM

Rivet-1/4" Pop

$5.49

$

Usually ships in 2-12 days

0

51

Simplicity 2823300

Washer

$

$

Not available

52

Simplicity 918468

Nut-Wing

$

$

Not available

53

Simplicity 1671647

Decal-Engine Control

$

$

Not available

54

Simplicity 1671648

Decal-Starting Instructions

$

$

Not available

54

Simplicity 1690363

Grass Catcher

Note: OPTIONAL ACCESSORY

$

$

Not available

54

Simplicity 1664166

Replacement Bag

Note: OPTIONAL ACCESSORY

$

$

Not available
