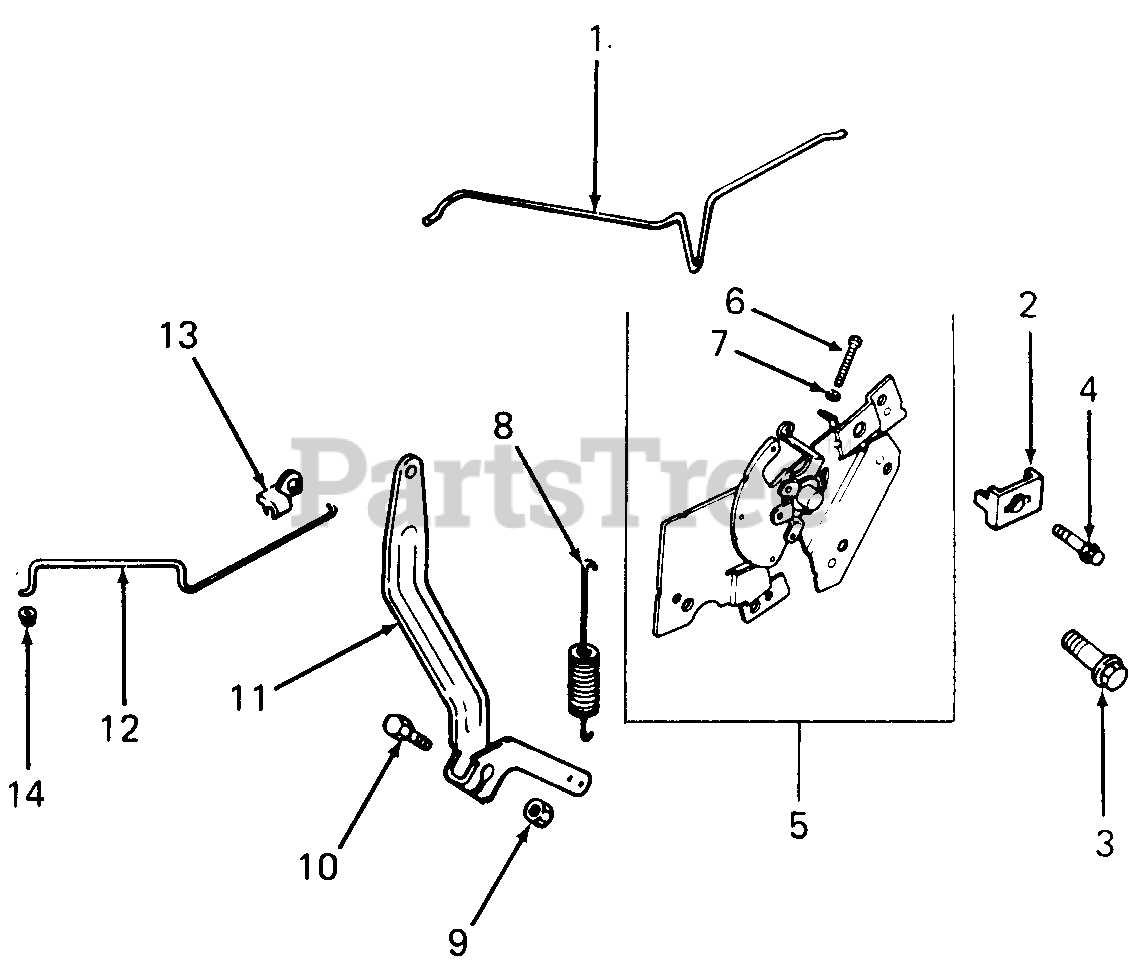

1320 (130-232-100) - Cub Cadet Garden Tractor (SN: 147008 - 207400) Engine Controls Parts Diagram

Garden Tractor

Engine Controls Parts Diagram

  • Title

1

Cub Cadet KH-12-079-03

Linkage, Choke

$

$

Not available

2

Cub Cadet KH-12-237-01

Clamp, Cable
(Superseded to KH-25-237-53-S)

$3.99

$

Usually ships in 3-6 days

0

3

Cub Cadet KH-SM-0645020

Screw, Speed Control Bracket, M6 X 1.0 X 20
(Superseded to KH-25-086-396-S)

$2.49

$

In Stock, only 1 left!

0

4

Cub Cadet KH-SM-0545016

Screw, Cable Clamp, M5 X 0.8 X 16
(Superseded to KH-25-086-426-S)

$2.49

$

In Stock, Qty 15

0

5

Cub Cadet KH-12-536-02

Control, Speed Assy

Note: (Includes Ref No. 6 & 7)

$

$

Not available

6

Cub Cadet KH-M-0401030

Screw, RMP Adj
(Superseded to KH-M-401030)

$

$

Not available

7

Cub Cadet KH-M-0446030

Nut
(Superseded to KH-M-446030-S)

$2.49

$

In Stock, only 4 left!

0

8

Cub Cadet KH-52-089-07

Spring, Governor

$

$

Not available

9

Cub Cadet KH-SM-0641060

Nut, Governor Arm, M6 X 1.0
(Superseded to KH-M-641060-S)

$4.49

$

In Stock, Qty 8

0

10

Cub Cadet KH-SM-0642025

Screw, Governor Arm, M6 X 1.0 X 25
(Superseded to KH-M-642025-S)

$2.49

$

In Stock, only 1 left!

0

11

Cub Cadet KH-12-090-05

Lever, Governor

$

$

Not available

12

Cub Cadet KH-12-079-01

Linkage, Throttle

$

$

Not available

13

Cub Cadet KH-25-158-09

Bushing, Black, Linkage Retaining
(Superseded to KH-25-158-11)

$

$

Not available

14

Cub Cadet KH-25-158-08

Bushing, Natural Linkage Retaining

$5.99

$

Usually ships in 2-5 days

0
