132 R - Husqvarna String Trimmer (SN: 20050100001 & Above) BEVEL GEAR Parts Diagram

String Trimmer

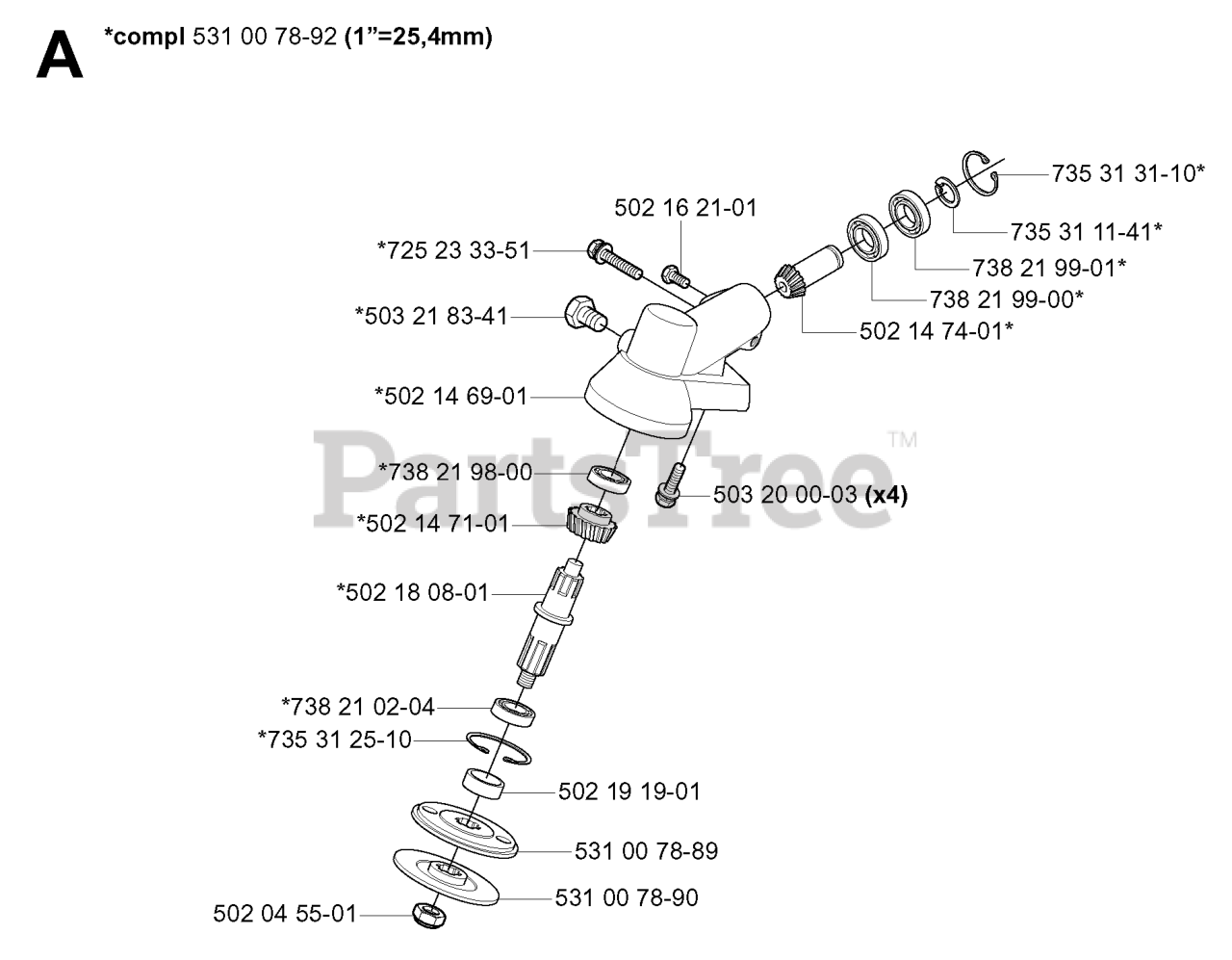

BEVEL GEAR Parts Diagram

  • Title
738 21 98-00

Husqvarna 738219800

BALL BEARING 8X22X7/608Z

$7.99

$

In Stock, only 2 left!

0

502 14 74-01

Husqvarna 502147401

PINION
(Superseded to 531007898)

$

$

Not available

735 31 25-10

Husqvarna 735312510

RETAINING RING

$3.49

$

In Stock, only 3 left!

0

735 31 11-41

Husqvarna 735311141

RETAINING RING

$4.99

$

Usually ships in 3-10 days

0

502 14 71-01

Husqvarna 502147101

GEAR WHEEL
(Superseded to 531007898)

$

$

Not available

738 21 99-00

Husqvarna 738219900

BALL BEARING 24X9X1/609ZR

$13.99

$

In Stock, only 2 left!

0

503 20 00-03

Husqvarna 503200003

SCREW M6SF 5X12

$6.49

$

Usually ships in 3-10 days

0

735 31 31-10

Husqvarna 735313110

RETAINING RING

$4.99

$

In Stock, only 3 left!

0

531 00 78-92

Husqvarna 531007892

BEVEL GEAR

Note: 1=25,4MM

$

$

Not available

502 04 55-01

Husqvarna 502045501

LOCKNUT 12X1.75
(Superseded to 732252201)

$1.99

$

In Stock, only 2 left!

0

531 00 78-89

$

$

Not available

738 21 02-04

Husqvarna 738210204

BALL BEARING 6002-2RS1

$13.99

$

Usually ships in 3-10 days

0

502 14 69-01

Husqvarna 502146901

GEAR HOUSING

$85.99

$

Usually ships in 3-10 days

0

725 23 33-51

Husqvarna 725233351

SCREW M6S 5X25

$3.49

$

Usually ships in 3-10 days

0

531 00 78-90

Husqvarna 531007890

FLANGE/BOSS

$22.99

$

Usually ships in 3-10 days

0

738 21 99-01

Husqvarna 738219901

BALL BEARING 609Z

$10.99

$

Usually ships in 3-10 days

0

502 19 19-01

Husqvarna 502191901

SPACER
(Superseded to 531007728)

$

$

Not available

503 21 83-41

Husqvarna 503218341

SCREW 8X10

$3.49

$

Usually ships in 3-10 days

0

502 16 21-01

$

$

Currently unavailable

502 18 08-01

Husqvarna 502180801

BLADE AXIS

$

$

Not available
