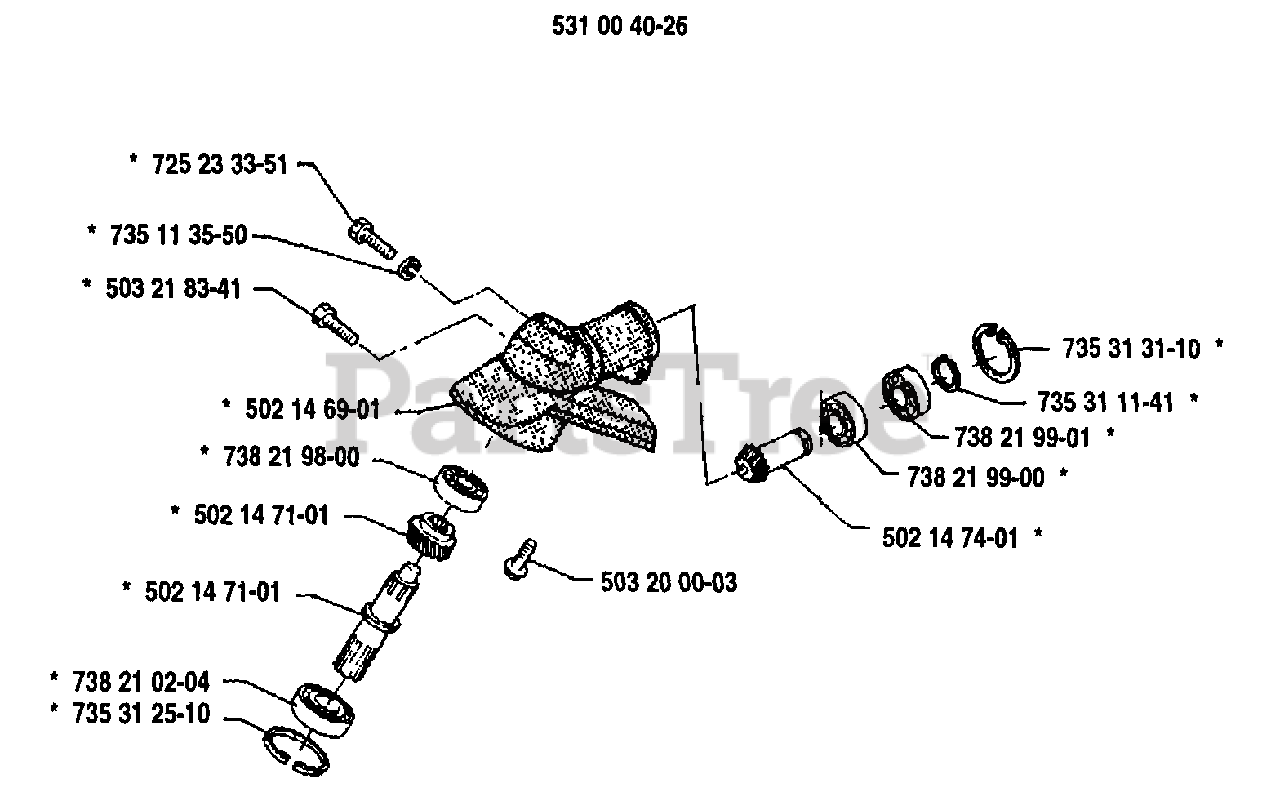

132 L - Husqvarna String Trimmer (1992-01) Gear Assembly Parts Diagram

String Trimmer

Gear Assembly Parts Diagram

  • Title
531004026

Husqvarna 531004026

ANGLE GEAR COMPLETE
(Superseded to 531007892)

$

$

Not available

725233351

Husqvarna 725233351

SCREW M6S 5X25

$3.49

$

Usually ships in 3-10 days

0

735113550

Husqvarna 735113550

REPL BY 735 11 53-50
(Superseded to 735115350)

$2.49

$

Usually ships in 3-10 days

0

503218341

Husqvarna 503218341

SCREW 8X10

$3.49

$

Usually ships in 3-10 days

0

502146901

Husqvarna 502146901

GEAR HOUSING

$85.99

$

Usually ships in 3-10 days

0

738219800

Husqvarna 738219800

BALL BEARING 8X22X7/608Z

$7.99

$

In Stock, only 2 left!

0

502147101

Husqvarna 502147101

GEAR WHEEL
(Superseded to 531007898)

$

$

Not available

502147101

Husqvarna 502147101

GEAR WHEEL
(Superseded to 531007898)

$

$

Not available

738210204

Husqvarna 738210204

BALL BEARING 6002-2RS1

$13.99

$

Usually ships in 3-10 days

0

503200003

Husqvarna 503200003

SCREW M6SF 5X12

$6.49

$

Usually ships in 3-10 days

0

735313110

Husqvarna 735313110

RETAINING RING

$4.99

$

In Stock, only 3 left!

0

735311141

Husqvarna 735311141

RETAINING RING

$4.99

$

Usually ships in 3-10 days

0

738219901

Husqvarna 738219901

BALL BEARING 609Z

$10.99

$

Usually ships in 3-10 days

0

738219900

Husqvarna 738219900

BALL BEARING 24X9X1/609ZR

$13.99

$

In Stock, only 2 left!

0

502147401

Husqvarna 502147401

PINION
(Superseded to 531007898)

$

$

Not available

735312510

Husqvarna 735312510

RETAINING RING

$3.49

$

In Stock, only 2 left!

0
