132-9312 - Toro Service Deck Kit for 50" Mower 50 INCH DECK ASSEMBLY NO. 132-9312 Parts Diagram

Service Deck Kit for 50" Mower

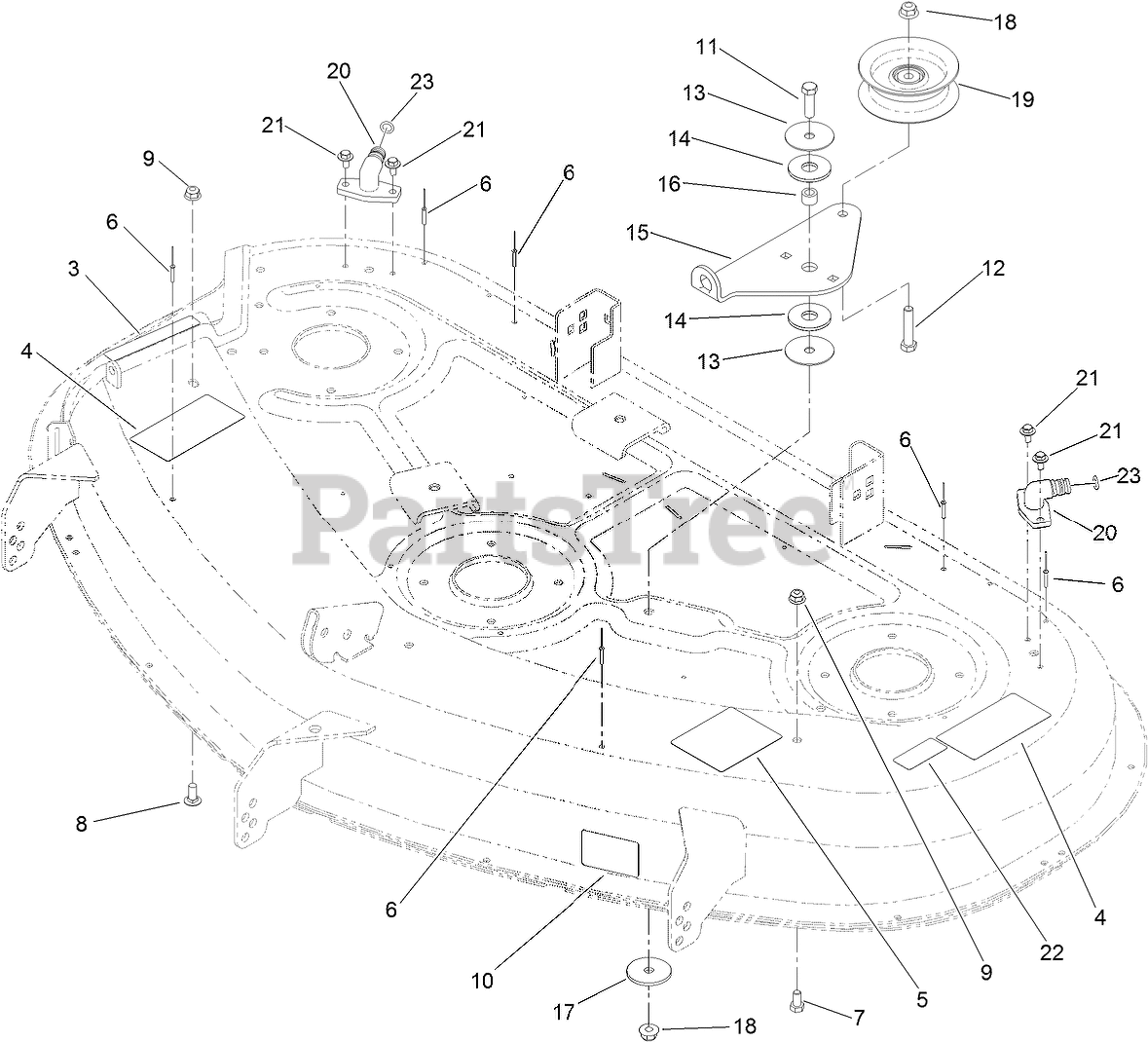

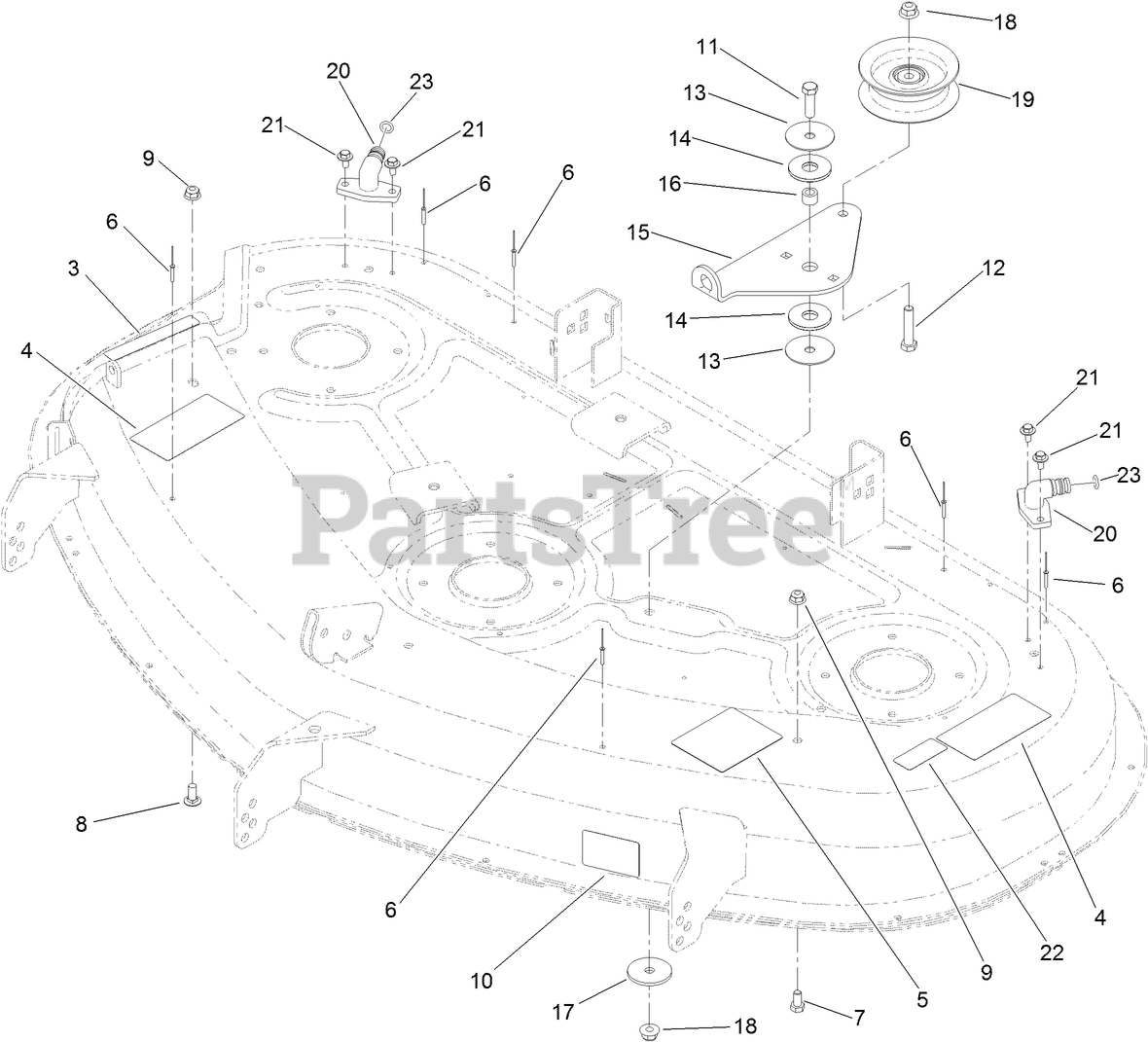

50 INCH DECK ASSEMBLY NO. 132-9312 Parts Diagram

  • Title

3

Toro 93-7009

DECAL-DANGER

$7.49

$

In Stock, Qty 20+

0

4

Toro 132-0872

DECAL-DANGER, DECK

$2.99

$

In Stock, Qty 12

0

5

Toro 99-3943

DECAL-ROUTING, BELT

$7.99

$

In Stock, Qty 12

0

6

Toro 3290-282

RIVET-BLIND

$0.99

$

In Stock, Qty 8

0

7

Toro 322-2

SCREW-HH

$2.99

$

In Stock, Qty 17

0

8

Toro 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

9

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

10

Toro 112-9840

DECAL-SCALP, ANTI

$7.99

$

In Stock, Qty 10

0

11

Toro 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

12

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

13

Toro 120-2229

WASHER

$2.99

$

In Stock, Qty 20+

0

14

Toro 114-0463

WASHER-FRICTION, COMPOSITE

$5.49

$

In Stock, Qty 20+

0

15

Toro 114-8540

ARM-IDLER

$21.99

$

In Stock, Qty 16

0

16

Toro 115-4986

SPACER

$2.99

$

In Stock, Qty 20+

0

17

Toro 63-7400

WASHER-REBOUND

$3.49

$

In Stock, Qty 20+

0

18

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

19

Toro 106-2175

PULLEY-IDLER, FLAT
(Superseded to 132-9420)

$34.99

$

In Stock, Qty 20+

0

20

Toro 95-2747

FITTING-WASHOUT
(Superseded to 133-9289)

$6.49

$

In Stock, Qty 20+

0

21

Toro 46-8560

SCREW-HHFTF

$1.99

$

In Stock, Qty 20+

0

22

Toro 132-9313

SERVICE DECAL

$

$

Currently unavailable

23

Toro 46-3290

O-ring

$

$

Currently unavailable
