132-820H205 - Ranch King Lawn Tractor (1992) Lower Frame, Battery & Steering Assembly Parts Diagram

Lawn Tractor

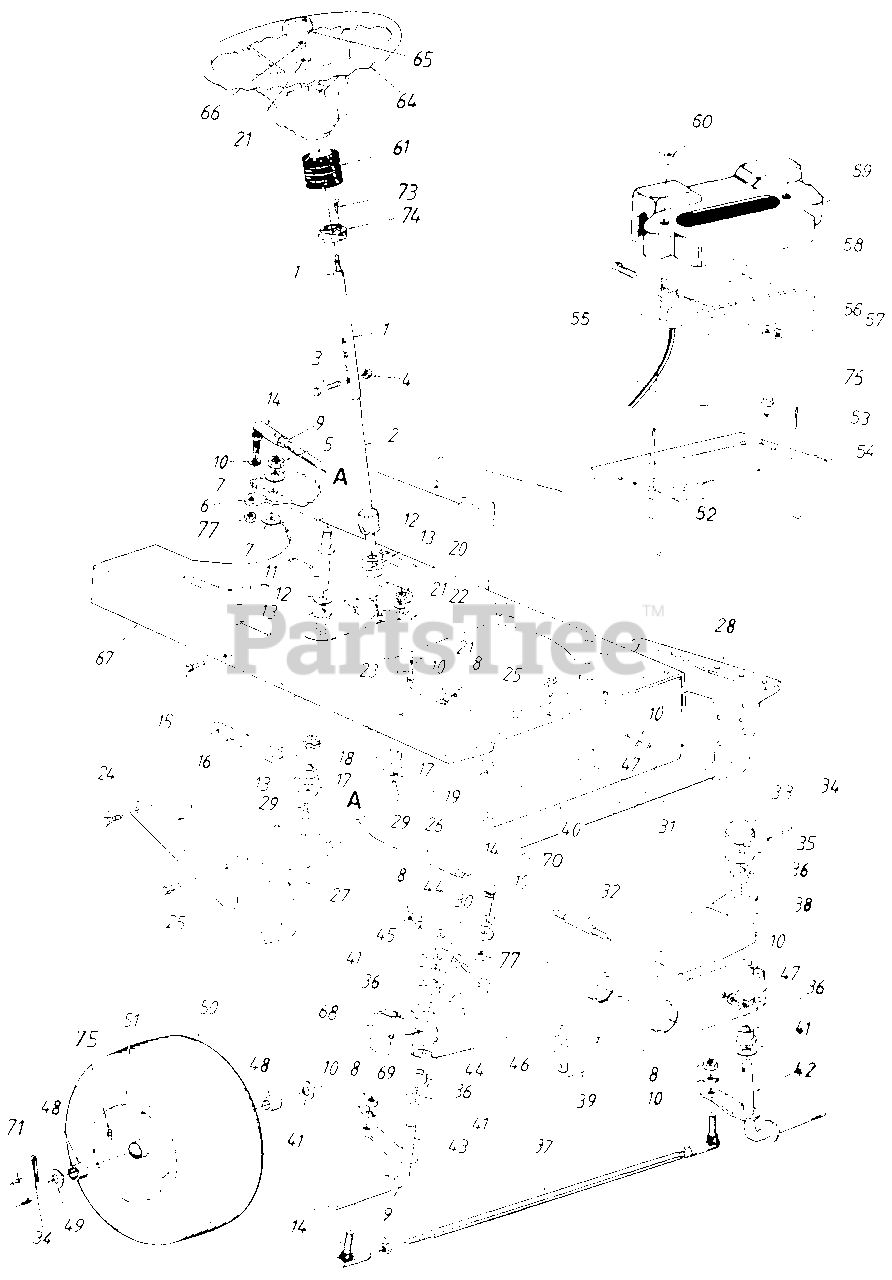

Lower Frame, Battery & Steering Assembly Parts Diagram

  • Title

1

MTD 16512

Steering Column Ass'y.

$

$

Not available

2

MTD 738-0763

Lower Steering Shaft
(Superseded to 938-0763)

$83.99

$

In Stock, Qty 8

0

3

MTD 710-0958

Hex Bolt 1/4-20 x 1.31" Lg.
(Superseded to 710-0106)

$3.99

$

In Stock, Qty 12

0

4

MTD 712-0324

Hex L-Nut 1/4-20 Thd.

$3.99

$

In Stock, Qty 16

0

5

MTD 712-0318

Hex Jam Nut 5/8-18 Thd.

$3.49

$

In Stock, Qty 12

0

6

MTD 717-0943A

Steering Gear Segment
(Superseded to 717-0943C)

$89.99

$

In Stock, only 4 left!

0

7

MTD 736-0317

Bell-Wash. 5/8" I.D. x 1.25" O.D.

$7.99

$

In Stock, Qty 20+

0

8

MTD 712-0241

Hex Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 13

0

9

MTD 712-0711

Hex Jam Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 20+

0

10

MTD 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

11

MTD 738-0768

Steering Gear Segment Shaft

$

$

Not available

12

MTD 736-0187

Fl-Wash. .64" I.D. x 1.24" O.D.

$4.49

$

In Stock, Qty 20+

0

13

MTD 748-0227A

Hex Flange Brg. .63" I.D.
(Superseded to 948-0227A)

$8.49

$

In Stock, Qty 12

0

14

MTD 723-3018

Ball Joint Ass'y.
(Superseded to 923-3018)

$16.99

$

In Stock, Qty 20+

0

15

MTD 710-0599

Hex Wash. Hd. TT-Tap Scr. 1/4-20 x .5" Lg.

$4.49

$

In Stock, Qty 20+

0

16

MTD 16888

Deck Idler Support Brkt.
(Superseded to 16888A-0637)

$56.99

$

Usually ships in 3-6 days

0

17

MTD 736-0343

Fl-Wash. .33" I.D. x 1.25" O.D.

$4.49

$

In Stock, Qty 7

0

18

MTD 750-0532

Spacer .985" I.D. x 1.25" O.D.
(Superseded to 950-0532)

$

$

Not available

19

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

20

MTD 712-0123

Hex Nut 5/16-24 Thd.
(Superseded to 912-3057)

$6.99

$

In Stock, only 3 left!

0

21

MTD 736-0242

Bell-Wash. .345" I.D. x.88" O.D.

$4.49

$

In Stock, Qty 20+

0

22

MTD 16894

Bearing Retainer Brkt.

Variations

MTD 16894-0637

No Longer Available BRACKET-BE - POWDER BLACK (0637)

$

$

Not available

$

$

23

MTD 710-0157

Hex Bolt 5/16-24 x .75" Lg.

$4.49

$

In Stock, Qty 18

0

24

MTD 710-0793

Ribbed Neck Bolt 3/8-24 x .8" Lg.

$

$

Not available

25

MTD 710-0604

Hex Wash. TT-Tap Scr. 5/16-18 x .62" Lg.
(Superseded to 710-0604A)

$4.49

$

In Stock, Qty 20+

0

26

MTD 747-0579

Steering Drag Link
(Superseded to 753-0674)

$

$

Not available

27

MTD 16896

Pivot Bar Side Plate - R.H.

$

$

Not available

28

MTD 16897

Pivot Bar Side Plate - L.H.

$

$

Not available

29

MTD 710-0538

Hex Bolt 5/16-18 x .62" Lg.

$4.49

$

In Stock, Qty 9

0

30

MTD 16918

Steering Arm
(Superseded to 983-0061A-0637)

$40.99

$

In Stock, only 1 left!

0

31

MTD 738-0777

Deck Connecting Rod
(Superseded to 738-0777A)

$37.99

$

Usually ships in 3-6 days

0

32

MTD 738-0775

Pivot Bar Shld. Bolt 3/8-16 x 5/8" Lg.

$24.99

$

Usually ships in 3-6 days

0

33

MTD 731-0484A

Cap
(Superseded to 931-0484A)

$6.49

$

In Stock, Qty 20+

0

34

MTD 714-0121

Cotter Pin 5/32" Dia.
(Superseded to 914-0121)

$

$

Not available

35

MTD 736-0316

Flat Washer

$4.49

$

In Stock, Qty 20+

0

36

MTD 741-0523

Flange Brg. .757" I.D.

$10.99

$

Usually ships in 3-6 days

0

37

MTD 747-0721

Tie Rod 20.25" Lg.

$

$

Not available

38

MTD 16843

Pivot Bar Assy.
(Superseded to 96843-0637)

$130.99

$

Usually ships in 3-6 days

0

39

MTD 16889

Pivot Bar Support Brkt.- Front
(Superseded to 16889A-0637)

Variations

MTD 16889-0637

Pivot Support Bracket - POWDER BLACK (0637)

$

$

Not available

$

$

40

MTD 16890

Pivot Bar Support Brkt.- Rear
(Superseded to 16890A-0637)

Variations

MTD 16890-0637

Pivot Support Bracket - POWDER BLACK (0637)

$49.99

$

Usually ships in 3-6 days

0

$49.99

$

Usually ships in 3-6 days

0

41

MTD 736-0188

Fl-Wash. .76" I.D. x 1.49" O.D.

$4.49

$

In Stock, Qty 20+

0

42

MTD 16913

Front Axle Ass'y.- L.H.

$

$

Currently unavailable

43

MTD 16912

Front Axle Ass'y.- R.H.

$

$

Not available

44

MTD 736-0286

Bowed Washer
(Superseded to 936-0286)

$6.99

$

In Stock, only 2 left!

0

45

MTD 748-0160

Spacer .755" I.D. x 1.25" O.D.
(Superseded to 948-0160)

$6.99

$

In Stock, Qty 9

0

46

MTD 710-0331

Hex Bolt 3/8-24 x 2.25" Lg.

$6.99

$

In Stock, Qty 7

0

47

MTD 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 12

0

48

MTD 741-0516

Flange Brg. .75" I.D.
(Superseded to 741-0516B)

$6.49

$

In Stock, Qty 20+

0

49

MTD 736-0316

Fl-Wash. .71" I.D. x 1.5" O.D.

$4.49

$

In Stock, Qty 20+

0

50

MTD 634-0061

Wheel Ass'y. Comp.

Note: New Part

$

$

Currently unavailable

MTD 734-0427

Tire Only
(Superseded to 734-1731-0901)

$49.99

$

Usually ships in 3-6 days

0

51

MTD 634-0023

Rim Only

Note: New Part

$

$

Currently unavailable

52

MTD 726-0271

Push Nut
(Superseded to 926-0271)

$6.49

$

In Stock, only 2 left!

0

53

MTD 711-0222

Battery Hold Down Rod
(Superseded to 911-0222A)

$11.99

$

In Stock, only 1 left!

0

54

MTD 17634

Battery Plate

Variations

MTD 17634-0637

No Longer Available BRACKET-BA - POWDER BLACK (0637)

$

$

Not available

$

$

55

MTD 710-0258

Hex Bolt 1/4-20 x .62" Lg.
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

56

MTD 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

57

MTD 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

58

MTD 725-1635

Battery (275 Cold Crank Amps)
(Superseded to 753-0608)

$

$

Not available

59

MTD 731-1132

Battery Cover

$15.99

$

In Stock, only 3 left!

0

60

MTD 712-0113

Wing Nut Plastic 1/4-20 Thd.
(Superseded to 912-0113)

$6.99

$

In Stock, only 2 left!

0

61

MTD 731-0954

Steering Bellow
(Superseded to 931-0954)

$21.99

$

Usually ships in 3-6 days

0

64

MTD 731-0806A

Steering Wheel
(Superseded to 931-0806A)

$

$

Not available

65

MTD 731-0220

Steering Wheel Cap
(Superseded to 931-0220)

$9.49

$

In Stock, only 2 left!

0

66

MTD 712-0237

Hex L-Nut 5/16-24 Thd.

$4.99

$

In Stock, only 4 left!

0

67

MTD 17359A

Lower Frame

$

$

Not available

68

MTD 731-1049

Pivot Bar End Cap

$

$

Not available

69

MTD 737-0280

Grease Fitting

$7.99

$

In Stock, Qty 8

0

70

MTD 714-0149B

Internal Cotter Pin

$4.49

$

In Stock, Qty 18

0

71

MTD 731-0484A

Hub Cap
(Superseded to 931-0484A)

$6.49

$

In Stock, Qty 20+

0

73

UNKNOWN

$

$

Not available

74

UNKNOWN

$

$

Not available

75

MTD 734-0255

Air Valve
(Superseded to 934-0255)

$4.49

$

In Stock, Qty 20+

0

76

MTD 710-0776A

Hex AB-Tap Scr. 1/4 x .62" Lg.
(Superseded to 710-0896)

$4.49

$

In Stock, Qty 20+

0

77

MTD 712-0446

Hex Jam L-Nut 3/8-24 Thd.
(Superseded to 912-0446)

$6.99

$

In Stock, only 1 left!

0

?78

MTD 737-0280

Grease Fitting

$7.99

$

In Stock, Qty 8

0
