132-820H205 - Ranch King Lawn Tractor (1992) Hood, Grille & Fender Parts Diagram

Lawn Tractor

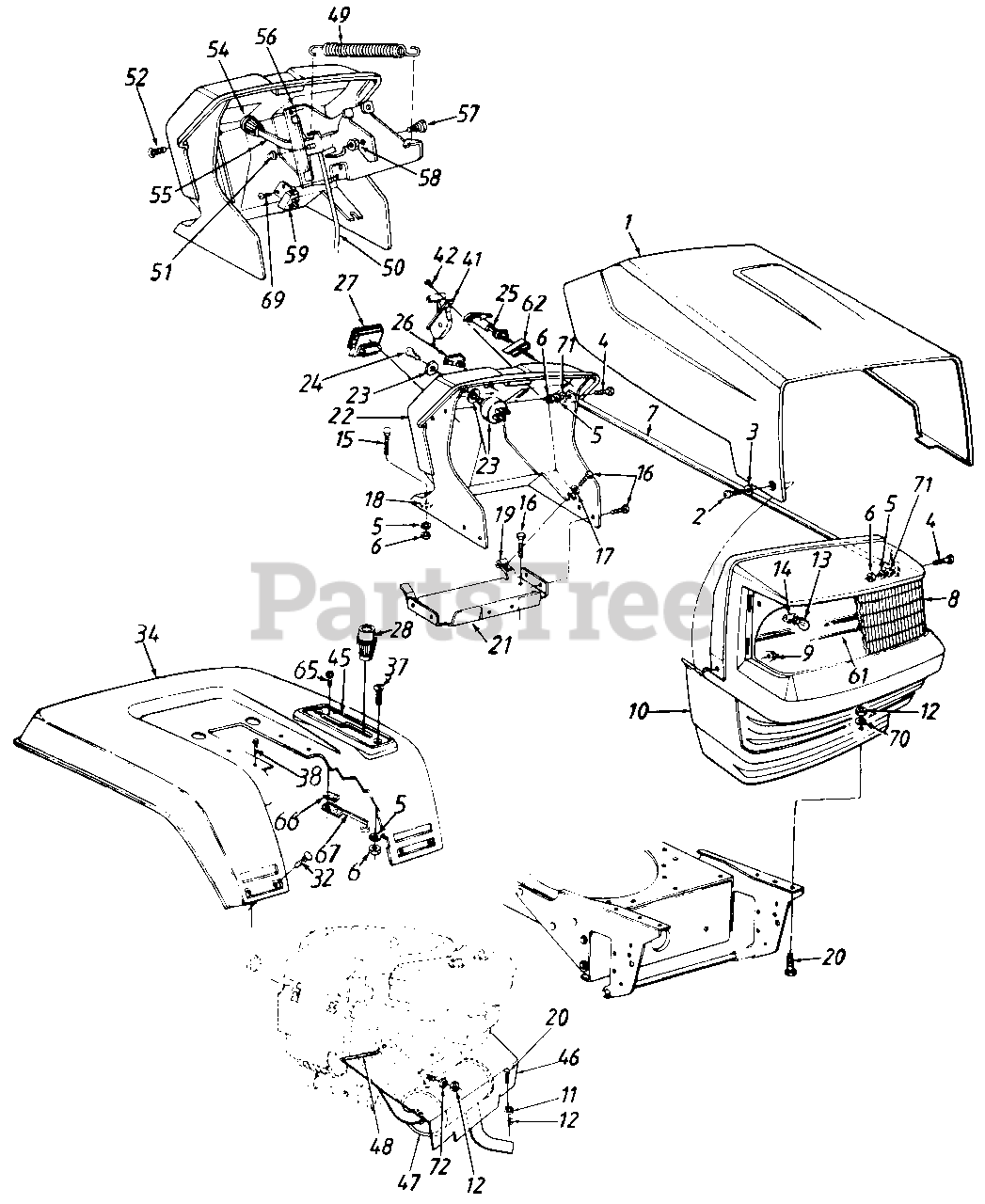

Hood, Grille & Fender Parts Diagram

  • Title

1

MTD 17551A

Hood
(Superseded to 783-0250A)

Note: New Part

Variations

MTD 17551A-0638

HOOD-O STY LOUVER - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

2

MTD 738-0724

Shld. Bolt .375" Dia. x .125" Lg.
(Superseded to 938-0952A)

$7.49

$

In Stock, Qty 10

0

3

MTD 736-0175

Spr. Wash. .265" I.D. x .562" O.D.
(Superseded to 936-0175)

$3.99

$

In Stock, only 3 left!

0

4

MTD 710-0258

Hex Bolt 1/4-20 x 62" Lg.
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

5

MTD 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

6

MTD 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

7

MTD 749-0813A

Grille Support Rod

Note: New Part

Variations

MTD 749-0813A-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

$

$

8

MTD 731-1099A

Headlight Lens
(Superseded to 931-1099A)

$92.99

$

In Stock, only 1 left!

0

9

MTD 712-0380

Flange L-Nut 1/4-28 Thd.

$3.99

$

In Stock, only 2 left!

0

10

MTD 731-1097A

Grille
(Superseded to 931-1097G)

Note: New Part

$192.99

$

Usually ships in 3-6 days

0

11

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

12

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

13

MTD 725-0963

Lamp
(Superseded to 925-0963)

$7.49

$

In Stock, only 1 left!

0

14

MTD 725-1649

Socket
(Superseded to 925-1649A)

Note: New Part

$11.99

$

In Stock, Qty 20+

0

15

MTD 710-0932

Carriage Bolt 1/4-20 x 1.0" Lg.
(Superseded to 710-0932A)

$3.99

$

In Stock, only 4 left!

0

16

MTD 710-0776A

Hex AB-Tap Scr. 1/4 x .62" Lg.
(Superseded to 710-0896)

$4.49

$

In Stock, Qty 20+

0

17

MTD 736-0173

Fl-Wash. .281" I.D. x .73" O.D.

$4.49

$

In Stock, Qty 20+

0

18

MTD 726-0233

Bolt Retainer 1/4" I.D.

$4.49

$

In Stock, Qty 20+

0

19

MTD 712-0185

Speed Nut 1/4-20 Thd.

$

$

Not available

20

MTD 710-0118

Hex Bolt 5/16-18 x .75" Lg.
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

21

MTD 17634

Support Brkt.

Variations

MTD 17634-0637

No Longer Available BRACKET-BA - POWDER BLACK (0637)

$

$

Not available

$

$

22

MTD 731-1094A

Dash

Note: New Part

$

$

Not available

23

MTD 725-0267

Ignition Switch
(Superseded to 925-0267B)

$35.99

$

In Stock, Qty 20+

0

24

MTD 725-0201

Ignition Key
(Superseded to 925-0201)

$9.49

$

In Stock, only 1 left!

0

25

MTD 746-0614A

Choke Control

$24.99

$

In Stock, only 1 left!

0

26

MTD 725-0634

Light Switch
(Superseded to 925-0634)

$17.99

$

In Stock, only 4 left!

0

27

MTD 725-0925

Ammeter
(Superseded to 925-0925)

$31.99

$

In Stock, Qty 6

0

28

MTD 720-0218

Shift Knob

$19.99

$

Usually ships in 3-6 days

0

?29

MTD 720-0166

Knob

$

$

Not available

32

MTD 710-0167

Carriage Bolt 1/4-20 x .5" Lg.
(Superseded to 710-05177)

$4.99

$

In Stock, Qty 20+

0

34

MTD 17426A

Fender

Note: 638/N

Variations

MTD 17426A-0483

FENDER-RR - CHARCOAL GRAY (0483)

$

$

Not available

MTD 17426A-0499

No Longer Available FENDER-RR - CUB BEIGE (0499)

$

$

Not available

MTD 17426A-0606

No Longer Available FENDER-RR - MAJESTIC ORANGE (0606)

$

$

Not available

MTD 17426A-0629

No Longer Available FENDER-RR - SILVER FLAKE (0629)

$

$

Not available

MTD 17426A-0638

FENDER-RR - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 17426A-0648

FENDER-RR - TECH GRAY (0648)

$

$

Not available

MTD 17426A-0650

No Longer Available FENDER-RR - RED METALLIC (0650)

$

$

Not available

MTD 17426A-0662

No Longer Available - OYSTER GRAY (0662)

$

$

Not available

MTD 17426A-0665

No Longer Available FENDER-RR - YARDMAN GREEN (0665)

$

$

Not available

MTD 17426A-0667

No Longer Available - MIDNIGHT BLUE (0667)

$

$

Not available

MTD 17426A-0674

No Longer Available - YARDMAN YELLOW (0674)

$

$

Not available

MTD 17426A-0686

No Longer Available - SIMPLICITY ORANGE (0686)

$

$

Not available

MTD 17426A-0691

No Longer Available - BLACK JACK (0691)

$

$

Not available

MTD 17426A-0692

No Longer Available FENDER-RR - AGWAY BLUE (0692)

$

$

Not available

MTD 17426A-0709

No Longer Available - MASTERCRAFT GREEN (0709)

$

$

Not available

$

$

37

MTD 710-0166

Truss Mach. Scr #1/4-20 x 1" Lg.
(Superseded to 710-0166A)

$7.49

$

In Stock, only 1 left!

0

38

MTD 710-0726

Hex Wash. Hd. AB-Tap Scr. 5/16 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

41

UNKNOWN

$

$

Not available

42

MTD 710-0779A

Truss Mach AB-Tap Scr. #10 x .5" Lg.

$4.49

$

In Stock, Qty 12

0

45

MTD 731-1070

Speed Selector Plate

$

$

Not available

46

MTD 16934

Front Heat Shield

$

$

Not available

47

MTD 751-0474

Muffler

$

$

Not available

48

MTD 731-0511-12

Trim Strip 12" Lg.

$22.99

$

Usually ships in 3-6 days

0

49

MTD 732-0626

Ext Spring 5.06" Lg.

$12.99

$

In Stock, only 1 left!

0

50

MTD 747-0750

Deck Control Rod
(Superseded to 747-0750A)

$28.99

$

Usually ships in 3-6 days

0

51

MTD 726-0106

Speed Nut 1/4" Rod

$3.99

$

Usually ships in 3-6 days

0

52

MTD 710-1017

Torx Mach. Scr. 1/4 x .62" Lg.

$8.49

$

In Stock, Qty 9

0

54

MTD 720-0165

PTO Knob
(Superseded to 920-0232)

$10.99

$

In Stock, Qty 10

0

55

MTD 17500

PTO Lever

$

$

Not available

56

MTD 17496

PTO Bracket

$

$

Not available

57

MTD 738-0155

Shld. Bolt .437" Dia. x .162"
(Superseded to 938-0155)

$6.99

$

Usually ships in 3-6 days

0

58

MTD 712-3009

Hex L-Nut 5/16-18 Thd.

$6.99

$

In Stock, Qty 20+

0

59

MTD 725-0465A

Safety Switch (PTO)
(Superseded to 925-0465A)

$30.99

$

In Stock, only 1 left!

0

?60

MTD 710-1066

Hex Wash. Hd. B-Tap Scr. #10 x .38" Lg.
(Superseded to 910-0224)

$3.99

$

In Stock, Qty 20+

0

61

MTD 777-9206

Grille Reflector Label
(Superseded to 777X40318)

$

$

Not available

62

MTD 17782

Retainer Clip

$

$

Not available

?64

MTD 710-0924

Truss Mach. Scr. 1/4-20 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

65

MTD 710-0227

Hex Wash. Hd. AB-Tap Scr. #8 x .5" Lg.

$4.49

$

In Stock, Qty 20+

0

66

MTD 726-0320

Insulator Nut Plate
(Superseded to 926-0320)

Note: New Part

$6.99

$

In Stock, Qty 11

0

67

MTD 725-1643

Reverse Safety Switch

Note: New Part

$10.99

$

In Stock, only 1 left!

0

69

MTD 710-1066

Hex Wash. Hd. B-Tap Scr. #10 x .38" Lg.
(Superseded to 910-0224)

$3.99

$

In Stock, Qty 20+

0

70

MTD 736-3078

Fl-Wash. .344" I.D. x 1" O.D.

$4.49

$

In Stock, Qty 20+

0

71

MTD 736-0342

Fl-Wash. .28" I.D. x .75" O.D.

$7.49

$

Usually ships in 3-6 days

0

72

MTD 736-0170

Spec L-Wash 5/16" I.D.

$5.99

$

Usually ships in 3-6 days

0
