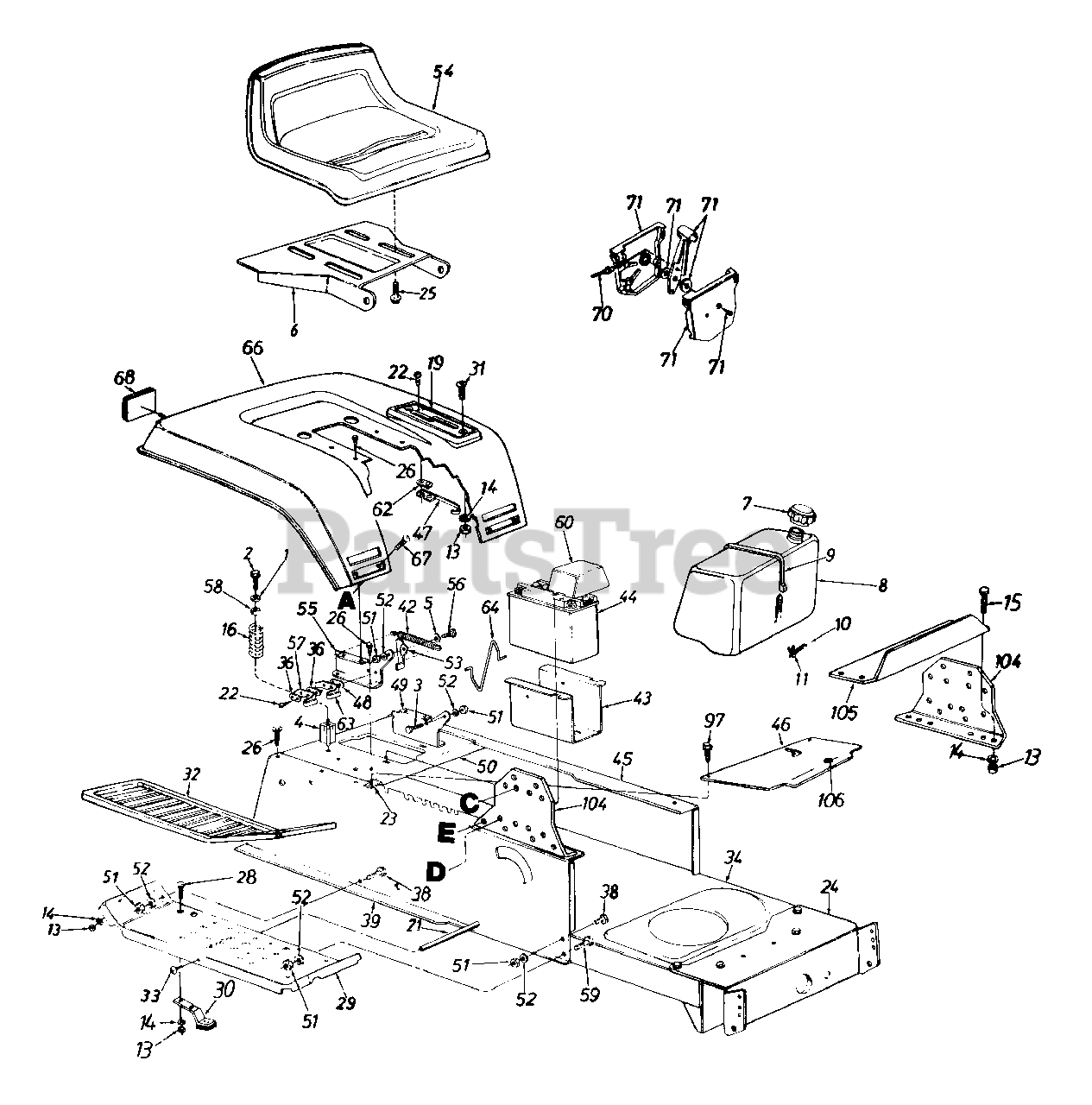

132-740-000 - MTD Lawn Tractor, Style 0 (1992) Seat And Blade Brake Assembly Parts Diagram

Lawn Tractor, Style 0

Seat And Blade Brake Assembly Parts Diagram

  • Title

1

MTD 736-0159

Fl-Wash..344" I.D. x .875"

$4.49

$

In Stock, Qty 20+

0

2

MTD 710-1208

Hex Wash. Hd. Tap Scr. 5/16-18 x 3.25" Lg.

$6.99

$

In Stock, only 2 left!

0

3

MTD 738-0155

Shld. Bolt .437" Dia. x .162"
(Superseded to 938-0155)

$6.99

$

Usually ships in 3-6 days

0

4

MTD 748-0347

Spring Spacer
(Superseded to 748-0347A)

$

$

Not available

5

MTD 736-0141

Spr-Wash..445" I.D. x .75
(Superseded to 936-0141)

$6.99

$

Usually ships in 3-6 days

0

6

MTD 15607D

Seat Pivot Bracket
(Superseded to 783-0039A)

$71.99

$

Usually ships in 3-6 days

0

7

MTD 751-3071

Fuel Cap w/o Gasket
(Superseded to 751-0603B)

$23.99

$

Usually ships in 3-6 days

0

8

MTD 751-0553

Fuel Tank
(Superseded to 751-0555B)

$

$

Not available

9

MTD 726-0209

Tie Strap
(Superseded to 726-0230)

$27.99

$

In Stock, only 1 left!

0

10

MTD 751-0535-15

Fuel Line 15" Lg.
(Superseded to 751-10349-16)

$19.99

$

In Stock, Qty 11

0

11

MTD 726-0205

Hose Clamp

$3.99

$

In Stock, Qty 20+

0

13

MTD 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

14

MTD 736-0329

L-Wash. 1 4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

15

MTD 710-0258

Hex Bolt 1/4-20 x .62" Lg.
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

16

MTD 732-0672

Compression Spring
(Superseded to 732-0735A)

$29.99

$

In Stock, Qty 5

0

19

MTD 731-1053A

Speed Control Index Brkt.
(Superseded to 931-1734)

$

$

Not available

21

MTD 738-0526

Running Board Rod

$

$

Not available

22

MTD 710-0227

Hex Wash. Hd. AB-Tap Scr. #8 x .50" Lg.

$4.49

$

In Stock, Qty 20+

0

23

MTD 726-0139

Speed Nut #102

$6.99

$

Usually ships in 3-6 days

0

24

MTD 17621

Front Pivot Brkt.
(Superseded to 783-0041C)

$77.99

$

Usually ships in 3-6 days

0

25

MTD 710-0623

Hex Tap Scr. 3/8-16 x .75"

$4.49

$

In Stock, Qty 20+

0

26

MTD 710-0726

Hex Wash. Hd. AB-Tap Scr. 5/16 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

28

MTD 710-0134

Carriage Bolt 1/4-20 x .62"

$4.49

$

In Stock, Qty 20+

0

29

MTD 17770

Running Board (R.H. & L.H.)
(Superseded to 17770H)

$

$

Not available

30

MTD 761-0168A

Blade Brake Ass'y.
(Superseded to 961-0168D)

$31.99

$

In Stock, only 1 left!

0

31

MTD 710-0924

Truss Mach. Scr. 1/4-20 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

32

MTD 731-0911

Rubber Foot Pad - L.H.

Note: (Optional)

$

$

Not available

MTD 731-0912

Rubber Foot Pad - R.H.

Note: (Optional)

$

$

Not available

33

MTD 710-1221

Pan Hd. Cutting Scr. 5/16-18 x .75" Lg.

Note: New Part

$

$

Not available

34

MTD 17620C

Lower Frame

Note: New Part

$

$

Not available

36

MTD 726-0279

Insulator Plate

$3.99

$

In Stock, Qty 8

0

38

MTD 710-0118

Hex Bolt 5/16-18 x .75" Lg.
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

39

MTD 17622B

Upper Frame - R.H.
(Superseded to 783-0042D)

Note: Code 638; New Part

$

$

Not available

42

MTD 732-0581B

Extension Spring 5.31" Lg.
(Superseded to 932-0581B)

$14.99

$

In Stock, only 1 left!

0

43

MTD 17952

Battery Tray
(Superseded to 17952A-0637)

$

$

Not available

44

MTD 725-1633

12-V Battery (275 Cold Crank Amps)
(Superseded to 753-0607)

$170.99

$

Usually ships in 3-6 days

0

45

MTD 17623

Upper Frame - L.H.
(Superseded to 783-0043B)

Note: Code 638

$

$

Not available

46

MTD 17775

Shift Cover

$

$

Not available

47

MTD 725-1643

Reverse Safety Switch

Note: New Part

$10.99

$

In Stock, only 1 left!

0

48

MTD 726-0278

Insulator Boss Plate

$6.99

$

In Stock, Qty 10

0

49

MTD 17951

Seat Pivot Brkt. Support - L.H.
(Superseded to 17951A-0637)

Variations

MTD 17951-0637

Seat Support Bracket, LH - POWDER BLACK (0637)

$26.99

$

In Stock, only 1 left!

0

$26.99

$

In Stock, only 1 left!

0

50

MTD 17953

Hitch Plate

Variations

MTD 17953-0637

No Longer Available PLATE-HITC - POWDER BLACK (0637)

$

$

Not available

$

$

51

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

52

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

53

MTD 17239A

Seat Lift Brkt.
(Superseded to 17239C)

$

$

Not available

54

MTD 757-0345

Seat - 8-7 8" High
(Superseded to 957-0378)

$

$

Not available

MTD 757-0338

Seat - 10-5/8" High
(Superseded to 957-0360A)

$

$

Not available

MTD 757-0350

Seat - 14-1/4" High
(Superseded to 957-0350)

$588.99

$

Usually ships in 3-6 days

0

55

MTD 17950

Seat Pivot Brkt. Support - R.H.
(Superseded to 17950A-0637)

Variations

MTD 17950-0637

Seat Support Bracket, RH - POWDER BLACK (0637)

$23.99

$

Usually ships in 3-6 days

0

$23.99

$

Usually ships in 3-6 days

0

56

MTD 738-0296

Shld. Bolt .437" Dia. x .268"

$4.49

$

In Stock, Qty 20+

0

57

MTD 725-1303

Spring Switch
(Superseded to 925-1303)

$6.49

$

In Stock, Qty 7

0

58

MTD 722-0160

Bushing

$

$

Not available

59

MTD 710-0650

Hex Wash. Hd. Scr. 5/16-18 x .87" Lg.

$3.99

$

In Stock, Qty 20+

0

60

MTD 731-1200

Battery Cover

$

$

Not available

62

MTD 726-0320

Insulator Nut Plate
(Superseded to 926-0320)

Note: New Part

$6.99

$

In Stock, Qty 11

0

63

MTD 725-1439

Safety Switch (Seat)

$8.49

$

In Stock, Qty 10

0

64

MTD 732-0674

Battery Tray Clip

$

$

Not available

66

MTD 17328B

Fender

Note: Code 638; New Part

Variations

MTD 17328B-0483

No Longer Available FENDER-RR - CHARCOAL GRAY (0483)

$

$

Not available

MTD 17328B-0499

No Longer Available FENDER-RR - CUB BEIGE (0499)

$

$

Not available

MTD 17328B-0638

No Longer Available FENDER-RR - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 17328B-0648

No Longer Available FENDER-RR - TECH GRAY (0648)

$

$

Not available

MTD 17328B-0665

No Longer Available FENDER-RR - YARDMAN GREEN (0665)

$

$

Not available

$

$

67

MTD 710-0167

Carriage Bolt 1/4-20 x .62" Lg.
(Superseded to 710-05177)

$4.99

$

In Stock, Qty 20+

0

68

MTD 730-3000

Reflector
(Superseded to 930-3000)

Note: (Optional)

$17.99

$

In Stock, only 2 left!

0

70

MTD 746-0501

Throttle Wire

$17.99

$

In Stock, only 1 left!

0

71

MTD 831-0823A

Throttle Control Box Ass'y.

$32.99

$

In Stock, Qty 20+

0

97

MTD 710-0351

Truss Mach. B-Tap Scr. #10 x .5" Lg.

$4.49

$

Usually ships in 3-6 days

0

104

MTD 17300D

Dash Support Brkt.

Note: (Not Used on Style 0)

Variations

MTD 17300D-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

$

$

105

MTD 17633A

Gas Tank Support Brkt.

Note: New Part

Variations

MTD 17633A-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

$

$

MTD 17632A

Gas Tank Support Brkt.

Note: (Style 0 Only); New Part

Variations

MTD 17632A-0637

Gas Tank Support Brkt. - POWDER BLACK (0637)

$

$

Not available

$

$

106

MTD 731-0405

Snap Bushing

$

$

Not available
