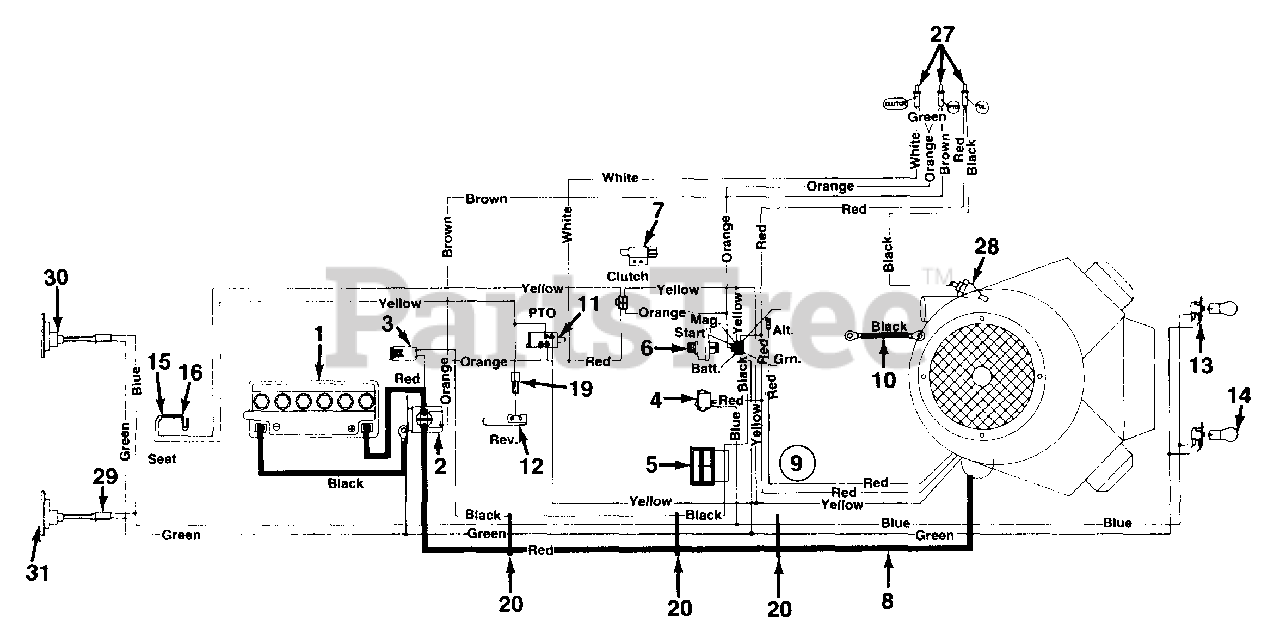

132-730-000 - MTD Lawn Tractor, Style 0 (1992) Electrical System Parts Diagram

Lawn Tractor, Style 0

Electrical System Parts Diagram

  • Title
1

MTD 725-1635

Battery - 12V
(Superseded to 753-0608)

$

$

Not available

2

MTD 725-1426

Solenoid
(Superseded to 925-1426A)

$26.99

$

In Stock, Qty 20+

0

3

MTD 725-1381

Fuse 20 Amps
(Superseded to 925-1381)

$6.49

$

In Stock, Qty 11

0

4

MTD 725-0634

Light Switch
(Superseded to 925-0634)

$17.99

$

In Stock, only 4 left!

0

5

MTD 725-0925

Ammeter
(Superseded to 925-0925)

$31.99

$

In Stock, Qty 6

0

6

MTD 725-1396

Ignition Switch
(Superseded to 925-1396A)

$43.99

$

In Stock, Qty 5

0

7

MTD 725-3169A

Safety Switch (Clutch)
(Superseded to 925-04039)

$24.99

$

In Stock, Qty 8

0

8

MTD 725-1081

Electric Wire - 30.0" Lg.
(Superseded to 629-0740)

$20.99

$

Usually ships in 3-6 days

0

9

MTD 629-0062

Wire Harness w/o Taillights

Note: New Part

$

$

Not available

MTD 629-0063

Wire Harness w/Taillights

Note: New Part

$

$

Not available

10

MTD 725-0980

Ground Wire - 7.5" Lg.

$

$

Not available

11

MTD 725-0803C

Safety Switch (Deck)
(Superseded to 725-0803B)

$33.99

$

In Stock, only 1 left!

0

12

MTD 725-1643

Safety Switch (Reverse)

Note: New Part

$10.99

$

In Stock, only 1 left!

0

13

MTD 725-1649

Headlight Socket
(Superseded to 925-1649A)

Note: (Style 0, 6) New Part

$11.99

$

In Stock, Qty 20+

0

MTD 725-1650

Headlight Socket
(Superseded to 925-1650)

Note: (Style 4, 9) New Part

$

$

Not available

14

MTD 725-0963

Headlight Bulb
(Superseded to 925-0963)

$7.49

$

In Stock, only 1 left!

0

15

MTD 725-1303

Safety Switch (Seat)
(Superseded to 925-1303)

$6.49

$

In Stock, Qty 7

0

16

MTD 725-1439

Safety Switch (Seat)

$8.49

$

In Stock, Qty 10

0

19

MTD 725-1548

Ext. Wire

$

$

Currently unavailable

20

MTD 726-0197

Cable Tie

$3.99

$

In Stock, only 1 left!

0

27

MTD 725-1365

Bulb
(Superseded to 925-1365)

$10.99

$

In Stock, only 1 left!

0

28

MTD 751-0537

Oil Pressure Switch

$

$

Not available

29

MTD 725-1380

Taillight Harness

Note: Optional Parts

$

$

Not available

30

MTD 725-3018

Taillight

$

$

Currently unavailable

31

MTD 725-3020

Taillight Bulb

$

$

Not available
