132-719-000 - MTD Lawn Tractor, Style 0 (1992) Hood Assembly Parts Diagram

Lawn Tractor, Style 0

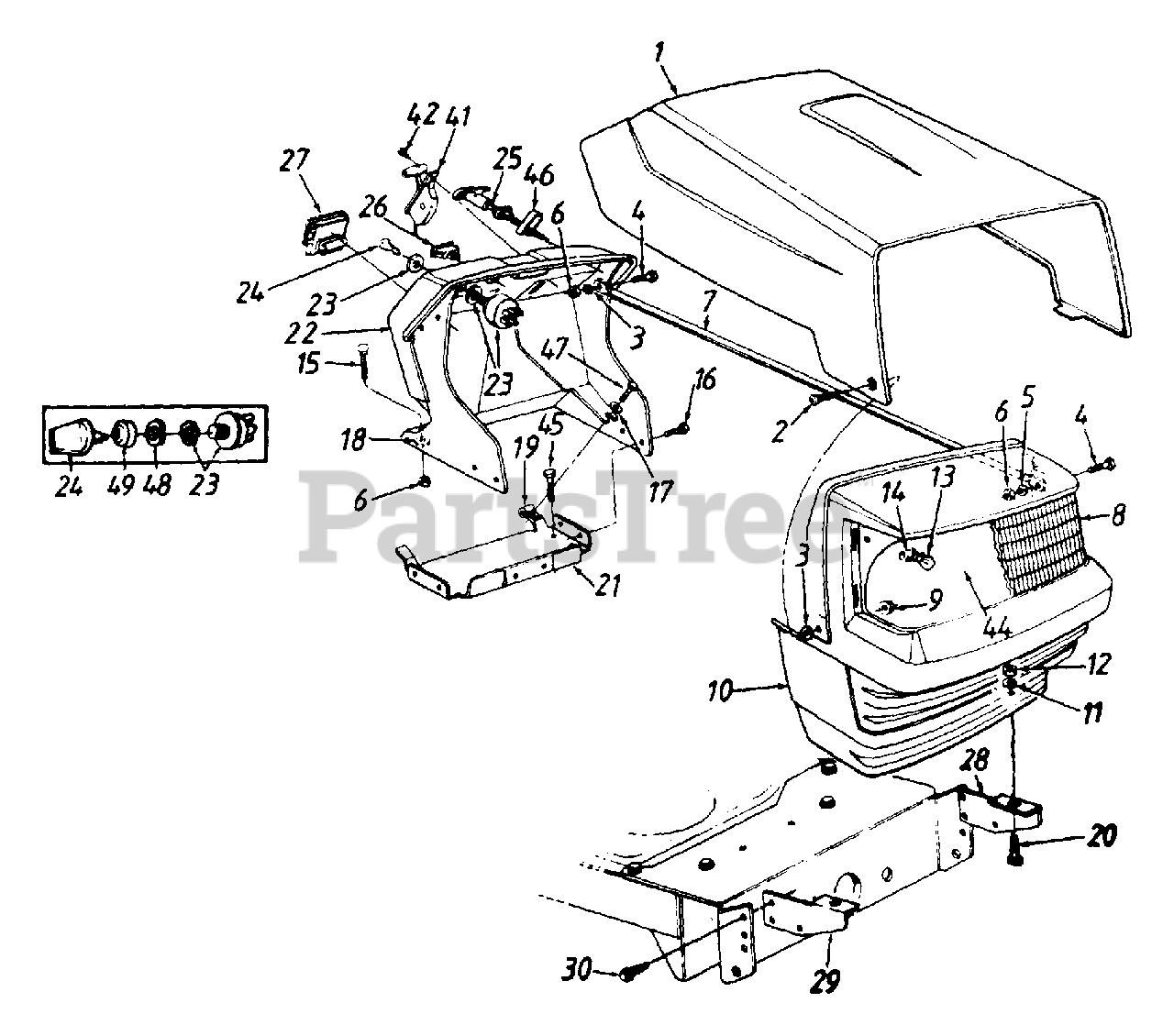

Hood Assembly Parts Diagram

  • Title

1

MTD 17551A

Hood
(Superseded to 783-0250A)

Note: New Part

Variations

MTD 17551A-0638

HOOD-O STY LOUVER - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

2

MTD 738-0724

Shld. Bolt .375" Dia. x .125" Lg.
(Superseded to 938-0952A)

$7.49

$

In Stock, Qty 10

0

3

MTD 736-0342

Fl-Wash..28" I.D. x .75" O.D.

$7.49

$

Usually ships in 3-6 days

0

4

MTD 710-0258

Hex Bolt 1/4-20 x .62" Lg.
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

5

MTD 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

6

MTD 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

Usually ships in 3-6 days

0

7

MTD 749-0812

Grille Support Rod

Variations

MTD 749-0812-0637

Grille Support Rod - POWDER BLACK (0637)

$20.99

$

Usually ships in 3-6 days

0

MTD 749-0812-0648

Grille Support Rod - TECH GRAY (0648)

$20.99

$

Usually ships in 3-6 days

0

$19.99

$

Usually ships in 3-6 days

0

8

MTD 731-1099A

Headlight Lens
(Superseded to 931-1099A)

$92.99

$

In Stock, only 1 left!

0

9

MTD 712-0380

Flange L-Nut 1/4-28 Thd.

$3.99

$

In Stock, only 2 left!

0

10

MTD 731-1097A

Grille
(Superseded to 931-1097G)

Note: New Part

$192.99

$

Usually ships in 3-6 days

0

11

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

12

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

13

MTD 725-0963

Lamp
(Superseded to 925-0963)

$7.49

$

In Stock, only 4 left!

0

14

MTD 725-1649

Socket
(Superseded to 925-1649A)

Note: New Part

$11.99

$

In Stock, Qty 20+

0

15

MTD 710-0703

Carriage Bolt 1/4-20 x .75" Lg.

$4.49

$

In Stock, Qty 15

0

16

MTD 710-0599

Hex Wash. Hd. TT-Tap Scr. 1/4-20 x .5" Lg.

$4.49

$

In Stock, Qty 20+

0

17

MTD 736-0173

Fl-Wash..281" I.D. x.73" O.D.

$4.49

$

In Stock, only 4 left!

0

18

MTD 726-0233

Bolt Retainer 1/4" I.D.

$4.49

$

In Stock, only 3 left!

0

19

MTD 712-0185

Speed Nut 1/4-20 Thd.

$

$

Not available

20

MTD 710-0118

Hex Bolt 5/16-18 x .75" Lg.
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

21

MTD 17632

Gas Tank Support Brkt.

$

$

Not available

22

MTD 731-1096A

Dash w/Ammeter hole
(Superseded to 753-04861)

Note: New Part

$

$

Not available

MTD 731-1337

Dash
(Superseded to 731-1337A)

Note: New Part

$111.99

$

Usually ships in 3-6 days

0

23

MTD 725-0267

Ignition Switch
(Superseded to 925-0267B)

$35.99

$

In Stock, Qty 8

0

24

MTD 725-1341B

Ignition Key

$10.99

$

In Stock, only 1 left!

0

25

MTD 746-0616A

Choke Controls
(Superseded to 946-0616A)

$26.99

$

In Stock, Qty 5

0

MTD 746-0614A

Choke Control

$24.99

$

In Stock, only 1 left!

0

26

MTD 725-0634

Light Switch
(Superseded to 925-0634)

Note: Optional Parts

$17.99

$

In Stock, Qty 5

0

27

MTD 725-0925

Ammeter
(Superseded to 925-0925)

Note: Optional Parts

$31.99

$

In Stock, only 1 left!

0

28

MTD 15821

Grille Mtg. Brkt.- L.H.

$

$

Not available

29

MTD 15822

Grille Mtg. Brkt.- R.H.

Variations

MTD 15822-0637

No Longer Available BRACKET-GR - POWDER BLACK (0637)

$

$

Not available

$

$

30

MTD 710-0607

Hex Wash. Hd. Tap Scr. 5/16 x .5" Lg.

$6.99

$

In Stock, Qty 12

0

41

MTD 831-0823A

Throttle Box Ass'y.

$32.99

$

In Stock, Qty 20+

0

42

MTD 710-0779A

Truss Mach. AB-Tap Scr. #10 x .5" Lg.

$4.49

$

In Stock, Qty 12

0

44

MTD 777-9206

Grille Reflector Label
(Superseded to 777X40318)

$

$

Not available

45

MTD 710-0603

Hex Wash. Hd. B-Tap Scr, 5/16-18 x .5" Lg.

$4.99

$

Usually ships in 3-6 days

0

46

MTD 17782

Choke Retainer

$

$

Not available

47

MTD 710-0642

Hex TT-Tap Scr. 1/4-20 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

48

MTD 725-1346

Ignition Switch Nut
(Superseded to 925-1346)

$

$

Not available

49

MTD 725-1347

Ignition Switch Cap

$4.99

$

In Stock, only 1 left!

0
