132-700-000 - MTD Lawn Tractor, Style 6 (1992) Steering And Front Axle Assembly Parts Diagram

Lawn Tractor, Style 6

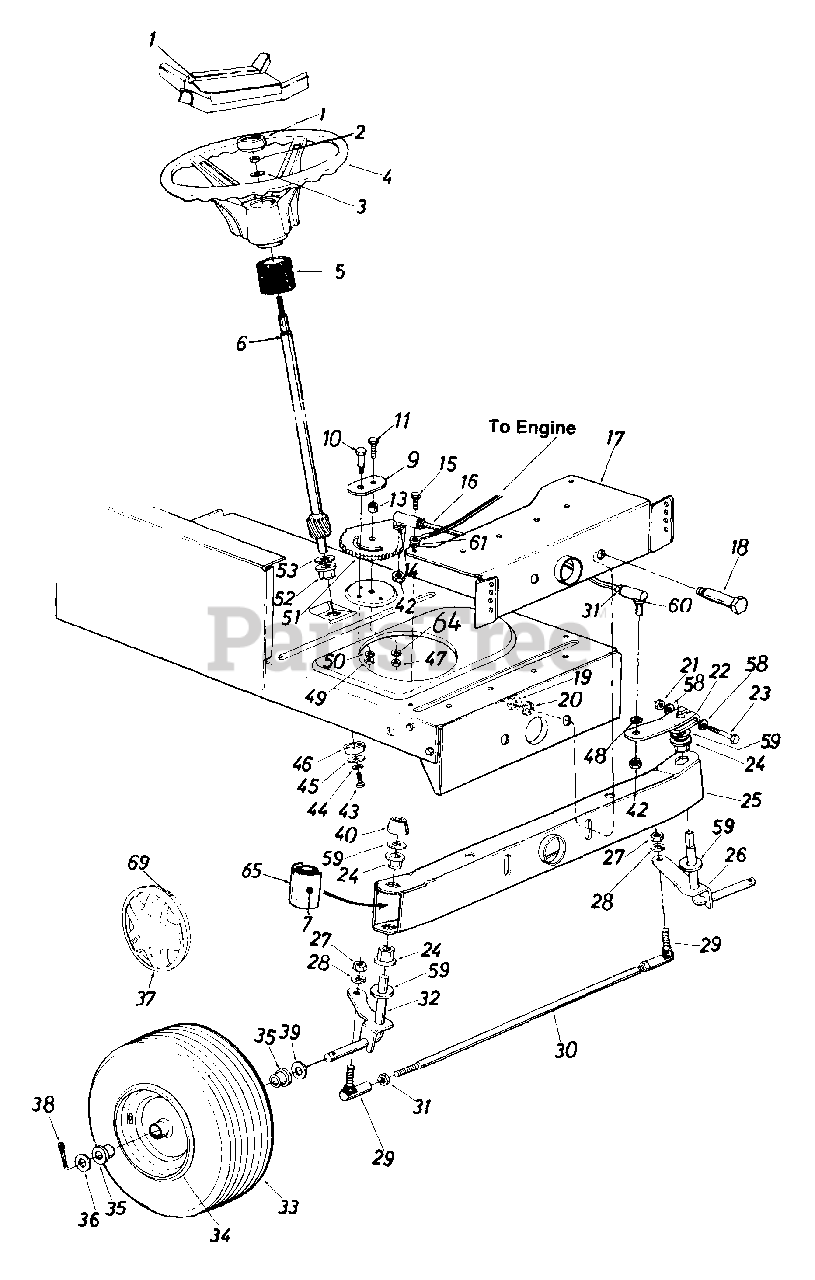

Steering And Front Axle Assembly Parts Diagram

  • Title

1

MTD 731-0220

Steering Wheel Cap
(Superseded to 931-0220)

$9.49

$

In Stock, only 2 left!

0

MTD 731-0955

Steering Wheel Insert
(Superseded to 931-0955)

Note: (Optional)

$

$

Not available

2

MTD 712-0237

Hex L-Nut 5/16-24 Thd.

$4.99

$

In Stock, only 4 left!

0

3

MTD 736-0242

Belleville Wash..345" I.D.

$4.49

$

In Stock, Qty 20+

0

4

MTD 731-0805

Steering Wheel (3 Spoke)
(Superseded to 931-0806A)

$

$

Not available

MTD 731-0806A

Steering Wheel (4 Spoke)
(Superseded to 931-0806A)

$

$

Not available

5

MTD 731-0954

Steering Bellow
(Superseded to 931-0954)

$21.99

$

Usually ships in 3-6 days

0

6

MTD 738-0743

Steering Shaft
(Superseded to 738-0743A)

$

$

Not available

7

MTD 737-0280

Grease Fltting

Note: (Optional)

$7.99

$

In Stock, Qty 8

0

9

MTD 17198A

Retainer Plate
(Superseded to 783P08577A)

$7.49

$

In Stock, Qty 20+

0

10

MTD 738-0141

Shoulder Bolt .437" Dia. x .35" Lg. 5/16-18 Thd.
(Superseded to 938-0141)

$7.49

$

In Stock, Qty 7

0

11

MTD 710-0152

Hex Bolt 3/8-24 x 1.0" Lg. (Grade 5)
(Superseded to 710-1039)

$4.49

$

In Stock, Qty 20+

0

13

MTD 750-0535

Spacer .380" I.D. x .625" O.D. x .227"
(Superseded to 950-0535)

$4.49

$

In Stock, Qty 20+

0

14

MTD 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

15

MTD 710-0726

Hex Wash. Hd. Self-Tap Scr.

$4.49

$

In Stock, Qty 20+

0

16

MTD 711-0788

Steering Drag Link

$

$

Not available

17

MTD 17621

Front Pivot Brkt.
(Superseded to 783-0041C)

$77.99

$

Usually ships in 3-6 days

0

18

MTD 738-0527

Shoulder Bolt .498" Dia. x 2.04" Lg. 3/8-16 Thd.

$8.49

$

In Stock, Qty 6

0

19

MTD 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 12

0

20

MTD 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

21

MTD 712-0237

Hex Cent. L-Nut 5/16-24 Thd.

$4.99

$

In Stock, only 4 left!

0

22

MTD 16481A

Steering Arm Front Axle
(Superseded to 983-0055-0637)

$47.99

$

In Stock, only 1 left!

0

23

MTD 710-0772

Hex Bolt 5/16-24 x 2.00" Lg. (Grade 5)

$4.49

$

Usually ships in 3-6 days

0

24

MTD 741-0487A

Hex Flg. Brg..632" I.D.
(Superseded to 741-0487C)

Note: New Part

$7.49

$

Usually ships in 3-6 days

0

25

MTD 683-0002

Pivot Bar Ass'y.
(Superseded to 753-0642-0637)

Note: New Part

Variations

MTD 683-0002-0637

Pivot Bar Kit with Flange Bearing - POWDER BLACK (0637)

$127.99

$

In Stock, only 2 left!

0

MTD 683-0002-0685

Pivot Bar Kit with Flange Bearing - CUB BLUE (0685)

$127.99

$

In Stock, only 2 left!

0

MTD 683-0002-0686

Pivot Bar Kit with Flange Bearing - SIMPLICITY ORANGE (0686)

$127.99

$

In Stock, only 2 left!

0

MTD 683-0002-0687

Pivot Bar Kit with Flange Bearing - PINE GREEN (0687)

$127.99

$

In Stock, only 2 left!

0

MTD 683-0002-0688

Pivot Bar Kit with Flange Bearing - SPRING GREEN (0688)

$127.99

$

In Stock, only 2 left!

0

MTD 683-0002-0689

Pivot Bar Kit with Flange Bearing - POLO GREEN (0689)

$127.99

$

In Stock, only 2 left!

0

MTD 683-0002-0691

Pivot Bar Kit with Flange Bearing - BLACK JACK (0691)

$127.99

$

In Stock, only 2 left!

0

MTD 683-0002-0692

Pivot Bar Kit with Flange Bearing - AGWAY BLUE (0692)

$127.99

$

In Stock, only 2 left!

0

$127.99

$

In Stock, only 2 left!

0

26

Front Axle Ass'y.- L.H,

$

$

Not available

MTD 17585

Front Axle Ass'y.- L.H, w/Plastic Bearing 15" x 6"
(Superseded to 97585A-0637)

$

$

Not available

MTD 17585

Front Axle Ass'y.- L.H, w/Ball Bearing 15" x 6"
(Superseded to 97585A-0637)

$

$

Not available

27

MTD 712-0241

Hex Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 13

0

28

MTD 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

29

MTD 723-3018

Ball Joint 3/8-24 Thd.
(Superseded to 923-3018)

$16.99

$

In Stock, Qty 20+

0

30

MTD 747-0753

Tie Rod

$34.99

$

In Stock, only 1 left!

0

31

MTD 712-0711

Hex Jam Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 20+

0

32

Front Axle Ass'y.- R.H.

$

$

Not available

MTD 17584

Front Axle Ass'y.- R.H. w/Plastic Bearing 15" x 6"
(Superseded to 97584A-0637)

$76.99

$

In Stock, only 4 left!

0

MTD 17584

Front Axle Ass'y.- R.H. w/Ball Bearing 15" x 6"
(Superseded to 97584A-0637)

$76.99

$

In Stock, only 4 left!

0

33

Wheel Ass'y. Comp.

$

$

Not available

MTD 634-0056

Wheel Ass'y. Comp. w/Plastic Bearing 15" x 6"
(Superseded to 634-0056B-0911)

Variations

MTD 634-0056-0911

Tire and Wheel Assembly - Carlisle Gray (0911)

$249.99

$

In Stock, only 3 left!

0

MTD 634-0056-0912

Tire and Wheel Assembly - Dico Gray (0912)

$249.99

$

In Stock, only 3 left!

0

MTD 634-0056-0941

Tire and Wheel Assembly - Carlisle Yellow (0941)

$249.99

$

In Stock, only 3 left!

0

MTD 634-0056-0942

Tire and Wheel Assembly - Dico Yellow (0942)

$249.99

$

In Stock, only 3 left!

0

MTD 634-0056-0981

Tire and Wheel Assembly - Carlisle Green (0981)

$249.99

$

In Stock, only 3 left!

0

MTD 634-0056-0915

Wheel Assembly, Gray - Duro Gray (0915)

$249.99

$

In Stock, only 4 left!

0

MTD 634-0056-0931

WHEEL ASM-W/TIRE - Carlisle Beige (0931)

$202.99

$

In Stock, only 1 left!

0

MTD 634-0056-0945

WHEEL ASM-COMPLETE - Duro Yellow (0945)

$

$

Not available

$249.99

$

In Stock, only 3 left!

0

MTD 634-0059

Wheel Ass'y. Comp. w/Ball Bearing 15" x 6"

Variations

MTD 634-0059-0911

Front Wheel Ass'y. Comp. 15" x 6" - Carlisle Gray (0911)

$

$

Not available

MTD 634-0059-0912

No Longer Available - Dico Gray (0912)

$

$

Not available

MTD 634-0059-0916

No Longer Available - Kenda Gray (0916)

$

$

Not available

MTD 634-0059-0931

No Longer Available WHEEL ASM - Carlisle Beige (0931)

$

$

Not available

MTD 634-0059-0941

No Longer Available WHEEL ASM - Carlisle Yellow (0941)

$

$

Not available

MTD 634-0059-0942

No Longer Available WHEELASM W - Dico Yellow (0942)

$

$

Not available

$

$

Tire Only

$

$

Not available

MTD 734-0864

Tire Only w/Plastic Bearing 15" x 6"

Variations

MTD 734-0864-0901

TIRE 15 X 6 - Carlisle (0901)

$136.99

$

Usually ships in 3-6 days

0

MTD 734-0864-0902

TIRE 15 X 6 DICO T - Dico (0902)

$136.99

$

Usually ships in 3-6 days

0

MTD 734-0864-0904

TIRE 15 X 6 - Cheng (0904)

$136.99

$

Usually ships in 3-6 days

0

MTD 734-0864-0905

Tire, 15 X 6 Square Tread - Duro (0905)

$49.99

$

Usually ships in 3-6 days

0

MTD 734-0864-0906

TIRE-15X6 KENDA - Kenda (0906)

$

$

Not available

$111.99

$

Usually ships in 3-6 days

0

MTD 734-0864

Tire Only w/Ball Bearing 15" x 6"

Variations

MTD 734-0864-0901

TIRE 15 X 6 - Carlisle (0901)

$136.99

$

Usually ships in 3-6 days

0

MTD 734-0864-0902

TIRE 15 X 6 DICO T - Dico (0902)

$136.99

$

Usually ships in 3-6 days

0

MTD 734-0864-0904

TIRE 15 X 6 - Cheng (0904)

$136.99

$

Usually ships in 3-6 days

0

MTD 734-0864-0905

Tire, 15 X 6 Square Tread - Duro (0905)

$49.99

$

Usually ships in 3-6 days

0

MTD 734-0864-0906

TIRE-15X6 KENDA - Kenda (0906)

$

$

Not available

$111.99

$

Usually ships in 3-6 days

0

34

Front Wheel Rim Only

$

$

Not available

MTD 634-0024

Front Wheel Rim Only w/Plastic Bearing 15" x 6"
(Superseded to 753-0838-0662)

Variations

MTD 634-0024-0629

Wheel Rim Kit, Grey - SILVER FLAKE (0629)

$

$

Not available

MTD 634-0024-0662

Wheel Rim Kit, Grey - OYSTER GRAY (0662)

$

$

Not available

MTD 634-0024-0688

Wheel Rim Kit, Grey - SPRING GREEN (0688)

$

$

Not available

MTD 634-0024-0499

KIT-WHEEL RIM - CUB BEIGE (0499)

$

$

Not available

MTD 634-0024-0674

KIT-WHEEL RIM - YARDMAN YELLOW (0674)

$

$

Not available

$

$

MTD 634-0051

Front Wheel Rim Only w/Ball Bearing 15" x 6"

Variations

MTD 634-0051-0629

No Longer Available USE 934-0051-0662 WHEEL RIM 6 - SILVER FLAKE (0629)

$

$

Not available

MTD 634-0051-0662

No Longer Available USE 934-0051-0662 WHEEL RIM 6 - OYSTER GRAY (0662)

$

$

Not available

MTD 634-0051-0499

No Longer Available - CUB BEIGE (0499)

$

$

Not available

MTD 634-0051-0674

No Longer Available USE 934-0051-0674 WHEEL RIM 6 - YARDMAN YELLOW (0674)

$

$

Not available

$

$

35

Bearing

$

$

Not available

MTD 741-0487A

Bearing w/Plastic Bearing 15" x 6"
(Superseded to 741-0487C)

$7.49

$

Usually ships in 3-6 days

0

MTD 741-0569

Bearing w/Ball Bearing 15" x 6"
(Superseded to 941-0569)

$34.99

$

In Stock, only 1 left!

0

36

MTD 736-0285

Fl-Wash. .635" I.D. x 1.59" O.D.

$4.49

$

In Stock, Qty 20+

0

37

MTD 734-1503

Hub Cap (Gray)

$

$

Not available

MTD 734-1612

Hub Cap (Beige)

$

$

Not available

38

MTD 714-0470

Cotter Pin 1/8" Dia. x 1.25" Lg.

$4.49

$

In Stock, Qty 20+

0

39

MTD 736-0187

Fl-Wash..640" I.D. x .24" O.D.

$4.49

$

In Stock, Qty 20+

0

40

MTD 726-0214

Push Cap

$10.99

$

In Stock, only 4 left!

0

42

MTD 712-0446

Hex Jam Nut 3/8-24 Thd.
(Superseded to 912-0446)

$6.99

$

In Stock, only 1 left!

0

43

MTD 710-0538

Hex L-Bolt 5/16-18 x .62"

$4.49

$

In Stock, Qty 9

0

44

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

45

MTD 736-0343

Fl-Wash..33" I.D. x 1.25" O.D.

$4.49

$

In Stock, Qty 7

0

46

MTD 750-0532

Spacer (Plastic)
(Superseded to 950-0532)

$

$

Not available

47

MTD 712-0214

Hex Cent. L-Nut 3/8-24 Thd.

$6.49

$

In Stock, only 3 left!

0

48

MTD 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

49

MTD 712-0158

Hex Cent. L-Nut 5/16-18 Thd.
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 18

0

50

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

51

MTD 717-0622A

Steering Gear Segment
(Superseded to 717-0622C)

$53.99

$

In Stock, only 2 left!

0

52

MTD 741-0225

Hex Flg. Brg..634 I.D.
(Superseded to 941-0225)

$7.49

$

In Stock, Qty 20+

0

53

MTD 736-0187

Fl-Wash. (Hardened)

$4.49

$

In Stock, Qty 20+

0

58

MTD 736-0271

Wave Wash..32" I.D. x .62"
(Superseded to 936-0271)

$4.49

$

In Stock, Qty 10

0

59

MTD 736-0187

Fl-Wash. (Hardened)

$4.49

$

In Stock, Qty 20+

0

60

MTD 723-3018

Drag Link Sall Joint 3/8-24 Thd.
(Superseded to 923-3018)

$16.99

$

In Stock, Qty 20+

0

61

MTD 736-0607

Ext. L-Wash. 5/16" I.D.

$3.99

$

In Stock, Qty 20+

0

64

MTD 736-0356

Bell-Wash..39" I.D. x 1.38" O.D.
(Superseded to 936-0356)

$

$

Not available

65

MTD 731-1291

Pivot Bar End Cap
(Superseded to 931-1291A)

Note: (Optional); New Part

$15.99

$

In Stock, Qty 9

0

69

MTD 727-0425B

Spring Clip
(Superseded to 927-0425A)

Note: New Part

$

$

Not available
