132-700-000 - MTD Lawn Tractor, Style 6 (1992) Hydrostatic Transmission Parts Diagram

Lawn Tractor, Style 6

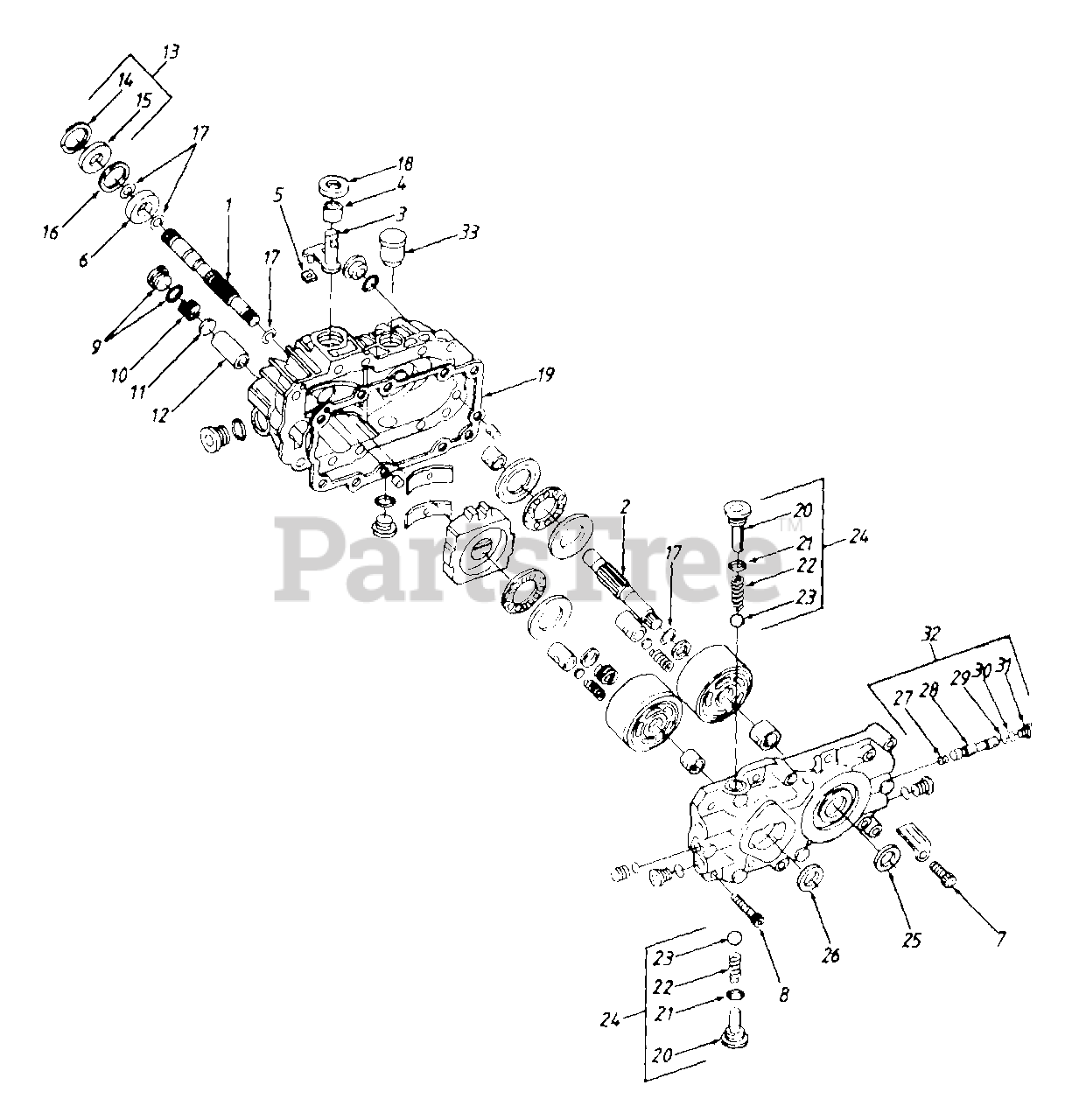

Hydrostatic Transmission Parts Diagram

  • Title

MTD 917-0940

Hydro Trans Pump

$

$

Not available

1

MTD SU-J1721204

Shaft - Pump
(Superseded to HG-2003022P)

$

$

Not available

2

MTD SU-J1020577

Shaft - Motor

$

$

Currently unavailable

3

MTD SU-2003005

Arm, Trunnion
(Superseded to HG-2003005)

$215.99

$

Usually ships in 3-6 days

0

4

MTD SU-2003009

Bearing, Journal

$

$

Currently unavailable

5

MTD SU-2000015

Guide, Slot
(Superseded to HG-2000015)

$21.99

$

Usually ships in 3-6 days

0

6

MTD SU-2003043

Bearing, Ball
(Superseded to HG-2003043P)

$73.99

$

Usually ships in 3-6 days

0

7

MTD SU-9007314-0805

Screw, Socket Head

$

$

Not available

8

MTD SU-9007314-0808

Screw, Socket Head
(Superseded to HG-9007314-0808)

$5.99

$

Usually ships in 3-6 days

0

9

MTD SU-9005110-8700

Plug
(Superseded to HG-9005110-8700)

$39.99

$

Usually ships in 3-6 days

0

10

MTD SU-2003010

Spring, Fllter
(Superseded to HG-2003010)

$

$

Not available

11

MTD SU-2000011

Washer, Fllter
(Superseded to HG-2000011)

$

$

Not available

12

MTD SU-2003003

Filter
(Superseded to HG-2003003)

$

$

Not available

13

MTD SU-2513001

Kit, Seal

Note: (Includes Ref. No. 14 8 15)

$

$

Not available

14

MTD SU-JISB2804A35

Ring, Retaining
(Superseded to 716-04098)

$5.49

$

Usually ships in 3-6 days

0

15

MTD SU-JSP0632

Seal, Lip
(Superseded to HG-9008000-0128)

$19.99

$

In Stock, only 2 left!

0

16

MTD SU-2003018

Spacer
(Superseded to HG-2003018)

$10.99

$

Usually ships in 3-6 days

0

17

MTD SU-2003016

Ring, Retaining
(Superseded to HG-2003016)

$7.99

$

Usually ships in 3-6 days

0

18

MTD SU-9008000-0126

Seal, Lip
(Superseded to HG-9008000-0126)

$15.99

$

Usually ships in 3-6 days

0

19

MTD SU-2003001

Gasket
(Superseded to HG-2003001)

$

$

Not available

20

MTD SU-J1041007

Plug

$

$

Not available

21

MTD SU-9004201-3700

O-Ring
(Superseded to HG-9004201-3700)

$4.49

$

Usually ships in 3-6 days

0

22

MTD SU-2003012

Spring

$

$

Currently unavailable

23

MTD SU-JHKW03

Ball

$

$

Not available

24

MTD SU-2513014

Kit, Check Valve
(Superseded to HG-2513014)

Note: (Includes Ref. No. 20, 21, 22 & 23)

$

$

Not available

25

MTD SU-9008000-0127

Seal, Lip
(Superseded to HG-9008000-0127)

$

$

Not available

26

MTD SU-9008000-0125

Seal, Lip
(Superseded to HG-50442P)

$

$

Not available

27

MTD SU-2003011

Spring
(Superseded to HG-2513011)

$171.99

$

Usually ships in 3-6 days

0

28

MTD SU-2003061

Spool, Bypass

$

$

Not available

29

MTD SU-9004175-0027

O-Ring
(Superseded to HG-9004175-0027)

$

$

Not available

30

MTD SU-9004201-2500

O-Ring
(Superseded to HG-9004201-2500)

$

$

Not available

31

MTD SU-J1041153

Plug

$

$

Not available

32

MTD SU-2513011

Kit, Bypass Valve
(Superseded to HG-2513011)

Note: (Includes Ref. No. 27, 28, 29, 30 8 31)

$171.99

$

Usually ships in 3-6 days

0

MTD SU-2513013

Kit, Overhaul Seal
(Superseded to HG-2513013)

Note: Includes Ref. No. 14, 15, 16, 17 (Qty. 4), 18, 19, 21 (Qty. 2), 25, 26, 29 & 30] 25, 26, 29 & 30]

$63.99

$

Usually ships in 3-6 days

0

33

MTD 717-3049

Reservoir
(Superseded to 917-3049)

$125.99

$

Usually ships in 3-6 days

0
