132-666G095 - Turf Power Lawn Tractor (1992) (Cenex) Hood, Fender & Dash - Style 6 - Model 600 Series Parts Diagram

Lawn Tractor

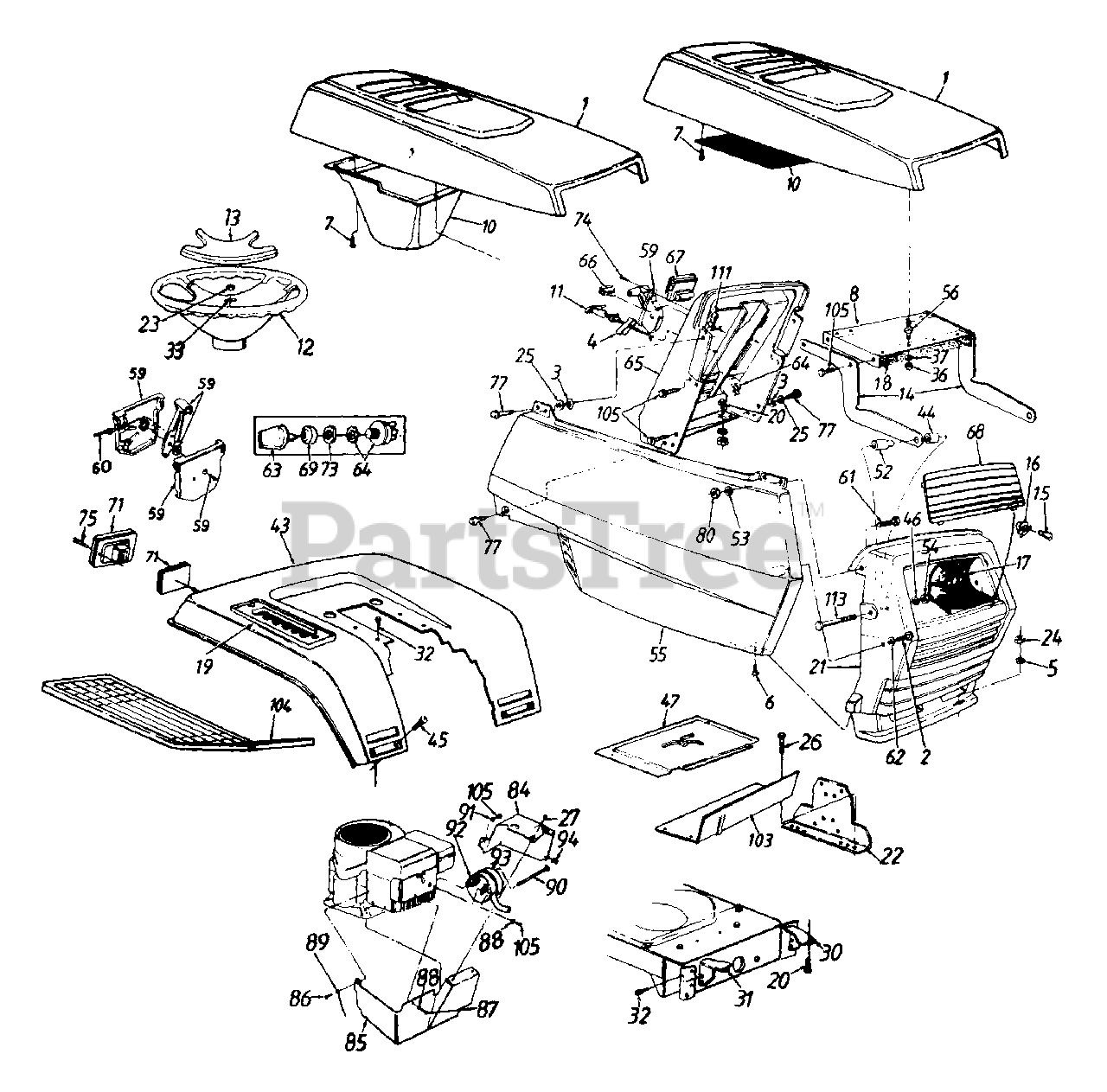

Hood, Fender & Dash - Style 6 - Model 600 Series Parts Diagram

  • Title

1

MTD 17441

Hood Ass'y.

$

$

Currently unavailable

MTD 17442

Hood Ass'y.

Variations

MTD 17442-0629

No Longer Available - SILVER FLAKE (0629)

$

$

Not available

MTD 17442-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 17442-0662

No Longer Available - OYSTER GRAY (0662)

$

$

Not available

$

$

2

MTD 710-0896

Hex Wash. B-Tap Scr. 1/4 x .62" Lg.

$4.49

$

In Stock, Qty 20+

0

3

MTD 726-0233

Bolt Retainer 1/4" I.D.

$4.49

$

In Stock, Qty 20+

0

4

MTD 17782

Retainer Clip

$

$

Not available

5

MTD 736-0275

Fl-Wash. .34" I.D. x .68"

$6.99

$

Usually ships in 3-6 days

0

6

MTD 710-0351

Truss Mach. B-Tap Scr. #10 x .5" Lg.

$4.49

$

Usually ships in 3-6 days

0

7

MTD 710-0200

Hex Wash Hd. AB-Tap Scr. #8 x .5" Lg.

$

$

Not available

8

MTD 16903A

Hood Plate

Note: New part

Variations

MTD 16903A-0637

Hood Plate - POWDER BLACK (0637)

$

$

Not available

$

$

10

MTD 731-1073

Air Duct

$

$

Not available

MTD 723-0416

Screen

$

$

Not available

11

MTD 746-3021

Choke Control 29" Lg.

$26.99

$

Usually ships in 3-6 days

0

MTD 746-0614A

Choke Control 38" Lg.

$24.99

$

In Stock, only 1 left!

0

12

MTD 631-0005

Steering Wheel
(Superseded to 931-0005)

Note: New part; Optional part

$

$

Not available

13

MTD 731-1344

Steering Wheel Cap

Note: Optional part

$

$

Not available

14

MTD 16902

Hood Hinge

$

$

Not available

15

MTD 725-0963

Lamp
(Superseded to 925-0963)

$7.49

$

In Stock, only 1 left!

0

16

MTD 725-1649

Twist Lock - Lamp Socket
(Superseded to 925-1649A)

Note: New part

$11.99

$

In Stock, Qty 20+

0

17

MTD 777-8516

Reflector - Headlight

$

$

Currently unavailable

18

MTD 722-0199

Foam Seal

$

$

Not available

19

MTD 17469

7-Speed Selector Plate

Variations

MTD 17469-0637

7-Speed Selector Plate - POWDER BLACK (0637)

$

$

Not available

$

$

20

MTD 710-0118

Hex Bolt 5/16-18 x .75" Lg.
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

21

MTD 731-1037A

Grille

Note: Model 629; New part

Variations

MTD 731-1037A-0499

No Longer Available - CUB BEIGE (0499)

$

$

Not available

MTD 731-1037A-0638

GRILLE - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

22

MTD 17300D

Dash Support Bracket

Variations

MTD 17300D-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

$

$

23

MTD 712-0237

Hex L-Nut 5/16-24 Thd.

$4.99

$

In Stock, only 4 left!

0

24

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

25

MTD 736-0176

Fl-Wash. 1/4" I.D. x .93" O.D.

$4.99

$

In Stock, only 4 left!

0

26

MTD 710-0603

Hex Wash. Hd. B-Tap Scr. 5/16-18 x .5" Lg.

$4.99

$

Usually ships in 3-6 days

0

27

MTD 710-0429

Hex B-Tap Scr. #10 x .38" Lg.
(Superseded to 910-0429)

$3.99

$

Usually ships in 3-6 days

0

30

MTD 705-0167

Grille Mount Brk't. - L.H.

$

$

Not available

31

MTD 705-0166

Grille Mount Brk't. - R.H.

$

$

Not available

32

MTD 710-0726

Hex Wash. Hd. AB-Tap Scr. 5/16 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

33

MTD 736-0242

Bell-Wash. .345" I.D. x .88"

$4.49

$

In Stock, Qty 20+

0

36

MTD 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

37

MTD 736-0270

Bell-Wash. .265" I.D. x .75"

$3.99

$

In Stock, Qty 20+

0

43

MTD 17324A

Rear Fender

Note: Model 629; New part

$

$

Currently unavailable

44

MTD 750-0755

Spacer .33" I.D. x .625" O.D.

$4.49

$

Usually ships in 3-6 days

0

45

MTD 710-0167

Carriage Bolt 1/4-20 x .50" Lg.
(Superseded to 710-05177)

$4.99

$

In Stock, Qty 20+

0

46

MTD 736-0278

Fl-Wash. .328" I.D. x .68" O.D.

$5.99

$

Usually ships in 3-6 days

0

47

MTD 17286

Transmission Panel
(Superseded to 17286B-0637)

$42.99

$

Usually ships in 3-6 days

0

52

MTD 750-0754

Shld. Spacer .33" I.D.

$

$

Not available

53

MTD 736-0142

Fl-Wash. .281" I.D. x .5" O.D.

$4.99

$

In Stock, Qty 20+

0

54

MTD 712-0158

Hex Cent. L-Nut 5/16-18 Thd.
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 18

0

55

MTD 731-0938

Side Cover - R.H.

Note: Model 629

$

$

Not available

MTD 731-0943

Side Cover - L.H.

Note: Model 629; (Not Shown)

$

$

Not available

MTD 17448

Side Cover - R.H.

Note: Model 629

$

$

Not available

MTD 17447

Side Cover - L.H.

Note: Model 629; (Not Shown)

$

$

Not available

56

MTD 710-1034

Double Ended Stud 1/4-20 Thd.

$

$

Not available

59

MTD 831-0823A

Throttle Control Box Ass'y.

$32.99

$

In Stock, Qty 20+

0

60

MTD 746-0501

Throttle Control Wire 18.5" Lg.

$17.99

$

In Stock, only 1 left!

0

MTD 746-0634

Throttle Control Wire 35" Lg.
(Superseded to 946-0634)

$11.99

$

In Stock, only 1 left!

0

61

MTD 710-0258

Hex Bolt 1/4-20 x .62" Lg.
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

62

MTD 736-0173

Fl-Wash. .281" I.D. x .73" O.D.

$4.49

$

In Stock, Qty 20+

0

63

MTD 725-1341B

Ignition Key

$10.99

$

In Stock, only 1 left!

0

64

MTD 725-0267

Ignition Switch
(Superseded to 925-0267B)

$35.99

$

In Stock, Qty 20+

0

65

MTD 731-0961A

Dash Panel

Note: New part

$

$

Not available

66

MTD 725-0634

Light Switch
(Superseded to 925-0634)

$17.99

$

In Stock, only 4 left!

0

67

MTD 725-0925

Ammeter
(Superseded to 925-0925)

$31.99

$

In Stock, Qty 6

0

68

MTD 731-1038

Lens
(Superseded to 931-1038A)

$

$

Not available

69

MTD 725-1347

Ignition Switch Cap

$4.99

$

In Stock, only 1 left!

0

71

MTD 730-3000

Reflector
(Superseded to 930-3000)

Note: Optional part

$17.99

$

In Stock, only 2 left!

0

MTD 725-3018

Taillight

Note: Optional part

$

$

Currently unavailable

73

MTD 725-1346

Ignition Switch Nut
(Superseded to 925-1346)

$

$

Not available

74

MTD 710-0779A

Truss Mach. AB-Tap Scr. #10 x .5" Lg.

$4.49

$

In Stock, Qty 12

0

75

MTD 710-0936

Truss Hd. AB-Tap Scr. #6 x .62" Lg.

$4.49

$

Usually ships in 3-6 days

0

77

MTD 710-0642

Hex Wash. Hd. Tap Scr. 1/4 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

80

MTD 712-0291

Hex L-Nut 1/4-20 Thd.

$4.49

$

In Stock, Qty 8

0

84

MTD 16935

Muffler Heat Shield - L.H.
(Superseded to 683-0042A)

$

$

Not available

85

MTD 16936

Muffler Heat Shield - R.H.

$

$

Not available

86

MTD 710-0323

Pan Hd. Mach. Scr. 5/16-18 x .75" Lg.

$4.99

$

In Stock, only 2 left!

0

87

MTD 710-0294

Hex Bolt 1/4-20 x 3/8" Lg.

$3.49

$

Usually ships in 3-6 days

0

88

MTD 736-0175

Spr. Wash. .265" I.D.
(Superseded to 936-0175)

$3.99

$

In Stock, only 3 left!

0

89

MTD 725-0980

Ground Wire

$

$

Not available

90

MTD 738-0636

Shld. Bolt 7/16" Dia. x 3-5/8" Lg
(Superseded to 938-0636)

$

$

Not available

91

MTD 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

92

MTD 721-0208

Gasket
(Superseded to BS-692236)

$5.49

$

In Stock, Qty 20+

0

93

MTD 751-0465

Muffler
(Superseded to 951-0465A)

$

$

Not available

94

MTD 712-0147

Speed Nut #10-24 Thd.

$6.99

$

Usually ships in 3-6 days

0

103

MTD 17633A

Gasoline Tank Support

Note: New part

Variations

MTD 17633A-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

$

$

104

MTD 731-0911

Foot Pad - L.H.

Note: Optional part

$

$

Not available

MTD 731-0912

Foot Pad - R.H.

Note: Optional part

$

$

Not available

105

MTD 710-0599

Hex Tap Scr. 1/4-20 x .5" Lg.

$4.49

$

In Stock, Qty 20+

0

111

MTD 712-0185

Speed Nut 1/4-20 Thd.

$

$

Not available

113

MTD 710-0176

Hex Bolt 5/16-18 x 2.75"

$4.49

$

In Stock, only 2 left!

0
