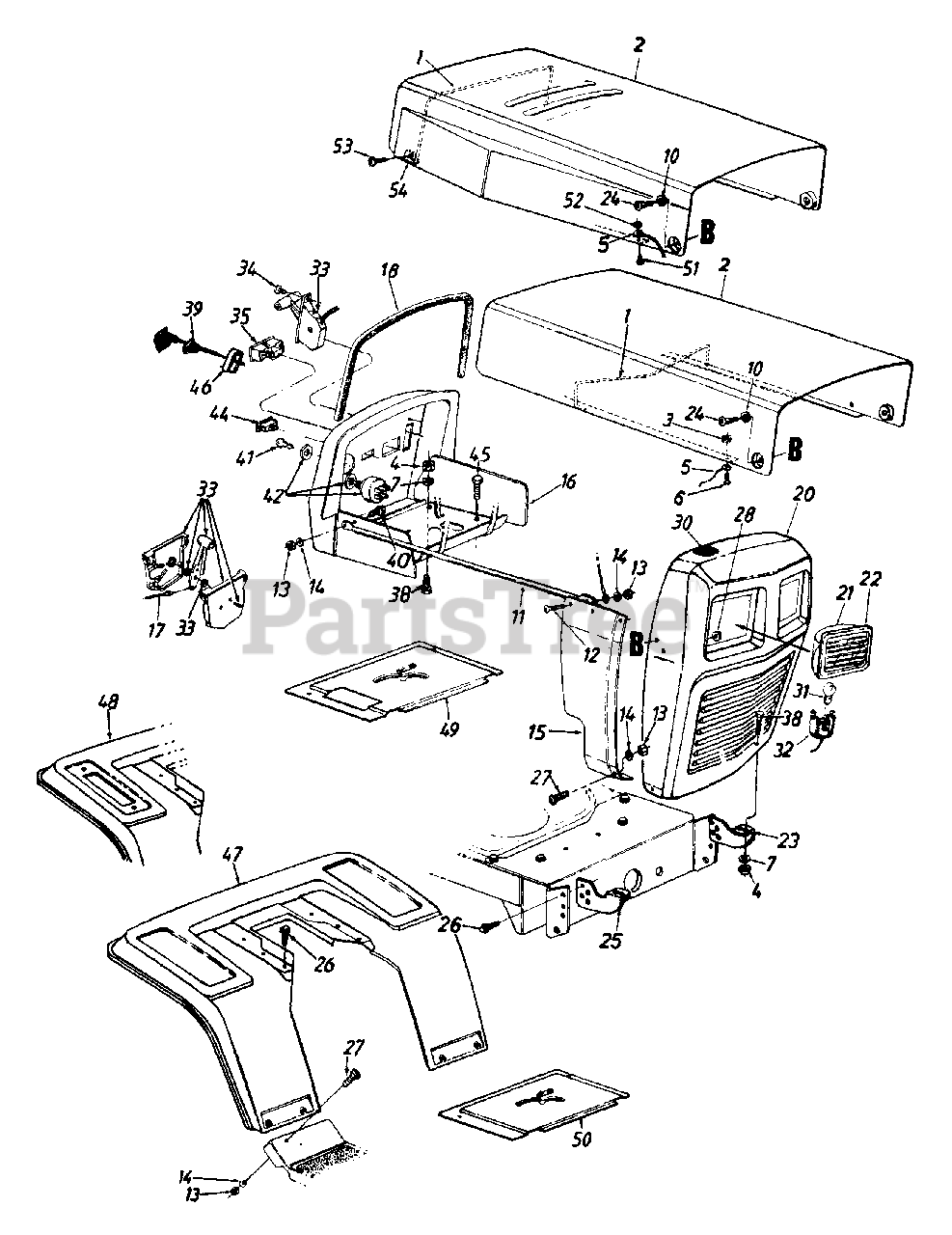

132-642F002 - MasterCut by MTD Lawn Tractor (1992) (Aircap Industries) Hood, Fender & Dash Parts Diagram

Lawn Tractor

Hood, Fender & Dash Parts Diagram

  • Title

1

MTD 732-0414A

Hood Spring

$

$

Not available

MTD 732-0559

Hood Spring

$

$

Not available

2

MTD 14665A

Hood

Note: Model 638

Variations

MTD 14665A-0480

No Longer Available HOOD - BRILLIANT GREEN (0480)

$

$

Not available

MTD 14665A-0499

No Longer Available HOOD - CUB BEIGE (0499)

$

$

Not available

MTD 14665A-0629

No Longer Available HOOD - SILVER FLAKE (0629)

$

$

Not available

MTD 14665A-0638

No Longer Available HOOD - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 14665A-0662

No Longer Available HOOD - OYSTER GRAY (0662)

$

$

Not available

$

$

MTD 16646

Hood

Note: Model 638

Variations

MTD 16646-0499

No Longer Available HOOD - CUB BEIGE (0499)

$

$

Not available

MTD 16646-0629

No Longer Available HOOD - SILVER FLAKE (0629)

$

$

Not available

MTD 16646-0638

No Longer Available HOOD - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

3

MTD 712-0272

Hex Sems Nut #10-24 Thd.

$3.99

$

In Stock, only 1 left!

0

4

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

5

MTD 723-0302

Hood Stop 7" Lg.

$12.99

$

Usually ships in 3-6 days

0

6

MTD 710-0473

Truss Hd. Scr. #10-24 x 1/2"

$4.49

$

In Stock, only 2 left!

0

7

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

10

MTD 736-0413

Washer, 39" I.D. x .62" O.D.

$6.99

$

In Stock, only 2 left!

0

11

MTD 749-0721

Grille Support Rod

$

$

Not available

MTD 749-0795

Grille Support Rod

Note: New part

$

$

Currently unavailable

12

MTD 710-0255

Truss Hd. Scr. 1/4-20 x .75"
(Superseded to 710-0924)

$4.49

$

In Stock, Qty 20+

0

13

MTD 712-0287

Hex Nut 1/4-20 Thd."
(Superseded to 912-0287)

$4.99

$

Usually ships in 3-6 days

0

14

MTD 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

15

MTD 16622A

R.H. - Grille Side Panel (B&S)

Variations

MTD 16622A-0499

No Longer Available PANEL-SIDE - CUB BEIGE (0499)

$

$

Not available

MTD 16622A-0629

No Longer Available PANEL-SIDE - SILVER FLAKE (0629)

$

$

Not available

MTD 16622A-0638

No Longer Available PANEL-SIDE - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

MTD 16619A

R.H. - Grille Side Panel (Tec.)

$

$

Not available

MTD 16621A

L.H. - Grille Side Panel

Variations

MTD 16621A-0480

No Longer Available PANEL-SIDE - BRILLIANT GREEN (0480)

$

$

Not available

MTD 16621A-0498

No Longer Available PANEL-SIDE - OLD CUB YELLOW (0498)

$

$

Not available

MTD 16621A-0499

No Longer Available PANEL-SIDE - CUB BEIGE (0499)

$

$

Not available

MTD 16621A-0629

No Longer Available PANEL-SIDE - SILVER FLAKE (0629)

$

$

Not available

MTD 16621A-0638

No Longer Available PANEL-SIDE - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 16621A-0665

No Longer Available PANEL-SIDE - YARDMAN GREEN (0665)

$

$

Not available

$

$

16

MTD 17296

Dash Panel Ass'y. w/o Ammeter

$

$

Not available

MTD 17301

Dash Panel Ass'y. w/Ammeter

Variations

MTD 17301-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

$

$

17

MTD 746-0501

Throttle Control Wire B&S

$17.99

$

In Stock, only 1 left!

0

MTD 746-0638

Throttle Control Wire Tec.
(Superseded to 946-0638)

$10.99

$

In Stock, Qty 7

0

MTD 746-0634

Throttle Control Wire B&S
(Superseded to 946-0634)

$11.99

$

Usually ships in 3-6 days

0

18

MTD 731-0511-31

Molding Strip 31" Lg.

$41.99

$

Usually ships in 3-6 days

0

20

MTD 17025

Grille

Variations

MTD 17025-0483

No Longer Available GRILLE - CHARCOAL GRAY (0483)

$

$

Not available

MTD 17025-0499

No Longer Available GRILLE - CUB BEIGE (0499)

$

$

Not available

MTD 17025-0629

No Longer Available GRILLE - SILVER FLAKE (0629)

$

$

Not available

MTD 17025-0638

No Longer Available GRILLE - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 17025-0640

No Longer Available GRILLE - CO-OP GREEN (0640)

$

$

Not available

MTD 17025-0662

No Longer Available GRILLE - OYSTER GRAY (0662)

$

$

Not available

MTD 17025-0691

No Longer Available GRILLE - BLACK JACK (0691)

$

$

Not available

$

$

21

MTD 731-0705

Headlight Housing
(Superseded to 931-0705)

$

$

Not available

22

MTD 731-0706

Headlight Lens
(Superseded to 931-0706)

$

$

Not available

23

MTD 16643A

Mounting Brkt. - L.N.

Variations

MTD 16643A-0637

No Longer Available BRACKET-MT - POWDER BLACK (0637)

$

$

Not available

$

$

24

MTD 738-0724

Shld. Bolt .375" Dia. x .125"
(Superseded to 938-0952A)

$7.49

$

In Stock, Qty 10

0

25

MTD 16644A

Mounting Brkt. - R.H.

$

$

Not available

26

MTD 710-0726

Hex Wash. Hd. AB-Tap Scr. 5/16 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

27

MTD 710-0286

Carriage Bolt 1/4-20 x 2.0" Lg.

$4.49

$

Usually ships in 3-6 days

0

28

MTD 712-0380

L-Nut 1/4-28 Thd.

$3.99

$

In Stock, only 2 left!

0

30

MTD 722-0157

Foam Strip 3/8 x 1-1/8 x 1-1/2

$4.49

$

Usually ships in 3-6 days

0

31

MTD 725-0963

Bulb
(Superseded to 925-0963)

$7.49

$

In Stock, only 4 left!

0

32

MTD 725-1650

Twist Lock Lamp Socket
(Superseded to 925-1650)

Note: New part

$

$

Not available

33

MTD 831-0823A

Throttle Box Ass'y.

$32.99

$

In Stock, Qty 20+

0

34

MTD 710-0779A

Truss Mach. AB-Tap Scr. #10 x .5" Lg.

$4.49

$

In Stock, Qty 12

0

35

MTD 725-0925

Ammeter
(Superseded to 925-0925)

Note: Optional part

$31.99

$

Usually ships in 3-6 days

0

38

MTD 710-0118

Hex Bolt 5/16-18 x .75" Lg.
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

39

MTD 746-0615A

Choke Control 29" Lg.
(Superseded to 946-0615A)

$47.99

$

Usually ships in 3-6 days

0

MTD 746-0613A

Choke Control 46" Lg.
(Superseded to 946-0613A)

$27.99

$

In Stock, Qty 6

0

40

MTD 710-0258

Hex Bolt 1/4-20 x .62" Lg.
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

41

MTD 725-0201

Ignition Key
(Superseded to 925-0201)

$9.49

$

In Stock, only 1 left!

0

42

MTD 725-0267

Ignition Switch
(Superseded to 925-0267B)

$35.99

$

In Stock, Qty 8

0

44

MTD 725-0634

Light Switch
(Superseded to 925-0634)

Note: Optional part

$17.99

$

In Stock, Qty 5

0

45

MTD 170-0603

Hex Wash. Hd. B-Tap Scr. 5/16-18 x .5" Lg.

$

$

Currently unavailable

46

MTD 17782

Choke Retainer

$

$

Not available

47

MTD 17870

Fender
(Superseded to 17870C)

Note: Model 638

Variations

MTD 17870-0483

FENDER-RR W/FRAME - CHARCOAL GRAY (0483)

$

$

Not available

MTD 17870-0498

FENDER-RR W/FRAME - OLD CUB YELLOW (0498)

$

$

Not available

MTD 17870-0499

No Longer Available - CUB BEIGE (0499)

$

$

Not available

MTD 17870-0629

No Longer Available - SILVER FLAKE (0629)

$

$

Not available

MTD 17870-0638

FENDER-RR W/FRAME - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 17870-0640

No Longer Available FENDER - CO-OP GREEN (0640)

$

$

Not available

MTD 17870-0648

No Longer Available FENDER-RR - TECH GRAY (0648)

$

$

Not available

MTD 17870-0662

No Longer Available - OYSTER GRAY (0662)

$

$

Not available

MTD 17870-0663

No Longer Available FENDER - CAYMEN GREEN (0663)

$

$

Not available

MTD 17870-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

MTD 17870-0667

FENDER-RR W/FRAME - MIDNIGHT BLUE (0667)

$

$

Not available

MTD 17870-0668

No Longer Available FENDER - MOSS GREEN (0668)

$

$

Not available

MTD 17870-0674

No Longer Available - YARDMAN YELLOW (0674)

$

$

Not available

MTD 17870-0686

No Longer Available - SIMPLICITY ORANGE (0686)

$

$

Not available

MTD 17870-0691

No Longer Available - BLACK JACK (0691)

$

$

Not available

MTD 17870-0692

No Longer Available FENDER - AGWAY BLUE (0692)

$

$

Not available

$

$

48

MTD 17871

Fender w/ Cutout

Note: Model 638; New part

$

$

Currently unavailable

49

MTD 17954

Shift Cover w/ Cutout
(Superseded to 17954B-0637)

$

$

Not available

50

MTD 17286

Shift Cover
(Superseded to 17286B-0637)

$42.99

$

Usually ships in 3-6 days

0

51

MTD 728-0123

Pop Rivet
(Superseded to 928-0123)

$4.99

$

Usually ships in 3-6 days

0

52

MTD 736-0931

Fl-Wash. .203" I.D. x .41" O.D.

$4.99

$

In Stock, only 1 left!

0

53

MTD 710-0697

Oval Hd. Self-Tap Scr. 1/2" Lg.

$

$

Not available

54

MTD 731-0895

Hood Spring Retainer

$

$

Not available

Muffler

Note: (Single Cylinder Engines)

$

$

Not available

MTD 751-0302

Muffler
(Superseded to 951-0302)

Note: Used on B&S Engine 10, 11, 12 & 12.5 H.P.

$

$

Not available

MTD 712-0250

Conduit L-Nut

Note: Related part for Muffler

$

$

Not available

MTD 751-0443A

Muffler
(Superseded to 951-0443A)

Note: Used on Tecumseh Engine 12 H.P.

$

$

Not available

MTD 721-0208

Gasket
(Superseded to BS-692236)

Note: Related part for Muffler

$5.49

$

In Stock, Qty 20+

0

MTD 738-0636

Shoulder Bolts
(Superseded to 938-0636)

Note: Related part for Muffler

$

$

Not available
