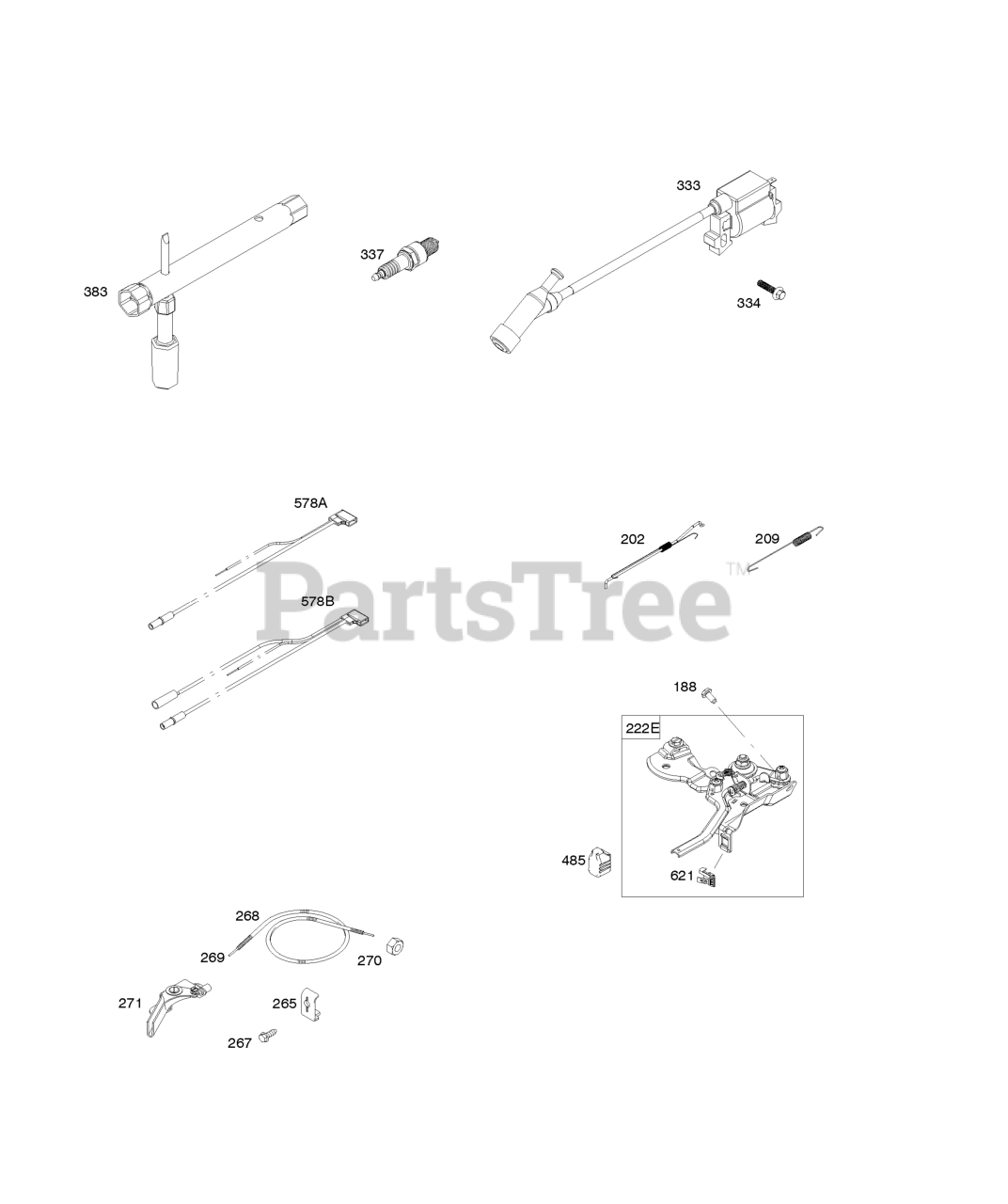

131G32-0001-01 - Briggs & Stratton Horizontal Engine Armature, Controls, Electrical System, Governor Spring, Ignition, Spark Plug Parts Diagram

Horizontal Engine

Armature, Controls, Electrical System, Governor Spring, Ignition, Spark Plug Parts Diagram

  • Title

188

Briggs & Stratton 590850

SCREW

Note: (Control Bracket)

$3.99

$

In Stock, Qty 7

0

202

Briggs & Stratton 592866

LINK, Mechanical Governor

$8.49

$

In Stock, only 2 left!

0

209

Briggs & Stratton 590625

SPRING, Governor

Note: (Blue)

$7.49

$

In Stock, only 2 left!

0

222E

Briggs & Stratton 593204

Bracket-Control

$44.99

$

Usually ships in 2-12 days

0

265

Briggs & Stratton 691024

CLAMP, Casing

$3.99

$

In Stock, only 3 left!

0

267

Briggs & Stratton 699492

SCREW

Note: (Casing Clamp)

$3.99

$

In Stock, Qty 12

0

268

Briggs & Stratton 691025

CASING, Control Wire

Note: (Cut To Required Length)

$

$

Not available

269

Briggs & Stratton 691026

WIRE, Control
(Superseded to 26634)

Note: (Cut To Required Length)

$

$

Not available

270

Briggs & Stratton 691027

NUT

Note: (Control Wire Casing)

$13.99

$

In Stock, only 2 left!

0

271

Briggs & Stratton 691028

Lever-Control

$45.99

$

Usually ships in 2-12 days

0

333

Briggs & Stratton 590603

ARMATURE, Magneto

$57.99

$

In Stock, only 1 left!

0

334

Briggs & Stratton 590644

SCREW

Note: (Magneto Armature)

$3.99

$

In Stock, only 2 left!

0

337

Briggs & Stratton 691043

PLUG, Spark

Note: (EMS)

$6.49

$

In Stock, Qty 20+

0

383

Briggs & Stratton 590721

WRENCH, Spark Plug

$6.99

$

Usually ships in 2-12 days

0

485

Briggs & Stratton 797339

KNOB, Control

$5.49

$

Usually ships in 2-12 days

0

578A

Wire Assembly

Note: (For Replacement Wiring Harness, Order Reference 578D)

$

$

Not available

578B

Briggs & Stratton 590722

Wire Assembly

$20.99

$

Usually ships in 2-12 days

0

621

Briggs & Stratton 692310

Switch-Stop

$5.99

$

In Stock, Qty 20+

0
