1317 - Troy-Bilt Furrower Assembly FURROWER ASSEMBLY Parts Diagram

Furrower Assembly

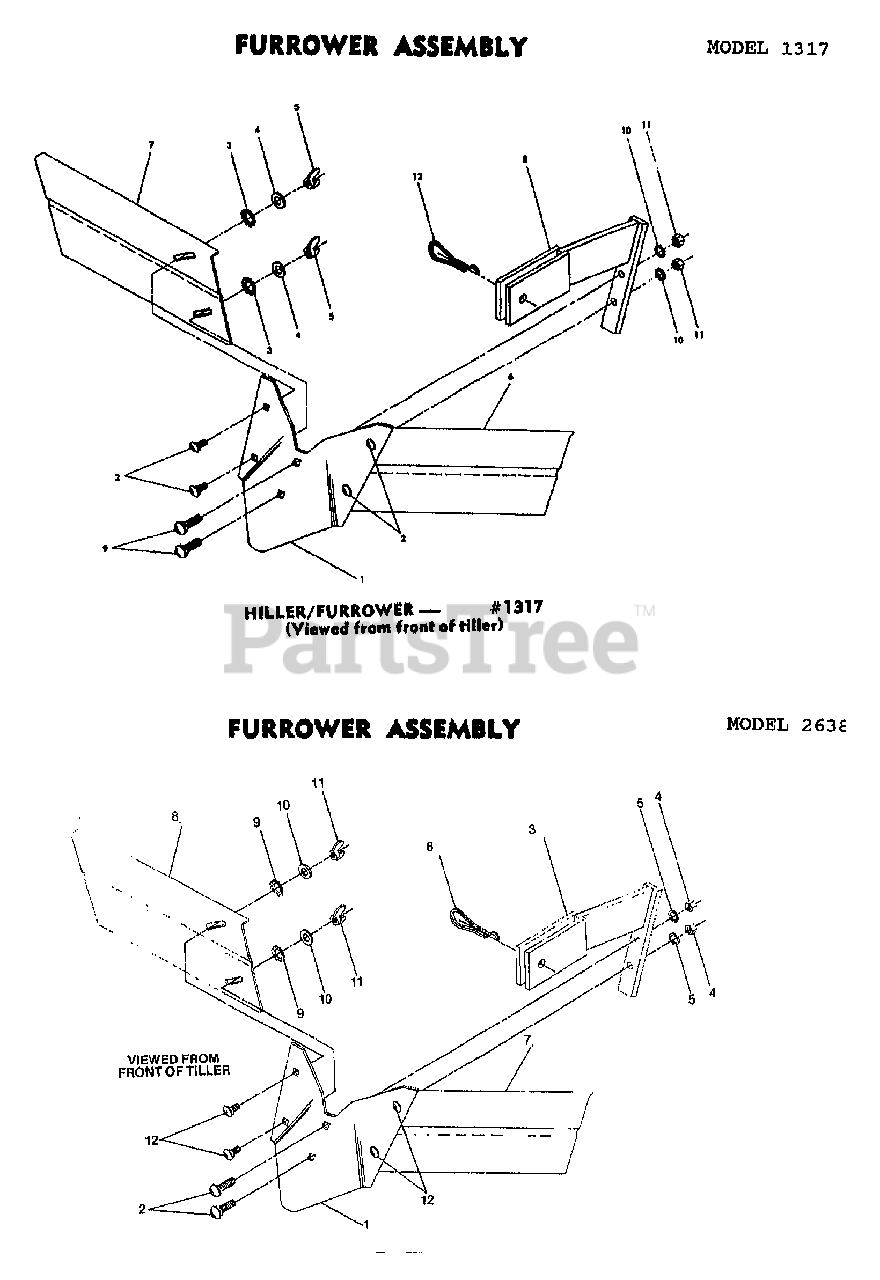

FURROWER ASSEMBLY Parts Diagram

  • Title

Troy-Bilt 1317

HILLER/FURR

$

$

Currently unavailable

1

Troy-Bilt 1269

BLADE-FURROWER PNT

$

$

Currently unavailable

2

Troy-Bilt 9765

SCR-CARR 5/16-18X.75 G2 ZP

$

$

Currently unavailable

3

Troy-Bilt 9919

WASHER-LK .312 EXT TOOTH

$

$

Currently unavailable

4

Troy-Bilt 9902

WASHER-FLAT 5/16 SAE

$

$

Currently unavailable

5

Troy-Bilt 9824

NUT-WING/LK 5/16-18 ZP
(Superseded to GW-9824)

$5.99

$

Usually ships in 3-6 days

0

6

Troy-Bilt 1299-1

WING-HILLER LEFT PNT

$

$

Currently unavailable

7

Troy-Bilt 1299-2

WING-HILLER RIGHT PNT

$

$

Currently unavailable

8

Troy-Bilt 1197

BRKT-H/F PNT

$

$

Currently unavailable

9

Troy-Bilt 9725

BOLT-CARR 3/8-16X1.5 ZP
(Superseded to 710-0431)

$4.99

$

Usually ships in 3-6 days

0

10

Troy-Bilt 9913

WASHER-LK .375 @ DEPL

$

$

Currently unavailable

11

Troy-Bilt 9802

NUT-HEX 3/8-16 ZP

$

$

Currently unavailable

12

MTD 9318

PIN-CLINCH .312DIA ZP

$

$

Not available
