1316 H (1692480) - AGCO 42" Rear-Engine Riding Mower, 16hp 42" Height Adjusting & Roller Group Parts Diagram

42" Rear-Engine Riding Mower, 16hp

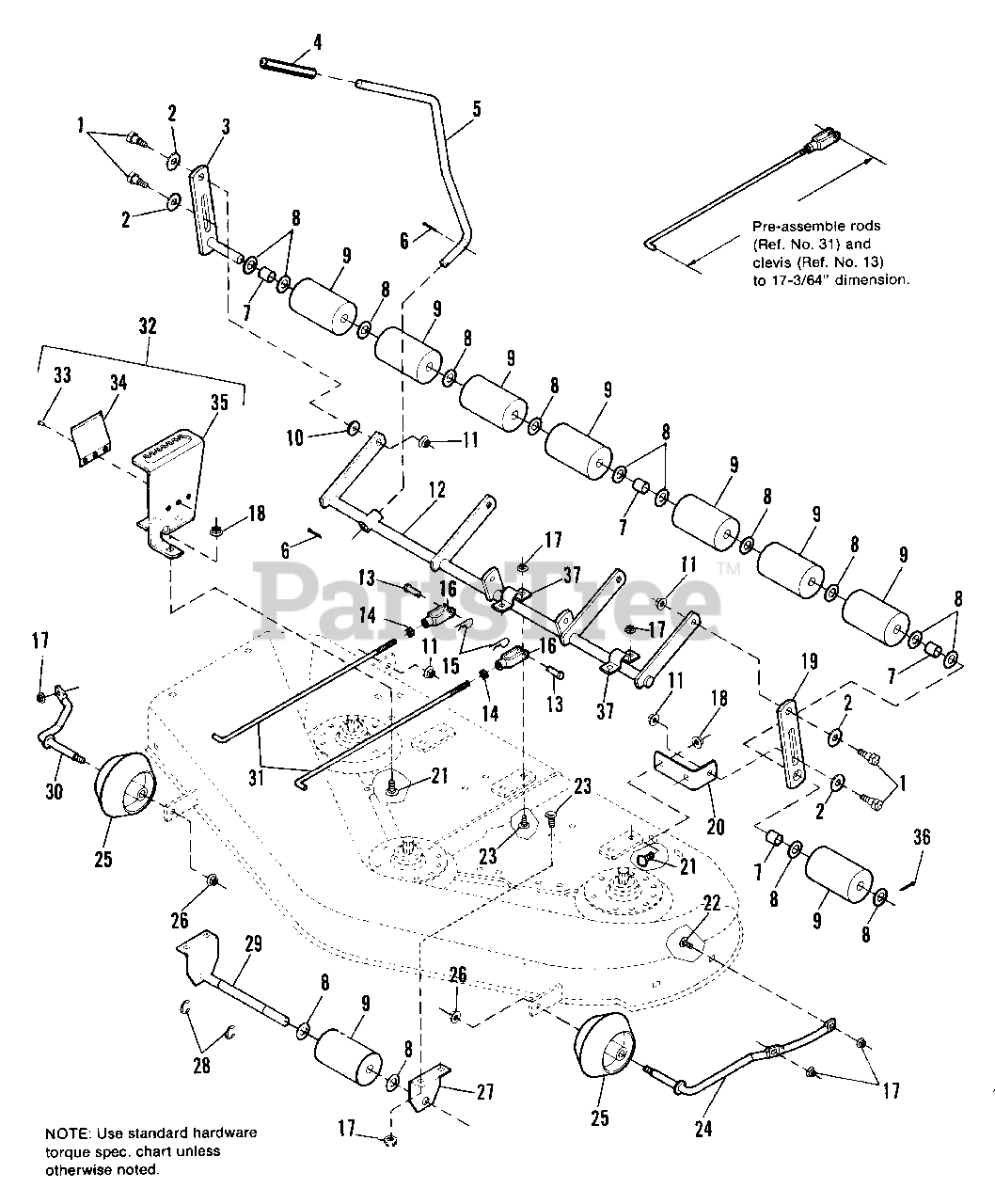

42" Height Adjusting & Roller Group Parts Diagram

  • Title

1

Simplicity 2172622SM

BOLT, Shoulder, 3/8-16 X 1.34

$6.99

$

In Stock, Qty 20+

0

2

Simplicity 1924361SM

WASHER, 1/2
(Superseded to 703451)

$4.49

$

In Stock, Qty 20+

0

3

Simplicity 1703040SM

SHAFT ASSY., Roller

$256.99

$

Usually ships in 2-12 days

0

4

Simplicity 2176933SM

GRIP

$3.49

$

In Stock, only 1 left!

0

5

Simplicity 1703532SM

LEVER, Control

$47.99

$

Usually ships in 2-12 days

0

6

Simplicity 1918452SM

PIN, Cotter
(Superseded to 703795)

$5.99

$

In Stock, only 1 left!

0

7

Simplicity 1602946SM

SPACER, .66 ID

$13.99

$

In Stock, Qty 20+

0

8

Simplicity 1960020SM

WASHER, 5/8

$4.49

$

In Stock, Qty 20+

0

9

Simplicity 1668513SM

ROLLER

$10.99

$

In Stock, Qty 20+

0

10

Simplicity 1922755SM

WASHER, 3/8
(Superseded to 704128)

$4.99

$

In Stock, Qty 9

0

11

Simplicity 1928352SM

NUT, Whizlock, 3/8-16
(Superseded to 703793)

$4.49

$

In Stock, only 3 left!

0

12

Simplicity 1704870SM

ARM ASSY., Mower

$125.99

$

Usually ships in 2-12 days

0

13

Simplicity 1923087SM

PIN, Clevis

$9.49

$

Usually ships in 2-12 days

0

14

Simplicity 1916950SM

NUT, Hex, 3/8-16
(Superseded to 703577)

$4.49

$

In Stock, Qty 20+

0

15

Simplicity 1918196SM

PIN, Quick
(Superseded to 5025210YP)

$3.99

$

In Stock, Qty 20+

0

16

Simplicity 2108157SM

CLEVIS, Adjusting

$24.99

$

Usually ships in 2-12 days

0

17

Simplicity 1931277SM

NUT, Hex Whizlock, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

18

Simplicity 1931211SM

NUT, Hex Whizlock, 3/8-16
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0

19

Simplicity 1603263SM

BAR, Roller
(Superseded to 1603263ASM)

$26.99

$

Usually ships in 2-12 days

0

20

Simplicity 1603264SM

BRACKET, Roller Support

$20.99

$

Usually ships in 2-12 days

0

21

Simplicity 1931348SM

CARRIAGE BOLT, 3/8-16 x 3/4
(Superseded to 703448)

$4.49

$

In Stock, Qty 20+

0

22

Simplicity 1931332SM

CARRIAGE BOLT, 5/16-18 x 5/8
(Superseded to 703447)

$4.49

$

In Stock, Qty 20+

0

23

Simplicity 1931333SM

CARRIAGE BOLT, 5/16-18 x 3/4
(Superseded to 703185)

$3.49

$

In Stock, Qty 12

0

24

Simplicity 1703206SM

ROD ASSY., Roller, L.H.

$43.99

$

Usually ships in 2-12 days

0

25

Simplicity 1700184SM

WHEEL

$14.99

$

In Stock, only 2 left!

0

26

Simplicity 1919439SM

NUT, Hex, Esna Lock 3/8-16
(Superseded to 703117)

$3.49

$

In Stock, Qty 20+

0

27

Simplicity 1603269SM

BRACKET

$66.99

$

Usually ships in 2-12 days

0

28

Simplicity 2827793SM

RING, Retaining
(Superseded to 703977)

$4.99

$

In Stock, Qty 14

0

29

Simplicity 1703480SM

SHAFT ASSY.

$27.99

$

Usually ships in 2-12 days

0

30

Simplicity 1703204SM

ROD ASSY., Roller, R.H.

$

$

Not available

31

Simplicity 1703149SM

ROD, Adjusting

$6.99

$

Usually ships in 2-12 days

0

32

Simplicity 1703034SM

QUADRANT ASSY. (Incl. Ref. Nos. 33-35)

$43.99

$

Usually ships in 2-12 days

0

33

Simplicity 2810542SM

RIVET

$3.99

$

Usually ships in 2-12 days

0

34

Simplicity 1663222SM

SPRING

$

$

Not available

35

QUADRANT (See Ref. No. 32)

$

$

Not available

36

Simplicity 1918458SM

PIN, Cotter

$3.99

$

In Stock, Qty 10

0

37

Simplicity 1665374SM

STRAP
(Superseded to 1761690HYP)

$7.99

$

Usually ships in 2-12 days

0
