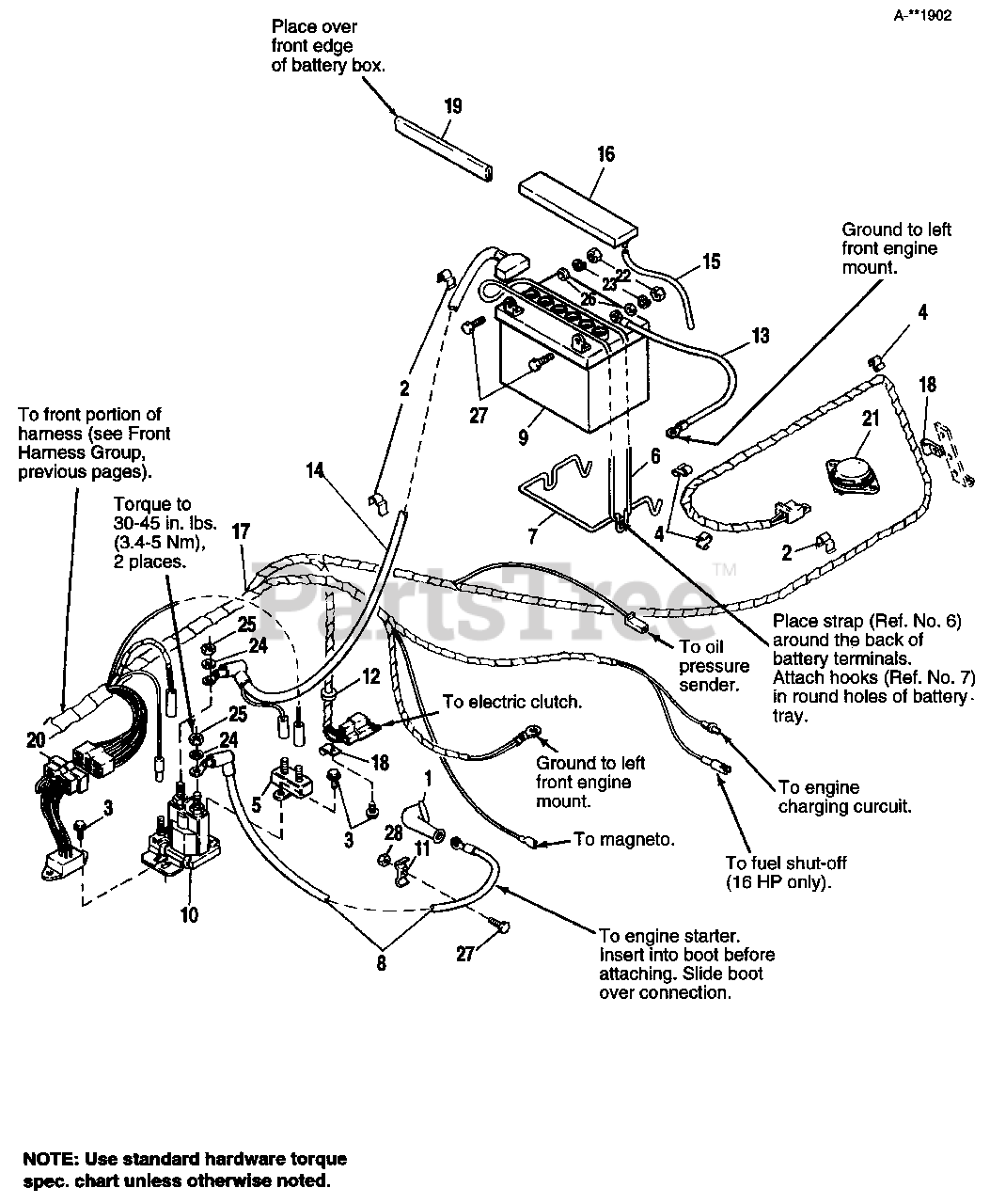

1316 H (1692375) - AGCO Rear-Engine Riding Mower, 16hp Electrical - Main Harness Parts Diagram

Rear-Engine Riding Mower, 16hp

Electrical - Main Harness Parts Diagram

  • Title

1

Simplicity 2122023SM

COVER, Terminal

$5.99

$

In Stock, Qty 12

0

2

Simplicity 2172436SM

CLIP, Wire

$4.49

$

In Stock, only 3 left!

0

3

Simplicity 2825592SM

SCREW, Taptite, 1/4-20 x 3/4

$2.99

$

Usually ships in 2-12 days

0

4

Simplicity 2830222

CLIP, Wire

$

$

Not available

5

Simplicity 1665238SM

CIRCUIT BREAKER

$14.99

$

In Stock, Qty 20+

0

6

Simplicity 1665872SM

STRAP, Battery

$11.99

$

In Stock, Qty 7

0

7

Simplicity 1667805SM

BRACE, Battery Hold Down

$

$

Not available

8

Simplicity 1668819SM

CABLE ASSY., Starter

$16.99

$

Usually ships in 2-12 days

0

9

Simplicity 1685215SM

BATTERY, 12 Volt

$

$

Not available

10

Simplicity 1686981SM

SOLENOID
(Superseded to 1686981YP)

$28.99

$

In Stock, Qty 20+

0

11

Simplicity 1701700

CLAMP

$

$

Not available

12

Simplicity 1703473SM

GROMMET

$

$

Not available

13

Simplicity 1703589SM

CABLE ASSY. (Battery to Ground)

$12.99

$

Usually ships in 2-12 days

0

14

Simplicity 1703851SM

CABLE ASSY. (Battery Positive)

$39.99

$

Usually ships in 2-12 days

0

15

Simplicity 1704389

HOSE, Drain, Battery

$

$

Not available

16

Simplicity 1704581

VENT CAP, Battery

$

$

Not available

17

Simplicity 1707756SM

WIRING HARNESS

$

$

Not available

18

Simplicity 1708008SM

CLAMP, Wire

$4.49

$

Usually ships in 2-12 days

0

19

Simplicity 1708247SM

MOLDING

$7.99

$

Usually ships in 2-12 days

0

20

Simplicity 1713642SM

MODULE, DSI, Interlock

$109.99

$

Usually ships in 2-12 days

0

21

Simplicity 1714320SM

SWITCH, Seat

$16.99

$

Usually ships in 2-12 days

0

22

Simplicity 1916622SM

NUT, Hex, 1/4-20
(Superseded to 703127)

$3.49

$

In Stock, Qty 20+

0

23

Simplicity 1916964SM

LOCKWASHER, 1/4
(Superseded to 704133)

$3.99

$

In Stock, Qty 11

0

24

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

25

Simplicity 2820263SM

NUT, Hex, 5/16-24
(Superseded to 703331)

$3.99

$

In Stock, Qty 20+

0

26

Simplicity 1921319SM

WASHER, 1/4
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

27

Simplicity 1923341SM

CAPSCREW, Hex, 1/4-20 x 3/4

$4.49

$

In Stock, Qty 8

0

28

Simplicity 1960294SM

NUT, Hex, Whizlock, 1/4-20
(Superseded to 703233)

$4.49

$

In Stock, Qty 6

0
