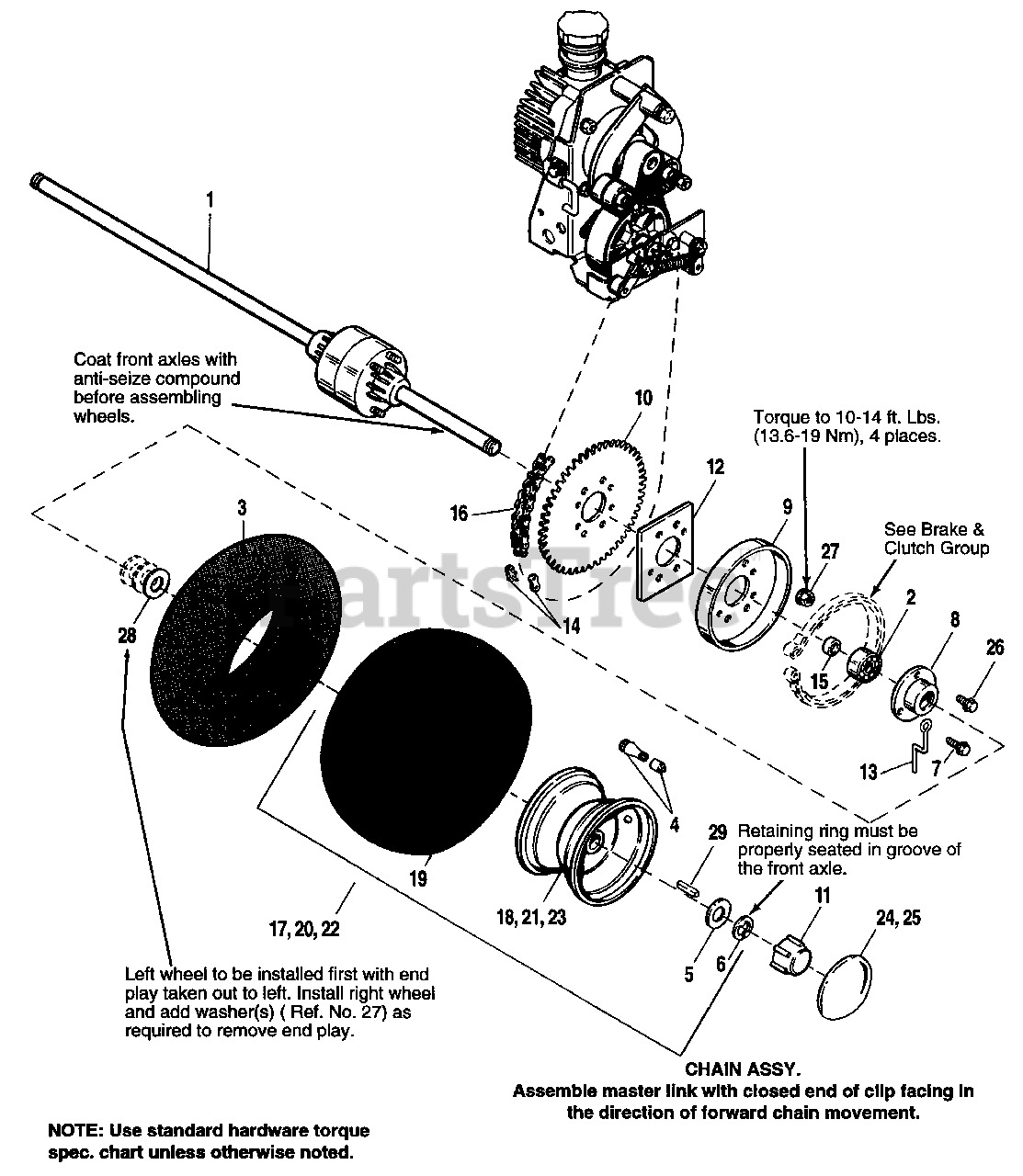

1316 H (1691680) - AGCO 48" Rear-Engine Riding Mower, 16hp Differential & Front Wheels Parts Diagram

48" Rear-Engine Riding Mower, 16hp

Differential & Front Wheels Parts Diagram

  • Title

1

AXLE ASSY., Differential (See pages 54 & 55 for service parts)

$

$

Not available

2

Simplicity 2108202SM

BEARING

$11.99

$

In Stock, Qty 20+

0

3

Simplicity 2164247SM

TUBE (Service only, see note below)

$40.99

$

Usually ships in 2-12 days

0

4

Simplicity 2172353SM

VALVE STEM & CAP
(Superseded to 024373MA)

$

$

Not available

5

Simplicity 2860202SM

WASHER, 3/4

$4.49

$

In Stock, Qty 20+

0

6

Simplicity 1611710SM

RING, Retaining, Wheel

$4.49

$

In Stock, Qty 20+

0

7

Simplicity 1664847SM

SCREW, Taptite, 5/16-18x3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

8

Simplicity 1665696SM

FLANGE, Bearing
(Superseded to 1725764SM)

$29.99

$

Usually ships in 2-12 days

0

9

Simplicity 1668295SM

DRUM, Brake

$22.99

$

Usually ships in 2-12 days

0

10

Simplicity 1668296SM

SPROCKET, 54 Tooth

$170.99

$

Usually ships in 2-12 days

0

11

Simplicity 1673333SM

CAP, Threaded (Not used on export models)

$5.49

$

In Stock, Qty 5

0

12

Simplicity 1678408

SHIM, Sprocket

$

$

Not available

13

Simplicity 1678447

STOP, Brake Band

$

$

Not available

14

Simplicity 1704893SM

MASTER LINK, Chain #40

$4.99

$

In Stock, only 1 left!

0

15

Simplicity 1701772SM

SPACER, Axle

$8.49

$

Usually ships in 2-12 days

0

16

Simplicity 1704298SM

CHAIN, Roller, #40 x 63 pitches

$88.99

$

Usually ships in 2-12 days

0

17

Simplicity 1705038

WHEEL & TIRE ASSY., Silver, 5-3/8" wide x 8" dia. (Incl. Ref. Nos. 4, 18 & 19)

$

$

Not available

18

Simplicity 1714238SM

WHEEL ASSY., Silver, 5-3/8" wide x 8" dia.

$82.99

$

Usually ships in 2-12 days

0

19

Simplicity 1709381SM

TIRE, Dico, Turf Trac, 16 x 6.50-8

$

$

Not available

20

Simplicity 1713988

WHEEL & TIRE ASSY., White, 5-3/8" wide x 8" dia. (Incl. Ref. Nos. 4, 19 & 21)

$

$

Not available

21

Simplicity 1714238SM

WHEEL ASSY., White, 5-3/8" wide x 8" dia

$82.99

$

Usually ships in 2-12 days

0

22

Simplicity 1714237

WHEEL & TIRE ASSY., Metallic Gray, 5-3/8" wide x 8" dia. (Incl. Ref. Nos. 4, 19 & 23)

$

$

Not available

23

Simplicity 1714238SM

WHEEL ASSY., Metallic Gray, 5-3/8" wide x 8" dia.

$82.99

$

Usually ships in 2-12 days

0

24

Simplicity 1714926SM

HUBCAP, 8", Smooth

$8.49

$

Usually ships in 2-12 days

0

25

Simplicity 1714926SM

HUBCAP, 8", Scalloped

$8.49

$

Usually ships in 2-12 days

0

26

Simplicity 1924856SM

SCREW, Taptite, 5/16-18 x 1/2
(Superseded to 703985)

$4.49

$

In Stock, only 3 left!

0

27

Simplicity 1931277SM

NUT, Hex, Whizlock, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

28

Simplicity 1960114SM

WASHER, Shim, 3/4 x 1-1/6 (Use as needed)
(Superseded to 703151)

$3.49

$

In Stock, Qty 20+

0

29

Simplicity 1729279SM

KEY, 3/16 x 3/16 x 1-1/2
(Superseded to 703889)

$4.49

$

In Stock, only 3 left!

0
