1315 (139-222-100) - Cub Cadet Garden Tractor (SN: 147008 - 207400) Transaxle Model No. 930 030 Parts Diagram

Garden Tractor

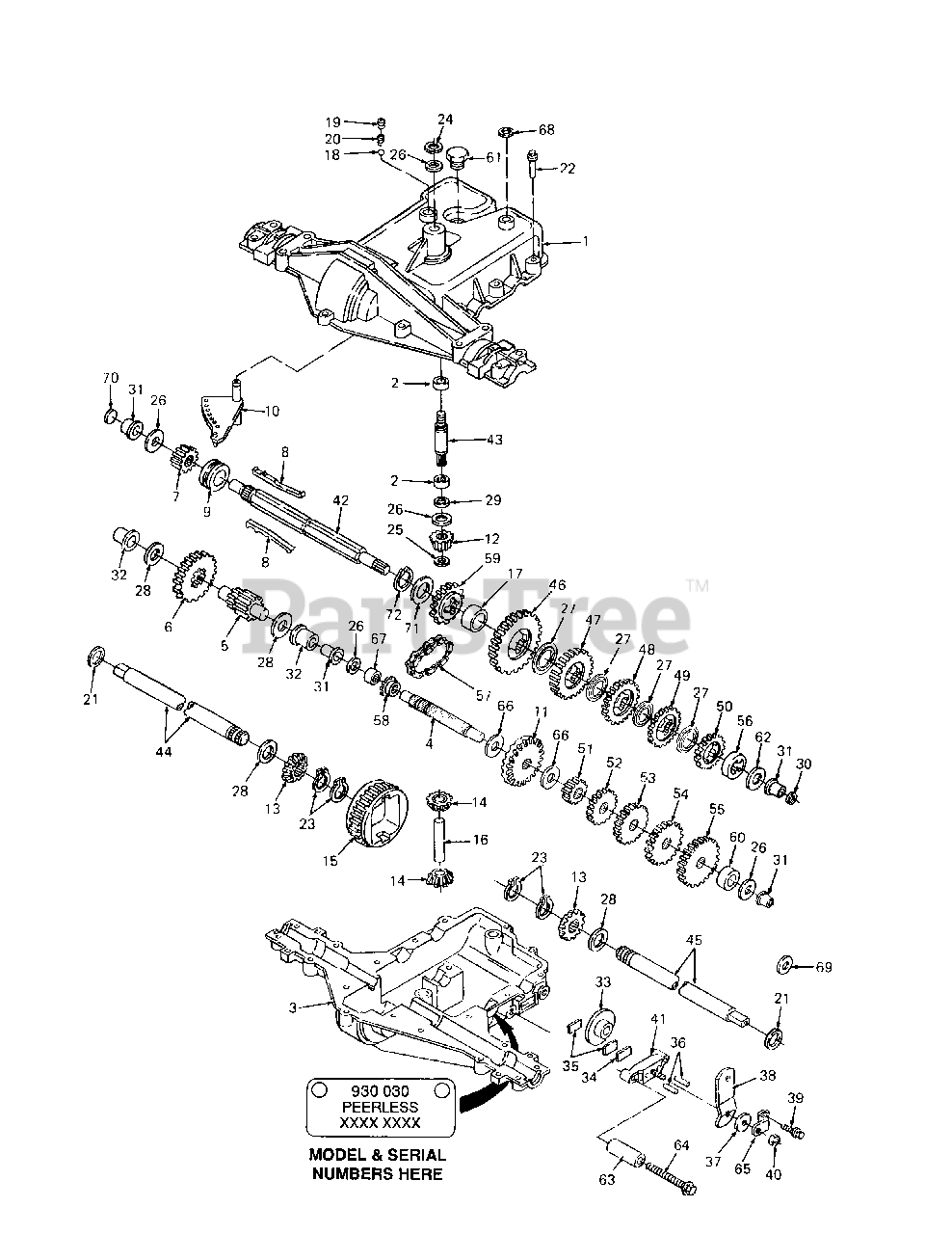

Transaxle Model No. 930 030 Parts Diagram

  • Title

Cub Cadet 717-3343

Transmission Assy

$

$

Not available

1

Cub Cadet TC-772108A

Cover, Transaxle

$

$

Not available

2

Cub Cadet TC-780086

Bearing, Needle

$37.99

$

Usually ships in 3-6 days

0

3

Cub Cadet TC-770102A

Case, Transaxle

$130.99

$

Usually ships in 3-12 days

0

4

Cub Cadet TC-776260

Shaft, Counter

$

$

Not available

5

Cub Cadet TC-776219

Shaft & Pinion Assy, Output

$

$

Not available

6

Cub Cadet TC-778139

Gear, Output

$42.99

$

Usually ships in 3-12 days

0

7

Cub Cadet TC-778136

Gear, Spur (1 5 Teeth)

$24.99

$

In Stock, only 1 left!

0

8

Cub Cadet TC-792136

Key, Shitter
(Superseded to TC-792180A)

$26.99

$

Usually ships in 3-12 days

0

9

Cub Cadet TC-784352

Collar, Shifter

$17.99

$

In Stock, only 2 left!

0

10

Cub Cadet TC-784354

Rod & Fork Assy, Shift

$44.99

$

Usually ships in 3-12 days

0

11

Cub Cadet TC-778229

Gear, Bevel (42 Teeth)

$65.99

$

Usually ships in 3-12 days

0

12

Cub Cadet TC-778113A

Gear, Bevel Input

$34.99

$

In Stock, only 1 left!

0

13

Cub Cadet TC-778221

Gear, Bevel

$

$

Not available

14

Cub Cadet TC-778068

Gear, Bevel Pinion
(Superseded to TC-778131)

$39.99

$

In Stock, Qty 6

0

15

Cub Cadet TC-778260

Gear, Ring

$88.99

$

Usually ships in 3-12 days

0

16

Cub Cadet TC-786139

Pin, Drive

$12.99

$

In Stock, only 1 left!

0

17

Cub Cadet TC-786102

Spacer

$14.99

$

Usually ships in 3-12 days

0

18

Cub Cadet TC-792077

Ball, 5/16 Dia, Grade 200
(Superseded to TC-792077A)

$4.49

$

In Stock, only 4 left!

0

19

Cub Cadet TC-792078

Screw

$4.49

$

In Stock, only 1 left!

0

20

Cub Cadet TC-792079

Spring

$4.49

$

In Stock, only 1 left!

0

21

Cub Cadet TC-788061

Ring, Seal

$4.49

$

In Stock, Qty 6

0

22

Cub Cadet TC-792073

Screw, Flanged Hex, 1/4-20 X 1.25 Lg
(Superseded to TC-792073A)

$1.99

$

Usually ships in 3-12 days

0

23

Cub Cadet TC-792125

Ring, Retainer (Set of 2)

$4.49

$

In Stock, only 3 left!

0

24

Cub Cadet TC-792035

Ring, Retaining

$4.49

$

In Stock, Qty 13

0

25

Cub Cadet TC-788040

Ring, Ext Ret, .521

$4.49

$

In Stock, only 4 left!

0

26

Cub Cadet TC-780072

Washer, Thrust

$4.49

$

In Stock, Qty 20+

0

27

Cub Cadet TC-780108

Washer

$4.49

$

In Stock, Qty 9

0

28

Cub Cadet TC-780001

Washer

$4.49

$

In Stock, only 4 left!

0

29

Cub Cadet TC-792001

Ring, Ouad

$4.49

$

In Stock, Qty 11

0

30

Cub Cadet TC-788051

Ring, Sq Cut
(Superseded to TC-788051A)

$4.49

$

In Stock, Qty 10

0

31

Cub Cadet TC-780105A

Bushing, Flanged

$8.49

$

In Stock, Qty 10

0

32

Cub Cadet TC-780118A

Bushing

$8.49

$

Usually ships in 3-12 days

0

33

Cub Cadet TC-790003

Brake, Disc

$20.99

$

Usually ships in 3-12 days

0

34

Cub Cadet TC-790007

Plate, Brake Pad

$5.99

$

In Stock, only 1 left!

0

35

Cub Cadet TC-790006

Pad, Brake
(Superseded to TC-799021A)

$10.99

$

In Stock, only 1 left!

0

36

Cub Cadet TC-786026

Pin, Dowel

$4.49

$

Usually ships in 3-12 days

0

37

Cub Cadet 736-3078

Washer, Flat, .344 X 1.0 X.063 HDN

$4.49

$

In Stock, only 4 left!

0

38

Cub Cadet TC-790004

Lever, Brake

$10.99

$

In Stock, only 1 left!

0

39

Cub Cadet TC-792073

Screw, Flanged Hex, 1/4-20 X 1.25 Lg
(Superseded to TC-792073A)

$1.99

$

Usually ships in 3-12 days

0

40

Cub Cadet TC-792075

Nut
(Superseded to 912-0237)

$

$

Not available

41

Cub Cadet TC-790025

Holder, Brake Pad

$17.99

$

Usually ships in 3-12 days

0

42

Cub Cadet TC-776315A

Shaft, Brake (4-Keyed)

$119.99

$

Usually ships in 3-12 days

0

43

Cub Cadet TC-776140

Shaft, Input

$29.99

$

Usually ships in 3-12 days

0

44

Cub Cadet TC-774793

Axle, 11.62 Lg

$71.99

$

Usually ships in 3-12 days

0

45

Cub Cadet TC-774794

Axle, 16.0 Lg

$

$

Not available

46

Cub Cadet TC-778191

Gear, Spur (37 Teeth)

$

$

Not available

47

Cub Cadet TC-778124A

Gear, Spur (30 Teeth)

$34.99

$

In Stock, only 3 left!

0

48

Cub Cadet TC-778123A

Gear, Spur (25 Teeth)

$48.99

$

Usually ships in 3-12 days

0

49

Cub Cadet TC-778122A

Gear, Spur (22 Teeth)

$39.99

$

Usually ships in 3-12 days

0

50

TC-778121 A

Gear, Spur (20 Teeth)

$

$

Not available

51

Cub Cadet TC-778230

Gear, Spur (12 Teeth)

$28.99

$

Usually ships in 3-12 days

0

52

Cub Cadet TC-778126A

Gear, Spur (20 Teeth)

$48.99

$

Usually ships in 3-12 days

0

53

Cub Cadet TC-778127A

Gear, Spur (25 Teeth)

$53.99

$

In Stock, only 3 left!

0

54

Cub Cadet TC-778128A

Gear, Spur (28 Teeth)

$40.99

$

Usually ships in 3-12 days

0

55

Cub Cadet TC-778129A

Gear, Spur (30 Teeth)

$37.99

$

In Stock, only 1 left!

0

56

Cub Cadet TC-786072

Spacer

$4.49

$

In Stock, only 1 left!

0

57

Cub Cadet TC-786081

Chain, Roller

$22.99

$

Usually ships in 3-12 days

0

58

Cub Cadet TC-786082

Sprocket (9 Teeth)

$15.99

$

Usually ships in 3-12 days

0

59

Cub Cadet TC-786123

Sprocket (1 8 Teeth)

$20.99

$

Usually ships in 3-12 days

0

60

Cub Cadet TC-786071

Spacer

$4.49

$

In Stock, only 2 left!

0

61

Cub Cadet TC-792074

Plug

$22.99

$

Usually ships in 3-12 days

0

62

Cub Cadet TC-780109

Washer, Thrust

$4.49

$

Usually ships in 3-12 days

0

63

Cub Cadet TC-786066

Spacer

$4.49

$

In Stock, only 2 left!

0

64

Cub Cadet TC-792085

Screw, Hex Flanged Hd 1/4-20 X 2-1/4 Lg
(Superseded to TC-792085A)

$4.49

$

In Stock, only 1 left!

0

65

Cub Cadet TC-786086

Bracket, Brake Lever

$6.49

$

Usually ships in 3-12 days

0

66

Cub Cadet TC-780051

Washer, Thrust

$4.49

$

Usually ships in 3-12 days

0

67

Cub Cadet TC-786118

Spacer

$4.49

$

Usually ships in 3-12 days

0

68

Cub Cadet TC-788069

Seal, Sq Cut

$4.49

$

Usually ships in 3-12 days

0

69

Cub Cadet TC-792083

Washer

$

$

Not available

70

Cub Cadet TC-786116

Disk
(Superseded to TC-786116A)

$4.49

$

Usually ships in 3-12 days

0

71

Cub Cadet TC-780090

Washer, Thrust

$4.49

$

In Stock, Qty 7

0

72

Cub Cadet TC-788075

Ring, Retaining

$

$

Not available

Cub Cadet TC-788067B

Grease, Transmission 30 oz
(Superseded to TC-788067C)

$

$

Not available
