131492-0304-01 - Briggs & Stratton Horizontal Engine Blower Hsg,Rewind,Gear Case Parts Diagram

Horizontal Engine

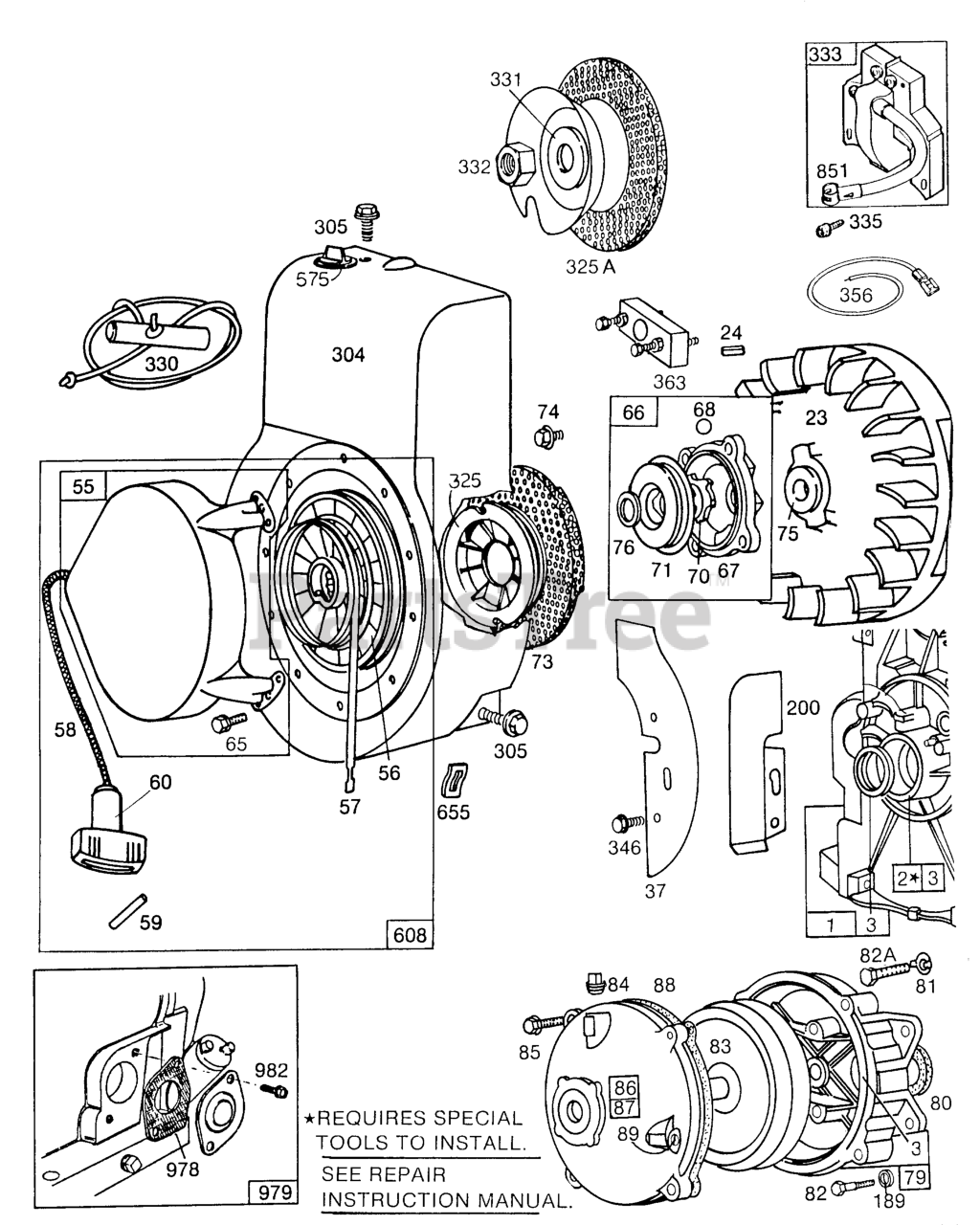

Blower Hsg,Rewind,Gear Case Parts Diagram

  • Title

1

Briggs & Stratton 397673

Cylinder Assy.

$498.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 297565

Bushing/Seal Kit

Note: Requires special tools for installation.

$20.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 299819

Seal, Oil (Plain Bearing Covers)
(Superseded to 299819S)

$5.49

$

In Stock, Qty 17

0

23

Briggs & Stratton 297229

Flywheel-Magneto

$

$

Not available

24

Briggs & Stratton 222698

Key, Flywheel
(Superseded to 222698S)

$2.99

$

In Stock, Qty 20+

0

37

Briggs & Stratton 222443

Guard-Flywheel
(Superseded to 691732)

$9.99

$

Usually ships in 2-12 days

0

55

Briggs & Stratton 397123

Housing-Rewind Starter
(Superseded to 299431)

$

$

Not available

56

Briggs & Stratton 295871

Pulley-Starter (Includes 63" Rope)

Note: If longer rope is required, order rope No. 66894 and cut to length.

$14.99

$

In Stock, Qty 20+

0

57

Briggs & Stratton 294303

Spring-Rewind Starter
(Superseded to 490179)

$

$

Not available

58

Briggs & Stratton 66884

Rope, Starter (63" Cut To Required Length)
(Superseded to 692188)

Note: If longer rope is required, order rope No. 66894 and cut to length.

$8.49

$

In Stock, only 1 left!

0

59

Briggs & Stratton 230228

Pin-Starter Rope
(Superseded to 230228S)

$3.99

$

In Stock, only 4 left!

0

60

Briggs & Stratton 66728

Grip-Starter Rope.
(Superseded to 490652)

$5.49

$

In Stock, Qty 12

0

65

Briggs & Stratton 94063

Screw-Stamped Steel Housing Mtg. Sem
(Superseded to 690837)

$3.49

$

In Stock, Qty 20+

0

66

Briggs & Stratton 394558

Clutch Assy
(Superseded to 399671)

Note: (For engines w/Ring Gear on Flywheel equipped for Electric Start)

$34.99

$

In Stock, Qty 20+

0

67

Briggs & Stratton 394897

Housing-Starter Clutch

$36.99

$

In Stock, only 1 left!

0

68

Briggs & Stratton 63770

Ball-Clutch
(Superseded to 691604)

$

$

Not available

70

Briggs & Stratton 298799

Ratchet Assy
(Superseded to 691945)

Note: (For engine W/Ring Gear on FW equipped for Elec Start)

$17.99

$

In Stock, only 1 left!

0

71

Briggs & Stratton 221653

Washer, Steel (Non-Coated)
(Superseded to 691359)

$9.99

$

In Stock, Qty 13

0

73

Briggs & Stratton 221923

Screen-Starter Pulley

$

$

Not available

74

Briggs & Stratton 94062

Screw, Hex Washer H
(Superseded to 691692)

$3.99

$

Usually ships in 2-12 days

0

75

Briggs & Stratton 220865

Washer, Belleville (Used With Heavy Flywheel)
(Superseded to 690582)

$4.49

$

In Stock, only 4 left!

0

76

Briggs & Stratton 68238

Seal-Ratchet
(Superseded to 691359)

$9.99

$

In Stock, Qty 13

0

79

Briggs & Stratton 290779

Case-Reduction Gear
(Superseded to 690605)

$136.99

$

Usually ships in 2-12 days

0

80

Briggs & Stratton 27667

Gasket-Gear Case
(Superseded to 691602)

$5.99

$

Usually ships in 2-12 days

0

81

Briggs & Stratton 220234

Lock-Screw Head
(Superseded to 691168)

$5.49

$

Usually ships in 2-12 days

0

82A

Briggs & Stratton 92279

Screw, Hex Head Cap (5/16-24 X 1/2")
(Superseded to 699164)

$3.99

$

Usually ships in 2-12 days

0

82

Briggs & Stratton 91541

Screw, Hex Head Cap (5/16-24 X 7/8")
(Superseded to 690369)

$5.99

$

Usually ships in 2-12 days

0

83

Briggs & Stratton 211293

Shaft-Auxiliary Drive
(Superseded to 690374)

$242.99

$

Usually ships in 2-12 days

0

84

Briggs & Stratton 92617

Screw-Gear Case Mounting Sem
(Superseded to 691121)

$5.99

$

Usually ships in 2-12 days

0

85

Briggs & Stratton 92747

Screw, Sem Hex Hd M
(Superseded to 691117)

Note: (Used on Two Top Holes to Mount Cover)

$4.49

$

In Stock, only 1 left!

0

86

Briggs & Stratton 291730

Cover-Gear Case
(Superseded to 690608)

$73.99

$

Usually ships in 2-12 days

0

87

Briggs & Stratton 19011

Seal-Oil
(Superseded to 691582)

$12.99

$

In Stock, only 1 left!

0

88

Briggs & Stratton 27313

Gasket-Gear Case Cover
(Superseded to 691600)

$11.99

$

Usually ships in 2-12 days

0

89

Briggs & Stratton 93448

Plug, Pipe (Flush) (1/4-18 Nptf)
(Superseded to 691682)

$5.49

$

Usually ships in 2-12 days

0

189

Briggs & Stratton 90366

Lockwasher, Zinc Pl
(Superseded to 691075)

$3.49

$

Usually ships in 2-12 days

0

200

Briggs & Stratton 221480

Guide-Air
(Superseded to 691745)

$11.99

$

Usually ships in 2-12 days

0

304

Briggs & Stratton 398345

Housing-Blower

$

$

Not available

305

Briggs & Stratton 93158

Screw, Sem Hex Head (1/4-20 X 5/8")
(Superseded to 692198)

$5.99

$

In Stock, Qty 12

0

325A

Briggs & Stratton 299421

Pulley-Rope Start (With Screen)

$19.99

$

Usually ships in 2-12 days

0

325

Briggs & Stratton 280457

Pulley, Rope Starte
(Superseded to 691903)

$60.99

$

Usually ships in 2-12 days

0

330

Briggs & Stratton 69932

Rope/Grip Assy (55")
(Superseded to 69932S)

$9.49

$

In Stock, only 1 left!

0

331

Briggs & Stratton 220865

Washer, Belleville (Used With Heavy Flywheel)
(Superseded to 690582)

$4.49

$

In Stock, only 4 left!

0

332

Briggs & Stratton 92284

Nut, Jam (Flywheel)
(Superseded to 690662)

$5.99

$

In Stock, only 1 left!

0

333

Briggs & Stratton 397358

Armature-Mag

$53.99

$

In Stock, Qty 20+

0

335

Briggs & Stratton 93414

Screw, Sem Hex Head
(Superseded to 691621)

$7.49

$

Usually ships in 2-12 days

0

346

Briggs & Stratton 93705

Screw, Tapping Hex (8-32 X 3/8)
(Superseded to 690661)

$3.49

$

In Stock, Qty 9

0

356

Briggs & Stratton 398874

Wire, Dual Stop Ass
(Superseded to 491391)

$6.49

$

Usually ships in 2-12 days

0

363

Briggs & Stratton 19069

Puller-Flywheel (Optional Accessory)

$23.99

$

In Stock, only 1 left!

0

575

Briggs & Stratton 396691

Switch, Rotary Stop (Mech. Gov.)
(Superseded to 692309)

$20.99

$

Usually ships in 2-12 days

0

608

Briggs & Stratton 397124

Starter Assy.-Rewind
(Superseded to 390463)

$

$

Not available

655

Briggs & Stratton 222598

Insert, Spring
(Superseded to 691734)

Note: (For Stamped Rewind Housing)

$4.99

$

Usually ships in 2-12 days

0

851

Briggs & Stratton 221798

Terminal-Spark Plug
(Superseded to 493880S)

$3.49

$

In Stock, Qty 20+

0

978

Briggs & Stratton 271736

Gasket, Switch
(Superseded to 273326S)

$7.49

$

Usually ships in 2-12 days

0

979

Briggs & Stratton 398194

Cover-Oilgard Hole
(Superseded to 691382)

$4.99

$

Usually ships in 2-12 days

0

982

Briggs & Stratton 94139

Screw-Oilgard Cover
(Superseded to 690351)

$3.99

$

In Stock, only 2 left!

0
