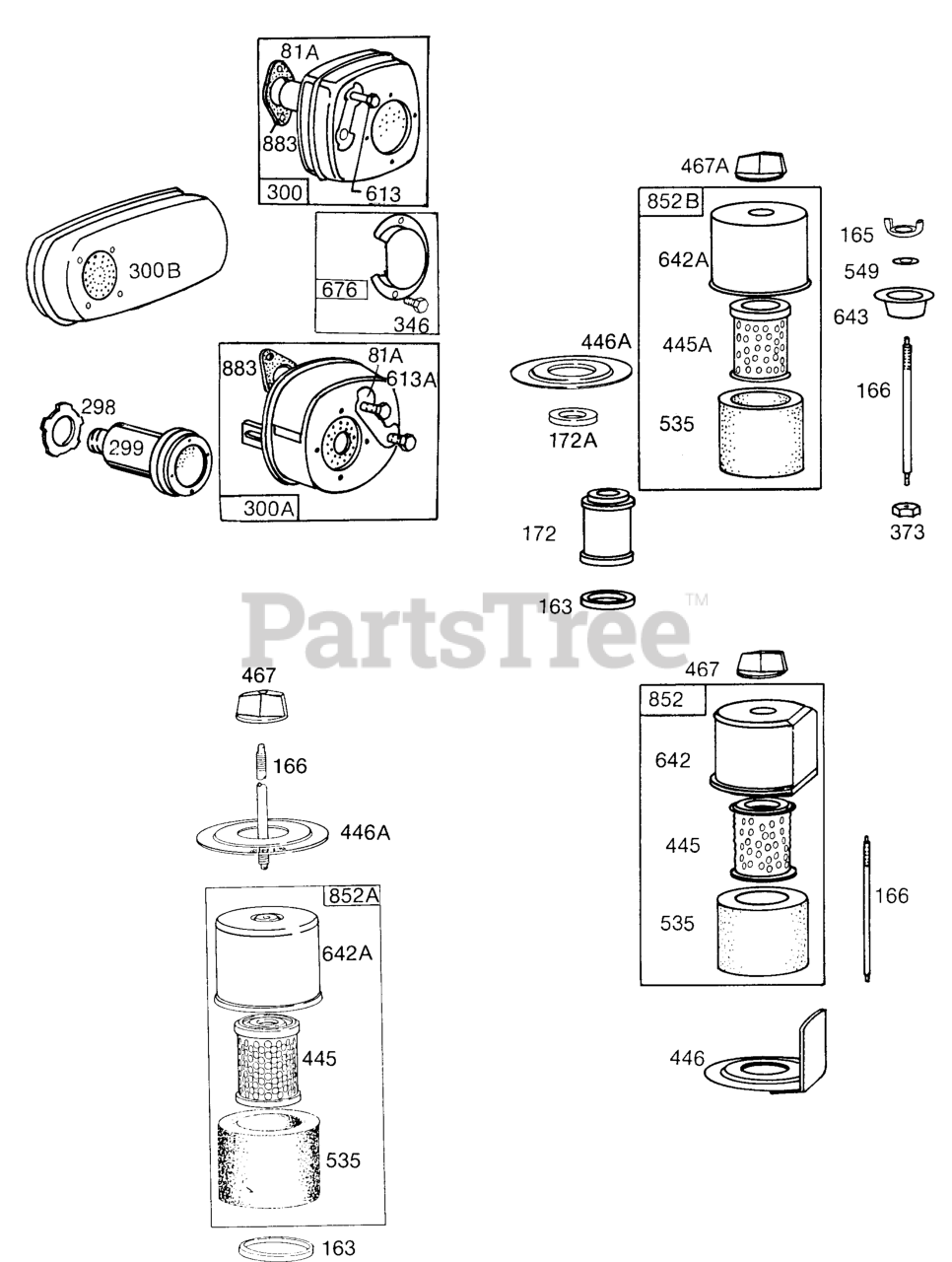

131431-0147-01 - Briggs & Stratton Horizontal Engine Air Cleaner Groups, Mufflers Parts Diagram

Horizontal Engine

Air Cleaner Groups, Mufflers Parts Diagram

  • Title

81A

Briggs & Stratton 222929

Lock-Muff Screw (1/4" Dia. Bolt Holes)

$5.49

$

Usually ships in 2-12 days

0

81A

Briggs & Stratton 222263

Lock, Screw Head (3/8" Dia. Bolt Holes)
(Superseded to 691729)

$5.99

$

In Stock, only 3 left!

0

163

Briggs & Stratton 271042

Gasket-Air Cl (Below Spacer)

$8.49

$

Usually ships in 2-12 days

0

165

Briggs & Stratton 93856

Nut-Wing (#10-32)

$3.99

$

In Stock, Qty 9

0

166

Briggs & Stratton 231177

Stud-Air Cleaner

Note: Used Before Code Date 83110800

$14.99

$

Usually ships in 2-12 days

0

166

Briggs & Stratton 231314

Stud-Air Cleaner
(Superseded to 696244)

Note: Used After Code Date 83110700

$16.99

$

Usually ships in 2-12 days

0

172A

Briggs & Stratton 271139

Gasket, Air Cleaner (Above Spacer)
(Superseded to 271139S)

$3.99

$

In Stock, Qty 20+

0

172

Briggs & Stratton 280213

Spacer-Air Cleaner

$8.49

$

In Stock, only 1 left!

0

298

Briggs & Stratton 261409

Locknut, Muffler/El
(Superseded to 690453)

$4.49

$

In Stock, Qty 9

0

299

Briggs & Stratton 393368

Muffler, Angular As (20 Degrees Angular)
(Superseded to 496892)

$64.99

$

Usually ships in 2-12 days

0

300A

Briggs & Stratton 391313

Muffler-Exhaust
(Superseded to 692304)

$34.99

$

In Stock, only 4 left!

0

300B

Briggs & Stratton 392101

Muffler Assy (Super Lo-tone)
(Superseded to 498984S)

$84.99

$

Usually ships in 2-12 days

0

300

Briggs & Stratton 393615

Muffler Grp (Lo-Tone)
(Superseded to 494585)

$23.99

$

In Stock, only 1 left!

0

346

Briggs & Stratton 93705

Screw, Tapping Hex (8-32 X 3/8)
(Superseded to 690661)

$3.49

$

In Stock, Qty 8

0

373

Briggs & Stratton 92987

Nut, Hex Mach
(Superseded to 690800)

$3.99

$

In Stock, Qty 13

0

445A

Briggs & Stratton 392308

Filter-Air
(Superseded to 392308S)

$16.99

$

Usually ships in 2-12 days

0

445

Briggs & Stratton 396424

Filter-Pre Cleaner
(Superseded to 396424S)

$13.99

$

In Stock, only 3 left!

0

446A

Briggs & Stratton 222844

Base-Air Cleaner
(Superseded to 691735)

$17.99

$

Usually ships in 2-12 days

0

446

Briggs & Stratton 395642

Base-Air Cleaner
(Superseded to 223198)

$27.99

$

Usually ships in 2-12 days

0

467A

Briggs & Stratton 212293

Knob-Choke Rod

$6.99

$

Usually ships in 2-12 days

0

467

Briggs & Stratton 212706

Knob-Choke Rod
(Superseded to 691668)

$5.49

$

In Stock, only 1 left!

0

535

Briggs & Stratton 271466

Filter-Air

$4.49

$

In Stock, Qty 20+

0

549

Briggs & Stratton 271118

Washer

$

$

Not available

613A

Briggs & Stratton 93704

Screw-Muffler Mtg.

Note: Used Before Code Date 82091300

$15.99

$

Usually ships in 2-12 days

0

613A

Briggs & Stratton 94042

Screw, Shoulder Muf
(Superseded to 691632)

Note: Used After Code Date 82091400

$8.49

$

In Stock, only 1 left!

0

613

Briggs & Stratton 93549

Screw-Hex (1/4-20 Hex Head)

$6.99

$

Usually ships in 2-12 days

0

613

Briggs & Stratton 93935

Screw, Shoulder Muf
(Superseded to 691413)

$5.99

$

Usually ships in 2-12 days

0

642A

Briggs & Stratton 222626

Cover-Air Cleaner

$

$

Not available

642

Briggs & Stratton 223306

Cover-Air Cleaner
(Superseded to 493822)

$

$

Not available

643

Briggs & Stratton 222845

Support-Foam Elemen (1/2" Deep)

$

$

Not available

676

Briggs & Stratton 393757

Deflector-Muff (Side Outlet)
(Superseded to 796956)

$10.99

$

In Stock, only 1 left!

0

852A

Briggs & Stratton 397937

Cleaner Group-Air

$

$

Not available

852B

Briggs & Stratton 392368

Cleaner-Air

$50.99

$

Usually ships in 2-12 days

0

852

Briggs & Stratton 396397

Cleaner-Air
(Superseded to 493822)

$

$

Not available

883

Briggs & Stratton 270918

Gasket-Muffler
(Superseded to 692237)

$5.49

$

In Stock, only 2 left!

0
