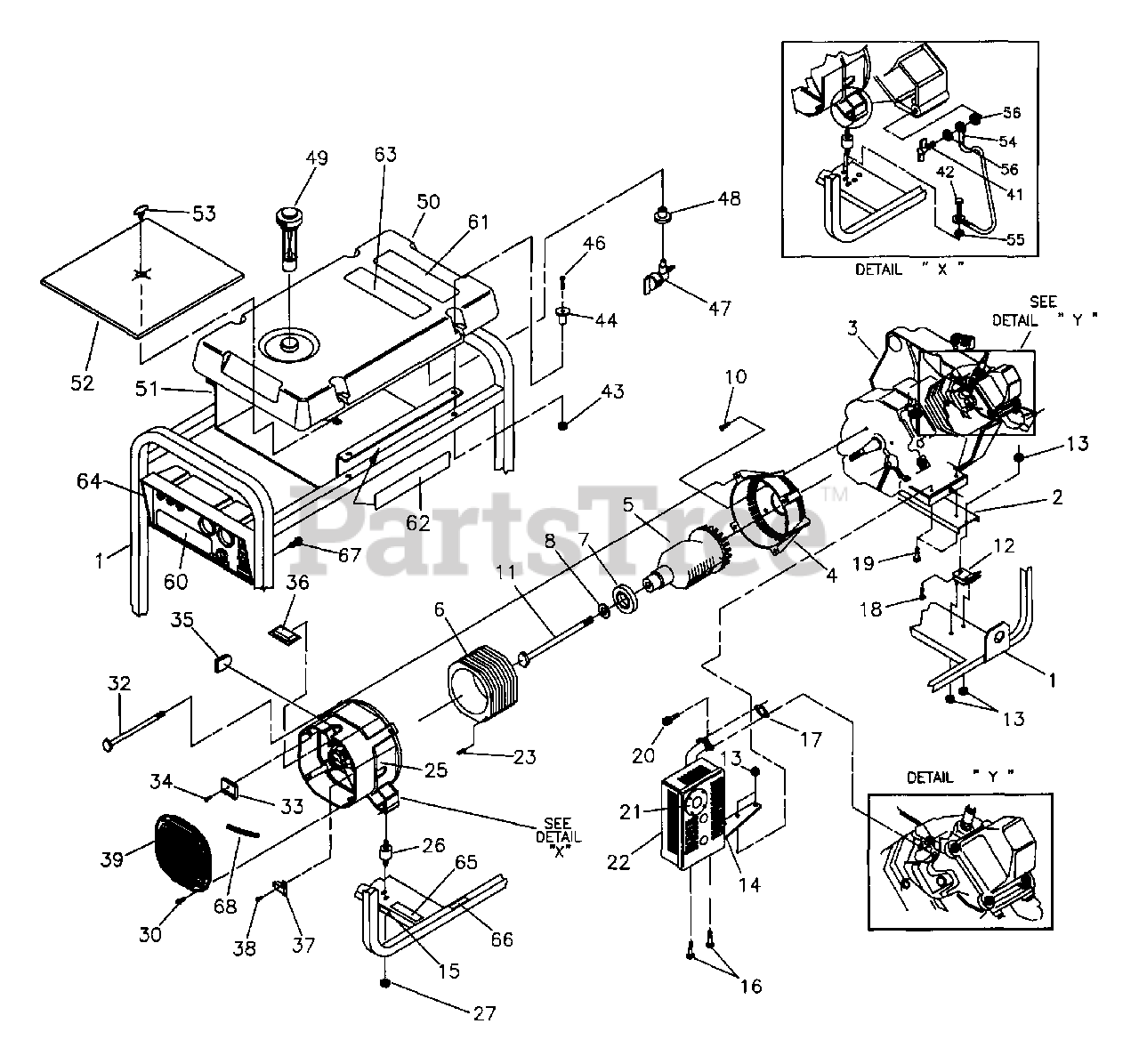

1313-1 - Generac 3,500 Watt Portable Generator Main Unit Parts Diagram

3,500 Watt Portable Generator

Main Unit Parts Diagram

  • Title

1

Briggs & Stratton G93199

CRADLE, XL
(Superseded to G93199GS)

$171.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton G84021

SUPPORT, Engine
(Superseded to G84021GS)

$5.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton ~NSP

ENGINE, 6.5 HP XL

$

$

Currently unavailable

4

Briggs & Stratton 66365

HOUSING, Engine Adapter
(Superseded to 66365GS)

$69.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 84141J

ASSEMBLY, Rotor
(Superseded to 84141JGS)

$278.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 83540J

ASSEMBLY, Stator
(Superseded to 187105AGS)

$

$

Not available

7

Briggs & Stratton 65791

BEARING
(Superseded to 65791GS)

$34.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 96796

WASHER, M8 Flat
(Superseded to 96796GS)

$3.49

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 86307

SCREW, 6/16-24 x 3/4 HHM
(Superseded to 86307GS)

$2.99

$

In Stock, only 3 left!

0

11

Briggs & Stratton 47480

SCREW, 5/ 16-24 x 7" Cap
(Superseded to 5047480B)

$205.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 84508

MOUNT, 45° Vibration
(Superseded to 84508GS)

$22.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 52858

NUT, M8 Locking
(Superseded to 52858GS)

$3.99

$

In Stock, only 2 left!

0

14

Briggs & Stratton 83208

BRACKET, Muffler
(Superseded to 83208GS)

$21.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton DB4986

DECAL, Ground

$

$

Currently unavailable

16

Briggs & Stratton 66476

SCREW, M6 - 1.0 x 12
(Superseded to 66476GS)

$3.49

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 89476

GASKET, Exhaust
(Superseded to 89476GS)

$2.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 70644

SCREW, M8-1.25 x 20 PPHM
(Superseded to 70644GS)

$4.49

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 84346

SCREW, M8 x 35 PPHM
(Superseded to 195398GS)

$2.99

$

In Stock, only 1 left!

0

20

Briggs & Stratton 40976

SCREW, M8 - 1.25 x 20

$

$

Not available

21

Briggs & Stratton 83083

SCREEN, Spark Arrest
(Superseded to 83083GS)

$9.49

$

In Stock, only 2 left!

0

22

Briggs & Stratton 83071

MUFFLER
(Superseded to 83071GS)

$

$

Not available

23

Briggs & Stratton 81917

PIN, M4 x 10 Roll
(Superseded to 81917GS)

$3.49

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 66825B

CARRIER, Rear Bearing

$

$

Currently unavailable

26

Briggs & Stratton 85652

MOUNT, Vibration
(Superseded to 194153GS)

$11.99

$

In Stock, Qty 7

0

27

Briggs & Stratton 67989

NUT, M8 Flange Serrated
(Superseded to 67989GS)

$3.49

$

In Stock, Qty 9

0

30

Briggs & Stratton 74908

M5-8.0 x 10 Taptite
(Superseded to 74908GS)

$2.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 86308

BOLT, M6- 1.0 x 115 Stator
(Superseded to 86308GS)

$3.99

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 65795

RECTIFIER, Battery Charge
(Superseded to 65795GS)

$

$

Not available

34

Briggs & Stratton 66849A

M5-0.7 x 20 Taptite
(Superseded to 66849AGS)

$4.49

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 67022

GROMMET, Rubber
(Superseded to 67022GS)

$3.49

$

Usually ships in 2-12 days

0

36

Briggs & Stratton 84132

MODULE, Drive
(Superseded to 84132GS)

$126.99

$

Usually ships in 2-12 days

0

37

Briggs & Stratton 66386

ASSEMBLY, Brush Holder
(Superseded to 66386GS)

$23.99

$

In Stock, Qty 20+

0

38

Briggs & Stratton 66849

M5-0.7 x 16 Taptite
(Superseded to 66849GS)

$4.99

$

In Stock, only 1 left!

0

39

Briggs & Stratton B4871

COVER, Bearing Carrier
(Superseded to B4871GS)

$9.49

$

Usually ships in 2-12 days

0

41

Briggs & Stratton 86494

SCREW, M6-1.0 x 16mm Wing
(Superseded to 86494GS)

$2.99

$

Usually ships in 2-12 days

0

42

Briggs & Stratton 86292

HHCS, 10-16 x 3/4" Self Drill
(Superseded to 313085GS)

$4.99

$

In Stock, only 1 left!

0

43

Briggs & Stratton 77395

NUT, M6 Flange Lock
(Superseded to 77395GS)

$3.99

$

Usually ships in 2-12 days

0

44

Briggs & Stratton 83465

GROMMET, Tank
(Superseded to 83465GS)

$3.99

$

In Stock, only 4 left!

0

46

Briggs & Stratton 78831B

SCREW, M6-1.0 x 60 (black)
(Superseded to 78831BGS)

$

$

Not available

47

Briggs & Stratton 80270

VALVE, Tank
(Superseded to 192980GS)

$17.99

$

In Stock, Qty 20+

0

48

Briggs & Stratton 78299

BUSHING, Plastic Tank
(Superseded to 192980GS)

$17.99

$

In Stock, Qty 20+

0

49

Briggs & Stratton 85134

GAUGE, Fuel Cap
(Superseded to B4363GS)

$41.99

$

In Stock, Qty 20+

0

50

Briggs & Stratton 88325

TANK, Fuel
(Superseded to 195617GS)

$

$

Not available

51

Briggs & Stratton B84042

SHIELD, Heat
(Superseded to B84042GS)

$38.99

$

Usually ships in 2-12 days

0

52

Briggs & Stratton 84687

INSULATION, #2 1/4"
(Superseded to 84687GS)

$22.99

$

Usually ships in 2-12 days

0

53

Briggs & Stratton 85000

CLIP, Insulation
(Superseded to 85000GS)

$2.99

$

Usually ships in 2-12 days

0

54

14353621

WIRE, Ground

$

$

Not available

55

Briggs & Stratton 23762

WASHER, #10 Shakeproof
(Superseded to 23762GS)

$2.99

$

Usually ships in 2-12 days

0

56

Briggs & Stratton 26850

WASHER, M6 Shakeproof

$

$

Not available

60

Briggs & Stratton B4356

DECAL, Control Panel

$

$

Currently unavailable

61

Briggs & Stratton 92982

DECAL, Danger
(Superseded to 194799GS)

$11.99

$

Usually ships in 2-12 days

0

62

Briggs & Stratton B4357

DECAL, Heat Shield

$

$

Currently unavailable

63

Briggs & Stratton 93826

DECAL, Start Instruction
(Superseded to 93826GS)

$14.99

$

Usually ships in 2-12 days

0

64

Briggs & Stratton B1432

ASSEMBLY, Control Panel

$

$

Not available

65

Briggs & Stratton 20566

DECAL, GENERAC 1-800#
(Superseded to 20566GS)

$1.99

$

Usually ships in 2-12 days

0

66

Briggs & Stratton 77816

DECAL, Caution Hot Muffler
(Superseded to 77816GS)

$4.99

$

Usually ships in 2-12 days

0

67

Briggs & Stratton B2153

HHCS, 12-14 x 7/8" Self Drill
(Superseded to B2153GS)

$4.49

$

Usually ships in 2-12 days

0

68

Briggs & Stratton 84409

SLEEVING, Flexo, HW 1/2" X .83 ft.

$

$

Currently unavailable

Briggs & Stratton 65787

Battery Charge Cable

Note: Items Not Illustrated

$3.99

$

Usually ships in 2-12 days

0

Briggs & Stratton B4354

Owner's Manual
(Superseded to B4354GS)

Note: Items Not Illustrated

$14.99

$

Usually ships in 2-12 days

0

Briggs & Stratton BB3061

Oil, 28 oz.
(Superseded to BB3061GS)

Note: Items Not Illustrated

$13.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 43483

120/240 Volt 20 Amp Plug
(Superseded to 100522GS)

Note: Items Not Illustrated

$34.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 37806

120 Volt 30 Amp Plug
(Superseded to 100523GS)

Note: Items Not Illustrated

$20.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 84883

Ext. Cord Wrap
(Superseded to 84883GS)

Note: Optional Accessories Not Included

$29.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 84895

Storage Cover
(Superseded to B4767GS)

Note: Optional Accessories Not Included

$108.99

$

Usually ships in 2-12 days

0
