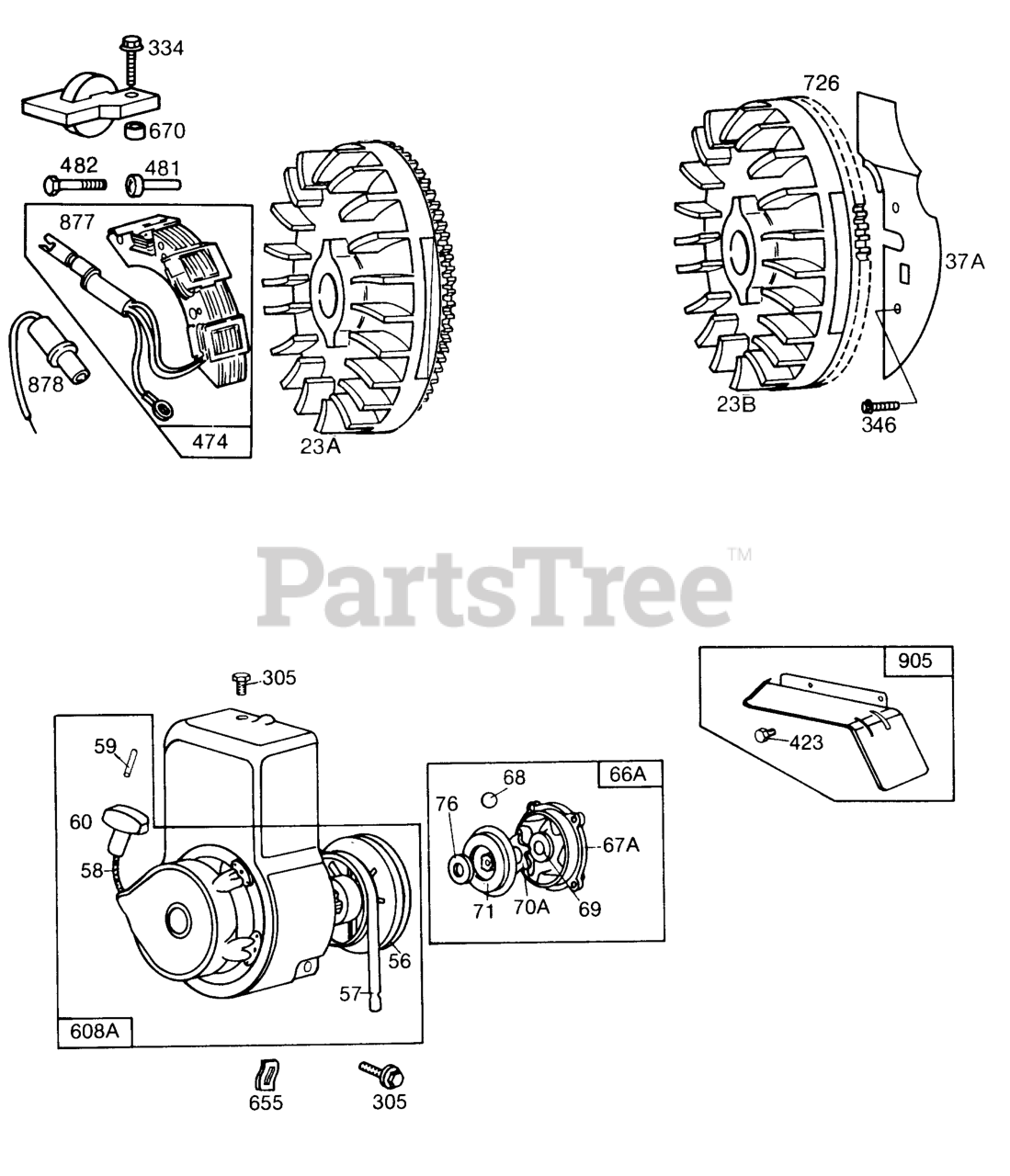

131231-0110-01 - Briggs & Stratton Horizontal Engine Flywheels,Alternator,Rewind Parts Diagram

Horizontal Engine

Flywheels,Alternator,Rewind Parts Diagram

  • Title

23A

Briggs & Stratton 390509

Flywheel Assy (Includes Steel Ring Gear)
(Superseded to 493456)

$219.99

$

Usually ships in 2-12 days

0

23B

Briggs & Stratton 394424

Flywheel (With Aluminum Ring Gear)

$222.99

$

Usually ships in 2-12 days

0

37A

Briggs & Stratton 222578

Guard-Flywheel (Used On Engines With Electric Starters)

$11.99

$

Usually ships in 2-12 days

0

56

Briggs & Stratton 295871

Pulley-Starter (Includes 63" Rope)

Note: If longer rope is required, order rope No. 66894 and cut to length.

$14.99

$

In Stock, Qty 20+

0

57

Briggs & Stratton 294303

Spring-Rewind Starter
(Superseded to 490179)

$

$

Not available

58

Briggs & Stratton 66884

Rope, Starter (63" Cut To Required Length)
(Superseded to 692188)

Note: (For use with Plastic Pulley) If longer rope is required, order rope No. 66894 and cut to length.

$8.49

$

In Stock, only 1 left!

0

59

Briggs & Stratton 230228

Pin-Starter Rope
(Superseded to 230228S)

$3.99

$

In Stock, only 4 left!

0

60

Briggs & Stratton 66728

Grip-Starter Rope.
(Superseded to 490652)

$5.49

$

In Stock, Qty 10

0

66A

Briggs & Stratton 394558

Clutch Assy
(Superseded to 399671)

Note: (For engines w/Ring Gear on Flywheel equipped for Electric Start)

$34.99

$

In Stock, Qty 20+

0

67A

Briggs & Stratton 394897

Housing-Starter Clutch

Note: For engines with Ring Gear on Flywheel equipped for or with Electric Motor.

$36.99

$

In Stock, only 1 left!

0

68

Briggs & Stratton 63770

Ball-Clutch
(Superseded to 691604)

$

$

Not available

69

Briggs & Stratton 66718

Washer, Thrust (1-1/16" O.d. X 17/32" I.d.)
(Superseded to 690271)

$8.49

$

In Stock, only 1 left!

0

69

Briggs & Stratton 93676

Washer-Spring

$4.49

$

Usually ships in 2-12 days

0

70A

Briggs & Stratton 298799

Ratchet Assy
(Superseded to 691945)

Note: (For engine W/Ring Gear on FW equipped for Elec Start)

$17.99

$

In Stock, only 1 left!

0

71

Briggs & Stratton 221653

Washer, Steel (Non-Coated)
(Superseded to 691359)

$9.99

$

In Stock, Qty 13

0

76

Briggs & Stratton 68238

Seal-Ratchet
(Superseded to 691359)

$9.99

$

In Stock, Qty 13

0

305

Briggs & Stratton 93158

Screw, Sem Hex Head (1/4-20 X 5/8")
(Superseded to 692198)

$5.99

$

In Stock, Qty 11

0

334

Briggs & Stratton 93613

Screw, Armature Spa
(Superseded to 690306)

$

$

Not available

346

Briggs & Stratton 93705

Screw, Tapping Hex (8-32 X 3/8)
(Superseded to 690661)

$3.49

$

In Stock, Qty 8

0

423

Briggs & Stratton 93410

Screw-Hex

$7.99

$

In Stock, only 1 left!

0

423

Briggs & Stratton 93654

Screw-Hex

$3.49

$

Usually ships in 2-12 days

0

474

Briggs & Stratton 394173

Stator Assy.-Alternator
(Superseded to 494254)

$81.99

$

Usually ships in 2-12 days

0

481

Briggs & Stratton 230970

Bushing-Stator

$6.49

$

Usually ships in 2-12 days

0

482

Briggs & Stratton 93639

Screw-Sem

$2.49

$

Usually ships in 2-12 days

0

608A

Briggs & Stratton 297372

Starter-Rewind (10 O'clock)

$

$

Not available

655

Briggs & Stratton 222598

Insert, Spring
(Superseded to 691734)

Note: (For Stamped Rewind Housing)

$4.99

$

Usually ships in 2-12 days

0

670

Briggs & Stratton 261065

Spacer, Armature
(Superseded to 690531)

$4.99

$

Usually ships in 2-12 days

0

726

Briggs & Stratton 397644

Gear-Ring (Aluminum)

$29.99

$

Usually ships in 2-12 days

0

877

Briggs & Stratton 393854

Diode Assy.
(Superseded to 394251)

$30.99

$

Usually ships in 2-12 days

0

878

Briggs & Stratton 393422

Socket/Wire Assy (Dc Only)
(Superseded to 692306)

$17.99

$

Usually ships in 2-12 days

0

905

Briggs & Stratton 394510

Shield-Sno

$4.99

$

Usually ships in 2-12 days
