1312 H (1691659) - AGCO Rear-Engine Riding Mower, 12hp Engine Group - 12HP Parts Diagram

Rear-Engine Riding Mower, 12hp

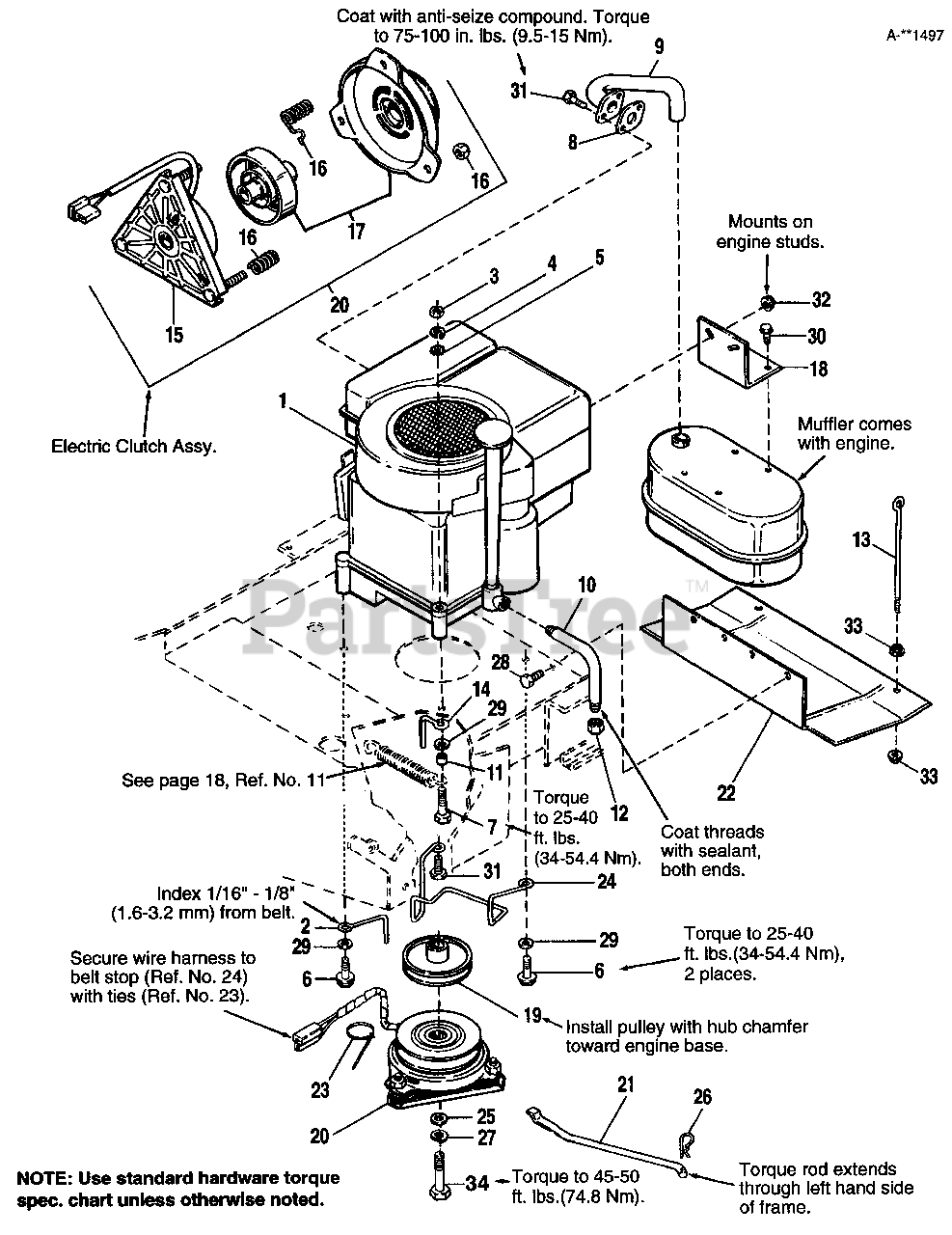

Engine Group - 12HP Parts Diagram

  • Title

1

ENGINE, 12 HP, Briggs & Stratton

$

$

Not available

2

Simplicity 2172844SM

STOP, Belt

$26.99

$

Usually ships in 2-12 days

0

3

Simplicity 2816950SM

NUT, Hex, 3/8-16
(Superseded to 703457)

$4.49

$

In Stock, Qty 7

0

4

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 17

0

5

Simplicity 2820427SM

LOCKWASHER, Ext. Tooth, 3/8
(Superseded to 703864)

$4.49

$

Usually ships in 2-12 days

0

6

Simplicity 704010

SCREW, Taptite, 3/8-16 x 1-1/2

$4.99

$

Usually ships in 2-12 days

0

7

Simplicity 2860358SM

SCREW, Taptite, 3/8-16 x 2-1/2

$4.99

$

Usually ships in 2-12 days

0

8

Simplicity 1650670SM

GASKET, Muffler

$8.49

$

Usually ships in 2-12 days

0

9

Simplicity 1655860SM

PIPE, Exhaust

$112.99

$

In Stock, only 1 left!

0

10

Simplicity 1664989

DRAIN, Oil

$

$

Not available

11

Simplicity 1666804SM

SPACER

$8.99

$

In Stock, only 1 left!

0

12

Simplicity 1667346SM

CAP, Hex, 3/8

$7.49

$

Usually ships in 2-12 days

0

13

Simplicity 1676338SM

ROD, Battery Hold Down

$23.99

$

Usually ships in 2-12 days

0

14

Simplicity 1678306SM

STOP, Belt

$

$

Not available

15

Simplicity 1679101

FIELD ASSY., Clutch

$

$

Not available

16

Simplicity 1679104SM

ACCESSORY KIT

$12.99

$

Usually ships in 2-12 days

0

17

Simplicity 1703074

ROTOR ASSY/ARMATURE ASSY. KIT, Clutch

$

$

Not available

18

Simplicity 1700164

BRACKET, Muffler

$

$

Not available

19

Simplicity 1702962SM

PULLEY ASSY., Drive

$98.99

$

Usually ships in 2-12 days

0

20

Simplicity 1703074

ELECTRIC CLUTCH ASSY. (Incl. Ref. Nos. 15-17)

$

$

Not available

21

Simplicity 1703107SM

ROD, Torque

$

$

Not available

22

Simplicity 1703720SM

HEAT SHIELD ASSY.

$26.99

$

Usually ships in 2-12 days

0

23

Simplicity 1704739SM

TIE

$

$

Not available

24

Simplicity 1705268SM

STOP, Belt

$30.99

$

Usually ships in 2-12 days

0

25

Simplicity 1708264SM

WASHER, 7/16

$8.99

$

In Stock, Qty 5

0

26

Simplicity 1918196SM

CLIP, Hair Pin
(Superseded to 5025210YP)

$3.99

$

In Stock, Qty 20+

0

27

Simplicity 1918199SM

LOCKWASHER, 7/16
(Superseded to 704007)

$4.49

$

In Stock, Qty 20+

0

28

Simplicity 1924856SM

SCREW, Taptite, 5/16-18 x 1/2
(Superseded to 703985)

$4.49

$

In Stock, only 3 left!

0

29

Simplicity 1924940SM

WASHER, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

30

Simplicity 1927429SM

SCREW, Taptite, 1/4-20 x 5/8
(Superseded to 703054)

$4.49

$

In Stock, Qty 5

0

31

Simplicity 1930591SM

SCREW, Whizlock, 5/16-18 x 3/4
(Superseded to 703354)

$5.49

$

In Stock, Qty 14

0

32

Simplicity 1931277SM

NUT, Hex, Whizlock, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

33

Simplicity 1960294SM

NUT, Flange, Whizlock, 1/4-20
(Superseded to 703233)

$4.49

$

In Stock, Qty 6

0

34

Simplicity 1960351SM

CAPSCREW, Hex, 7/16 x 3-1/4

$5.49

$

Usually ships in 2-12 days

0
