1312 G (1691658) - AGCO Rear-Engine Riding Mower, 12hp Console & Controls Group Parts Diagram

Rear-Engine Riding Mower, 12hp

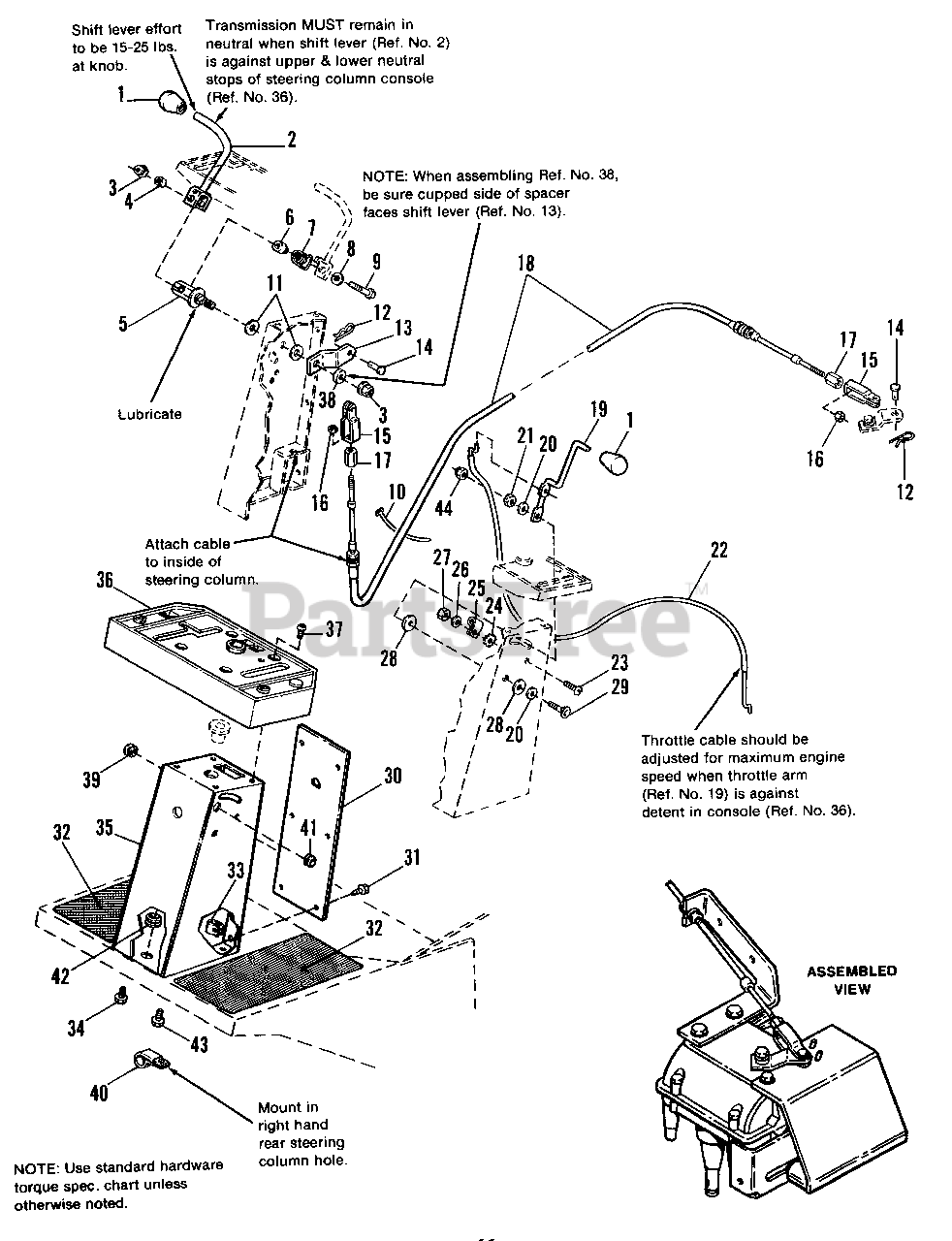

Console & Controls Group Parts Diagram

  • Title

1

Simplicity 1702618SM

KNOB, Control

$10.99

$

Usually ships in 2-12 days

0

2

Simplicity 1686626SM

ROD ASSY., Shift

$

$

Not available

3

Simplicity 1919438SM

NUT, Hex, Fiber Lock, 5/16-18
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

4

Simplicity 1665889SM

SPACER

$

$

Not available

5

Simplicity 1702002SM

PIVOT, Shift (Incl. Ref. No. 38)

$72.99

$

Usually ships in 2-12 days

0

6

Simplicity 1678425SM

SPACER

$

$

Not available

7

Simplicity 1678429SM

SPRING, Torsion

$42.99

$

Usually ships in 2-12 days

0

8

Simplicity 1919326SM

WASHER, Flat, 5/16

$4.49

$

In Stock, Qty 8

0

9

Simplicity 1921978SM

CAPSCREW, Hex Head 5/16-18 x 2 G5
(Superseded to 703867)

$4.99

$

In Stock, only 4 left!

0

10

Simplicity 1701011SM

TIE, Self-Locking

$5.49

$

In Stock, only 2 left!

0

11

Simplicity 1678360SM

WASHER, Nylon, 33/64 x 1

$3.49

$

In Stock, only 2 left!

0

12

Simplicity 1960221SM

PIN, Quick
(Superseded to 704039)

$4.49

$

In Stock, Qty 9

0

13

Simplicity 1678283SM

LEVER, Shift

$12.99

$

In Stock, only 1 left!

0

14

Simplicity 1960261SM

PIN

$6.49

$

Usually ships in 2-12 days

0

15

Simplicity 1678377

CLEVIS

$

$

Not available

16

Simplicity 1678436

NUT, Special, #10-32

$

$

Not available

17

Simplicity 1700860

NUT, Collar

$

$

Not available

18

Simplicity 1703847

CABLE, Transmission

$

$

Not available

19

Simplicity 1686625SM

THROTTLE ARM

$

$

Not available

20

Simplicity 1921319SM

WASHER, 1/4
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

21

Simplicity 1923358SM

LOCKNUT, 1/4-20
(Superseded to 703954)

$4.99

$

In Stock, Qty 20+

0

22

Simplicity 1678371SM

CABLE, Throttle

$

$

Not available

23

Simplicity 1930531SM

SCREW, Rd. Hd., #10-32 x 1/2

$4.49

$

In Stock, only 2 left!

0

24

Simplicity 1922711

LOCKWASHER, Ext. Tooth, #10

$

$

Not available

25

Simplicity 2158475SM

CLIP, Throttle Cable

$5.49

$

In Stock, only 4 left!

0

26

Simplicity 1910531SM

WASHER, #10

$3.99

$

Usually ships in 2-12 days

0

27

Simplicity 1928919SM

NUT, #10-32

$3.99

$

In Stock, only 3 left!

0

28

Simplicity 1678366SM

WASHER, Nylon, 17/64 x 3/4 x 7/8

$5.49

$

Usually ships in 2-12 days

0

29

Simplicity 1921960SM

CARRIAGE BOLT, 1/4-20 x 1

$3.49

$

In Stock, only 1 left!

0

30

Simplicity 1678245

PANEL, Steering Column

$

$

Not available

31

Simplicity 1960498SM

SCREW, Hex, Type AB-#14, 1/4-14 x 5/8

$3.49

$

In Stock, Qty 13

0

32

Simplicity 1678437SM

MAT, Foot

$7.49

$

Usually ships in 2-12 days

0

33

Simplicity 1960523SM

SPEED NUT, "U" Type, #14

$4.49

$

Usually ships in 2-12 days

0

34

Simplicity 1924856SM

SCREW, Taptite, 5/16-18 x 1/2
(Superseded to 703985)

$4.49

$

In Stock, only 3 left!

0

35

Simplicity 1703434

COLUMN ASSY., Steering (1691654)

$

$

Not available

35

Simplicity 71703434

COLUMN ASSY., Steering (1691658)

$

$

Not available

36

Simplicity 1703295SM

CONSOLE, Steering Column

$

$

Not available

37

Simplicity 1678419SM

SCREW, Taptite, 1/4-20 x 3/4

$3.49

$

Usually ships in 2-12 days

0

38

Simplicity 1700880SM

SPACER, Shift Lever

$7.99

$

In Stock, only 1 left!

0

39

Simplicity 1705004

GROMMET

$

$

Not available

40

Simplicity 122186

CLAMP

$

$

Not available

41

Simplicity 2172176SM

GROMMET

$6.49

$

In Stock, only 2 left!

0

42

Simplicity 1704862SM

GROMMET

$6.49

$

Usually ships in 2-12 days

0

43

Simplicity 1664847SM

SCREW, Taptite, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

44

Simplicity 1920397SM

NUT, Hex, Esna Lock, 1/4-20
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0
