1311-0 - Generac 3,000 Watt Portable Generator (Lowes) 3000 Watt Generator Parts Diagram

3,000 Watt Portable Generator (Lowes)

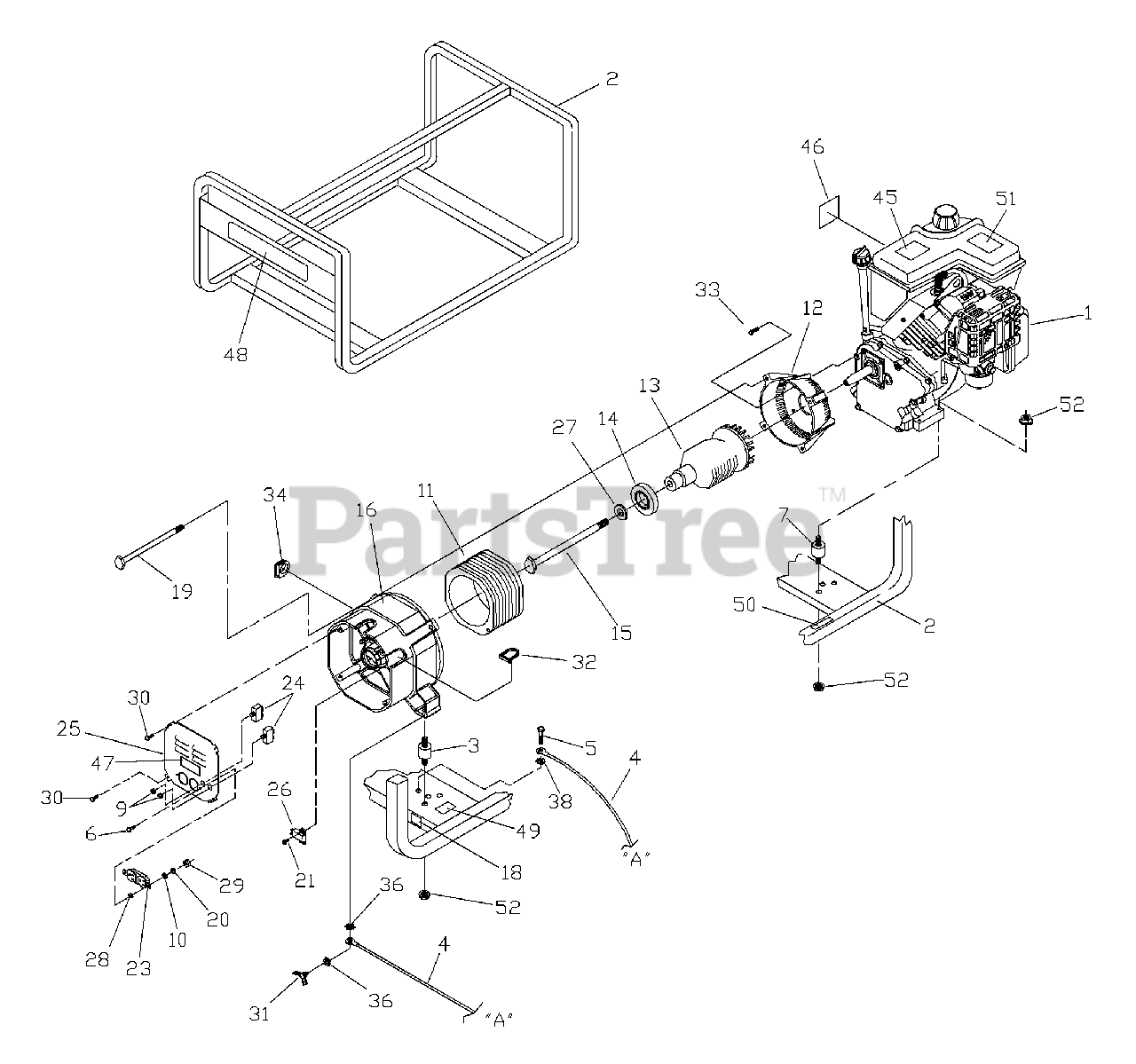

3000 Watt Generator Parts Diagram

  • Title

1

Briggs & Stratton ~NSP

ENGINE

$

$

Currently unavailable

2

Briggs & Stratton B91018B

ASSEMBLY, Cradle
(Superseded to B91018BGS)

$

$

Not available

3

Briggs & Stratton 85652

MOUNT, Vibration Alt.
(Superseded to 194153GS)

$11.99

$

In Stock, Qty 5

0

4

14353621

WIRE, Ground

$

$

Not available

5

Briggs & Stratton 86292

CAPSCREW, Self Driller #10
(Superseded to 313085GS)

$4.99

$

In Stock, only 1 left!

0

6

Briggs & Stratton 75475

SCREW, PHM M4 - 0.7 x 10

$

$

Not available

7

Briggs & Stratton 85651

MOUNT, Vibration Engine
(Superseded to 85651GS)

$24.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 99617

NUT, Pal

$

$

Currently unavailable

10

Briggs & Stratton 38150

WASHER, #8 Flat
(Superseded to 38150GS)

$2.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton B2817J

ASSEMBLY, Stator
(Superseded to B2817JGS)

$291.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 66365F

HOUSING, Engine Adapter
(Superseded to 66365FGS)

$79.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton B2816J

ASSEMBLY, Rotor
(Superseded to B2816JGS)

$170.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 65791

BEARING, Ball
(Superseded to 65791GS)

$34.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 47480

BOLT, Rotor 5/16" - 24 x 7.00"
(Superseded to 5047480B)

$205.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 66825B

CARRIER, Rear Bearing

$

$

Currently unavailable

18

Briggs & Stratton B4986

DECAL, Ground
(Superseded to B4986GS)

$2.99

$

In Stock, only 1 left!

0

19

Briggs & Stratton 86308G

BOLT, Stator M6 1.00 x 100mm
(Superseded to 86308GGS)

$4.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 22264

WASHER, No. 8 Lock

$

$

Not available

21

Briggs & Stratton 66849

SCREW, M5 - .80 x 16mm Taptite
(Superseded to 66849GS)

$4.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 68759

RECEPTACLE, 120V AC, 20AMP
(Superseded to 68759GS)

$24.99

$

In Stock, only 4 left!

0

24

Briggs & Stratton 77247

BREAKER, Circuit - 20AMP
(Superseded to 77247GS)

$10.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton B2819

ASSY., Control Panel
(Superseded to B2819GS)

$84.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 91825

RECTIFIER, Brush & Bridge

$

$

Not available

27

Briggs & Stratton 96796

WASHER, Flat
(Superseded to 96796GS)

$3.49

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 23365

WASHER, Shakeproof No. 8
(Superseded to 5023365)

$462.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 51715

NUT, M4 - 0.7 Hex
(Superseded to 51715GS)

$2.99

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 74908

SCREW, M5 0.80 x 10mm Taptite
(Superseded to 74908GS)

$2.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 86494

SCREW, M6 - 1.0 x 16 Wing
(Superseded to 86494GS)

$2.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 84242

GROMMET, Plastic RBC
(Superseded to 84242GS)

$4.99

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 86307

CAPSCREW, Hx Hd 5/16"-24 x 3/4"
(Superseded to 86307GS)

$2.99

$

In Stock, only 3 left!

0

34

Briggs & Stratton 67022

GROMMET, Rubber
(Superseded to 67022GS)

$3.49

$

Usually ships in 2-12 days

0

36

Briggs & Stratton 26850

WASHER, M6 1/4 Shakeproof

$

$

Not available

38

Briggs & Stratton 22769

WASHER, #10 Shakeproof
(Superseded to 22769GS)

$3.49

$

Usually ships in 2-12 days

0

45

Briggs & Stratton 93639

DECAL, Danger (English)

$2.49

$

Usually ships in 2-12 days

0

46

Briggs & Stratton 93640

DECAL, Danger (Spanish)

$1.49

$

Usually ships in 2-12 days

0

47

Briggs & Stratton 98319

DECAL, Control Panel
(Superseded to 98319GS)

$8.99

$

Usually ships in 2-12 days

0

48

Briggs & Stratton B4346

DECAL, Unit
(Superseded to B4346GS)

$29.99

$

Usually ships in 2-12 days

0

49

Briggs & Stratton 20566

DECAL, 1-800 Number
(Superseded to 20566GS)

$1.99

$

Usually ships in 2-12 days

0

50

Briggs & Stratton 77816

DECAL, Caution Hot Muffler
(Superseded to 77816GS)

$4.99

$

Usually ships in 2-12 days

0

51

Briggs & Stratton 99541

DECAL, Start Instructions

$

$

Not available

52

Briggs & Stratton 67989

NUT, M8 Flanged Serrated
(Superseded to 67989GS)

$3.49

$

In Stock, Qty 5

0
