13105 - Troy-Bilt Hydro LTX Lawn Tractor (SN: 131051200101 - 131051299999) Eaton 751 Hydro Transmission Assembly (Part 2) Parts Diagram

Hydro LTX Lawn Tractor

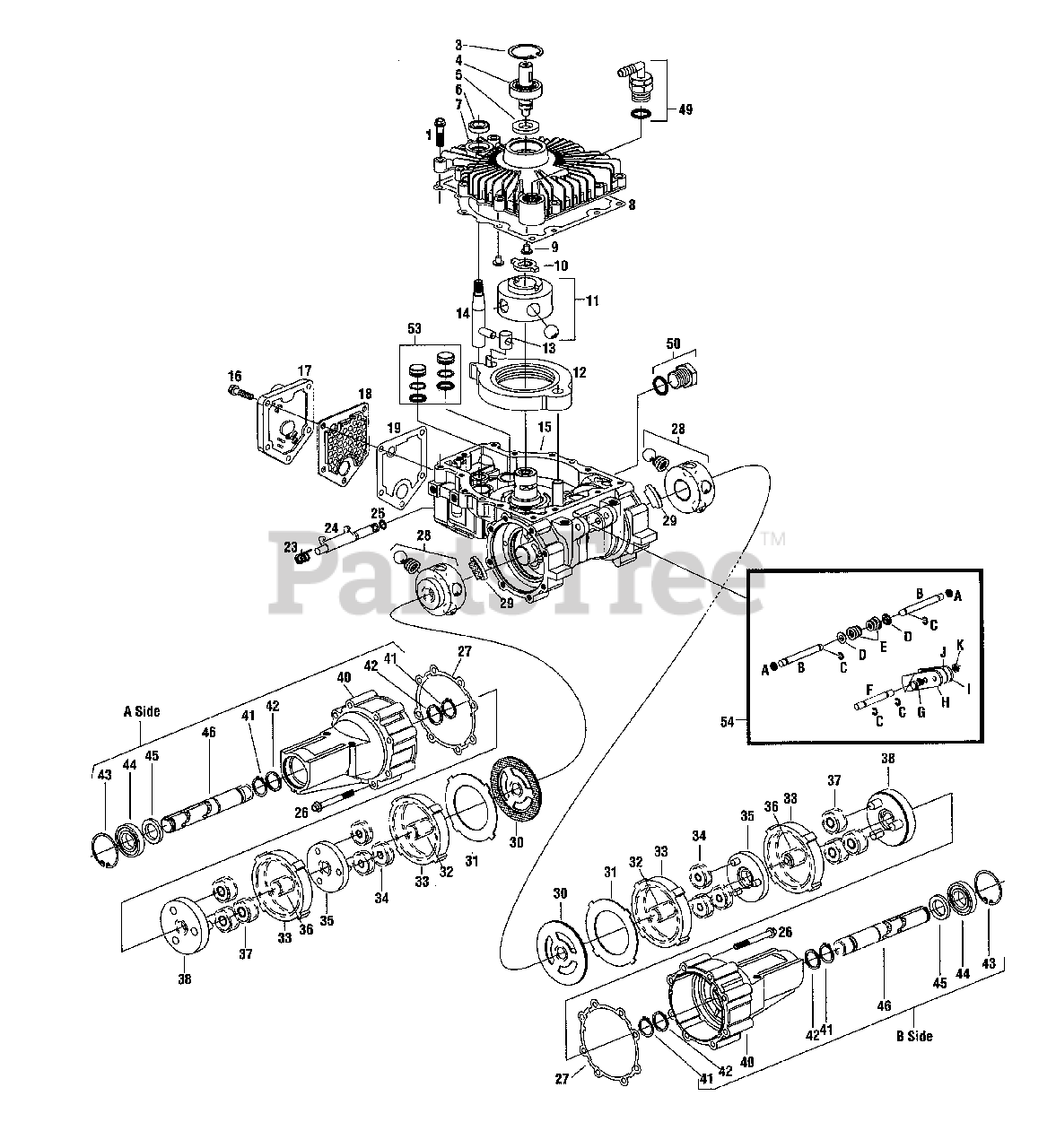

Eaton 751 Hydro Transmission Assembly (Part 2) Parts Diagram

  • Title

1

MTD 1769200

Self Tapping Screw, 1/4-20

$

$

Not available

3

MTD 1769201

Ring, Retaining, Internal

$

$

Not available

4

MTD 1760892

Shaft, Input (S/A)

$

$

Not available

5

MTD 1760893

Seal Input Shaft

$

$

Not available

6

MTD 1757374

Seal, Control Shaft

$

$

Not available

7

MTD 1769202

Cover

$

$

Not available

8

MTD 1769203

Gasket, Cover

$

$

Not available

9

MTD 1769204

Button

$

$

Not available

10

MTD 1769205

Drive

$

$

Not available

11

Pump Rotor/Ball/Pin (S/A)

$

$

Not available

12

Cam Ring

$

$

Not available

13

MTD 1769208

Insert

$

$

Not available

14

MTD 1769200

Control Shaft, External Thread

$

$

Not available

15

MTD 1769211

Housing (S/A)

$

$

Not available

16

MTD 1769212

Screw, 1/4-20 Hex Range

$

$

Not available

17

Filter Base "L"

$

$

Not available

18

Filter

$

$

Not available

19

Gasket

$

$

Not available

23

MTD 1769217

Spring, Dump Valve

$

$

Not available

24

MTD 1757376

Bracket, Dump Valve

$

$

Not available

25

MTD 1757377

Seal, O-ring

$

$

Not available

26

MTD 1769218

Screw, 5/16 Hex Range

$

$

Not available

27

MTD 1769219

Gasket, Axle Housing

$

$

Not available

28

MTD 1769220

15T Motor Rotor/Ball (S/A)

$

$

Not available

29

MTD 1769221

Pad, Friction (S/A)

$

$

Not available

30

MTD 1769222

Reaction, Plate

$

$

Not available

31

MTD 1769223

Plate, Backup

$

$

Not available

32

MTD 1769224

15T Sun Gear, First

$

$

Not available

33

MTD 1769225

Gear, Ring 57T

$

$

Not available

34

MTD 1769226

21T Planet Gear (S/A) First

$

$

Not available

35

MTD 1769227

15T Primary Carrier (S/A)

$

$

Not available

36

15T Sun Gear, Second (Steel)

$

$

Not available

37

21T Pint. Gear (S/A) Second (Steel)

$

$

Not available

38

MTD 1769230

Secondary Carrier (S/A)

$

$

Not available

40

MTD 1769231

Axle Housing (S/A) A-Side & B-Side

$

$

Not available

41

MTD 1769232

Ring, Retaining, External

$

$

Not available

42

MTD 1769233

Thrust Washer

$

$

Not available

43

MTD 1769234

Ring, Retaining, Internal

$

$

Not available

44

MTD 1757700

Bearing, Ball

$

$

Not available

45

Troy-Bilt 1769235

Seal, Radial Lip

$

$

Not available

46

MTD 1769236

Shaft, Axle-A-Side

$

$

Not available

49

90° Fitting/O-ring (S/A)

$

$

Not available

50

Plug/O-ring (S/A)

$

$

Not available

53

MTD 1769242

Piston, (S/A)

$

$

Not available

54

Brake Lever Parts

$

$

Not available

A

MTD 1769243

Quad Seal

$

$

Not available

B

MTD 1769244

Rod, Push

$

$

Not available

C

Troy-Bilt 1769245

E-Ring
(Superseded to 916-0125)

$

$

Not available

D

MTD 1769246

Spring Base (S/A)

$

$

Not available

E

MTD 1769247

Spring Conical

$

$

Not available

F

MTD 1769248

Shaft, Brake

$

$

Not available

G

MTD 1769249

Screw, Cap, Hex

$

$

Not available

H

MTD 1769250

Lever, Brace, R.H.

$

$

Not available

I

MTD 1769251

Lever, Brake, L.H.

$

$

Not available

J

MTD 1769252

Shim

$

$

Not available

K

MTD 1769253

Nut, Hex, Lock

$

$

Not available

$

$
