13105 - Troy-Bilt Hydro LTX Lawn Tractor (SN: 131051200101 - 131051299999) Eaton 751 Hydro Transmission Assembly (Part 1) Parts Diagram

Hydro LTX Lawn Tractor

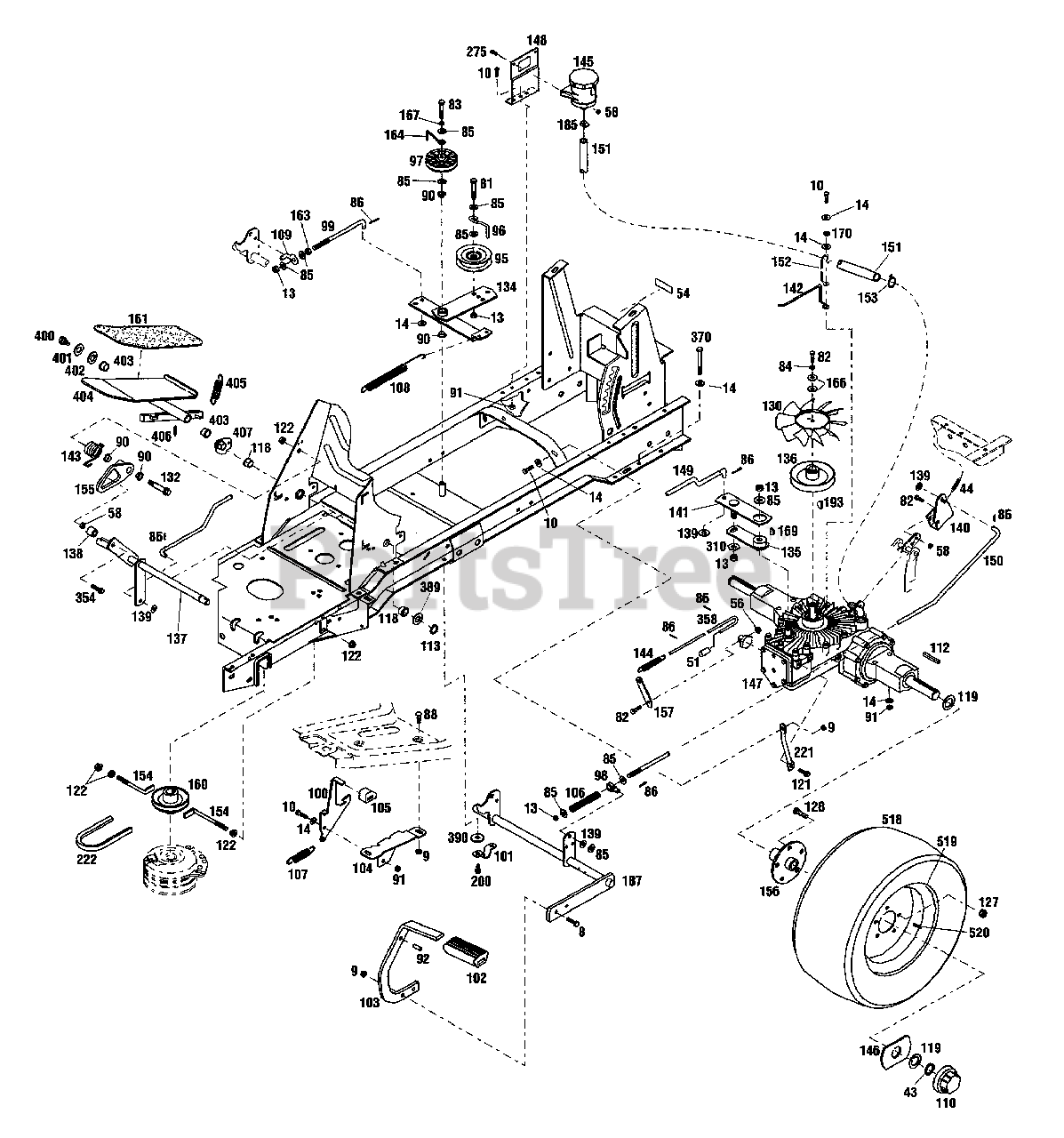

Eaton 751 Hydro Transmission Assembly (Part 1) Parts Diagram

  • Title

8

Troy-Bilt 1100045

Hex Head Screw, 5/16-18 x 1
(Superseded to 710-0376)

$3.99

$

In Stock, Qty 20+

0

9

Troy-Bilt 1186391

Flange Nut, 5/16-18
(Superseded to 712-04054)

$4.99

$

In Stock, Qty 20+

0

10

Troy-Bilt 1100044

Hex Head Screw, 5/16-18 x 3/4
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

13

Troy-Bilt 1733398

Hex Top Locknut, 3/8-16
(Superseded to 912-3000)

$4.49

$

In Stock, Qty 9

0

14

Troy-Bilt 1107382

Flat Washer, 5/16
(Superseded to 936-0275)

$

$

Not available

43

MTD 1185689

Retaining Ring, 3/4

$

$

Not available

44

MTD 1765307

Extension Spring

$

$

Not available

51

MTD 1767984

Handle Grip

$

$

Not available

54

MTD 1767967

Decal, Transmission Release

$

$

Not available

56

Troy-Bilt 1186389

Flange Nut, 1/4-20

$3.49

$

Usually ships in 3-6 days

0

58

Troy-Bilt 1734398

Top Lock Nut, 1/4-20
(Superseded to 912-0291)

$

$

Not available

81

Troy-Bilt 1100048

Hex Capscrew, 3/8-18 x 2
(Superseded to 710-3144)

$4.49

$

In Stock, Qty 20+

0

82

Troy-Bilt 1100069

Hex Capscrew, 1/4-20 x 1
(Superseded to 710-0597)

$3.99

$

In Stock, Qty 13

0

83

MTD 1100088

Hex Capscrew, 3/8-16 x 1-3/4

$

$

Not available

84

Troy-Bilt 1100241

Lockwasher,1/4 SAE
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 9

0

85

Troy-Bilt 1107383

Flat Washer, 3/8
(Superseded to 736-3050)

$4.49

$

In Stock, Qty 16

0

86

Troy-Bilt 1100346

Cotter Pin, 3/32 x 3/4
(Superseded to 914-0507)

$4.49

$

In Stock, Qty 17

0

88

Troy-Bilt 1186097

Carriage Bolt, 5/16-18 x 5/8
(Superseded to 710-0260A)

$4.49

$

In Stock, Qty 20+

0

90

Troy-Bilt 1715538

Nyliner Bushing

$

$

Not available

91

Troy-Bilt 1732499

Locknut, 5/16-18
(Superseded to 712-3004A)

$3.99

$

In Stock, Qty 20+

0

92

MTD 1770205

Drive Pin, 5/16 x 3/4

$

$

Not available

95

Troy-Bilt 1756151

Idler Pulley

$48.99

$

Usually ships in 3-6 days

0

96

Troy-Bilt 1760096

Belt Guide

$

$

Not available

97

Troy-Bilt 1760097

Idler Pulley

$

$

Not available

98

MTD 1751848

Swivel

$

$

Not available

99

MTD 1772460

Clutch Rod

$

$

Not available

100

MTD 1771514

Brake Lock Latch

$

$

Not available

101

MTD 1765156

Clip, 3/4

$

$

Not available

102

MTD 1765167

Foot Pedal Pad

$

$

Not available

103

MTD 1772741001

Brake Pedal

$

$

Not available

104

MTD 1765257

Brake Lock Bracket

$

$

Not available

105

MTD 1765297

Parking Brake Pedal Pad

$

$

Not available

106

MTD 1765305

Compression Spring

$

$

Not available

107

MTD 1985140

Extension Spring

$

$

Not available

108

Troy-Bilt 1765402

Extension Spring

$33.99

$

Usually ships in 3-6 days

0

109

MTD 1765461

Pivot Rod

$

$

Not available

110

MTD 1766215

Hub Cap

$

$

Not available

112

Troy-Bilt 1104338

Square Key, 1/4 x 2
(Superseded to 914-0114)

$4.49

$

Usually ships in 3-6 days

0

113

Troy-Bilt 1118808

Retaining Ring, 5/8

$

$

Not available

?115

MTD 1120210

Drive Pin, 3/16 x 1

$

$

Not available

118

MTD 1185802

Flange Bearing, 5/8

$

$

Not available

119

Troy-Bilt 1185816

Washer, 1-1/64

$3.99

$

Usually ships in 3-6 days

0

121

MTD 1186327

Lock Screw, 5/16-18 x 1/2

$

$

Not available

122

Troy-Bilt 1186393

Flange Nut, 3/8-16

$3.49

$

In Stock, only 2 left!

0

?123

Troy-Bilt 1715301

Thrust Washer, 5/8 x 1/1/8

$9.99

$

Usually ships in 3-6 days

0

127

MTD 1753025

Lug Nut, 7/16-20

$

$

Not available

128

Troy-Bilt 1770283

Wheel Stud

$

$

Not available

130

MTD 1760370

Fan

$

$

Not available

132

Troy-Bilt 1763219

Shoulder Screw

$10.99

$

In Stock, only 2 left!

0

134

MTD 1765064

Idler Arm Assembly

$

$

Not available

135

Troy-Bilt 1765067

Hydro Arm

$

$

Currently unavailable

136

Troy-Bilt 1765072

Eaton Hydro Sheave

$

$

Currently unavailable

137

MTD 603-0640

Hydro Pivot Shaft

$

$

Not available

138

MTD 1767807

Ball Bearing

$

$

Not available

139

Troy-Bilt 1890945

Flat Washer, 3/8
(Superseded to 936-0140)

$

$

Not available

140

Troy-Bilt 1765253

Hydro Brake Bracket

$

$

Currently unavailable

141

MTD 1765289

Hydro Control Arm

$

$

Not available

142

MTD 1768836

Belt Guide

$

$

Not available

143

MTD 1765306

Torsion Spring

$

$

Not available

144

MTD 1720928

Extension Spring

$

$

Not available

145

Troy-Bilt 1772331

Expansion Tank

$

$

Currently unavailable

146

Troy-Bilt 1766242

Special Washer, 1 x 2 1/2

$

$

Not available

147

Troy-Bilt 1772032

Transmission, Eaton 751

Note: (See breakdown, "Eaton 751 Hydro Transmission Assembly" illustration and parts list.)

$

$

Currently unavailable

148

Troy-Bilt 1772378001

Expansion Tank Support

$

$

Currently unavailable

149

MTD 1765353

Hydro Control Rod

$

$

Not available

150

MTD 1772921

Brake Rod

$

$

Not available

151

Troy-Bilt 1772386

Hose, 5/8

$

$

Currently unavailable

152

Troy-Bilt 1772375

Hose Support

$

$

Currently unavailable

153

MTD 1765478

Hose Clamp, 5/8

$

$

Not available

154

MTD 1765482

Belt Guide

$

$

Not available

155

MTD 1766015

Hydro Neutral Return

$

$

Not available

156

MTD 1766019

Wheel Hub

$

$

Not available

157

MTD 1767909

Dump Valve

$

$

Not available

?158

MTD 1773231001

Hydro Pedal

$

$

Not available

160

Troy-Bilt 1766201

Engine Sheave

$

$

Currently unavailable

161

MTD 1772844

Foot Pedal Pad

$

$

Not available

163

Troy-Bilt 1188231

Hex Nut, 3/8-16

$

$

Currently unavailable

164

MTD 1767900

Belt Guide

$

$

Not available

166

Troy-Bilt 1720883

Washer, 1/4 x 1-1/4

$

$

Not available

167

Troy-Bilt 1100243

Lockwasher, 3/8
(Superseded to 936-0169)

$3.99

$

In Stock, Qty 20+

0

169

MTD 1100905

Woodruff Key, 1/8 x 1/2

$

$

Not available

170

Troy-Bilt 1100242

Lockwasher, 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

185

MTD 1984024

Hose Clamp

$

$

Not available

187

MTD 1772727

Brake Pedal Assembly

$

$

Not available

193

MTD 1185885

Woodruff Key, 3/16 x 5/8

$

$

Not available

200

Troy-Bilt 1724491

Flange Screw, 5/16-18 x 3/4
(Superseded to 710-1260A)

$3.99

$

In Stock, Qty 20+

0

221

MTD 1765165

Transmission Support

$

$

Not available

222

Troy-Bilt 1765349

V-Belt

$50.99

$

Usually ships in 3-6 days

0

275

Troy-Bilt 1111599

Hex Head Screw, 1/4-20 x 5/8
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

310

Troy-Bilt 1185715

Lockwasher, 3/8

$

$

Not available

354

MTD 1186313

Flange Screw, 1/4-20 x 1-1/4

$

$

Not available

358

MTD 1767907

Dump Valve Rod

$

$

Not available

370

Troy-Bilt 1111610

Capscrew, 5/16-18 x 3
(Superseded to 710-0189)

$6.49

$

In Stock, Qty 5

0

389

MTD 1730375

Flat Washer, 5/8

$

$

Not available

390

Troy-Bilt 1705108

Flat Washer, 3/8
(Superseded to 936-0117)

$7.49

$

In Stock, only 1 left!

0

400

Troy-Bilt 738-0322

Shoulder Screw, 5/8 x 2
(Superseded to 738-0322A)

$6.99

$

In Stock, only 3 left!

0

401

Troy-Bilt 736-0349

Flat Washer, 5/8

$4.49

$

In Stock, Qty 20+

0

402

Troy-Bilt 736-0349

Flat Washer, 5/8

$4.49

$

In Stock, Qty 20+

0

403

Troy-Bilt 741-0495

Flange Bearing

$4.99

$

In Stock, Qty 20+

0

404

MTD 603-0641

Hydrostatic Foot Pedal

Variations

Troy-Bilt 603-0641-0637

HYDROSTATIC FOOT PEDAL - POWDER BLACK (0637)

$

$

Not available

$

$

405

Troy-Bilt 732-0395

Extension Spring
(Superseded to 932-0395)

$

$

Not available

406

MTD 1120210

Roll Pin

$

$

Not available

407

MTD 603-0637

Cam Assembly

$

$

Not available

518

MTD 1768795

Tire, 23 x 10.5-12, Multi Trac CS

$

$

Not available

519

MTD 1766131

Rim

$

$

Not available

520

Troy-Bilt 1718086

Valve Stem
(Superseded to 934-0255)

$4.49

$

In Stock, Qty 20+

0
