13104 - Troy-Bilt Hydro LTX Lawn Tractor (SN: 131041200101 - 131041299999) Frame Assembly Parts Diagram

Hydro LTX Lawn Tractor

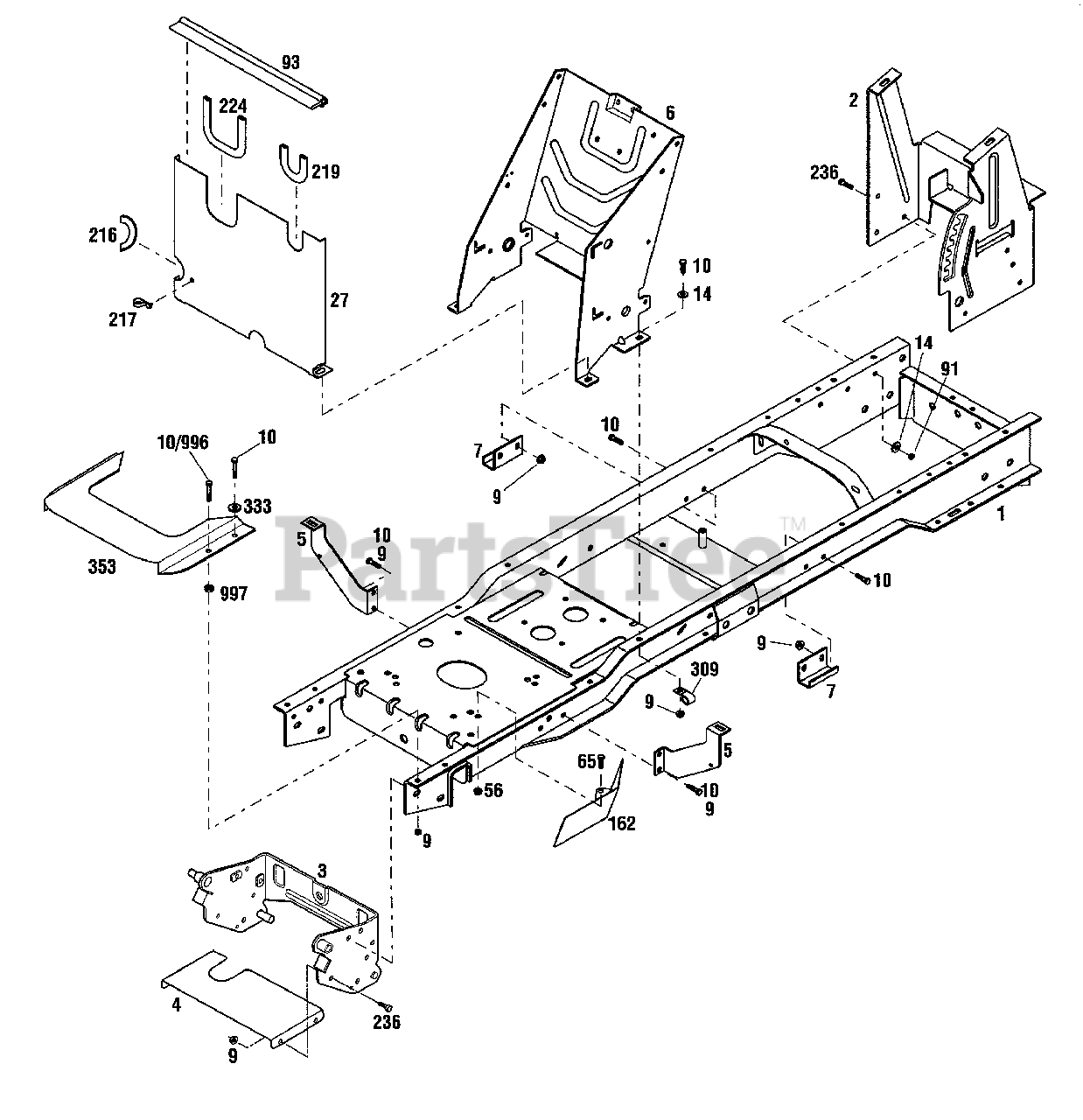

Frame Assembly Parts Diagram

  • Title

$

$

Not available

2

MTD 703-3308

Rear Tank Support

$

$

Not available

3

MTD 1772809001

Attachment Bracket

$

$

Not available

4

MTD 1772807001

Heat Shield

$

$

Not available

5

MTD 1765431001

Fender Support

Note: Model 13123, Model 13104

$

$

Not available

MTD 1765431001

Fender Support

Note: Model 13105

$

$

Not available

6

MTD 703-3293

Console Support

$

$

Not available

7

MTD 1766086001

Mower Stop

Note: Model 13105

$

$

Not available

9

Troy-Bilt 1186391

Flange Nut, 5/16-18
(Superseded to 712-04054)

$4.99

$

In Stock, Qty 20+

0

10

Troy-Bilt 1100044

Hex Head Screw, 5/16-18 x 3/4
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

?11

MTD 1185798

Hex Head Screw, 3/8-18 x 1/2

$

$

Not available

14

Troy-Bilt 1107382

Flat Washer, 5/16
(Superseded to 936-0275)

$

$

Not available

27

MTD 1768826001

Heat Shield

Note: Model 13105

$

$

Not available

56

Troy-Bilt 1186389

Flange Nut, 1/4-20

$3.49

$

Usually ships in 3-6 days

0

65

Troy-Bilt 1186309

Flange Screw, 1/4-20 x 1/2

$

$

Not available

91

Troy-Bilt 1732499

Locknut, 5/16-18
(Superseded to 712-3004A)

$3.99

$

In Stock, Qty 20+

0

93

MTD 1768834

Heat Shield Gasket

Note: Model 13105

$

$

Not available

162

Troy-Bilt 1767874001

Upper Heat Shield

Note: Model 13105

$

$

Currently unavailable

216

MTD 1768835

Trim

Note: Model 13105

$

$

Not available

217

MTD 1745366

Cable Hanger

Note: Model 13105

$

$

Not available

219

MTD 1752694

Trim

Note: Model 13105

$

$

Not available

224

MTD 1768840

Trim

Note: Model 13105

$

$

Not available

236

Troy-Bilt 1186329

Flange Screw, 5/16-18 x 3/4
(Superseded to 710-04043)

$4.49

$

Usually ships in 3-6 days

0

309

MTD 1747738

J-Clamp

$

$

Not available

333

Troy-Bilt 1723384

Flat Washer, 5/16 x 1-1/2
(Superseded to 736-3089)

$

$

Not available

353

Troy-Bilt 1772982001

Heat Shield

Note: Model 13105

$

$

Currently unavailable

996

Troy-Bilt 710-0376

Hex Head Screw, 5/16-18 x 1

Note: Model 13123, Model 13104

$3.99

$

In Stock, Qty 20+

0

997

Troy-Bilt 750-1032

Spacer

Note: Model 13123, Model 13104

$4.99

$

Usually ships in 3-6 days

0
