13103 - Troy-Bilt Hydro LTX Lawn Tractor (SN: 131030100101 & Above) LIFT ASSEMBLY Parts Diagram

Hydro LTX Lawn Tractor

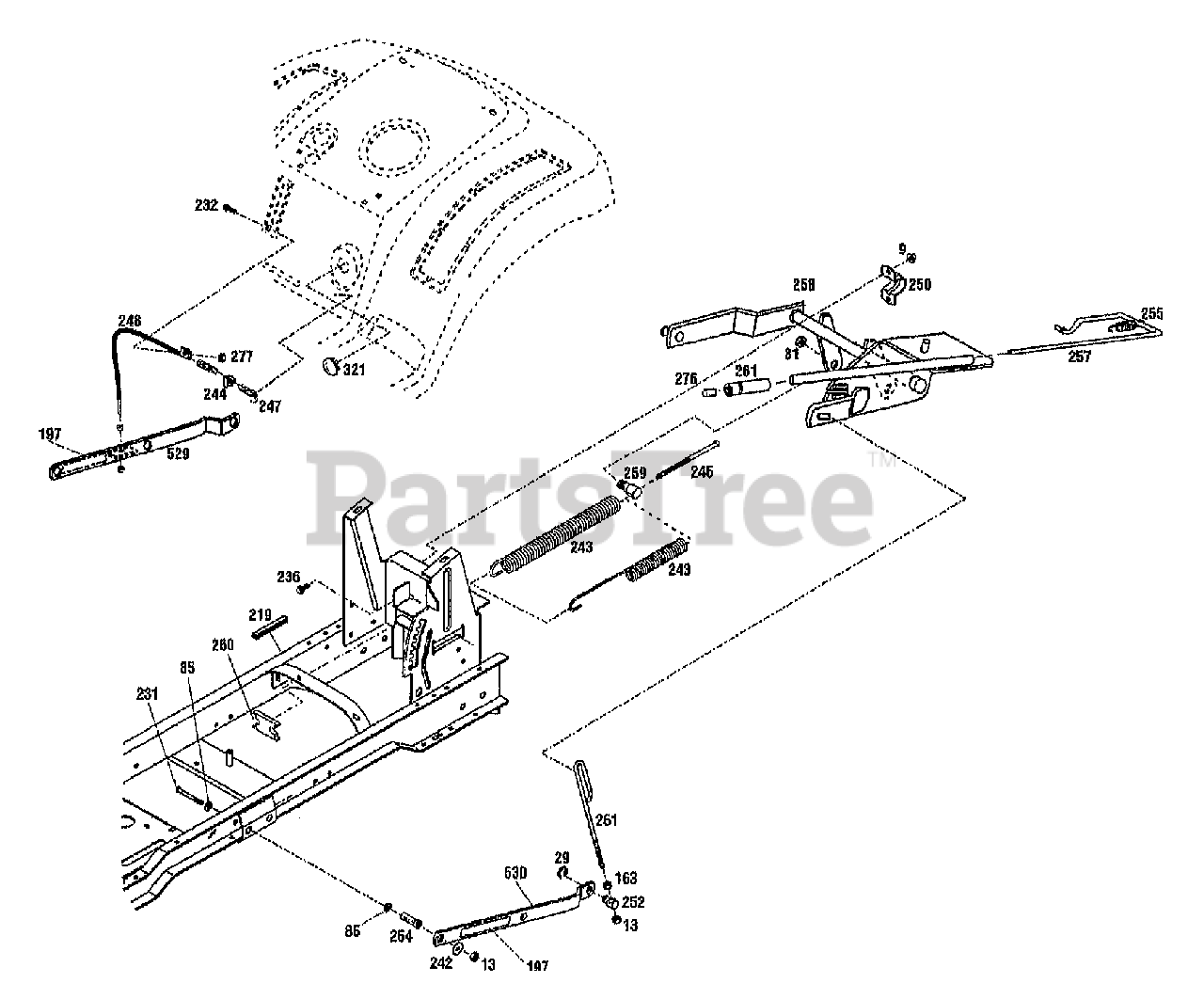

LIFT ASSEMBLY Parts Diagram

  • Title
9

Troy-Bilt 1186391

NUT-HFLK 5/16-18 ZP
(Superseded to 712-04054)

$4.99

$

In Stock, Qty 20+

0

13

Troy-Bilt 1733398

NUT-LOCK 3/8-16
(Superseded to 912-3000)

$4.49

$

In Stock, Qty 9

0

29

Troy-Bilt 1177567

RING-RETAINING
(Superseded to 716-0106)

$4.49

$

In Stock, Qty 12

0

31

Troy-Bilt 1758231

NUT-H/LK 5/8-11
(Superseded to 712-3016)

$6.99

$

In Stock, Qty 13

0

85

Troy-Bilt 1107383

WASHER-FLAT 3/8 SAE
(Superseded to 736-3050)

$4.49

$

In Stock, Qty 16

0

163

Troy-Bilt 1186231

NUT-HEX 3/8-16 ZP
(Superseded to 912-3017)

$4.49

$

In Stock, Qty 20+

0

197

MTD 1773104

DECAL-WARNING

$

$

Not available

219

$

$

Not available

231

Troy-Bilt 1111614

SCR-HH 3/8-16X3.0 G5 ZP
(Superseded to 710-0521)

$5.49

$

In Stock, Qty 11

0

232

Troy-Bilt 1773610

SCR 10-24 X 5/8
(Superseded to 710-0192)

$3.99

$

In Stock, Qty 12

0

236

Troy-Bilt 1186329

SCR-HFLK 5/16-18X.75 ZP
(Superseded to 710-04043)

$4.49

$

Usually ships in 3-6 days

0

242

Troy-Bilt 1763355

WASHER-1.5X.375X.18 ZP
(Superseded to 936-0227)

$

$

Not available

243

MTD 1773138

SPRING-LIFT ASSIST {13103}

$

$

Not available

243

Troy-Bilt 1772867

SPRING-LIFT ASSIST {13104}

$

$

Currently unavailable

244

Troy-Bilt 1773201

INDICATOR-HEIGHT

$

$

Not available

245

MTD 1773139

SCR-HH 3/8-16X5

$

$

Not available

247

MTD 1773206

SPRING-EXTENSION

$

$

Not available

248

MTD 1773183

ASSM-CABLE

$

$

Not available

250

MTD 1772806

CLAMP-LIFT

$

$

Not available

251

MTD 1772868

ROD-LIFT

$

$

Not available

252

MTD 1772438

SWIVEL-REAR LIFT

$

$

Not available

254

MTD 1766080

SPACER

$

$

Not available

255

MTD 1772873

SPRING-EXTENSION

$

$

Not available

257

$

$

Not available

258

MTD 1772851001

ASSM-LIFT

$

$

Not available

259

MTD 1772871

BLOCK-PIVOT

$

$

Not available

260

MTD 1772872

SPRING-ANCHOR

$

$

Not available

261

MTD 1766340

GRIP-LIFT

$

$

Not available

276

Troy-Bilt 1772865

BUTTON-LIFT

$

$

Not available

277

Troy-Bilt 1185958

NUT-KEPS 10-24

$

$

Currently unavailable

321

MTD 1772165

PLUG-DOME

$

$

Not available

529

MTD 1772961

ASSM-RT LIFT LINK

$

$

Not available

530

MTD 1772962

ASSM-LT LIFT LINK

$

$

Not available
