13102 - Troy-Bilt Gear Drive LTX Lawn Tractor (SN: 13102010010 & Above) BODYWORK & TRIM ASSEMBLY Parts Diagram

Gear Drive LTX Lawn Tractor

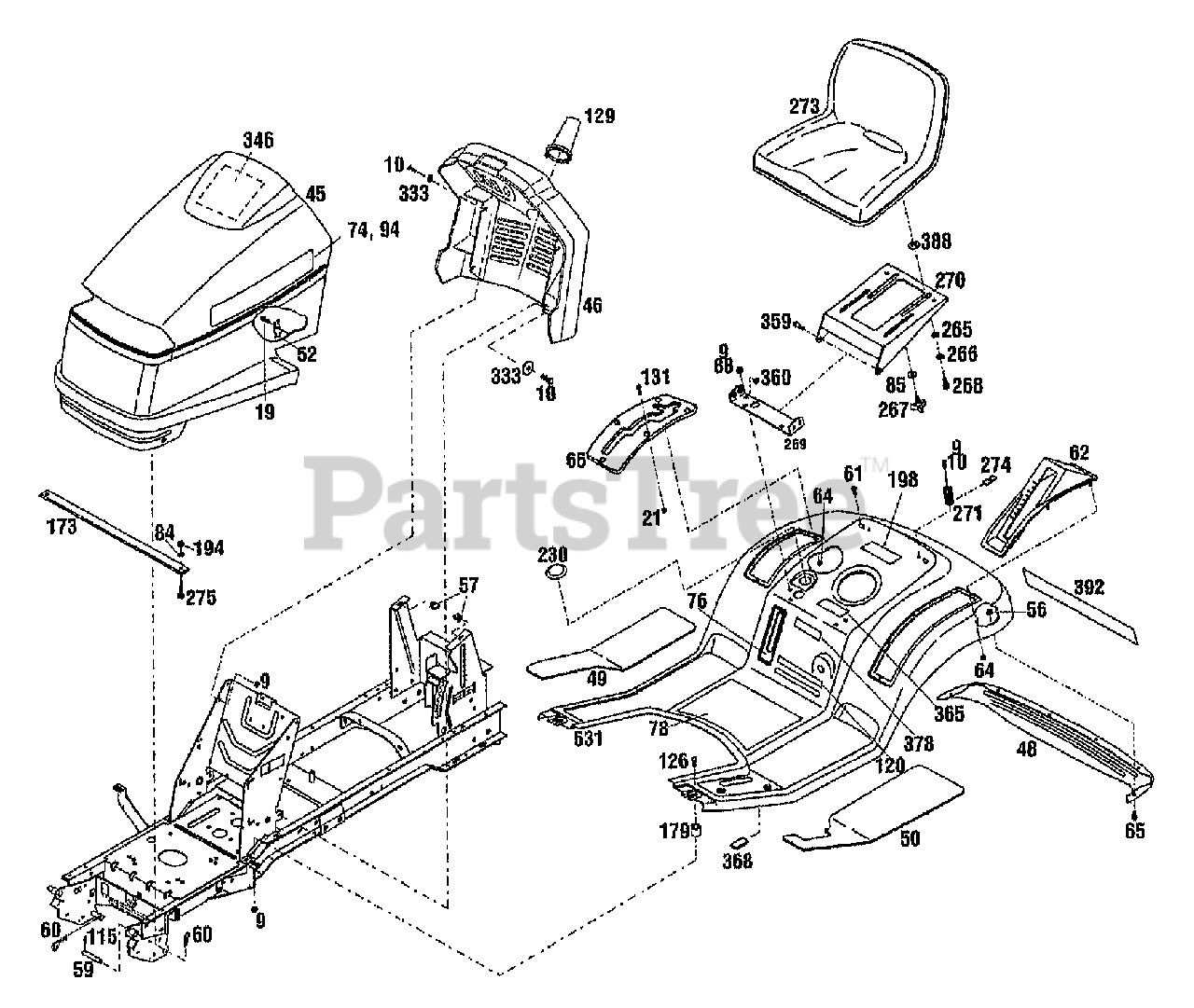

BODYWORK & TRIM ASSEMBLY Parts Diagram

  • Title
?1

Troy-Bilt 1771825001

ASSM-FRAME LTX
(Superseded to 1772924001)

$

$

Not available

9

Troy-Bilt 1186391

NUT-HFLK 5/16-18 ZP
(Superseded to 712-04054)

$4.99

$

In Stock, Qty 20+

0

10

Troy-Bilt 1100044

SCR-HHC 5/16-18X.75 GR 5 ZP
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

19

MTD 1772878

SCR-SPECIAL #10

$

$

Not available

21

Troy-Bilt 1817146

NUT-LK 1/4-20
(Superseded to 712-0324)

$3.99

$

In Stock, Qty 16

0

45

MTD 1765382

HOOD-TRACTOR

$

$

Not available

46

MTD 1772896

CONSOLE

$

$

Not available

48

MTD 1765331010

TRIM-FENDER REAR

$

$

Not available

49

MTD 1772846

PAD-FOOT RH

$

$

Not available

50

Troy-Bilt 1772845

PAD-FOOT LH

$

$

Not available

52

MTD 1773591

LATCH

$

$

Not available

56

Troy-Bilt 1186389

NUT-HF/LK 1/4-20 ZP

$3.49

$

Usually ships in 3-6 days

0

57

Troy-Bilt 1761680

NUT-SELF RETAIN 5/16-18
(Superseded to 926-0211)

$4.49

$

In Stock, only 1 left!

0

59

Troy-Bilt 1773226

PIN-HOOD PIVOT

$

$

Not available

60

MTD 1723478

PIN-HITCH .125X2.56 ZP

$

$

Not available

61

Troy-Bilt 1186330

SCR-LOCK
(Superseded to 710-04048)

$4.99

$

In Stock, Qty 7

0

62

MTD 1772979

COVER-LIFT HANDLE

$

$

Not available

?63

MTD 1901900

DECAL-AMERICAN LEGEND-LRG

$

$

Not available

64

Troy-Bilt 1750532

NUT-SELF THREADING
(Superseded to 712-0415)

$5.49

$

In Stock, only 3 left!

0

65

Troy-Bilt 1186309

SCR-HH 1/4-20X.625

$

$

Not available

66

MTD 1772881

QUADRANT

$

$

Not available

74

Troy-Bilt 1773162

DECAL-LOGO RH

$

$

Currently unavailable

74

Troy-Bilt 1773163

DECAL-LOGO LH

$

$

Currently unavailable

76

MTD 1773205

DECAL-FUEL LEVEL

$

$

Not available

78

MTD 1773164

DECAL-LOGO RH

$

$

Not available

78

$

$

Currently unavailable

84

Troy-Bilt 1100241

WASHER-LK .25 ZP
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

85

Troy-Bilt 1107383

WASHER-FLAT 3/8 SAE
(Superseded to 736-3050)

$4.49

$

In Stock, Qty 16

0

88

Troy-Bilt 1186097

SCR-CARR 5/16-18X.62 G2 ZP
(Superseded to 710-0260A)

$4.49

$

In Stock, Qty 20+

0

94

Troy-Bilt 1773162

DECAL-LOGO RH

$

$

Currently unavailable

115

MTD 1120210

PIN-ROLL .188X1.0

$

$

Not available

120

MTD 1773223

DECAL-HGT INDICATOR

$

$

Not available

126

Troy-Bilt 1186469

SCR-CARR 5/16-18X.75
(Superseded to 710-0451)

$4.49

$

In Stock, Qty 20+

0

129

MTD 1773236

COVER-STEERING

$

$

Not available

131

Troy-Bilt 1772882

SCR-MACH .25-20X.62
(Superseded to 710-0946)

$3.99

$

Usually ships in 3-6 days

0

173

MTD 1773623001

STRAP-HOOD

$

$

Not available

179

MTD 1730681

SPACER-TUBULAR

$

$

Not available

194

Troy-Bilt 1186229

NUT-HEX 1/4-20 ZP
(Superseded to 712-3006)

$4.99

$

In Stock, Qty 19

0

198

MTD 1767876

DECAL-FUEL

$

$

Not available

230

MTD 1768787

PLUG 2.50

$

$

Not available

265

MTD 1705793

WASHER-1.06X.51X.09 NYLON

$

$

Not available

266

Troy-Bilt 1706782

WASHER-BOW .74X.52X.01

$2.49

$

In Stock, only 1 left!

0

267

$

$

Not available

268

Troy-Bilt 1754125

SCR-SHLDR 3/8-16X.25 G5ZP

$

$

Not available

269

MTD 1766075001

BRKT-SUPPORT SEAT

$

$

Not available

270

MTD 1766074001

SUPPORT-SEAT

$

$

Not available

271

Troy-Bilt 1766077

SPRING-COMPRESSION

$12.99

$

Usually ships in 3-6 days

0

273

Troy-Bilt 1770235

SEAT-LOW BACK

$

$

Currently unavailable

274

Troy-Bilt 1766347

BRKT-SPRING HOLD DOWN

$

$

Not available

275

Troy-Bilt 1111599

SCR-HH 1/4-20X.625 G5 ZP
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

333

Troy-Bilt 1723384

WASHER-1.5X.343X.104
(Superseded to 736-3089)

$

$

Not available

346

MTD 1773105

DECAL-SERVICE

$

$

Not available

359

Troy-Bilt 1100913

SCR-HH 3/8-16X.88 G5 ZP
(Superseded to 710-3001)

$7.49

$

In Stock, Qty 9

0

360

Troy-Bilt 1110108

NUT-H/LK 3/8-16
(Superseded to 712-0375)

$4.49

$

In Stock, Qty 6

0

365

UNKNOWN

$

$

Not available

368

$

$

Not available

378

UNKNOWN

$

$

Not available

392

Troy-Bilt 1772261

DECAL-MODEL

$

$

Currently unavailable

388

Troy-Bilt 1893445

WASHER-FLAT
(Superseded to 936-0133)

$

$

Not available

531

MTD 1772963010

FENDER-REAR

$

$

Not available

?600

Troy-Bilt 1735222

PAINT-BLACK SPRAY
(Superseded to 788-0637A)

$30.99

$

In Stock, only 1 left!

0

?601

Troy-Bilt 1900706

PAINT-RED SPRAYCAN POWDER
(Superseded to 788-0638A)

$24.99

$

Usually ships in 3-6 days

0
