13101 - Troy-Bilt Hydro GTX Garden Tractor (SN: 131010100101 & Above) ENGINE ASSEMBLY Parts Diagram

Hydro GTX Garden Tractor

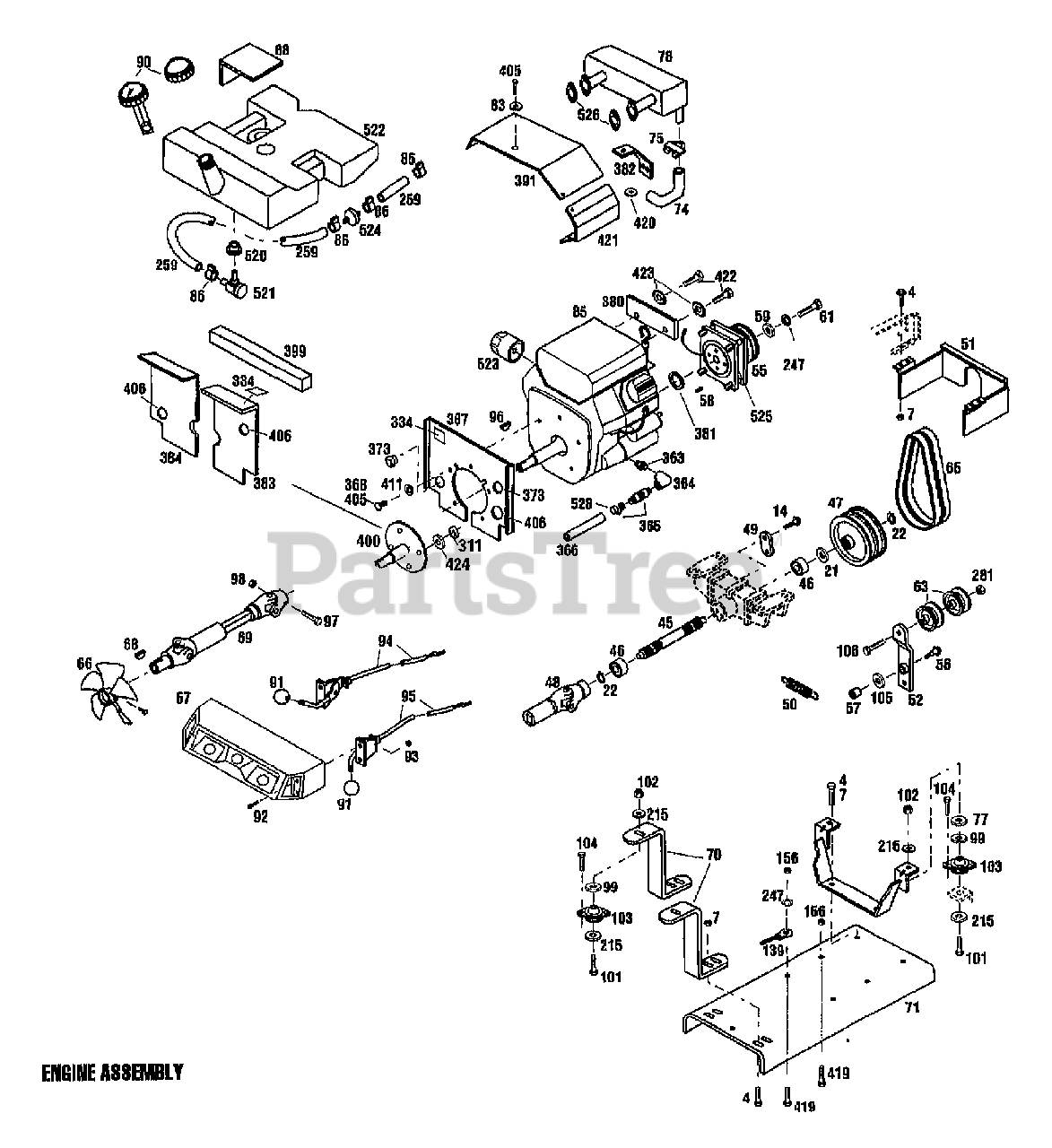

ENGINE ASSEMBLY Parts Diagram

  • Title

4

MTD 1186345

SCR

$

$

Not available

7

Troy-Bilt 1186393

NUT-HFLK 3/8-16 ZP

$3.49

$

In Stock, only 2 left!

0

14

Troy-Bilt 1186329

SCR-HFLK 5/16-18X.75 ZP
(Superseded to 710-04043)

$4.49

$

Usually ships in 3-6 days

0

21

Troy-Bilt 1703073

WASHER-THRUST
(Superseded to 1915058)

$

$

Not available

22

MTD 1185689

RING-HEAVY EXT HD 1.0 ID

$

$

Not available

45

MTD 1755219

SHAFT-PTO

$

$

Not available

46

Troy-Bilt 1725087

BEARING-BALL

$40.99

$

Usually ships in 3-6 days

0

47

Troy-Bilt 1744379

SHEAVE-PTO

$

$

Currently unavailable

48

MTD 1760049001

JOINT-UNIVERSAL

$

$

Not available

49

MTD 1744451001

ANCHOR-SPRING

$

$

Not available

50

Troy-Bilt 1746769

SPRING

$16.99

$

Usually ships in 3-6 days

0

51

MTD 1756157001

GUARD-PTO

$

$

Not available

52

MTD 1769906

ARM-IDLER

$

$

Not available

52

Troy-Bilt 1773628001

IDLER ARM

$

$

Currently unavailable

55

MTD 1772076

BRAKE-CLUTCH GTX

$

$

Not available

?56

MTD 1754322

BOLT

$

$

Not available

57

MTD 1892945

BUSHING

$

$

Not available

57

Troy-Bilt 1773629

BALL BEARING

$

$

Currently unavailable

58

MTD 1708034

KEY

$

$

Not available

59

Troy-Bilt 1763355

WASHER-1.5X.375X.18 ZP
(Superseded to 936-0227)

$

$

Not available

61

Troy-Bilt 1100011

SCR-HH 3/8-24X1.5 G5
(Superseded to 710-0459A)

$6.99

$

In Stock, Qty 8

0

63

Troy-Bilt 1756757

PULLEY-IDLER

$54.99

$

Usually ships in 3-6 days

0

65

Troy-Bilt 1767379

BELT-V (SET OF 2)

$81.99

$

In Stock, only 1 left!

0

66

Troy-Bilt 1770934

FAN

$

$

Not available

67

MTD 1770937

BOLT-SQUARE HD SET

$

$

Not available

68

Troy-Bilt 1104436

KEY-WOODRUFF .188X.75
(Superseded to 914-0868)

$3.99

$

In Stock, only 4 left!

0

69

MTD 1770213

SHAFT-DRIVE

$

$

Not available

70

MTD 1772050001

SUPPORT-REAR BAR

$

$

Not available

71

Troy-Bilt 1772051001

PLATE-ENGINE MOUNTING

$

$

Currently unavailable

?72

Troy-Bilt 1186349

SCR-HFLK 3/8-16X1.50

$3.99

$

Usually ships in 3-6 days

0

?73

Troy-Bilt 1772052001

SUPPORT-FRONT ASSM

$

$

Currently unavailable

74

Troy-Bilt 1771216

PIPE-EXHAUST

$

$

Currently unavailable

75

MTD 1771221

CLAMP-MUFFLER

$

$

Not available

77

Troy-Bilt 1763355

WASHER-1.5X.375X.18 ZP
(Superseded to 936-0227)

$

$

Not available

78

MTD 1772502

MUFFLER

$

$

Not available

83

Troy-Bilt 1100241

WASHER-LK .25 ZP
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 9

0

85

0

ENGINE, BRIGGS & STRATTON 16HP, 303447

$

$

Not available

86

Troy-Bilt 1750687

CLAMP-HOSE
(Superseded to 726-0205)

$3.99

$

In Stock, Qty 20+

0

88

MTD 1749079

PAD-FUEL TANK

$

$

Not available

90

MTD 1773579

GAUGE-FUEL

$

$

Not available

91

Troy-Bilt 1737118

KNOB
(Superseded to 731-0108)

$9.49

$

In Stock, only 2 left!

0

92

MTD 1750962

SCR

$

$

Not available

93

Troy-Bilt 1185985

NUT W/LKWASHER 10-24 ZP
(Superseded to 712-0272)

$3.99

$

Usually ships in 3-6 days

0

94

MTD 1755903

CHOKE-CONTROL

$

$

Not available

95

MTD 1772524

CONTROL-THROTTLE

$

$

Not available

96

Troy-Bilt 1100276

KEY-WOODRUFF .25X.875

$3.49

$

Usually ships in 3-6 days

0

97

MTD 1100807

SCR-HH 1/4-20X2.0 G5 ZP

$

$

Not available

98

Troy-Bilt 1734398

NUT-HT LK 1/4-20
(Superseded to 912-0291)

$

$

Not available

99

MTD 1186047

WASHER

$

$

Not available

101

Troy-Bilt 1100049

SCR-HH 3/8-16X2.25 G5 ZP
(Superseded to 710-3011)

$6.99

$

In Stock, Qty 19

0

102

Troy-Bilt 1733398

NUT-LOCK 3/8-16
(Superseded to 912-3000)

$4.49

$

In Stock, Qty 9

0

103

MTD 1724896

MOUNT-FRONT

$

$

Not available

104

MTD 1185712

SCR

$

$

Not available

105

Troy-Bilt 1715301

WASHER-1.115X.637X.06

$9.99

$

Usually ships in 3-6 days

0

106

Troy-Bilt 1100049

SCR-HH 3/8-16X2.25 G5 ZP
(Superseded to 710-3011)

$6.99

$

In Stock, Qty 19

0

139

MTD 1754220

CABLE (-)

$

$

Not available

215

Troy-Bilt 1701055

WASHER-FLAT 1.25X.406X.179

$6.49

$

Usually ships in 3-6 days

0

247

Troy-Bilt 1100243

WASHER-LK .375 @ DEPL
(Superseded to 936-0169)

$3.99

$

In Stock, Qty 20+

0

?257

Troy-Bilt 1107382

WASHER-FLAT 5/16 SAE
(Superseded to 936-0275)

$

$

Not available

259

MTD 1752795

LINE-FUEL 52"

$

$

Not available

281

Troy-Bilt 1110818

SCR-HXSKT 5/16-18X.75 BO
(Superseded to 710-1177)

$

$

Not available

311

MTD 1754126

NUT-PUSH

$

$

Not available

334

MTD 1754143

DECAL-WARNING

$

$

Not available

?337

Troy-Bilt 1186231

NUT-HEX 3/8-16 ZP
(Superseded to 912-3017)

$4.49

$

In Stock, Qty 20+

0

?362

MTD 1769991

DECAL-HOT SURFACE

$

$

Not available

364

MTD 1752912

ELBOW-90 DEGREES

$

$

Not available

365

Troy-Bilt 1768865

ASSM-OIL VALVE
(Superseded to 951-10517A)

$24.99

$

Usually ships in 3-6 days

0

366

Troy-Bilt 1771301

HOSE-DRAIN

$

$

Not available

367

MTD 1772159001

SHIELD-HEAT

$

$

Not available

373

MTD 1766346

GROMMET-SNAP BUSHING

$

$

Not available

380

MTD 1772077001

CLUTCH-STOP

$

$

Not available

381

MTD 1772078

SPACER-CRANKSHAFT

$

$

Not available

382

Troy-Bilt 1772173001

SUPT-EXHAUST PIPE

$

$

Currently unavailable

383

Troy-Bilt 1772694

SHIELD-GRASS RT W/DECAL

$

$

Currently unavailable

384

MTD 1772195001

SHIELD-GRASS LEFT

$

$

Not available

391

MTD 1772160001

SHIELD-HEAT

$

$

Not available

399

MTD 1772196

SEALING STRIP

$

$

Not available

400

MTD 1772007

ASSM-EXTENSION (CRANKSHAFT)

$

$

Not available

405

Troy-Bilt 1875711

SCR-HH M6X8

$

$

Currently unavailable

406

MTD 1729587

BUSHING

$

$

Not available

411

Troy-Bilt 1187612

WASHER-LK INTERNAL TOOTH 1/4
(Superseded to 736-0498)

$4.49

$

Usually ships in 3-6 days

0

419

MTD 1186334

SCR-HFLK 5/16-18X1.75 ZP G5

$

$

Not available

420

MTD 1177042

WASHER-STAR

$

$

Not available

421

Troy-Bilt 1772519

SHIELD-HEAT

$

$

Currently unavailable

422

Troy-Bilt 1100047

SCR-HH 3/8-16X1.5 G5 ZP
(Superseded to 710-0520)

$4.49

$

In Stock, Qty 5

0

423

Troy-Bilt 1103995

(BUY LOCAL)

$

$

Currently unavailable

424

Troy-Bilt 1103959

WASHER-.505X.22X.05

$4.99

$

In Stock, Qty 14

0

520

Troy-Bilt 1738433

BUSHING-RUBBER
(Superseded to 935-0149)

$2.99

$

In Stock, Qty 20+

0

521

Troy-Bilt 1747184

VALVE-SHUT OFF
(Superseded to 951-0171)

$20.99

$

In Stock, Qty 20+

0

522

MTD 1772351

ASSM-FUEL TANK

$

$

Not available

523

0

OIL FILTER

$

$

Not available

524

Troy-Bilt 1727491

FILTER-FUEL
(Superseded to BS-298090S)

$

$

Not available

526

0

MUFFLER GASKET

$

$

Not available

528

MTD 1766326

CAP-OIL DRAIN

$

$

Not available

156

UNKNOWN

$

$

Not available

363

UNKNOWN

$

$

Not available

525

UNKNOWN

$

$

Not available

168

UNKNOWN

$

$

Not available

163

UNKNOWN

$

$

Not available

368

UNKNOWN

$

$

Not available
