13101 - Troy-Bilt Hydro GTX Garden Tractor (SN: 131010100101 & Above) ELECTRICAL ASSEMBLY Parts Diagram

Hydro GTX Garden Tractor

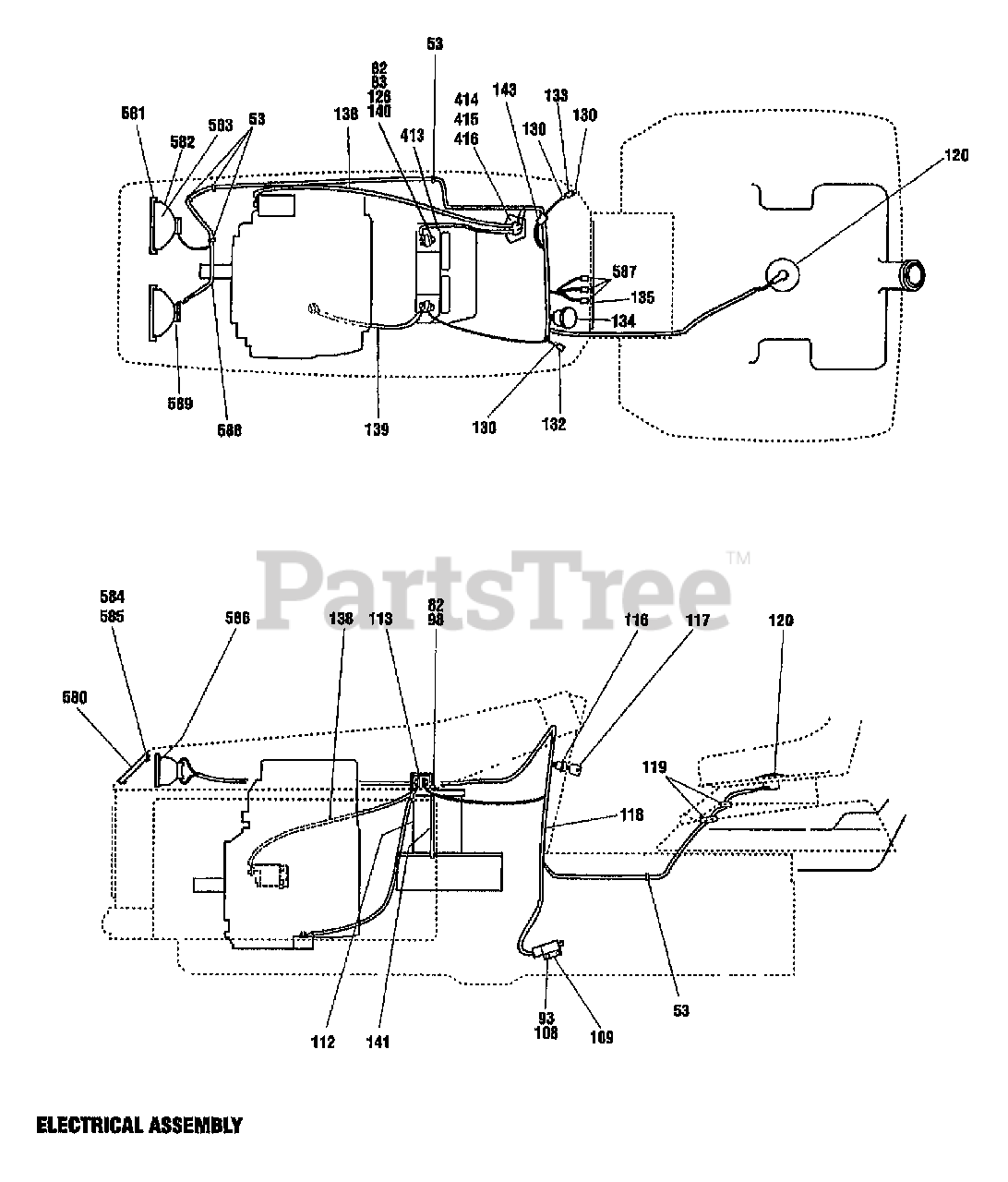

ELECTRICAL ASSEMBLY Parts Diagram

  • Title

53

Troy-Bilt 1765531

CABLE TIE

$

$

Currently unavailable

82

Troy-Bilt 1107381

WASHER-FLAT 1/4 SAE
(Superseded to 936-3020)

$

$

Not available

83

Troy-Bilt 1100241

WASHER-LK .25 ZP
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

93

Troy-Bilt 1185985

NUT W/LKWASHER 10-24 ZP
(Superseded to 712-0272)

$3.99

$

In Stock, only 1 left!

0

98

Troy-Bilt 1734398

NUT-HT LK 1/4-20
(Superseded to 912-0291)

$

$

Not available

108

Troy-Bilt 1115815

SCR-TRUSS #10-24 X 5/8
(Superseded to 710-0425)

$4.99

$

Usually ships in 3-6 days

0

109

Troy-Bilt 1751328

SWITCH
(Superseded to 925-04039)

$24.99

$

In Stock, Qty 9

0

112

MTD 1772131

BATTERY

$

$

Not available

113

MTD 1755802

BATTERY-HOLDDOWN

$

$

Not available

116

Troy-Bilt 1754250

SWITCH-IGNITION
(Superseded to 1754250P)

$73.99

$

Usually ships in 3-6 days

0

117

MTD 1753986

KEY-IGNITION

$

$

Not available

118

MTD 1772126

HARNESS-MAIN

$

$

Not available

119

Troy-Bilt 1755487

GROMMET

$

$

Currently unavailable

119

MTD 1766264

GROMMET

$

$

Not available

120

MTD 1768882

SWITCH-SEAT

$

$

Not available

120

Troy-Bilt 1761083

SWITCH
(Superseded to 925-3166)

$16.99

$

In Stock, Qty 20+

0

126

Troy-Bilt 1186229

NUT-HEX 1/4-20 ZP
(Superseded to 712-3006)

$4.99

$

In Stock, Qty 19

0

130

MTD 1750963

SCR-FHP #6-32X.50 ZP

$

$

Not available

132

MTD 1754189

SWITCH-LIGHT

$

$

Not available

133

Troy-Bilt 1754608

SWITCH-PTO

$66.99

$

Usually ships in 3-6 days

0

134

MTD 1757364

METER-HOUR

$

$

Not available

135

MTD 1772197

LENSE

$

$

Not available

138

MTD 1772302

CABLE-POSITIVE

$

$

Not available

139

MTD 1754220

CABLE (-)

$

$

Not available

140

Troy-Bilt 1100805

SCR-HH 1/4-20X.75 G5 ZP
(Superseded to 710-3015)

$3.99

$

In Stock, Qty 20+

0

141

MTD 1752586

BOLT-HOOK

$

$

Not available

143

MTD 1752132

SENSOR-VOLTAGE

$

$

Not available

413

Troy-Bilt 1756074

CABLE-BATTERY (+)

$

$

Not available

414

Troy-Bilt 1752137

SOLENOID
(Superseded to 1752137P)

$70.99

$

Usually ships in 3-6 days

0

415

MTD 1724492

SCR 1/4-20X.5 FL SELF TAP

$

$

Not available

416

MTD 1764890

BOOT-SOLENOID

$

$

Not available

580

MTD 1767104

LENSE

$

$

Not available

581

MTD 1753788

RETAINER

$

$

Not available

582

MTD 1752871

ASSM-LIGHT

$

$

Not available

583

Troy-Bilt 1752872

LIGHTBULB
(Superseded to 925-0963)

$7.49

$

In Stock, only 4 left!

0

584

MTD 1731453

SCR-EXHAUST DEFLECTOR

$

$

Not available

585

MTD 1805365

WASHER-.44X.189X.05

$

$

Not available

586

MTD 1754194

GASKET

$

$

Not available

587

MTD 1735285

BULB (MFG NO. GE 73)

$

$

Not available

588

MTD 1752505

HARNESS-HEADLIGHT

$

$

Not available

589

MTD 1752875

SOCKET

$

$

Not available
