131-784G - MTD Lawn Tractor (1991) Lawn Parts Diagram

Lawn Tractor

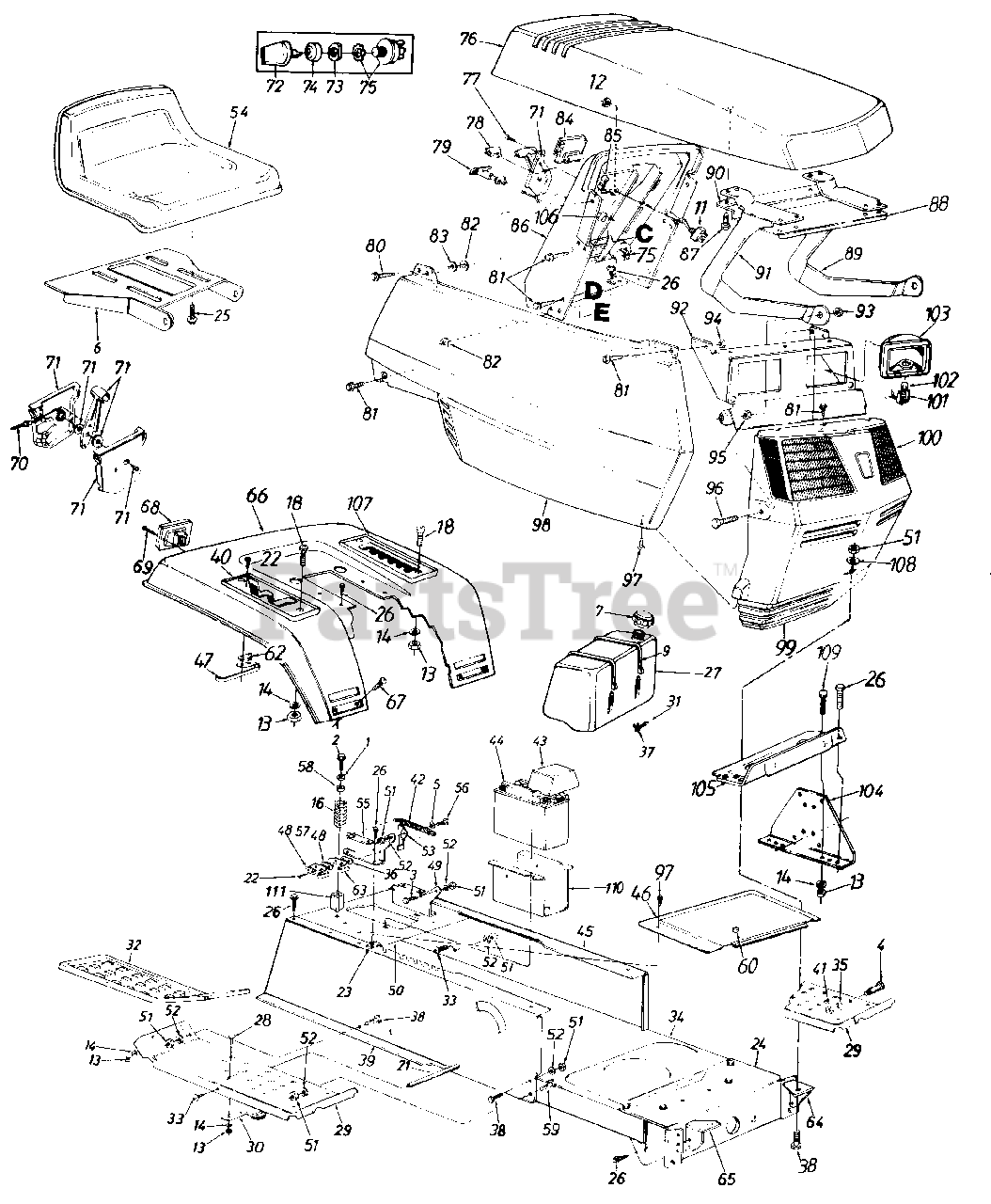

Lawn Parts Diagram

  • Title

1

MTD 736-0159

Fl-Wash. .344" I.D. x .875"

$4.49

$

In Stock, Qty 20+

0

2

MTD 710-1208

Hex Wash. Hd. Tap Scr. 5/16-18 x 3.25" Lg.

$6.99

$

In Stock, only 2 left!

0

3

MTD 738-0155

Shld. Bolt.437" Dia. x .162"
(Superseded to 938-0155)

$6.99

$

Usually ships in 3-6 days

0

4

MTD 738-0145

Shld. Bolt .50" Dia. x .84"

$6.99

$

Usually ships in 3-6 days

0

5

MTD 736-0141

Spr-Wash. .445" I.D. x .75
(Superseded to 936-0141)

$6.99

$

Usually ships in 3-6 days

0

6

MTD 15607D

Seat Pivot Bracket
(Superseded to 783-0039A)

$71.99

$

Usually ships in 3-6 days

0

7

MTD 751-3071

Fuel Cap
(Superseded to 751-0603B)

$23.99

$

Usually ships in 3-6 days

0

9

MTD 726-0209

Tie Strap
(Superseded to 726-0230)

$27.99

$

In Stock, only 1 left!

0

11

MTD 725-0893

Toggle Switch
(Superseded to 925-0893)

$82.99

$

In Stock, only 1 left!

0

12

MTD 712-3014

Hex Nut 1/2-27 Thd.

$

$

Not available

13

MTD 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

14

MTD 736-0329

L-Wash 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

16

MTD 732-0672

Compresslon Spring
(Superseded to 732-0735A)

$29.99

$

In Stock, Qty 5

0

18

MTD 710-0924

rruss Mach. Scr. 1/4-20 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

21

MTD 738-0526

Running Board Rod

$

$

Not available

22

MTD 710-0227

Hex Wash. Hd. AB-Tap Scr. #8 x .50" Lg.

$4.49

$

In Stock, Qty 20+

0

23

MTD 726-0139

Speed Nut #10Z

$6.99

$

Usually ships in 3-6 days

0

24

MTD 17621

Front Pivot Brkt.
(Superseded to 783-0041C)

$77.99

$

Usually ships in 3-6 days

0

25

MTD 710-0623

Hex Tap Scr. 3/8-16 x .75"

$4.49

$

In Stock, Qty 20+

0

26

MTD 710-0726

Hex Wash. Hd. AB-Tap Scr. 5/16 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

27

MTD 751-0555

Fuel Tank
(Superseded to 751-0555D)

$89.99

$

In Stock, only 1 left!

0

28

MTD 710-0134

Carriage Bolt 1/4-20 x .62"

$4.49

$

In Stock, Qty 20+

0

29

MTD 17770

Running Board
(Superseded to 17770H)

Note: (R.H. & L.H.)

$

$

Not available

30

MTD 761-0168A

Blade Brake Ass'y.
(Superseded to 961-0168D)

$31.99

$

In Stock, only 1 left!

0

31

MTD 751-0535-26

Fuel Line
(Superseded to 751-10349-28)

$41.99

$

In Stock, only 1 left!

0

32

MTD 731-0911

Rubber Foot Pad L.H.

$

$

Not available

MTD 731-0912

Rubber Foot Pad R.H.

$

$

Not available

33

MTD 710-0323

Truss Mach. Scr. 5/16-18 x .75" Lg.

$4.99

$

In Stock, only 2 left!

0

34

MTD 17620B

Lower Frame

$

$

Not available

35

MTD 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

36

MTD 726-0278

Insulator Boss Plate

$6.99

$

In Stock, Qty 10

0

37

MTD 726-0205

Hose Clamp

$3.99

$

In Stock, Qty 20+

0

38

MTD 710-0118

Hex Bolt 5/16-18 x .75" Lg.
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

39

MTD 17830

Upper Frame R.H.

$

$

Currently unavailable

40

MTD 731-1147

Forward/Reverse Index Brkt.
(Superseded to 931-1147)

$28.99

$

Usually ships in 3-6 days

0

41

MTD 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 12

0

42

MTD 732-0581

Extension Spring 5.31" Lg.
(Superseded to 932-0581B)

$14.99

$

In Stock, only 1 left!

0

43

MTD 731-1200

Utility Box

$

$

Not available

44

MTD 725-1430

12-V Battery (275 Cold Crank Amps)
(Superseded to 753-0608)

$

$

Not available

45

MTD 17831

Upper Frame L.H.

$

$

Currently unavailable

46

MTD 17835

Shift Cover

$

$

Currently unavailable

47

MTD 725-0759

Reverse Safety Switch
(Superseded to 753-0579)

$

$

Not available

48

MTD 726-0279

Insulator Plate

$3.99

$

In Stock, Qty 8

0

49

MTD 17951

Seat Pivot Brkt. Support L.H.
(Superseded to 17951A-0637)

Variations

MTD 17951-0637

Seat Support Bracket, LH - POWDER BLACK (0637)

$26.99

$

In Stock, only 1 left!

0

$26.99

$

In Stock, only 1 left!

0

50

MTD 17953

Hitch Plate

Variations

MTD 17953-0637

No Longer Available PLATE-HITC - POWDER BLACK (0637)

$

$

Not available

$

$

51

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

52

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

53

MTD 17239A

Seat Lift Brkt.
(Superseded to 17239C)

$

$

Not available

54

MTD 757-0350

Seat
(Superseded to 957-0350)

$588.99

$

Usually ships in 3-6 days

0

55

MTD 17950

Seat Pivot Brkt. Support R.H.
(Superseded to 17950A-0637)

Variations

MTD 17950-0637

Seat Support Bracket, RH - POWDER BLACK (0637)

$23.99

$

Usually ships in 3-6 days

0

$23.99

$

Usually ships in 3-6 days

0

56

MTD 738-0296

Shld. Bolt .437" Dia. x .268"

$4.49

$

In Stock, Qty 20+

0

57

MTD 725-1303

Spring Switch
(Superseded to 925-1303)

$6.49

$

In Stock, Qty 7

0

58

MTD 722-0160

Bushing

$

$

Not available

59

MTD 710-0650

Hex Wash. TT-Tap Scr. 5/16-18 x 718" Lg.

$3.99

$

In Stock, Qty 20+

0

60

MTD 731-0405

Snap Bushing

$

$

Not available

62

MTD 726-0222

Insulator Nut Plate
(Superseded to 926-0320)

$6.99

$

In Stock, Qty 11

0

63

MTD 725-1439

Safety Switch (Seat)

$8.49

$

In Stock, Qty 10

0

64

MTD 705-0167

Grille Mount Brkt. L.H.

$

$

Not available

65

MTD 705-0166

Grille Mount Brkt. R.H.

$

$

Not available

66

MTD 17326A

Fender

$

$

Currently unavailable

67

MTD 710-0167

Carriage Bolt 1/4-20 x .62" Lg.
(Superseded to 710-05177)

$4.99

$

In Stock, Qty 20+

0

68

MTD 725-3018

Taillight

$

$

Currently unavailable

69

MTD 710-0936

Truss Hd. AB-Tap Scr. #6 x .62" Lg.

$4.49

$

Usually ships in 3-6 days

0

70

MTD 746-0634

Throttle Wire 35" Lg.
(Superseded to 946-0634)

$11.99

$

In Stock, only 1 left!

0

71

MTD 831-0823A

Throttle Control Box Ass'y.

$32.99

$

In Stock, Qty 20+

0

72

MTD 725-1341B

Ignition Key

$10.99

$

In Stock, only 1 left!

0

73

MTD 725-1346

Ignition Switch Nut
(Superseded to 925-1346)

$

$

Not available

74

MTD 725-1347

Ignition Switch Cap

$4.99

$

In Stock, only 1 left!

0

75

MTD 725-1396

Ignition Switch
(Superseded to 925-1396A)

$43.99

$

In Stock, Qty 5

0

76

MTD 731-0932B

Hood
(Superseded to 931-1433)

Variations

MTD 731-0932B-0674

HOOD-RADIANT YELLO - YARDMAN YELLOW (0674)

$

$

Not available

MTD 731-0932B-0499

No Longer Available HOOD - CUB BEIGE (0499)

$

$

Not available

MTD 731-0932B-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

77

MTD 710-0779A

Truss Mach. AB-Tap Scr. #10 x .5" Lg.

$4.49

$

In Stock, Qty 12

0

78

MTD 725-0634

Light Switch
(Superseded to 925-0634)

$17.99

$

In Stock, only 4 left!

0

79

MTD 746-0614A

Choke Control 38" Lg.

$24.99

$

In Stock, only 1 left!

0

80

MTD 710-0642

Hex Wash. Hd. Tap Scr. 1/4 x .75" Lg .

$4.49

$

In Stock, Qty 20+

0

81

MTD 710-0599

Hex Tap Scr. 1/4-20 x .5" Lg.

$4.49

$

In Stock, Qty 20+

0

82

MTD 726-0233

Push Nut Fastener

$4.49

$

In Stock, Qty 20+

0

83

MTD 736-0176

Fl-Wash. .27" I.D. x .948"

$4.99

$

In Stock, only 4 left!

0

84

MTD 725-0925

Ammeter
(Superseded to 925-0925)

$31.99

$

In Stock, Qty 6

0

85

MTD 712-0185

Speed Nut 1/4-20 Thd.

$

$

Not available

86

MTD 731-0960

Dash Panel

$

$

Not available

87

MTD 710-0896

Hex Wash. Hd. B-Tap Scr. 1/4 x.62" Lg.

$4.49

$

In Stock, Qty 20+

0

88

MTD 16808

Hood Reinforcement

$

$

Not available

89

MTD 17761

Hood Hinge L.H.

$

$

Not available

90

MTD 17762

Hood Reinforcement Spacer

Variations

MTD 17762-0637

No Longer Available SPACER-HOO - POWDER BLACK (0637)

$

$

Not available

$

$

91

MTD 17760

Hood Hinge R.H

$

$

Not available

92

MTD 17223

Light Bracket

Variations

MTD 17223-0637

No Longer Available BRACKET-LI - POWDER BLACK (0637)

$

$

Not available

$

$

93

MTD 712-0158

Hex L-Nut 5/16-18 Thd.
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 18

0

94

MTD 712-0107

Hex L-Nut 1/4-20 Thd.
(Superseded to 912-0107)

$4.99

$

In Stock, only 1 left!

0

95

MTD 712-3007

Hex Jam Nut 5/16-18 Thd.

$6.99

$

In Stock, only 3 left!

0

96

MTD 710-3038

Hex Bolt 5/16-18 x 718" Lg.

$4.99

$

In Stock, only 3 left!

0

97

MTD 710-0351

Truss Mach. B-Tap Scr. #10 x .5" Lg.

$4.49

$

Usually ships in 3-6 days

0

98

MTD 731-0938

Side Cover R.H.

$

$

Not available

MTD 731-0943

Side Cover L.H.

Note: (Not Shown)

$

$

Not available

99

MTD 731-0935A

Grille

Variations

MTD 731-0935A-0483

No Longer Available GRILLE - CHARCOAL GRAY (0483)

$

$

Not available

MTD 731-0935A-0499

No Longer Available - CUB BEIGE (0499)

$

$

Not available

MTD 731-0935A-0629

No Longer Available GRILLE - SILVER FLAKE (0629)

$

$

Not available

MTD 731-0935A-0638

No Longer Available GRILLE-MTD - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

100

MTD 731-0949

Lens L.H.
(Superseded to 931-0949)

$

$

Not available

MTD 731-0948

Lens R.H.
(Superseded to 931-0948)

$36.99

$

In Stock, only 1 left!

0

101

MTD 725-1058A

Twist Lock Lamp Socket
(Superseded to 925-1058A)

$

$

Not available

102

MTD 725-0963

Lamp
(Superseded to 925-0963)

$7.49

$

In Stock, only 1 left!

0

103

MTD 731-0705

Headlight Housing
(Superseded to 931-0705)

$

$

Not available

104

MTD 17300D

Dash Support Brkt.

Variations

MTD 17300D-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

$

$

105

MTD 17633

Support Brkt.

$

$

Not available

106

MTD 17782

Choke Retainer

$

$

Not available

107

MTD 731-1069

7-Speed Index Brkt.
(Superseded to 931-1746)

$

$

Not available

108

MTD 736-0275

Fl-Wash. .34" I.D. x .68" O.D.

$6.99

$

Usually ships in 3-6 days

0

109

MTD 710-0258

Hex Bolt 1/4-20 x .62" Lg.
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

110

MTD 17952

Battery Tray
(Superseded to 17952A-0637)

$

$

Not available

111

MTD 748-0347

Spring Spacer
(Superseded to 748-0347A)

$

$

Not available
