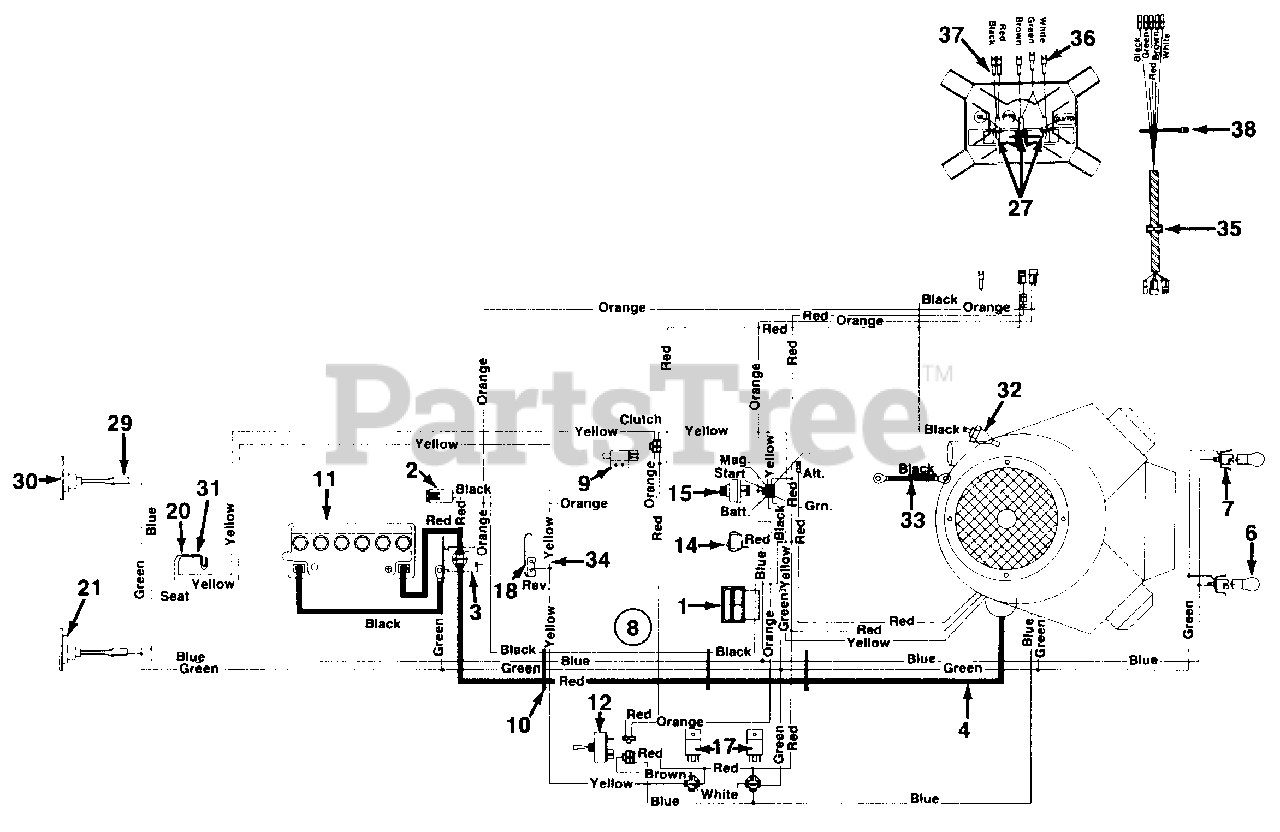

131-784G - MTD Lawn Tractor (1991) Electrical Parts Diagram

Lawn Tractor

Electrical Parts Diagram

  • Title
1

MTD 725-0925

Ammeter
(Superseded to 925-0925)

$31.99

$

In Stock, Qty 6

0

2

MTD 725-1381

Fuse 20 Amps
(Superseded to 925-1381)

$6.49

$

In Stock, Qty 11

0

3

MTD 725-1426

Solenoid
(Superseded to 925-1426A)

$26.99

$

In Stock, Qty 20+

0

4

MTD 725-1081

Wire 30" Lg.
(Superseded to 629-0740)

$20.99

$

Usually ships in 3-6 days

0

6

MTD 725-0963

Bulb
(Superseded to 925-0963)

$7.49

$

In Stock, only 1 left!

0

7

MTD 725-1058A

Socket
(Superseded to 925-1058A)

$

$

Not available

8

MTD 629-0028

Wire Harness

$

$

Not available

9

MTD 725-3169A

Safety Switch (Clutch)
(Superseded to 925-04039)

$24.99

$

In Stock, Qty 8

0

10

MTD 726-0197

Cable Tie

$3.99

$

In Stock, only 1 left!

0

11

MTD 725-1430

Battery 12V (275 Cold Crank Amps)
(Superseded to 753-0608)

$

$

Not available

12

MTD 725-0893

Switch (PTO)
(Superseded to 925-0893)

$82.99

$

In Stock, only 1 left!

0

14

MTD 725-0634

Light Switch
(Superseded to 925-0634)

$17.99

$

In Stock, only 4 left!

0

15

MTD 725-1396

Ignition Switch
(Superseded to 925-1396A)

$43.99

$

In Stock, Qty 5

0

17

MTD 725-1375

Relay
(Superseded to 925-1375)

$71.99

$

In Stock, Qty 6

0

18

MTD 725-0759

Spring Lever
(Superseded to 753-0579)

$

$

Not available

20

MTD 725-1303

Safety Switch (Seat)
(Superseded to 925-1303)

$6.49

$

In Stock, Qty 7

0

21

MTD 725-3018

Taillight

$

$

Currently unavailable

MTD 629-0047

Monitor Shaft Harness

$

$

Not available

27

MTD 725-1365

Bulb
(Superseded to 925-1365)

$10.99

$

In Stock, only 1 left!

0

29

MTD 725-1380

Taillight Harness

$

$

Not available

30

$

$

Not available

31

MTD 725-1439

Safety Switch (Seat)

$8.49

$

In Stock, Qty 10

0

32

MTD 751-0537

Oil Pressure Switch

$

$

Not available

33

MTD 725-0980

Wire 7.5" Lg.

$

$

Not available

34

MTD 725-1399

Ext. Wire

$

$

Not available

35

MTD 726-0314

Wire Clip

$

$

Not available

36

MTD 629-0044

Monitor Light Harness Dual

$

$

Currently unavailable

37

MTD 629-0045

Monitor Light Harness Single

$

$

Currently unavailable

38

MTD 726-0315

Cable Tie
(Superseded to 725-0157)

$3.99

$

In Stock, Qty 20+

0

MTD 726-0313

Cable Tie Mount

Note: (Not Shown)

$

$

Not available
