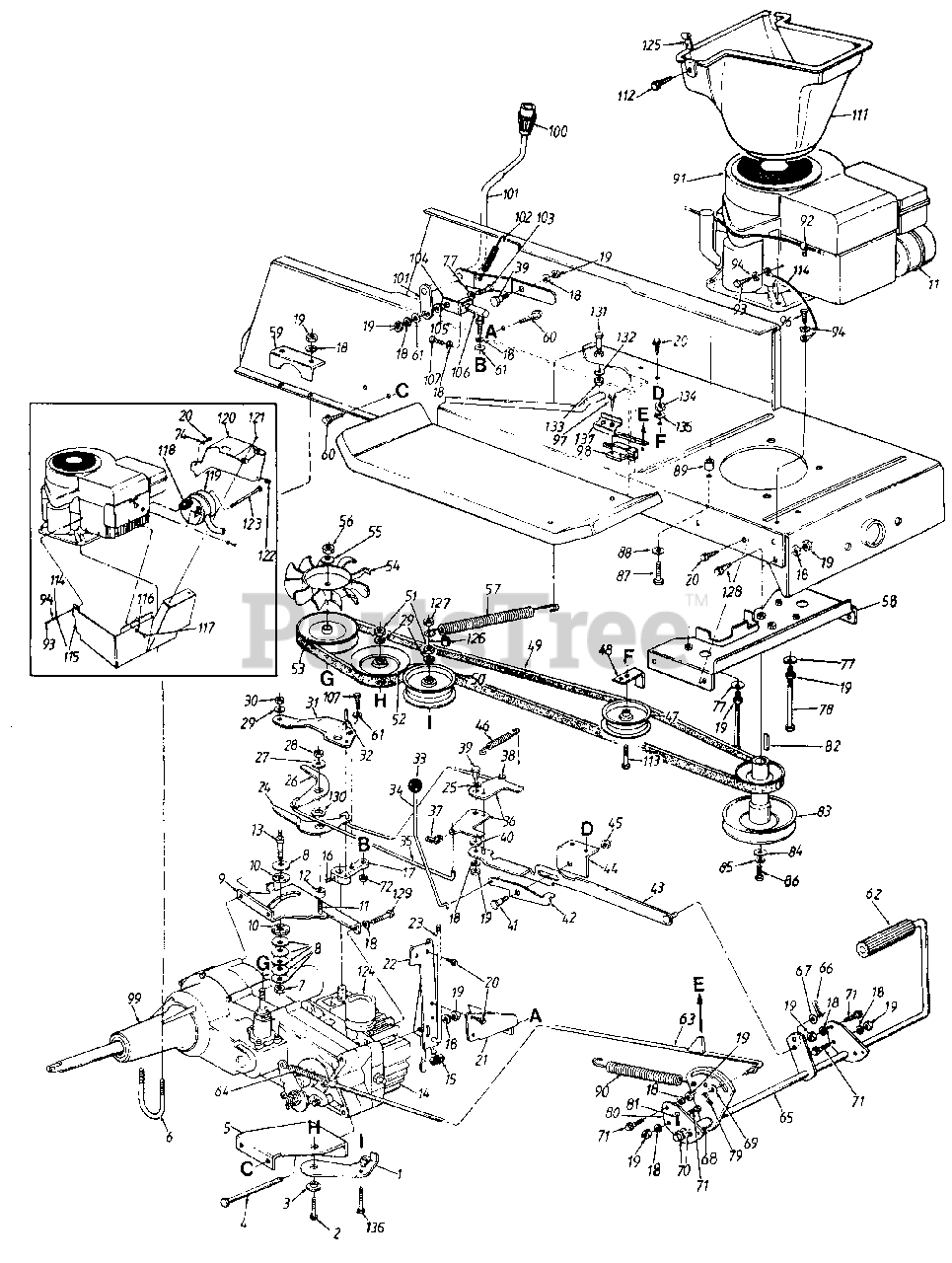

131-704F - MTD Lawn Tractor (1991) Lawn Parts Diagram

Lawn Tractor

Lawn Parts Diagram

  • Title

1

MTD 17746

Idler Bracket

$

$

Currently unavailable

2

MTD 710-0427

Hex Bolt 3/8-16 x 2.0" Lg.
(Superseded to 710-3144)

$4.49

$

In Stock, Qty 7

0

3

MTD 738-0347

Shld. Spacer .625" I.D.
(Superseded to 938-0347)

$10.99

$

Usually ships in 3-6 days

0

4

MTD 710-3195

Hex Bolt 5/16-18 x 4.5" Lg. (Grade 5)

$7.49

$

Usually ships in 3-6 days

0

5

MTD 17747

Idler Plate

$

$

Not available

6

MTD 710-3193

U-Bolt 5/16-18 x 1.75" Lg.

$

$

Not available

7

MTD 712-0116

Hex L-Nut 3/8-24 Thd.

$4.99

$

In Stock, Qty 6

0

8

MTD 736-0219

Bell-Wash. .40" I.D. x 1.13"
(Superseded to 936-0219)

$4.49

$

Usually ships in 3-6 days

0

9

MTD 17743

Mounting Bracket

$

$

Currently unavailable

10

MTD 761-0196

Friction Washer
(Superseded to 961-0196)

$9.49

$

Usually ships in 3-6 days

0

11

MTD 710-1012

Rib Neck Bolt 5/16-24 x .84" Lg.

$4.49

$

Usually ships in 3-6 days

0

12

MTD 750-0808

Spacer

$

$

Not available

13

MTD 738-0827

Axle

$

$

Not available

14

MTD 717-0940

Hydrostatic Pump

$

$

Not available

15

MTD 735-0126

Rubber Washer .33" I.D.
(Superseded to 735-0126A)

$

$

Not available

16

MTD 710-0257

Set Screw

$

$

Not available

17

MTD 748-0328A

Pintle Shift Lever

$

$

Not available

18

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 9

0

19

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

20

MTD 710-0599

Hex TT-Tap Scr. 1/4-20 x .5"

$4.49

$

In Stock, Qty 20+

0

21

MTD 17769

Reinforcement Plate

$

$

Not available

22

MTD 17744

Transmission Torque Brkt.

$

$

Not available

23

MTD 747-0764

Release Valve Rod

$

$

Not available

24

MTD 17737

Reverse Arm

$

$

Not available

25

MTD 736-0174

Spring Washer .625" I.D.

$6.99

$

In Stock, only 2 left!

0

26

MTD 17745

Forward Arm

$

$

Not available

27

MTD 736-3078

Fl-Wash. .344" I.D. x 1.0"

$4.49

$

In Stock, only 4 left!

0

28

MTD 712-0237

Hex Cent. L-Nut 5/16-24 Thd.

$4.99

$

In Stock, only 4 left!

0

29

MTD 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

30

MTD 712-0241

Hex Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 13

0

31

MTD 17765

Pintle Arm Ext. Plate

$

$

Not available

32

MTD 715-0156

Roll Pin 1/4" Dia. x .75" Lg.

$4.49

$

In Stock, only 1 left!

0

33

MTD 720-0166

Ball Knob

$

$

Not available

34

MTD 747-0601

Lock-Up Rod

$

$

Not available

35

MTD 747-0763

Connection Rod

$

$

Currently unavailable

36

MTD 17757

Balancer Bracket

$

$

Not available

37

MTD 726-0281

Rod End Clevis Clips R.H.

$

$

Not available

38

MTD 726-0280

Rod End Clevis Clips L.H.

$

$

Not available

39

MTD 738-0296

Shld. Bolt .437" Dia. x .268"

$4.49

$

In Stock, Qty 7

0

40

MTD 736-3074

Fl-Wash. .344" I.D. x 1.12"

$

$

Not available

41

MTD 738-0141

Shld. Bolt .437" Dia. x .35"
(Superseded to 938-0141)

$7.49

$

In Stock, Qty 7

0

42

MTD 17738

Lock-Up Bracket

$

$

Currently unavailable

43

MTD 17756

Neutral Return Brkt. Ass'y.

$

$

Not available

44

MTD 17755

Bracket

$

$

Not available

45

MTD 712-0158

Hex Cent. L-Nut 5/16-18 Thd.
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 13

0

46

MTD 732-0387

Ext. Spring 2.5" Lg.

$

$

Not available

47

MTD 756-0116

Idler Pulley 3.06" O.D.
(Superseded to 756-04209)

$22.99

$

In Stock, Qty 20+

0

48

MTD 13819

Clutch Idler Belt Guard

Variations

MTD 13819-0637

No Longer Available GUARD-BELT - POWDER BLACK (0637)

$

$

Not available

$

$

49

MTD 754-0372

"V"-Belt
(Superseded to 954-0372)

$66.99

$

Usually ships in 3-6 days

0

50

MTD 756-0515

Flat Idler

$

$

Not available

51

MTD 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, only 2 left!

0

52

MTD 756-0577

Idler Pulley 4.0" O.D.

$

$

Not available

53

MTD 756-0571

Transmission Pulley

$

$

Not available

54

MTD 731-1145

Hydro Fan

$

$

Not available

55

MTD 736-0427

Bell-Wash. .569" I.D. x 1.125"
(Superseded to 936-0427)

$

$

Not available

56

MTD 712-3035

Hex Jam Nut 9/16-18 Thd.

$6.99

$

Usually ships in 3-6 days

0

57

MTD 732-0641

Extension Spring

$

$

Not available

58

MTD 17893

Belt Guard Brkt. Ass'y.
(Superseded to 17893A-0637)

$

$

Not available

59

MTD 17818

Bracket

$

$

Currently unavailable

60

MTD 710-0603

Hex Wash. Hd. B-Tap Scr. 5/16-18 x .5" Lg.

$4.99

$

Usually ships in 3-6 days

0

61

MTD 736-0261

Flat Tooth Washer 5/16" I.D.
(Superseded to 736-0607)

$3.99

$

In Stock, Qty 8

0

62

MTD 735-0196

Foot Pad
(Superseded to 735-0239A)

$12.99

$

In Stock, only 1 left!

0

63

MTD 17686

Brake Rod Ass'y.

$

$

Not available

64

MTD 732-0649

Ext. Spring 3.67" Lg.

$

$

Not available

65

MTD 17715A

Clutch Brake Pedal Ass'y.

$

$

Not available

66

MTD 714-0104

Intern. Cotter Pin 5/16" Dia.

$4.49

$

In Stock, Qty 20+

0

67

MTD 736-0140

Fl-Wash. .385" I.D. x .62"

$7.49

$

In Stock, Qty 7

0

68

MTD 750-0802

Spacer.63" I.D.

$6.99

$

Usually ships in 3-6 days

0

69

MTD 736-0117

Fl-Wash. .385" I.D. x .62"
(Superseded to 936-0117)

$7.49

$

In Stock, only 1 left!

0

70

MTD 736-0256

Fl-Wash. .635" I.D. x 1.0"
(Superseded to 936-0256)

$7.49

$

Usually ships in 3-6 days

0

71

MTD 710-0650

Hex Wash. TT-Tap Scr. 5/16-18 x 7/8" Lg.

$3.99

$

In Stock, Qty 20+

0

72

MTD 712-0123

Hex Nut 5/16-24 Thd.
(Superseded to 912-3057)

$6.99

$

In Stock, only 3 left!

0

74

MTD 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

MTD 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

Usually ships in 3-6 days

0

77

MTD 736-0242

Bell-Wash. .345" I.D. x .88"

$4.49

$

In Stock, Qty 20+

0

78

MTD 710-0190

Hex Bolt 5/16-18 x 4.0" Lg.

$7.99

$

Usually ships in 3-6 days

0

79

MTD 714-0507

Cotter 3/32" Dia. x .75" Lg.

$4.49

$

In Stock, only 2 left!

0

80

MTD 15835A

Pedal Brkt.

$

$

Not available

81

MTD 714-0111

Cotter Pin 3/32" Dia. x 1.0" Lg.

$4.99

$

In Stock, Qty 13

0

82

MTD 714-0114

Sq. Key 1/4" x 2.0"
(Superseded to 914-0114)

$4.49

$

In Stock, only 1 left!

0

83

MTD 756-0562

Engine Pulley
(Superseded to 956-0562)

$

$

Not available

84

MTD 736-0322

Fl-Wash. 7/16" I.D. x 1.25"

$9.49

$

In Stock, Qty 9

0

85

MTD 736-0171

L-Wash. 7/16" I.D. (H.D.)

$4.49

$

In Stock, Qty 5

0

86

MTD 710-0757

Hex Bolt 7/16-20 x 1.5" Lg.

$9.99

$

In Stock, only 1 left!

0

87

MTD 710-1007

Hex TT-Tap Scr. 3/8-16 x 1.5"

$6.49

$

In Stock, only 1 left!

0

88

MTD 736-0247

Fl-Wash. .406" I.D. x 1.25"

$9.49

$

In Stock, Qty 16

0

89

MTD 750-0777

Spacer .38" I.D. x 1.25" O.D.

$

$

Not available

90

MTD 732-0643

Extension Spring 6.11" Lg.

$

$

Not available

91

Engine

$

$

Not available

92

MTD 726-0235

Speed Clip

$

$

Not available

93

MTD 710-0323

Truss Mach. Scr. 5/16-18 x .75" Lg.

$4.99

$

In Stock, only 2 left!

0

94

MTD 736-0607

External L-Wash. 5/16" I.D.

$3.99

$

In Stock, Qty 8

0

96

MTD 710-0726

Hex Wash. AB-Tap Scr. 5/16 x .75"

$4.49

$

In Stock, Qty 7

0

97

MTD 710-0351

Truss Mach. B-Tap Scr. #10 x .5" Lg.

$4.49

$

In Stock, only 2 left!

0

98

MTD 725-3169A

Safety Switch (Clutch)
(Superseded to 925-04039)

$24.99

$

In Stock, Qty 9

0

99

MTD 717-0950

Transaxle

$

$

Not available

100

MTD 720-0218

Shift Knob

$19.99

$

In Stock, only 1 left!

0

101

MTD 17734

Speed Selector Lever Ass'y.

$

$

Not available

102

MTD 732-0433

Ext. Spring 2.75" Lg.

$

$

Not available

103

MTD 710-0874

Hex Bolt 5/16-18 x 1.25" Lg.

$6.99

$

Usually ships in 3-6 days

0

104

MTD 17742

Connection Brkt.

$

$

Not available

105

MTD 711-0404

Shoulder Nut

$

$

Not available

106

MTD 723-3011

Ball Joint 5/16-24 Thd.
(Superseded to 923-3011)

$37.99

$

In Stock, only 1 left!

0

107

MTD 710-0157

Hex Bolt 5/16-24 x .75" Lg.

$4.49

$

In Stock, Qty 8

0

111

MTD 731-1072

Air Duct

$

$

Not available

112

MTD 710-0473

Truss Mach. Scr. #10-24 x .5"

$4.49

$

In Stock, only 2 left!

0

113

MTD 710-0539

Hex Bolt 3/8-24 x 1.75" Lg.

$4.99

$

In Stock, Qty 11

0

114

MTD 725-0980

Ground Wire 7.25" Lg.

$

$

Not available

115

MTD 16936

Muffler Heat Shield Front

$

$

Not available

116

MTD 736-0175

L-Wash. .265" I.D.
(Superseded to 936-0175)

$3.99

$

In Stock, only 3 left!

0

117

MTD 710-0294

Hex Bolt 1/4-20 x 3/8" Lg.

$3.49

$

Usually ships in 3-6 days

0

118

MTD 721-0208

Gasket
(Superseded to BS-692236)

$5.49

$

In Stock, Qty 20+

0

119

MTD 751-0465

Muffler
(Superseded to 951-0465A)

$

$

Not available

120

MTD 16935

Muffler Heat Shield L.H.
(Superseded to 683-0042A)

$

$

Not available

121

MTD 710-0224

Hex Wash. Tap Scr. #10 x .5" Lg.
(Superseded to 910-0224)

$3.99

$

In Stock, only 2 left!

0

122

MTD 712-0147

Speed Nut #10-24 Thd.

$6.99

$

Usually ships in 3-6 days

0

123

MTD 738-0636

Shld. Bolt 7/16" Dia. x 3-518"
(Superseded to 938-0636)

$

$

Not available

124

MTD 717-3049

Reservoir
(Superseded to 917-3049)

$125.99

$

Usually ships in 3-6 days

0

125

MTD 712-0147

Speed Nut #10-24 Thd.

$6.99

$

Usually ships in 3-6 days

0

126

MTD 750-0504

Spacer .375" I.D. x .503"

$

$

Currently unavailable

127

MTD 712-0266

Hex Jam Nut 3/8-16 Thd.
(Superseded to 712-0266A)

$3.99

$

In Stock, Qty 11

0

128

MTD 710-0604

Hex TT-Tap Scr. 5/16-18 x .62"
(Superseded to 710-0604A)

$4.49

$

In Stock, Qty 20+

0

129

MTD 710-0974

Hex Bolt 5/16-18 x 43/4" Lg.

$11.99

$

Usually ships in 3-6 days

0

130

MTD 736-0174

Spring Washer .625" I.D.

$6.99

$

In Stock, only 2 left!

0

131

MTD 710-0106

Hex Bolt 1/4-20 x 1.25" Lg.

$3.99

$

In Stock, only 2 left!

0

132

MTD 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

133

MTD 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

Usually ships in 3-6 days

0

134

MTD 712-0214

Hex L-Nut 3/8-24 Thd.

$6.49

$

In Stock, only 4 left!

0

135

MTD 736-0300

Fl-Wash. .385" I.D. x .87"

$4.49

$

In Stock, Qty 20+

0

136

MTD 710-0756

Hex Bolt 3/8-16 x 2.5" Lg.

$

$

Not available

137

MTD 17962

Switch Plate

$4.99

$

In Stock, only 3 left!

0
