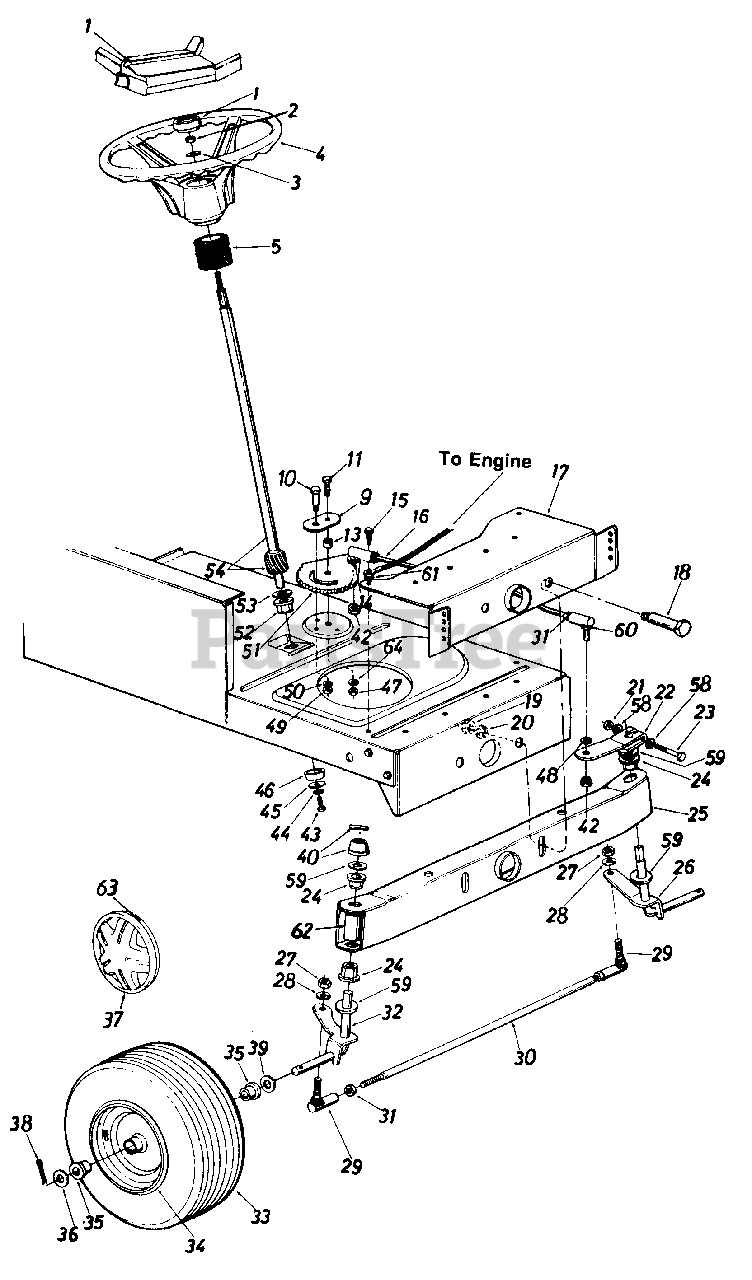

131-664G - MTD Lawn Tractor (1991) Lawn Parts Diagram

Lawn Tractor

Lawn Parts Diagram

  • Title

1

MTD 731-0220

Steering Wheel Cap
(Superseded to 931-0220)

Note: (131659F)

$9.49

$

In Stock, only 2 left!

0

MTD 731-0955

Steering Wheel Insert
(Superseded to 931-0955)

Note: (131664G)

$

$

Not available

2

MTD 712-0237

Hex L-Nut 5/16-24 Thd.

$4.99

$

In Stock, only 4 left!

0

3

MTD 736-0242

Belleville Wash. .345" I.D.

$4.49

$

In Stock, Qty 20+

0

4

MTD 731-0805

Steering Wheel
(Superseded to 931-0806A)

Note: (131659F)

$

$

Not available

MTD 731-0806A

Steering Wheel
(Superseded to 931-0806A)

Note: (131664G)

$

$

Not available

5

MTD 731-0954

Steering Bellow 9"
(Superseded to 931-0954)

$21.99

$

Usually ships in 3-6 days

0

9

MTD 17198

Retainer Plate
(Superseded to 783P08577A)

$7.49

$

In Stock, Qty 20+

0

10

MTD 738-0141

Shoulder Bolt .437" Dia. x .35 Lg. 5/16-18 Thd.
(Superseded to 938-0141)

$7.49

$

In Stock, Qty 7

0

11

MTD 710-0152

Hex Bolt 3/8-24 x 1.0" Lg. (Grade 5)
(Superseded to 710-1039)

$4.49

$

In Stock, Qty 20+

0

13

MTD 750-0535

Spacer .380" I.D. x .625" O.D. x .227
(Superseded to 950-0535)

$4.49

$

In Stock, Qty 20+

0

14

MTD 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

15

MTD 710-0726

Hex Wash. Hd. Self-Tap Scr.

$4.49

$

In Stock, Qty 20+

0

16

MTD 711-0788

Steering Drag Link

$

$

Not available

17

MTD 17621

Front Pivot Brkt.
(Superseded to 783-0041C)

$77.99

$

Usually ships in 3-6 days

0

18

MTD 738-0527

Shoulder Bolt .498" Dia. x 2.04 Lg. 3/8-16 Thd.

$8.49

$

In Stock, Qty 6

0

19

MTD 712-0798

Hex Nut 3/8-16 Thd.s

$4.49

$

In Stock, Qty 6

0

20

MTD 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

21

MTD 712-0237

Hex Cent. L-Nut 5/16-24 Thd.

$4.99

$

In Stock, only 4 left!

0

22

MTD 16481

Steering Arm Front Axle
(Superseded to 983-0055-0637)

$47.99

$

In Stock, only 1 left!

0

23

MTD 710-0772

Hex Bolt 5/16-24 x 2.00" Lg. (Grade 5)

$4.49

$

Usually ships in 3-6 days

0

24

MTD 741-0225

Hex Flg. Brg. .634 I.D.
(Superseded to 941-0225)

$7.49

$

In Stock, Qty 19

0

25

MTD 14608

Pivot Bar Ass'y.
(Superseded to 753-0642-0637)

Variations

MTD 14608-0637

Pivot Bar Kit with Flange Bearing - POWDER BLACK (0637)

$127.99

$

In Stock, only 1 left!

0

$127.99

$

In Stock, only 1 left!

0

26

Front Axle Ass'y. L.H.

$

$

Not available

27

MTD 712-0241

Hex Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 13

0

28

MTD 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

29

MTD 723-3018

Ball Joint 3/8-24 Thd.
(Superseded to 923-3018)

$16.99

$

In Stock, Qty 20+

0

30

MTD 747-0753

Tie Rod

$34.99

$

In Stock, only 1 left!

0

31

MTD 712-0711

Hex Jam Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 20+

0

32

Front Axle Ass'y. R.H.

$

$

Not available

MTD 17585

Front Axle Ass'y. L.H.
(Superseded to 97585A-0637)

Note: (131659F) w/Plastic Bearing

$

$

Not available

MTD 17753

Front Axle Ass'y. L.H.
(Superseded to 97585A-0637)

Note: (131664G) w/Bronze Brg.

$

$

Not available

MTD 17584

Front Axle Ass'y. R.H.
(Superseded to 97584A-0637)

Note: (131659F) w/Plastic Brg.

$76.99

$

In Stock, only 3 left!

0

MTD 17754

Front Axle Ass'y. R.H.
(Superseded to 97584A-0637)

Note: (131664G) w/Bronze Brg.

$76.99

$

In Stock, only 3 left!

0

33

Wheel Ass'y. Comp.

$

$

Not available

MTD 734-0863

Wheel Ass'y. Comp.
(Superseded to 634-0056B-0911)

Note: (131659F) w/Plastic Brg.

Variations

MTD 734-0863-0911

Tire and Wheel Assembly - Carlisle Gray (0911)

$249.99

$

In Stock, only 3 left!

0

MTD 734-0863-0912

Tire and Wheel Assembly - Dico Gray (0912)

$249.99

$

In Stock, only 3 left!

0

$249.99

$

In Stock, only 3 left!

0

MTD 734-1619

Wheel Ass'y. Comp.
(Superseded to 634-0056B-0911)

Note: (131664G) w/Bronze Brg.

$249.99

$

In Stock, only 3 left!

0

34

Front Wheel Rim Only

$

$

Not available

MTD 734-0997A

Rim Only
(Superseded to 753-0838-0662)

Note: (131659F) w/Plastic Brg.

$

$

Not available

MTD 734-0997A

Rim Only
(Superseded to 753-0838-0662)

Note: (131664G) w/Bronze Brg.

$

$

Not available

35

Bearing

$

$

Not available

MTD 741-0487

Bearing
(Superseded to 741-0487C)

Note: (131659F) w/Plastic Brg.

$7.49

$

Usually ships in 3-6 days

0

MTD 741-0353

Bearing

Note: (131664G) w/Bronze Brg.

$11.99

$

In Stock, Qty 20+

0

36

MTD 736-0285

Fl-Wash. .635 I.D. x 1.59" O.D.

$4.49

$

In Stock, Qty 20+

0

37

MTD 734-1612

Spoked Hub Cap

$

$

Not available

38

MTD 714-0470

Cotter Pin 1/8" Dia. x 1.25"

$4.49

$

In Stock, Qty 20+

0

39

MTD 736-0187

Fl-Wash. .640" I.D. x 1.24" O.D.

$4.49

$

In Stock, Qty 20+

0

40

MTD 726-0214

Push Cap 5/8" Dia. Rod

Note: (Used w/Plastic Wheel Brgs.)

$10.99

$

In Stock, Qty 5

0

MTD 715-0150

Spring Roll Pin

Note: (Used w/Bronze Wheel Brgs.)

$4.49

$

In Stock, Qty 12

0

42

MTD 712-0711

Hex Jam Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 20+

0

43

MTD 710-0538

Hex L-Bolt 5/16-18 x .62"

$4.49

$

In Stock, Qty 7

0

44

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

45

MTD 736-0343

Fl-Wash. .33" I.D. x 1.25" O.D.

$4.49

$

In Stock, Qty 7

0

46

MTD 750-0532

Spacer (Plastic)
(Superseded to 950-0532)

$

$

Not available

47

MTD 712-0241

Hex Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 13

0

48

MTD 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

49

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

50

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

51

MTD 717-0622

Steering Gear Segment
(Superseded to 717-0622C)

$53.99

$

In Stock, only 2 left!

0

52

MTD 741-0225

Hex Flg. Brg. .634 I.D.
(Superseded to 941-0225)

$7.49

$

In Stock, Qty 19

0

53

MTD 736-0187

Fl-Wash. (Hardened)

$4.49

$

In Stock, Qty 20+

0

54

MTD 738-0743

Steering Shaft
(Superseded to 738-0743A)

$

$

Not available

58

MTD 736-0271

Wave-Wash. .32" I.D. x .62" O.D.
(Superseded to 936-0271)

$4.49

$

In Stock, Qty 10

0

59

MTD 736-0187

Fl-Wash. (Hardened)

$4.49

$

In Stock, Qty 20+

0

60

MTD 723-3018

Drag Link Ball Joint 3/8-24 Thd.
(Superseded to 923-3018)

$16.99

$

In Stock, Qty 20+

0

61

MTD 736-0607

Ext. L-Wash. 5/16" I.D.

$3.99

$

In Stock, Qty 20+

0

62

MTD 731-1134

Plastic Tube

$

$

Currently unavailable

63

MTD 727-0425A

Spring Clip
(Superseded to 927-0425A)

Note: (Used w/Spoked Hub Cap)

$

$

Not available

64

MTD 736-0356

Bell-Wash. .39" I.D. x 1.38" O.D.
(Superseded to 936-0356)

$

$

Not available
