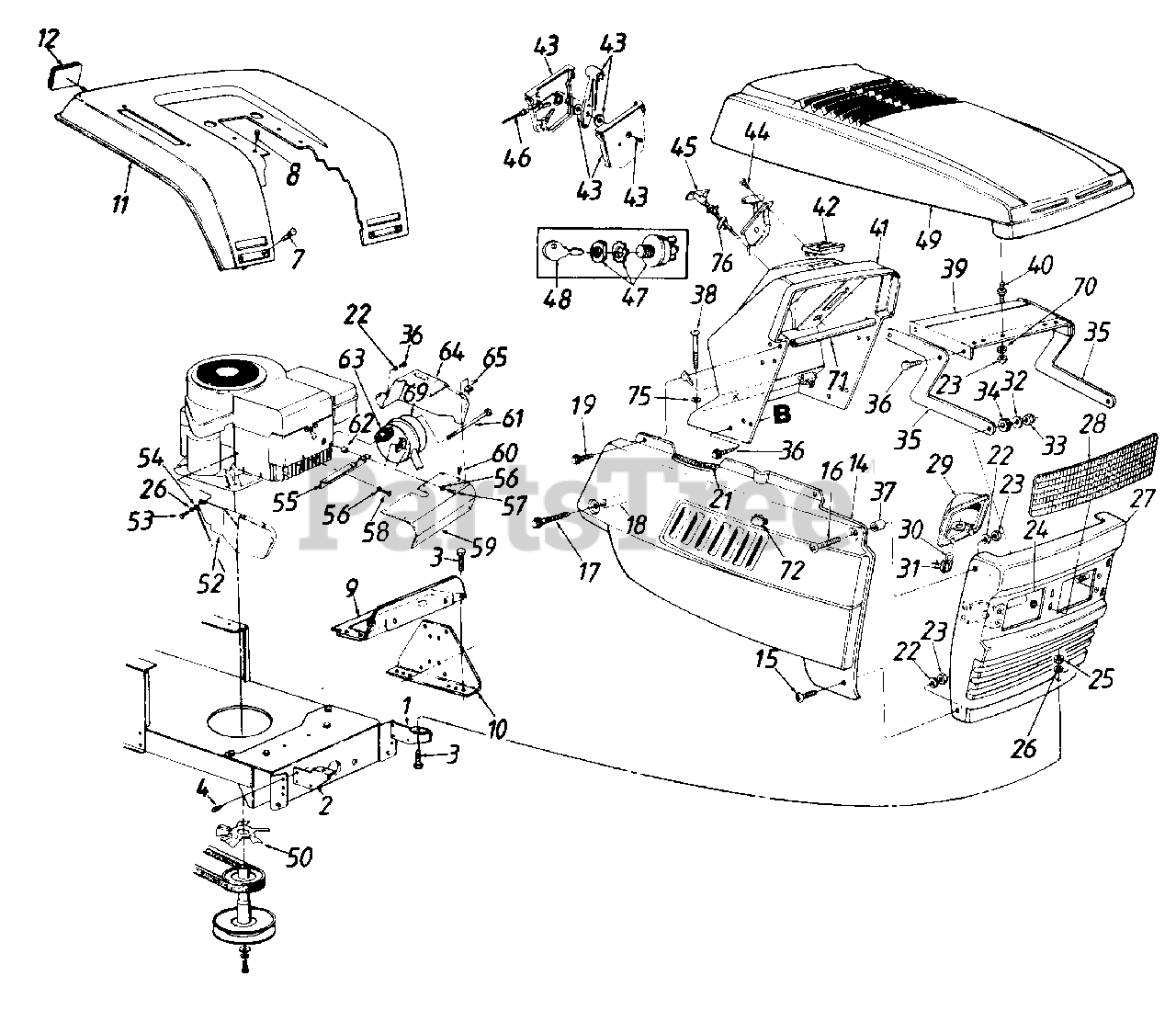

131-659F - MTD Lawn Tractor (1991) Lawn Parts Diagram

Lawn Tractor

Lawn Parts Diagram

  • Title

1

MTD 15821

Grille Mtg. Brkt. L.H.

$

$

Not available

2

MTD 15822

Grille Mtg. Brkt. R.H.

Variations

MTD 15822-0637

No Longer Available BRACKET-GR - POWDER BLACK (0637)

$

$

Not available

$

$

3

MTD 710-0118

Hex Bolt 5/16-18 x .75" Lg.
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

4

MTD 710-0607

Hex Wash. Hd. Tap Scr. 5/16-18 x .5" Lg.

$6.99

$

In Stock, Qty 11

0

7

MTD 710-0167

Carriage Bolt 1/4-20 x .5" Lg.
(Superseded to 710-05177)

$4.99

$

In Stock, Qty 20+

0

8

MTD 710-0726

Hex Wash. Hd. Tap Scr. 5/16 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

9

MTD 17633

Support Bracket

$

$

Not available

10

MTD 17300D

Dash Support Bracket

Variations

MTD 17300D-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

$

$

11

MTD 17324

Rear Fender

Variations

MTD 17324-0480

No Longer Available - BRILLIANT GREEN (0480)

$

$

Not available

MTD 17324-0483

No Longer Available - CHARCOAL GRAY (0483)

$

$

Not available

MTD 17324-0498

No Longer Available - OLD CUB YELLOW (0498)

$

$

Not available

MTD 17324-0499

No Longer Available - CUB BEIGE (0499)

$

$

Not available

MTD 17324-0629

No Longer Available - SILVER FLAKE (0629)

$

$

Not available

MTD 17324-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 17324-0648

No Longer Available - TECH GRAY (0648)

$

$

Not available

MTD 17324-0662

No Longer Available - OYSTER GRAY (0662)

$

$

Not available

MTD 17324-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

MTD 17324-0667

No Longer Available - MIDNIGHT BLUE (0667)

$

$

Not available

MTD 17324-0674

No Longer Available - YARDMAN YELLOW (0674)

$

$

Not available

MTD 17324-0685

No Longer Available - CUB BLUE (0685)

$

$

Not available

MTD 17324-0686

No Longer Available - SIMPLICITY ORANGE (0686)

$

$

Not available

$

$

12

MTD 730-3000

Reflector
(Superseded to 930-3000)

Note: (Optional)

$17.99

$

In Stock, only 2 left!

0

14

MTD 17308

Side Panel R.H.
(Superseded to 16725)

$

$

Not available

MTD 17309

Side Panel L.H.
(Superseded to 17309B)

$

$

Not available

15

MTD 710-0286

Truss Mach. Scr. 1/4-20 x .5" Lg.

$4.49

$

Usually ships in 3-6 days

0

16

MTD 710-0166

Truss Mach. Scr. 1/4-20 x 1.0" Lg.
(Superseded to 710-0166A)

$7.49

$

In Stock, only 1 left!

0

17

MTD 710-1026

Hex Wash. TT-Tap Scr. 1/4-20 x 1.75" Lg.

$6.99

$

In Stock, Qty 13

0

18

MTD 750-0768

Spacer .26" I.D. x 1.32

$

$

Not available

19

MTD 710-0642

Hex Rolling Tap Scr. 1/4-20 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

21

MTD 731-0511-12

Trim Strip 12" Lg.

$22.99

$

Usually ships in 3-6 days

0

22

MTD 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

23

MTD 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

24

MTD 726-0201

Speed Nut 5/16" Thd.

$6.99

$

Usually ships in 3-6 days

0

25

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

26

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

27

MTD 17410

Grille Ass'y.

Variations

MTD 17410-0483

No Longer Available - CHARCOAL GRAY (0483)

$

$

Not available

MTD 17410-0499

No Longer Available - CUB BEIGE (0499)

$

$

Not available

MTD 17410-0629

No Longer Available GRILLE ASM - SILVER FLAKE (0629)

$

$

Not available

MTD 17410-0638

No Longer Available GRILLE ASM - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 17410-0650

No Longer Available - RED METALLIC (0650)

$

$

Not available

MTD 17410-0662

No Longer Available - OYSTER GRAY (0662)

$

$

Not available

MTD 17410-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

MTD 17410-0667

No Longer Available GRILLE ASM - MIDNIGHT BLUE (0667)

$

$

Not available

MTD 17410-0668

No Longer Available GRILLE ASM - MOSS GREEN (0668)

$

$

Not available

MTD 17410-0671

No Longer Available GRILLE ASM - BEAVER GREEN (0671)

$

$

Not available

MTD 17410-0674

No Longer Available GRILLE ASM - YARDMAN YELLOW (0674)

$

$

Not available

MTD 17410-0677

No Longer Available GRILLE ASM - GRASS GREEN (0677)

$

$

Not available

MTD 17410-0688

No Longer Available - SPRING GREEN (0688)

$

$

Not available

MTD 17410-0691

No Longer Available GRILLE ASM - BLACK JACK (0691)

$

$

Not available

$

$

28

MTD 731-1044

Headlight Lens
(Superseded to 931-1044)

$

$

Not available

29

MTD 731-0705

Headlamp Housing
(Superseded to 931-0705)

$

$

Not available

30

MTD 725-0963

Headlamp
(Superseded to 925-0963)

$7.49

$

In Stock, only 3 left!

0

31

MTD 725-1058A

Twist Lock Lamp Socket
(Superseded to 925-1058A)

$

$

Not available

32

MTD 736-0242

Bell-Wash. .345" I.D. x .88"

$4.49

$

In Stock, Qty 20+

0

33

MTD 712-0429

Hex L-Nut 5/16-18 Thd.

$4.49

$

In Stock, Qty 20+

0

34

MTD 735-0126

Rubber Washer
(Superseded to 735-0126A)

$

$

Not available

35

MTD 17273

Hood Hinge

$

$

Not available

36

MTD 710-0599

Hex Wash. Hd. B-Tap Scr. 1/4-20 x .5" Lg.

$4.49

$

In Stock, Qty 20+

0

37

MTD 750-0218

Spacer .262" I.D. x .31"
(Superseded to 950-0218)

$

$

Not available

38

MTD 710-0111

Carriage Bolt 1/4-20 x 1.25" Lg.

$3.99

$

Usually ships in 3-6 days

0

39

MTD 16903

Hood Plate

$

$

Not available

40

MTD 710-1034

Double Ended Stud 1/4-20 Thd.

$

$

Not available

41

MTD 731-1048

Dash
(Superseded to 931-1048B)

$158.99

$

Usually ships in 3-6 days

0

42

MTD 725-0925

Ammeter
(Superseded to 925-0925)

$31.99

$

In Stock, Qty 6

0

43

MTD 831-0823A

Throttle Control Box Ass'y.

$32.99

$

In Stock, Qty 20+

0

44

MTD 710-0919

Mach. Scr. #10 x .44" Lg.

$4.99

$

In Stock, Qty 8

0

45

MTD 746-0616A

Choke Control
(Superseded to 946-0616A)

$26.99

$

In Stock, Qty 5

0

46

MTD 746-0501

Throttle Control Wire

$17.99

$

In Stock, only 1 left!

0

47

MTD 725-0267

Ignition Switch
(Superseded to 925-0267B)

$35.99

$

In Stock, Qty 20+

0

48

MTD 725-0201

Ignition Key
(Superseded to 925-0201)

$9.49

$

In Stock, only 1 left!

0

49

MTD 731-1054

Hood

$

$

Currently unavailable

50

MTD 17199

Cooling Fan
(Superseded to 17199-0637)

Variations

MTD 17199-0637

Cooling Fan - POWDER BLACK (0637)

$90.99

$

Usually ships in 3-6 days

0

$90.99

$

Usually ships in 3-6 days

0

52

MTD 16811

Muffler Heat Shield R.H.

$

$

Not available

53

MTD 710-0323

Truss Mach. Scr. 5/16-18 x .75" Lg.

$4.99

$

In Stock, only 2 left!

0

54

MTD 725-0980

Ground Wire

$

$

Not available

55

MTD 16813

Heat Shield Bracket

$

$

Not available

56

MTD 736-0175

Spr. Wash. 1/4" I.D.
(Superseded to 936-0175)

$3.99

$

In Stock, only 3 left!

0

57

MTD 710-0252

Hex Bolt 1/4-20 x .85" Lg.
(Superseded to 710-3015)

$3.99

$

In Stock, Qty 20+

0

58

MTD 710-0294

Hex Bolt 1/4-20 x 3/8" Lg.

$3.49

$

Usually ships in 3-6 days

0

59

MTD 16812

Muffler Heat Shield Front

$

$

Not available

60

MTD 710-0224

Hex AB-Tap Scr. #10 x .5" Lg.
(Superseded to 910-0224)

$3.99

$

In Stock, Qty 20+

0

61

MTD 738-0636

Shoulder Bolt
(Superseded to 938-0636)

$

$

Not available

62

MTD 750-0709

Spacer

$

$

Not available

63

MTD 721-0208

Exhaust Gasket
(Superseded to BS-692236)

$5.49

$

In Stock, Qty 20+

0

64

MTD 16801

Muffler Heat Shield L.H.

$

$

Not available

65

MTD 712-0147

Speed Nut #10-24 Thd.

$6.99

$

Usually ships in 3-6 days

0

69

MTD 751-0465

Muffler
(Superseded to 951-0465A)

$

$

Not available

70

MTD 736-0270

Bell-Wash. .265" I.D. x .75"

$3.99

$

In Stock, Qty 20+

0

71

MTD 749-0814

Grille Support Tube

$

$

Not available

72

MTD 726-0152

Mounting Clamp

$

$

Not available

75

MTD 726-0233

Retaining Nut

$4.49

$

In Stock, Qty 20+

0

76

MTD 17782

Choke Retainer

$

$

Not available
