130G66-0241-H7 - Briggs & Stratton Horizontal Engine Crankcase Cover/Sump and Lubrication Group Parts Diagram

Horizontal Engine

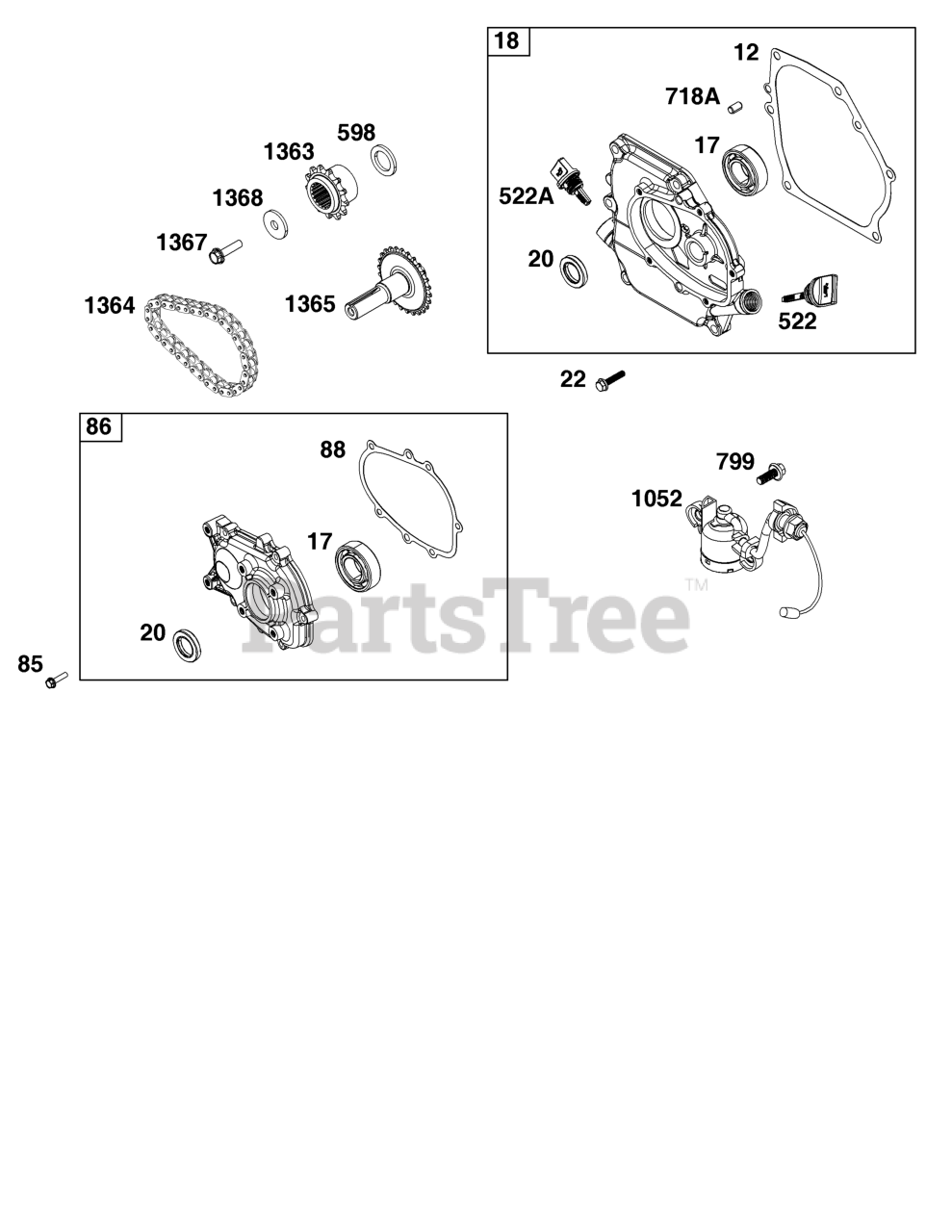

Crankcase Cover/Sump and Lubrication Group Parts Diagram

  • Title

12

Briggs & Stratton 590608

GASKET, Crankcase

$10.99

$

In Stock, Qty 18

0

17

BEARING, Ball

Note: (Part information located in Cylinder Group.)

$

$

Not available

18

Briggs & Stratton 597545

COVER, Crankcase

$114.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 590712

SEAL, Oil

Note: (PTO Side)

$12.99

$

In Stock, only 2 left!

0

22

Briggs & Stratton 590714

SCREW

Note: (Crankcase Cover/Sump)

$3.99

$

Usually ships in 2-12 days

0

85

Briggs & Stratton 807421

SCREW

Note: (Gear Cover)

$3.49

$

Usually ships in 2-12 days

0

86

Briggs & Stratton 595449

COVER, Gear

$55.99

$

Usually ships in 2-12 days

0

88

Briggs & Stratton 595445

GASKET, Gear Cover/Housing

$15.99

$

Usually ships in 2-12 days

0

522

Briggs & Stratton 597546

PLUG, Dipstick/Fill

$

$

Currently unavailable

522A

Briggs & Stratton 798503

PLUG, Dipstick/Fill

$8.99

$

Usually ships in 2-12 days

0

598

SHIM, End Play

Note: (Part information located in Crankshaft Group.)

$

$

Not available

718A

Briggs & Stratton 590713

PIN, Locating

$6.99

$

Usually ships in 2-12 days

0

799

Briggs & Stratton 590703

SCREW

Note: (Oil Sensor)

$3.49

$

Usually ships in 2-12 days

0

1052

Briggs & Stratton 590671

SENSOR, Oil

$56.99

$

Usually ships in 2-12 days

0

1363

Briggs & Stratton 595446

SPROCKET, Gear Reduction

$17.99

$

Usually ships in 2-12 days

0

1364

Briggs & Stratton 595447

CHAIN, Gear Reduction

$70.99

$

Usually ships in 2-12 days

0

1365

Briggs & Stratton 595448

SHAFT, Output Gear Reduction

$58.99

$

Usually ships in 2-12 days

0

1367

Briggs & Stratton 596202

SCREW

Note: (Gear Reduction Sprocket)

$3.99

$

Usually ships in 2-12 days

0

1368

Briggs & Stratton 595450

WASHER

Note: (Gear Reduction Sprocket)

$5.49

$

Usually ships in 2-12 days

0
