130G37-0253-H1 - Briggs & Stratton Horizontal Engine Crankcase Cover/Sump and Lubrication Group Parts Diagram

Horizontal Engine

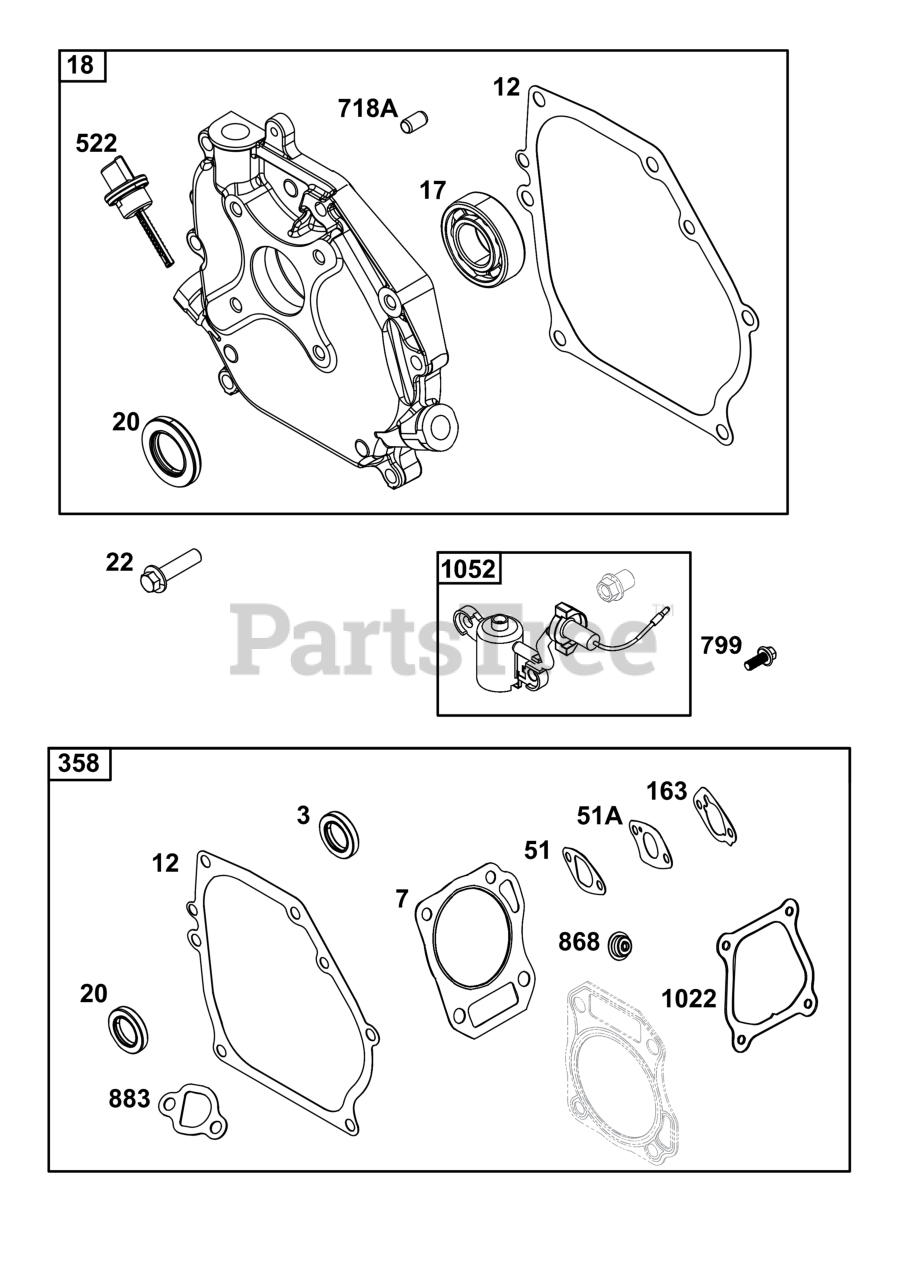

Crankcase Cover/Sump and Lubrication Group Parts Diagram

  • Title

3

SEAL, Oil

Note: (Part information located in Cylinder Group.)

$

$

Not available

7

GASKET, Cylinder Head

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

12

Briggs & Stratton 590608

GASKET, Crankcase

$10.99

$

In Stock, Qty 18

0

17

BEARING, Ball

Note: (Part information located in Cylinder Group.)

$

$

Not available

18

Briggs & Stratton 593074

COVER, Crankcase

$109.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 590712

SEAL, Oil

Note: (PTO Side)

$12.99

$

In Stock, only 2 left!

0

22

Briggs & Stratton 590714

SCREW

Note: (Crankcase Cover/Sump)

$3.99

$

Usually ships in 2-12 days

0

51

GASKET, Intake

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

51A

GASKET, Intake

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

163

GASKET, Air Cleaner

Note: (Part information located in Carburetor Group.)

$

$

Not available

358

GASKET SET, Engine

Note: (Part information located in Cylinder Group.)

$

$

Not available

522

Briggs & Stratton 590716

PLUG, Dipstick/Fill

$8.99

$

In Stock, only 1 left!

0

718A

Briggs & Stratton 590713

PIN, Locating

$6.99

$

Usually ships in 2-12 days

0

799

Briggs & Stratton 590703

SCREW

Note: (Oil Sensor)

$3.49

$

Usually ships in 2-12 days

0

868

SEAL, Valve

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

883

GASKET, Exhaust

Note: (Part information located in Exhaust Group.)

$

$

Not available

1022

GASKET, Rocker Cover

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

1052

Briggs & Stratton 590671

SENSOR, Oil

$56.99

$

Usually ships in 2-12 days

0
